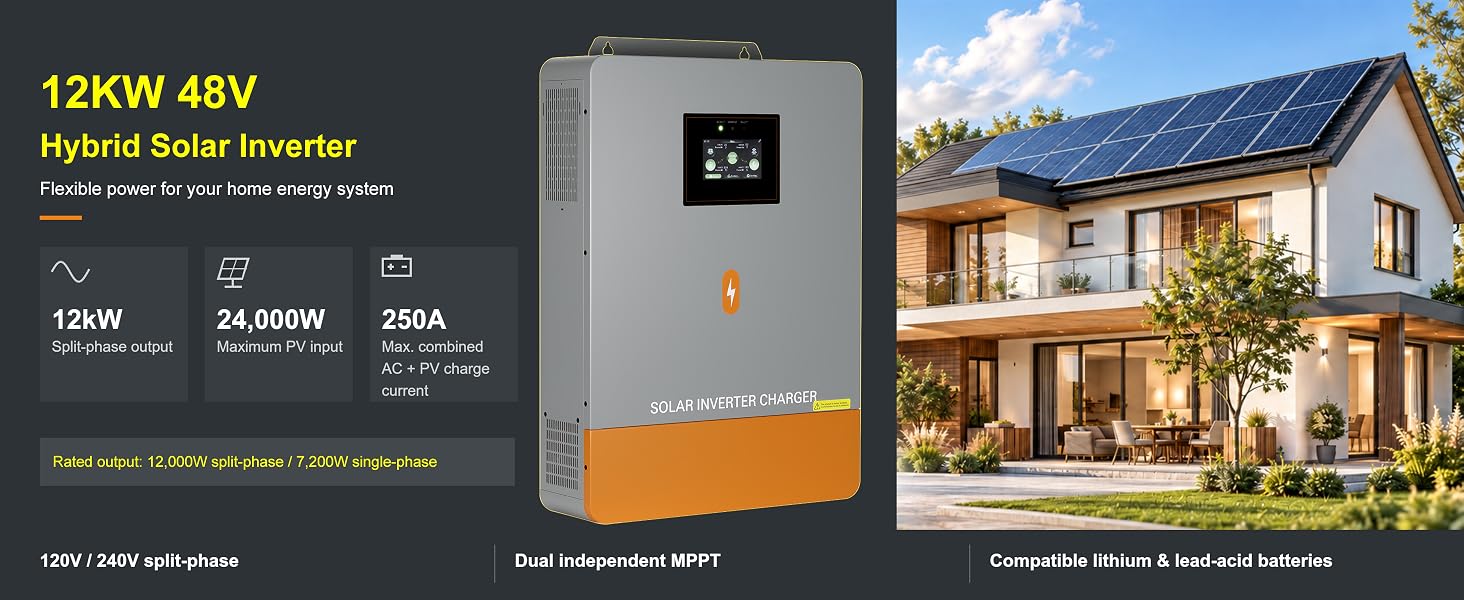

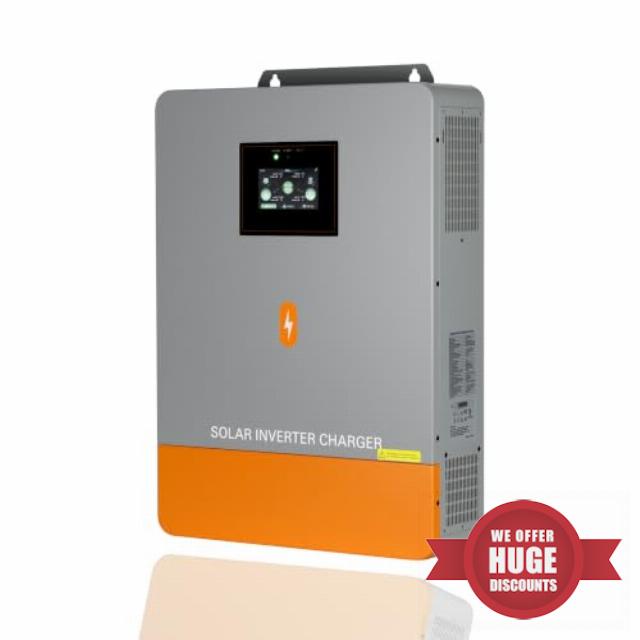

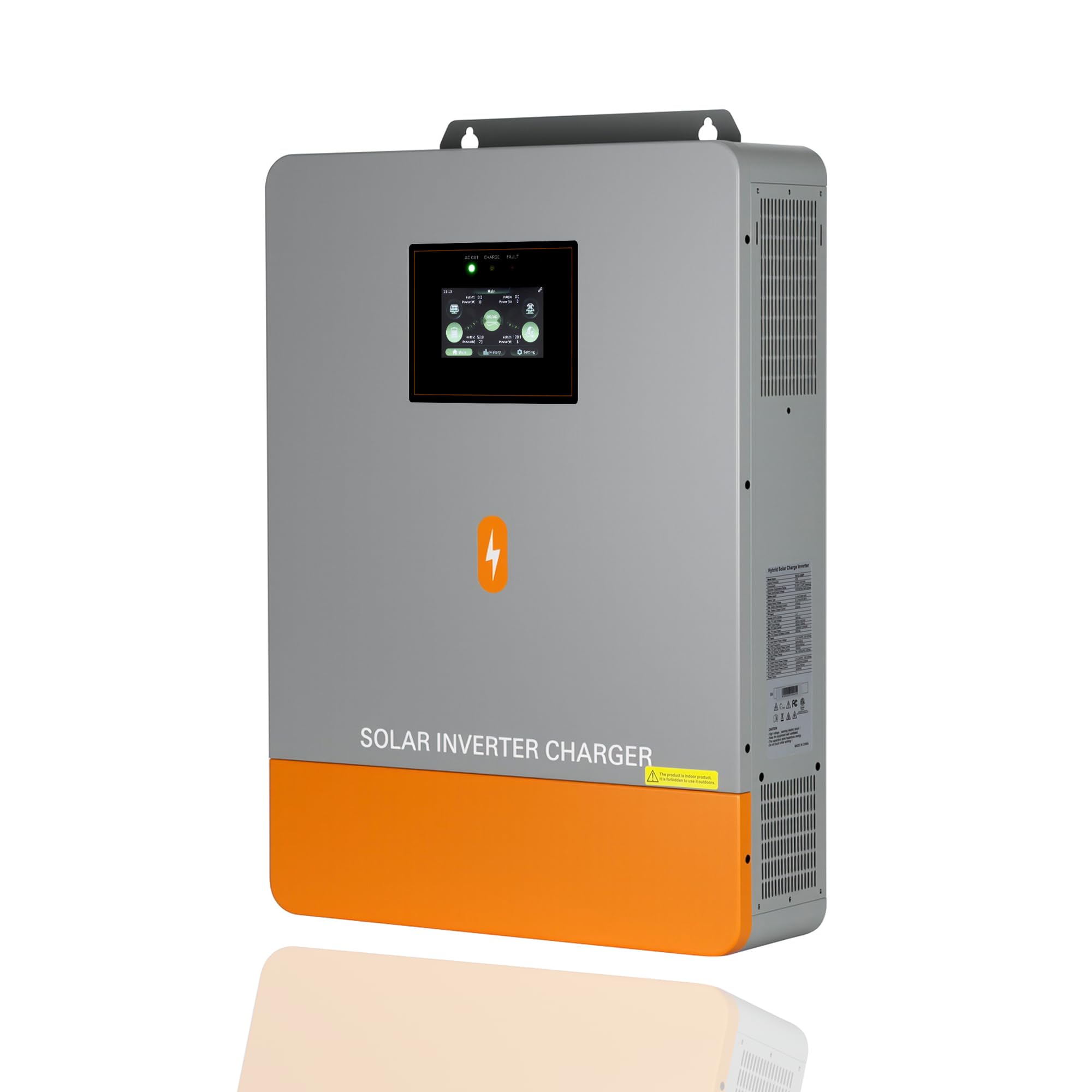

PowMr 12000W Hybrid Solar Inverter, 48V to 110V/240V Split Phase, Pure Sine Wave, Dual MPPT, 250A Max Charging, 24kW PV Input, 500V DC Max PV Voltage, Up 6-Unit Parallel, Lithium/Lead-Acid Batteries

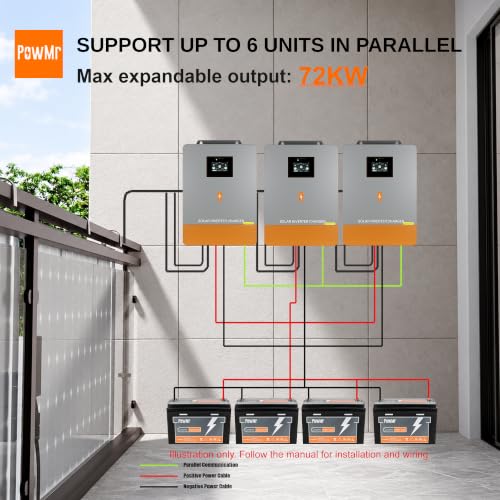

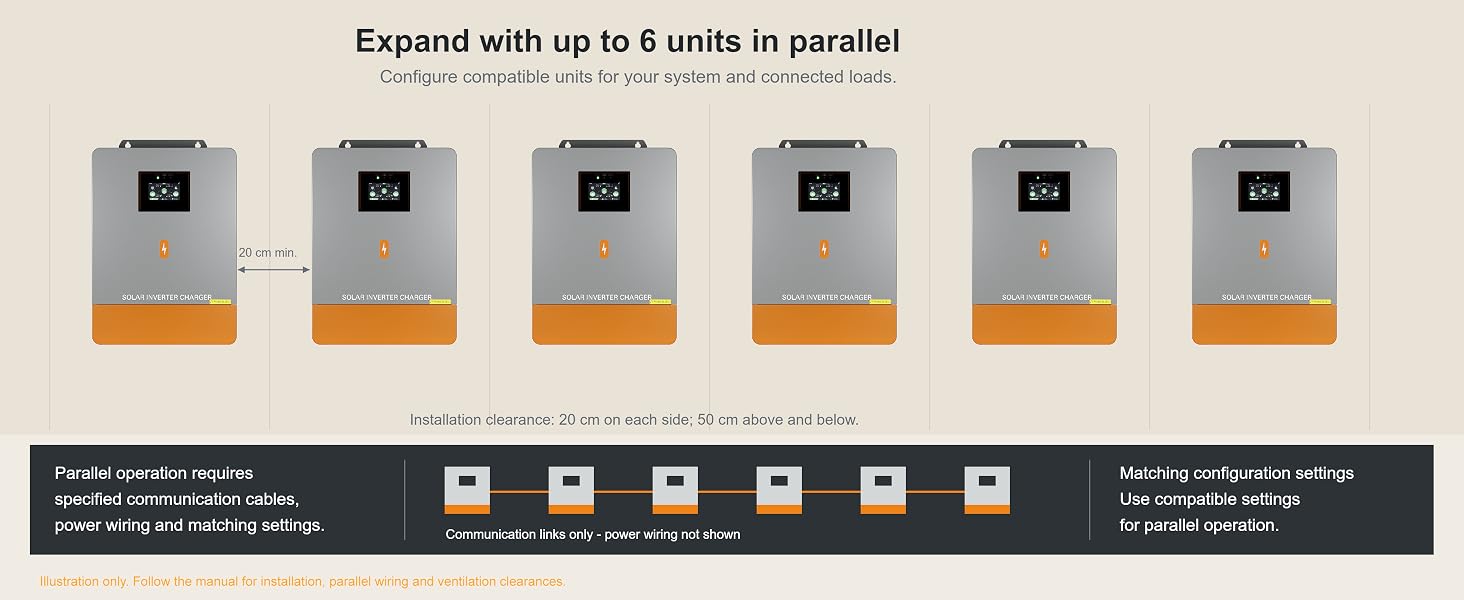

• 【New Version 12KW Split Phase & 6-Unit Parallel Expansion】 Delivers 12,000W of pure sine wave power in 120V/240V split-phase mode or 7,200W in 120V single-phase mode. Supports parallel operation of up to 6 compatible units with the required parallel connections and settings. Select the output configuration to match your home power system and connected loads

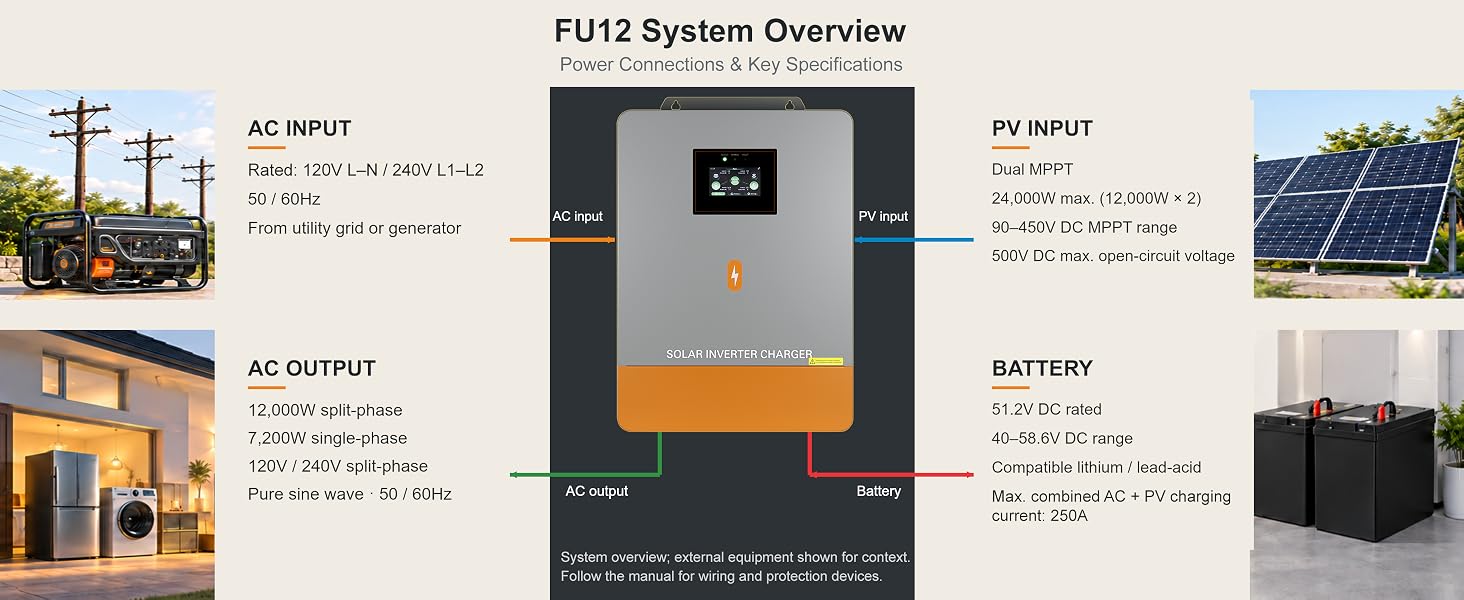

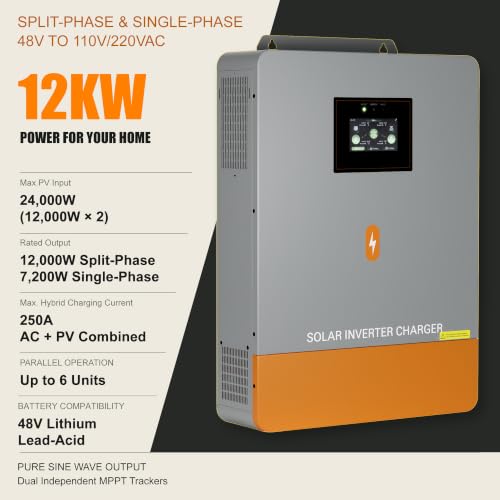

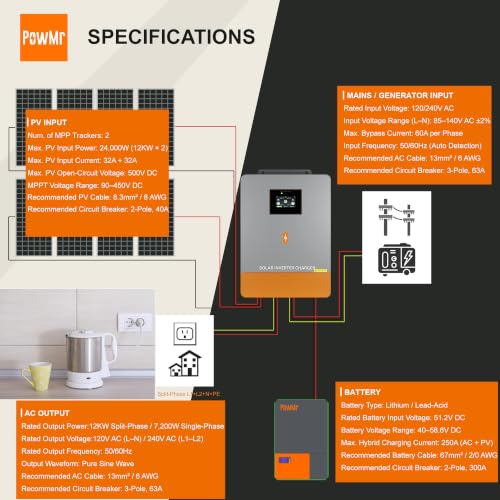

• 【Specifications】 Rated output: 12,000W split-phase / 7,200W single-phase; default AC output: 120V/240V split-phase or 120V single-phase, 50/60Hz. Dual MPPT supports up to 24,000W PV input (12,000W × 2), a 90–450V DC MPPT range and 500V DC maximum PV open-circuit voltage. Maximum combined AC + PV charging current: 250A. Rated battery input: 51.2V DC; battery operating range: 40–58.6V DC. Supports compatible lithium and lead-acid batteries

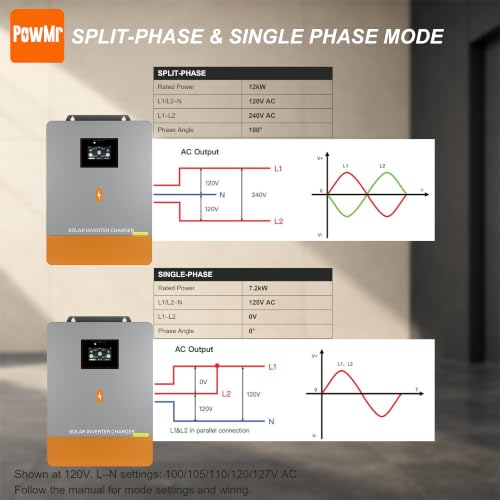

• 【Split-Phase Pure Sine Wave Output】 Delivers 12,000W in 120V/240V split-phase mode or 7,200W in 120V single-phase mode. Selectable L–N output voltages: 100/105/110/120/127V AC, with 120V as the default. In 180° split-phase mode, the default L1–L2 voltage is 240V AC. Rated output power is reduced at lower voltage settings
• 【Indoor Installation & Built-In Protection】 Designed for indoor wall mounting, with variable-speed fan cooling and protection against overload, output short circuits, and battery overvoltage and undervoltage. Measures 620 × 450 × 132mm and weighs 23.8kg. Follow the manual for installation, wiring and ventilation clearances

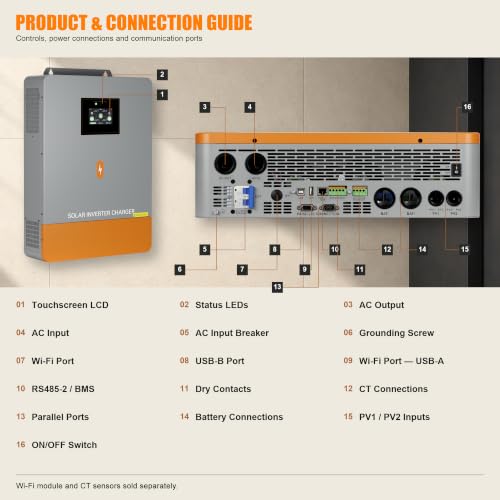

• 【Touchscreen Control & Communication】 View system operating data and adjust settings through the touchscreen LCD. Schedule battery charging and discharging periods to suit your energy needs. USB supports PC communication, while RS485-2/BMS enables communication with compatible lithium batteries. Wi-Fi monitoring requires an optional module

---
