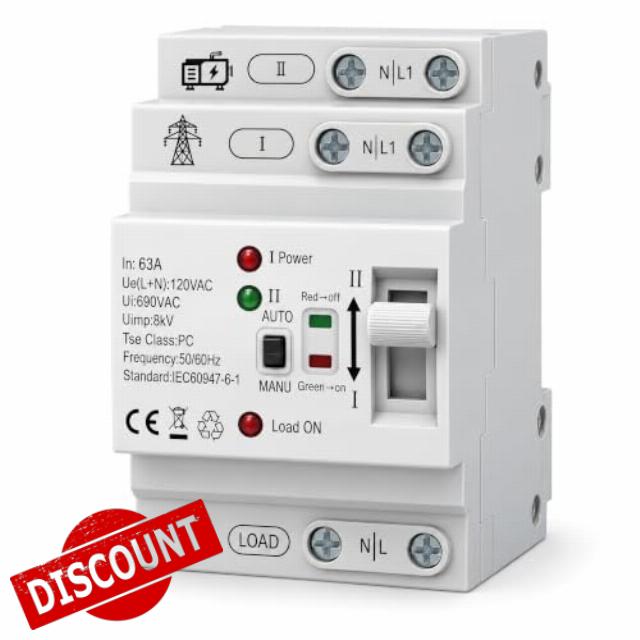

Mini ATS AC Automatic/Manual Transfer Switch 2P 63A 110V ATS Manual Transfer for Uninterruptible Power Supply Home, Dual Auto Power Electrical Selector Switch DIN Rail Mou

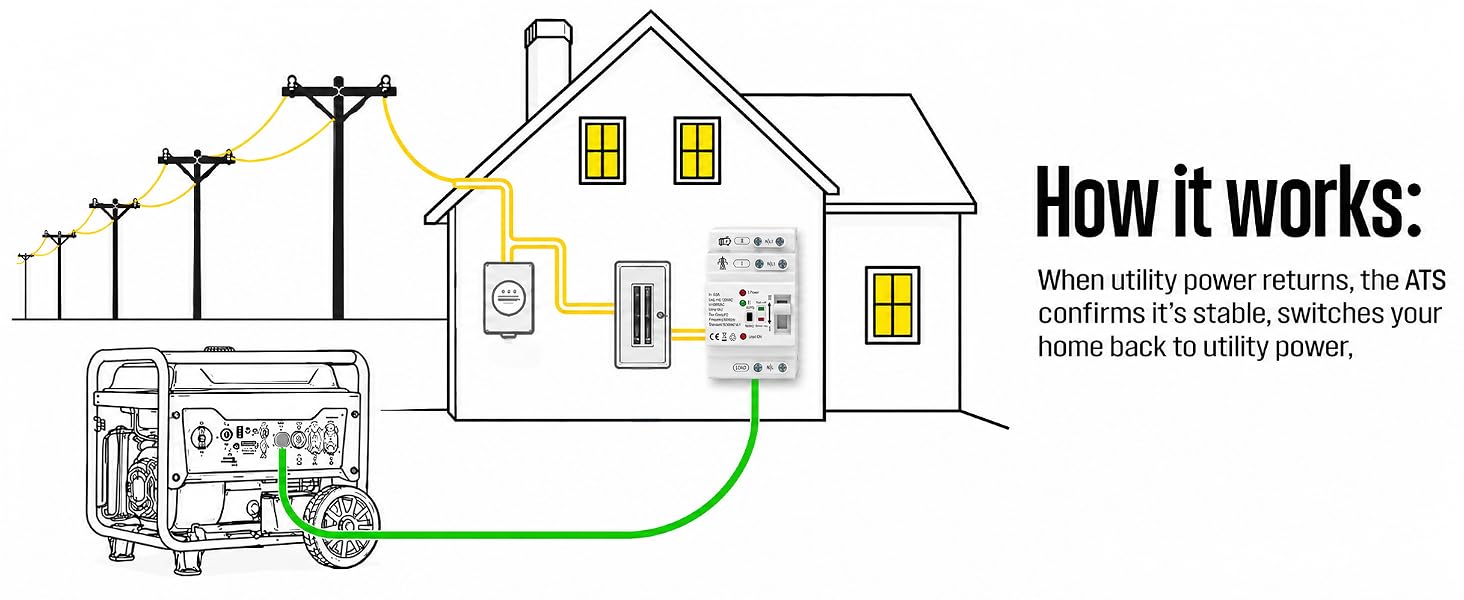

• AUTOMATIC & MANUAL DUAL-POWER TRANSFER: This 2-pole ATS automatically or manually switches between two AC power sources, such as utility power and a generator or inverter. When the primary power supply fails or becomes abnormal, the switch transfers to the backup source within 0.02 seconds. Once the primary source returns to normal, it automatically switches back for reliable power continuity.

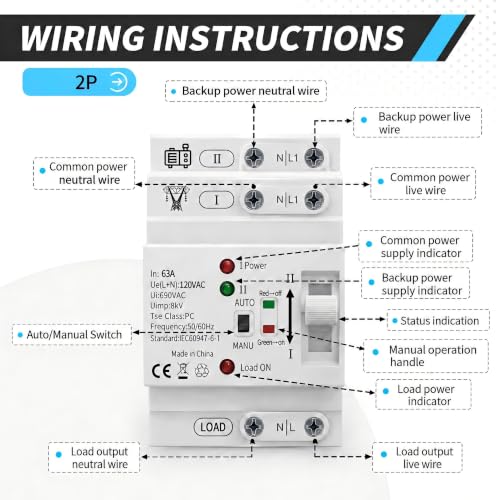

• SIMPLE AUTOMATIC OPERATION: For automatic operation, set the left selector to “AUTO” and the right handle to Position “Ⅰ.” When Source Ⅰ is operating normally, the green “ⅠU” indicator remains illuminated. If Source Ⅰ becomes abnormal, the ATS automatically transfers to Source Ⅱ within 0.05 seconds, and the red “ⅡU” indicator illuminates. It automatically returns to Source Ⅰ after normal power is restored.
• FLEXIBLE MANUAL CONTROL: For manual operation, set the left selector to “MANUAL,” then use the right handle to select Source Ⅰ or Source Ⅱ. The corresponding green “ⅠU” or red “ⅡU” indicator clearly shows which power source is currently supplying the load—ideal for maintenance, testing or situations requiring direct control.
• OVER-VOLTAGE & UNDER-VOLTAGE PROTECTION: Designed for 110V AC, 50/60Hz dual-power systems with a rated current range of 63A. Protection parameters: 85V under-voltage cutoff, 95V recovery voltage, 145V over-voltage cutoff and 130V recovery voltage, with a ±5V tolerance. Compatible with standard PZ30/DIN-rail distribution boxes. Select the appropriate current rating for your electrical system.
• DURABLE CONSTRUCTION & WIDE APPLICATION: Made from durable PA6 material for reliable electrical insulation and long-term use. Suitable for homes, RVs, solar inverter systems, generators, cold-storage equipment, server rooms and emergency backup-power applications. Includes a 3-year warranty; please contact us if you need assistance with installation or

---
