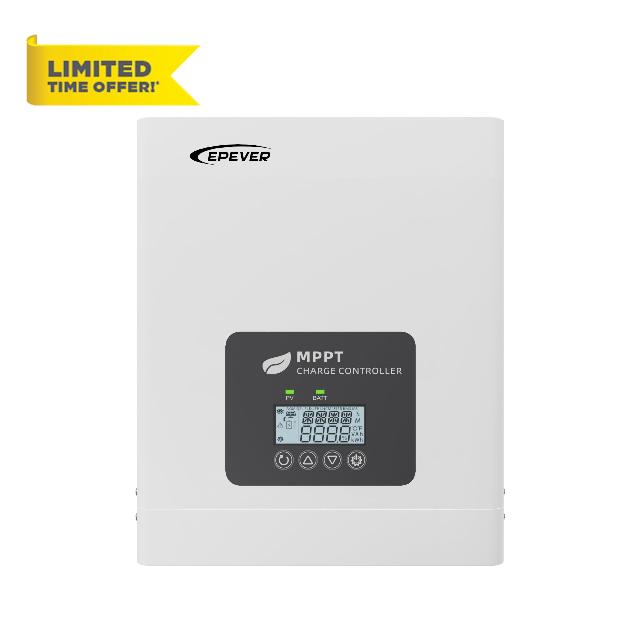

EPEVER 120A MPPT Solar Charge Controller, Dual PV Input 250V 12V/24V/48V Auto 6240W Off-Grid, for LiFePO4 NCM AGM Gel Flooded, RS485 BMS CAN Parallel, TEP12425A

• 1) 120A dual MPPT, up to 6240W on 48V Two independent MPPT trackers share 120A total charge current. Delivers up to 1560W on 12V, 3120W on 24V, and 6240W on 48V. MPPT tracking ≥99.5% and high DC/DC conversion efficiency recover more energy in cloudy, partial-shade and seasonal-angle conditions than PWM.

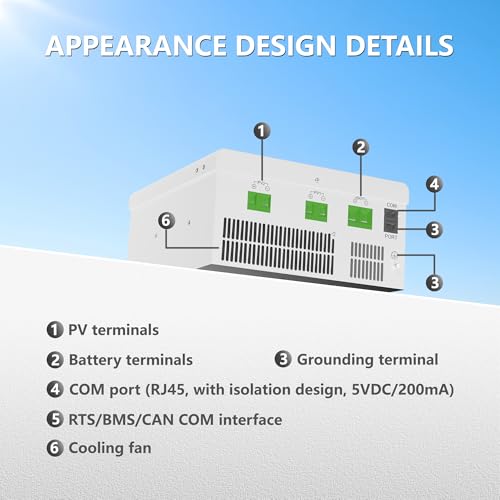

• 2) Dual PV input, 250V per string, own MPPT each Two PV terminals (PV1/PV2); each runs its own MPPT. Max PV open circuit 225V at 25℃ and 250V at lowest site temperature per input. MPPT operating range >20V and ≥ battery voltage +2V up to 180V at 25℃ per tracker. Size every string by panel Voc temperature coefficient; do not mix two arrays into one terminal and call it dual MPPT.
• 3) 12/24/48V auto, lithium and lead-acid ready Auto-recognizes 12/24/48V battery bank. AGM default, plus GEL, flooded and USER lead-acid with configurable bulk/float/equalization. Lithium LFP/NCM/USER profiles supported; BMS communication through the multi-function port or BMS-Link, RTS temperature sensor for non-BMS setups, and no-battery mode for direct inverter connection per manual.

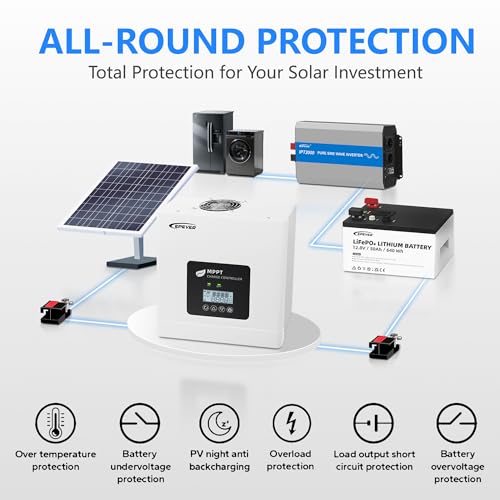

• 4) Full protection with high-temp power derating PV overvoltage/reverse/short, battery overcharge/overdischarge/overcurrent, night back-feed and internal over-temperature protection. Automatic charging power reduction above 45℃ and staged reduction as internal temperature rises, stopping near 85℃ then resuming when cooled. IP20 for indoor or protected enclosure only—not waterproof.

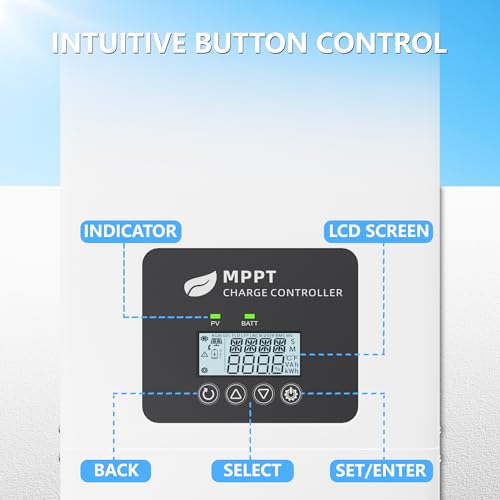

• 5) RS485 monitoring and CAN parallel up to 6 units RS485 RJ45 for PC setting/logging; optional WiFi, Bluetooth, TCP or 4G for remote app monitoring. Built-in CAN parallel port links up to 6 same-model TEP12425A units for larger charge current—set address, baud and parallel current limit on LCD. LCD shows PV1/PV2 voltage/current/power/energy, battery voltage/current/SOC/temperature and fault codes.

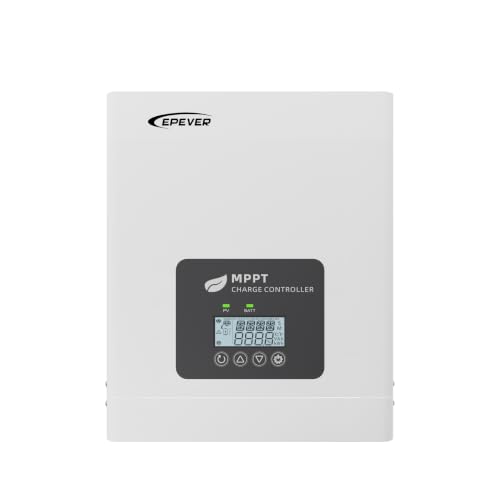

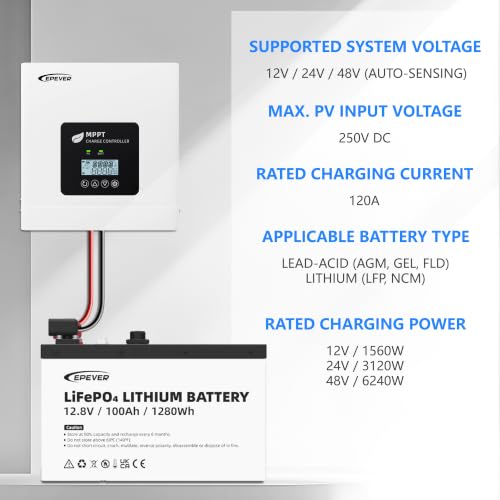

EPEVER TEP12425A 120A Dual MPPT Solar Charge Controller — Dual PV 250V, 12/24/48V Auto, 6240W Max Two independent MPPT channels, 120A total charge current. Auto 12V/24V/48V battery recognition; up to 1560W on 12V, 3120W on 24V, 6240W on 48V. MPPT tracking efficiency ≥99.5% for stable harvesting in changing sunlight, partial shade and different panel orientations. Key specs: Dual PV inputs PV1/PV2, each with independent MPPT Rated charge current: 120A total Max PV open circuit: 225V at 25℃, 250V at lowest site temperature per input MPPT range per tracker:>20V and ≥ battery voltage +2V up to 180V at 25℃ Battery voltage: 12/24/48V auto; output range 8–62V Tracking ≥99.5%; high conversion efficiency for reduced thermal loss IP20, indoor/protected enclosure only; -25 to 60℃ operating, derating above 45℃ CAN parallel ready, RS485 remote ready Battery support: AGM default; GEL, flooded, USER lead-acid with adjustable bulk/float/equalization. LFP and NCM lithium profiles, including USER; BMS communication via multi-function port or BMS-Link, RTS-D47K temperature sensing when no BMS. Three-stage charging extends battery life; no-battery mode supported for inverter-only loads per manual. Reliability: PV overvoltage, reverse polarity and short-circuit protection; battery overvoltage, overdischarge, overcurrent and low-voltage disconnect; night reverse-charging block; internal over-temperature protection with automatic high-temp power reduction and restart after cooldown. Two-compartment layout separates electronics from cooling airflow for better dust control. Monitoring and expansion: RS485 RJ45 for PC software, data log and parameter setting. Optional WiFi/Bluetooth/TCP/4G modules for remote monitoring. CAN port parallels up to 6 same-model units; set unit address, baud rate and parallel max charging current on the LCD. Real-time screens show PV1/PV2 input data, battery voltage/current/power/SOC/temperature and fault codes. Installation notes: IP20 only—mount indoors or in a weather-protected enclosure, never in rain, humidity, salt spray or corrosive areas. Leave ≥150mm clearance above and below for convection. Use external fuses/breakers on PV and battery per local code. Calculate lowest-temperature string Voc by panel temperature coefficient and keep each PV input under 250V. Connect ground, battery, then PV; disconnect in reverse order. Use cases: Large RV, boat, cabin, tiny home, farm pump, telecom site and small/medium off-grid solar where two separate panel strings or different roof orientations feed one 120A charger.
