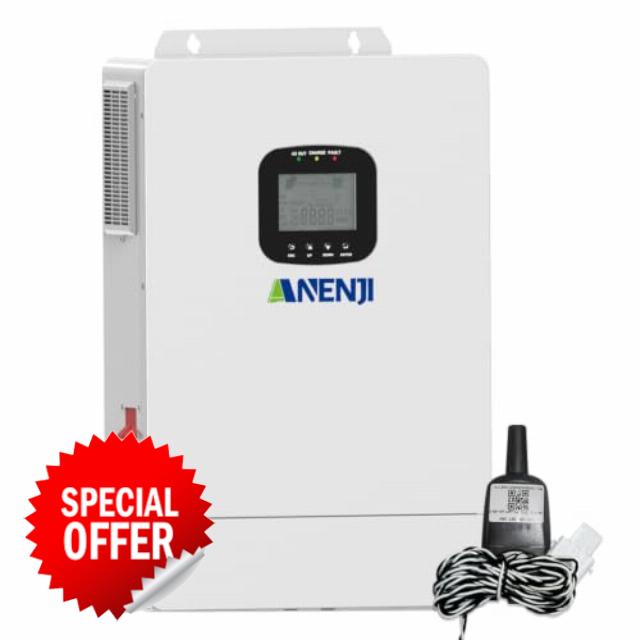

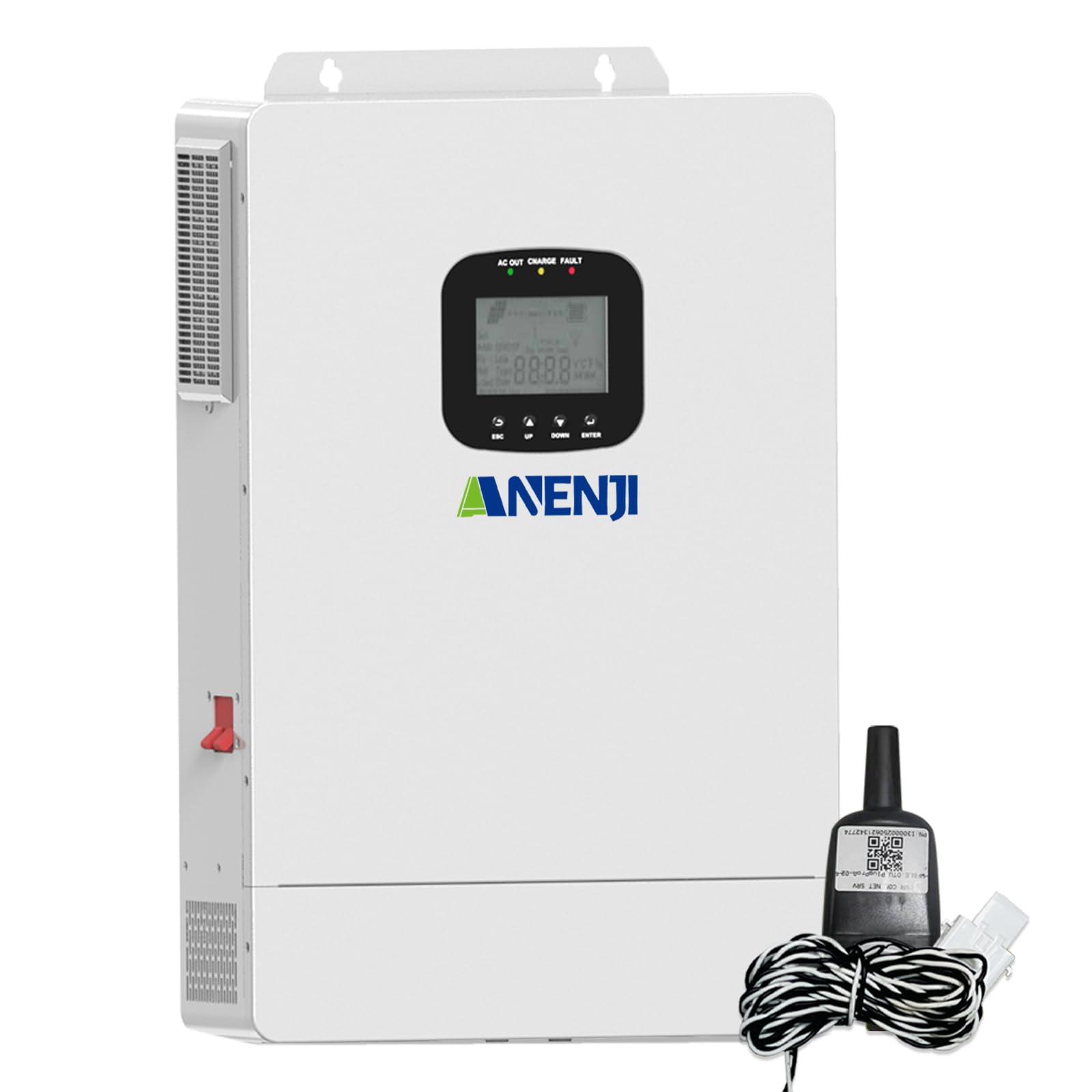

6500W Hybrid Solar Inverter, 48VDC to 120VAC Pure Sine Wave Power Dual MPPT 9000W PV Input, 150A Charger, UL1741, ≤10ms UPS Fast Switching for Home Backup Off-Grid, Up to 6 Units Parallel

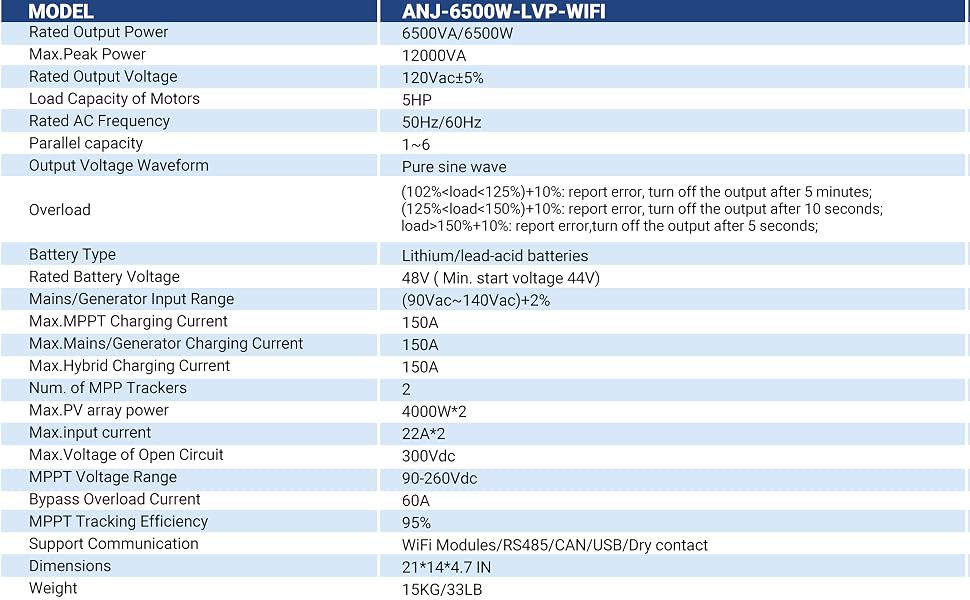

• 6500W PURE SINE WAVE OUTPUT: Delivers 6,500W/6,500VA continuous 120Vac power with 12,000VA peak capacity, power factor 1, and up to 5HP motor-load capability. Automatic 50/60Hz detection and a typical 10ms bypass-to-inverter transfer help keep essential loads running smoothly.

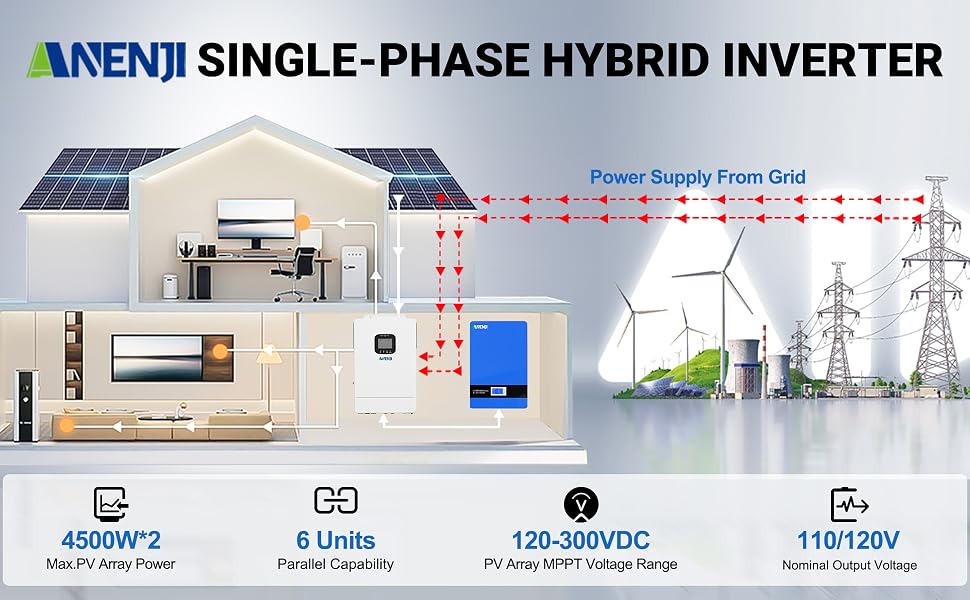

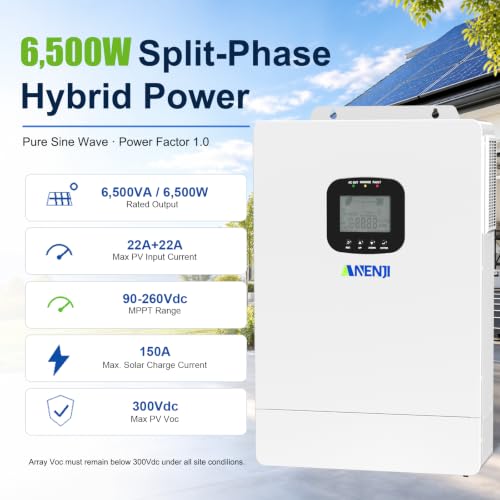

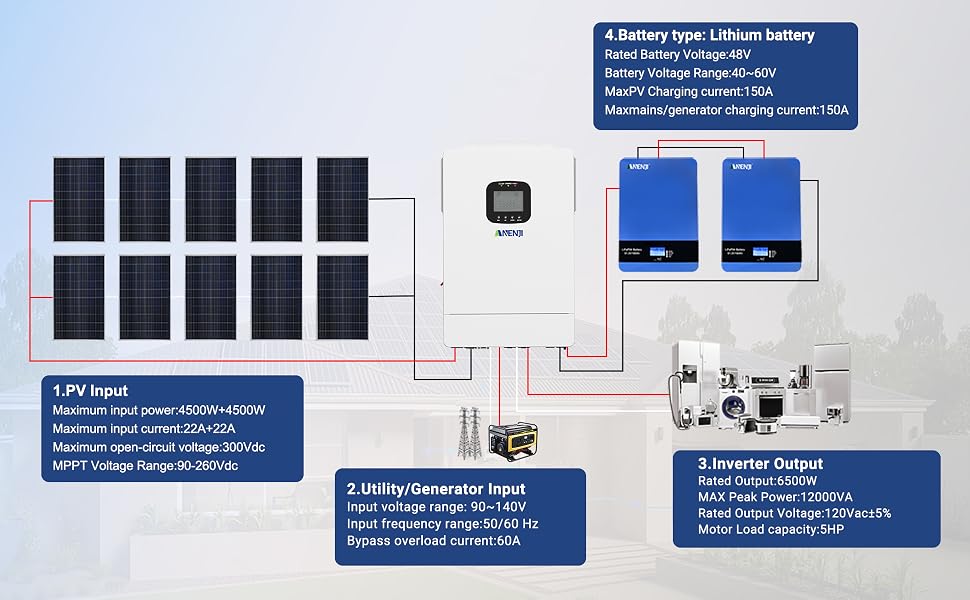

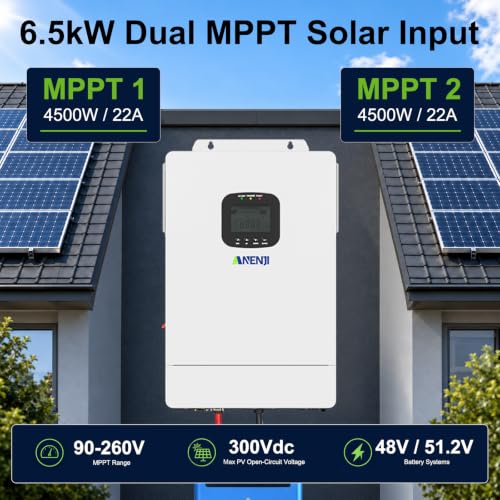

• HIGH-CAPACITY PV INPUT: Handles up to 9,000W of solar input across two 4,500W channels, with 22A + 22A maximum PV input current. Advanced MPPT provides a 90-260Vdc tracking range, 120Vdc startup voltage, 300Vdc maximum open-circuit voltage, and up to 150A adjustable PV charging.

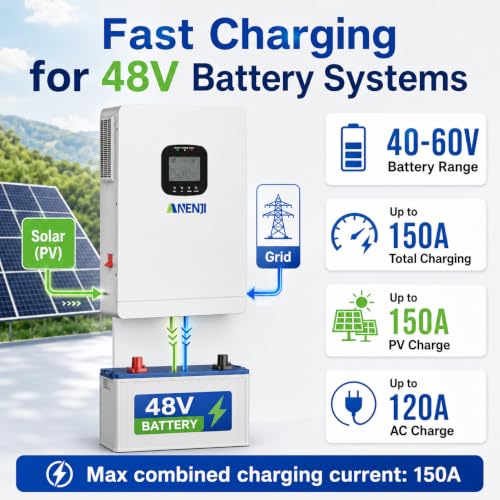

• FLEXIBLE 48V BATTERY SUPPORT: Works with 48V lead-acid and lithium battery banks over a 40-60Vdc range. Provides up to 120A adjustable AC charging and up to 150A combined AC-plus-PV charging, plus RS485 BMS communication for supported lithium battery protocols.
• SMART HYBRID POWER MANAGEMENT: Choose Solar Only, Solar Priority, Utility Priority, or Solar + Utility charging. PV-priority, utility-priority, battery-priority, bypass, and hybrid output options let you balance solar use and backup power; battery-free operation is supported when compatible PV or utility power is available.

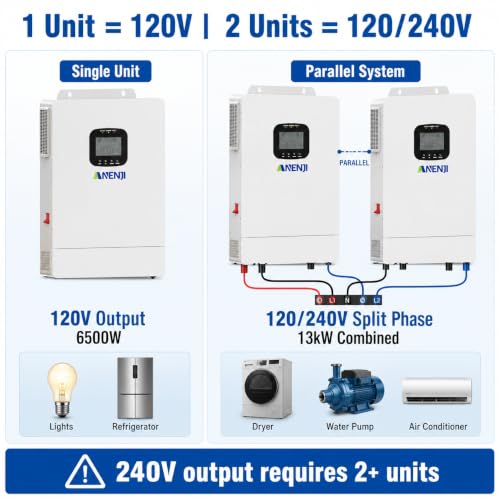

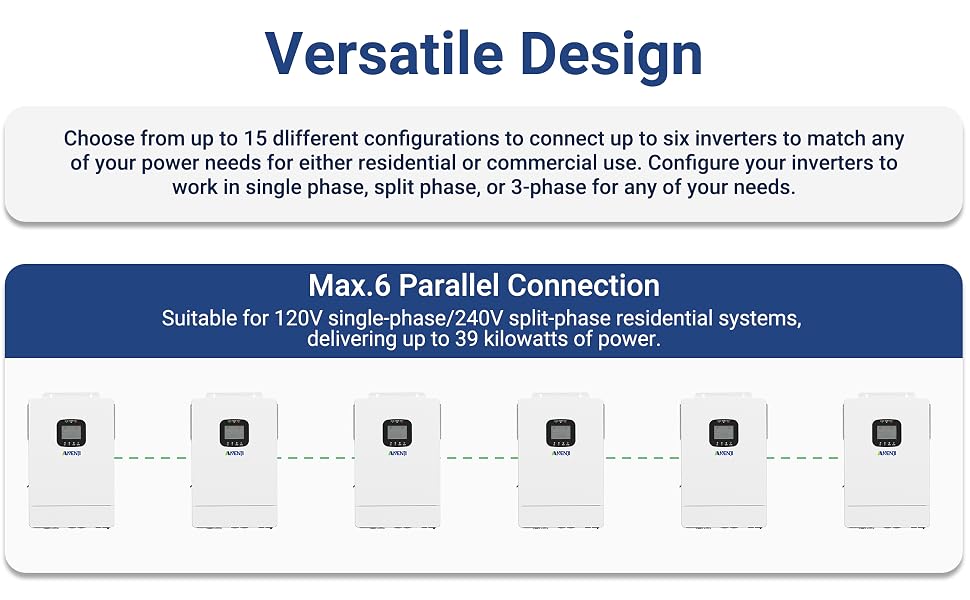

• PARALLEL-READY: Connect up to 6 compatible -300P inverters for expanded single-phase, split-phase, or three-phase systems. One unit outputs 120V; a 120/240V split-phase system requires at least 2 units. Built-in protections cover overload, short circuit, over/under-voltage, over-temperature, reverse polarity, and more.

---
