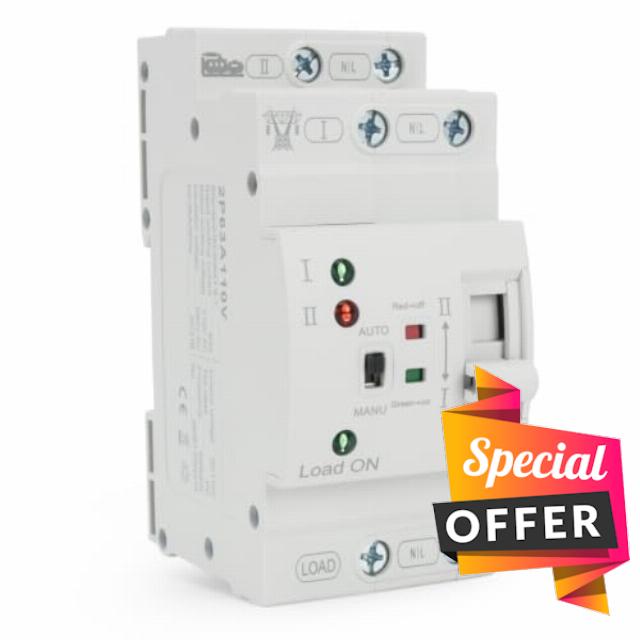

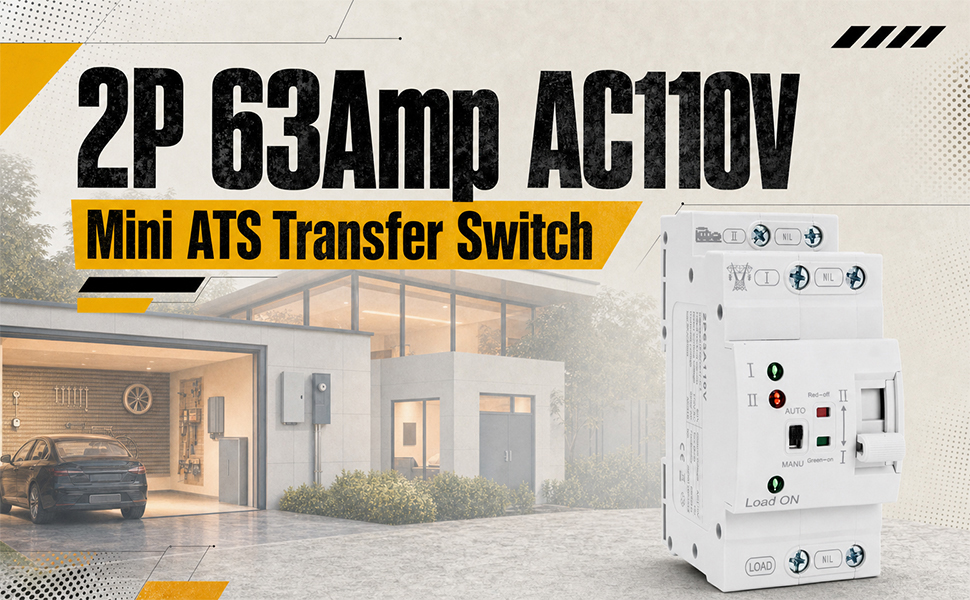

2P 63A AC110V Mini ATS Automatic/Manual Transfer Switch
2P 63A AC110V Mini ATS Automatic/Manual Transfer Switch, 50/60Hz Dual Power Auto Transfer Switch for Uninterruptible Power Supply, DIN Rail Mou
- 【WIDE APPLICATION】: This 2P dual power ATS ensures stable power supply by automatically and quickly switching to the backup power during a main power outage. Ideal for high-demand equipment and scenarios where power interruptions cannot be sustained, including hospitals, data centers, low-temperature cold storage, airports, fire departments, and emergency systems. Suitable for indoor and outdoor generators

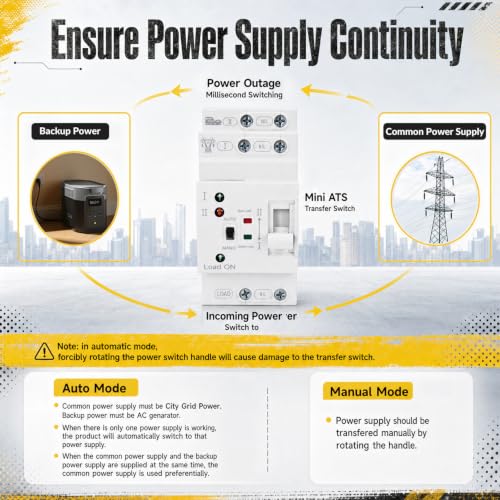

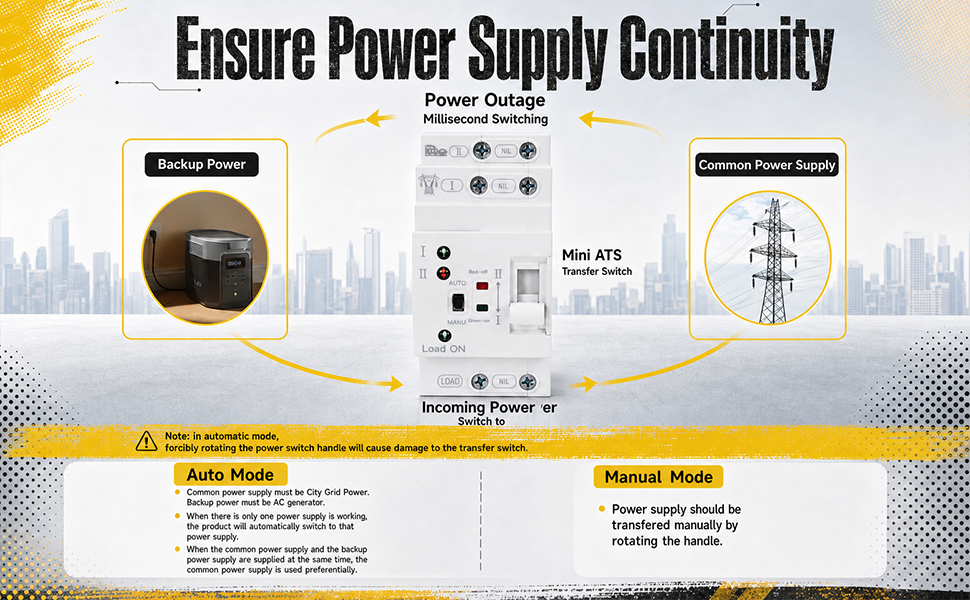

- 【WORKING PRINCIPLE】: The ATS transfer switch can be operated automatically or manually, and is widely used in various places where continuous power outages are not allowed. When the transfer switch is working, if there is an abnormality in the common power supply, the backup power supply can immediately start working. When the common power supply returns to normal, it will automatically switch from the backup power supply to the common power supply

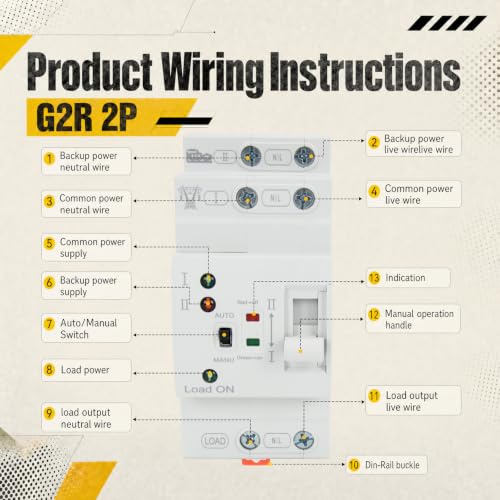

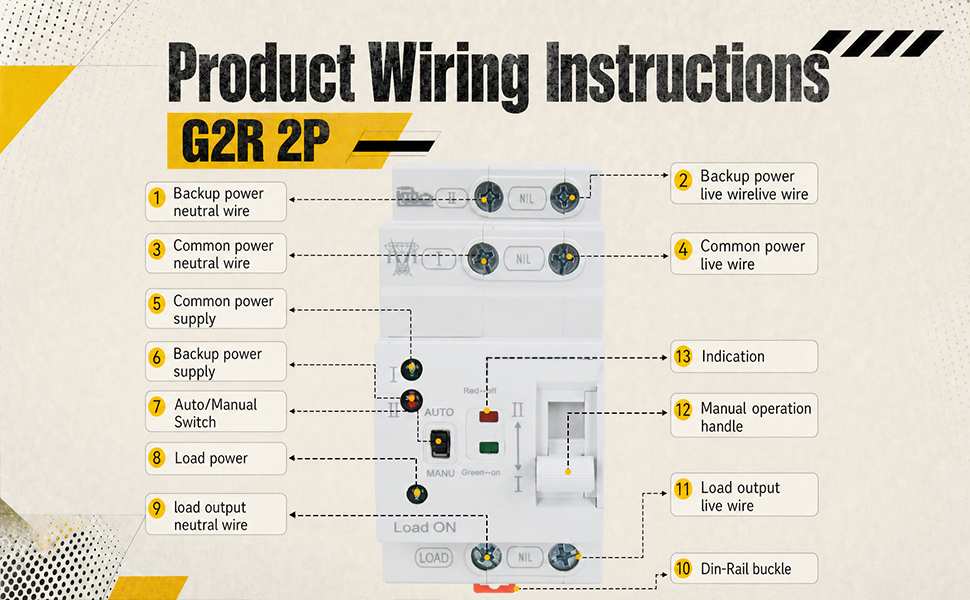

- 【AUTOMATIC MODE】: AC 110v automatic transfer switch use the automatic mode, the left switch must be in the Auto, and the right handle must be inⅠ. When the normal power supply (Ⅰ) is working normally, ⅠU (green light) is always on; when the normal power supply (Ⅰ) is abnormal, ⅠU (green light) goes out and switches to the automatic power supply (Ⅱ) within 0.05 seconds, ⅡU (red light) is on.When the normal power supply (Ⅰ) returns to normal, it will automatically switch from the backup power supply (Ⅱ) back to the normal power supply
- 【MANUAL MODE】: To use the manual mode to make sure the left switch is in Manual. If you choose power supply (Ⅰ), manually operate the right handle to make the switch in (Ⅰ), ⅠU (green light) is on; if you choose power supply (Ⅱ), manually operate the right handle to make the switch in (Ⅱ), ⅡU (red light) is on

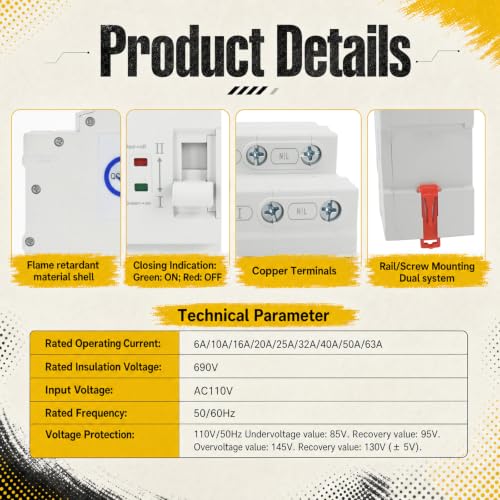

- 【SPECIFICATION】: Specially designed for home track installation, dedicated to PZ30 distribution box. Fits for 50/60Hz dual power grid. Working Current: 6Amp-63Amp. 110V/50Hz Undervoltage Value: 85V. Recovery Value: 95V. Overvoltage Value: 145V. Recovery Value: 130V (± 5V). Please select the corresponding specifications of products based on the actual working voltage you need
- 【MATERIAL】: Our transfer switch has better flame retardancy, corrosion resistance, and heat resistance, making it suitable for indoor or outdoor installation. The switch design includes copper plugs, connectors, and terminals to ensure stable current transmission
Fits for indoor and outdoor generators
| SKU: | B0HG4TYYC4 |
| Weight: | 9.6 ounces |

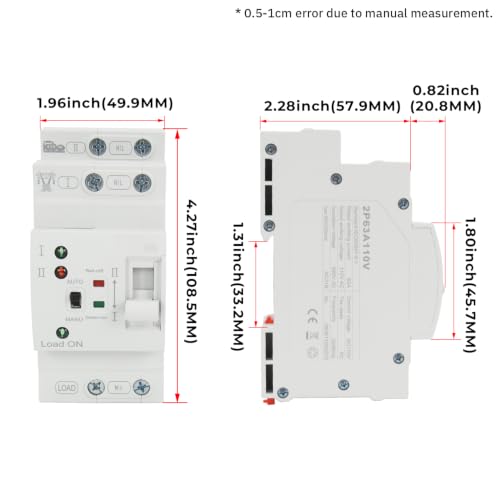

| Dimensions: | 4.5 x 3.5 x 2.5 inches |
| Brand: | YAURILO |
| Part: | Mini-ats-63a |
| Material: | Copper, Plastic |
| Colour: | White |
| Manufacture: | YAURILO |
| Colour: | White |
| Material: | Copper, Plastic |
Product description
Fits for indoor and outdoor generators
