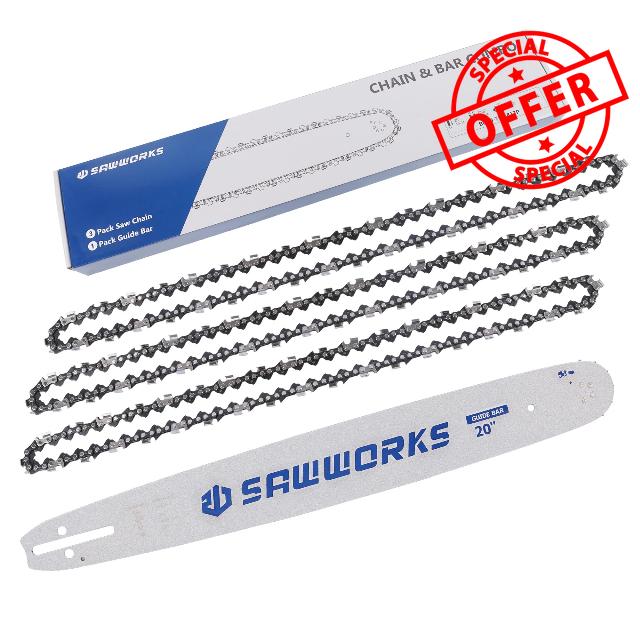

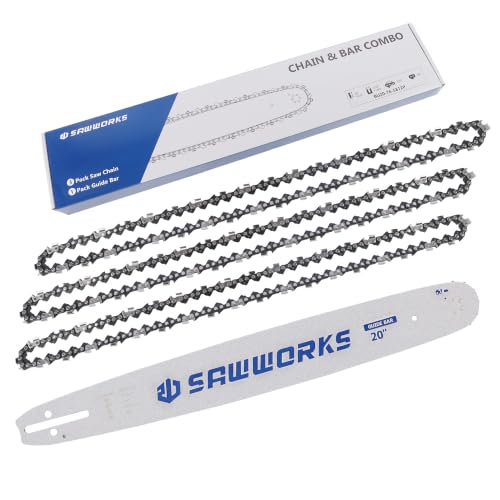

SawWorks 20 Inch Chainsaw Bar and Chain Combo .325″ Pitch .058″ Gauge 76DL Fit Vevor 58CC, 62CC, Supmixtools 62CC, Neo-Tec NCS6200, NCS5800, Garwinner and Other 45cc, 52cc Chainsaw (3 Chains + 1 Bar)

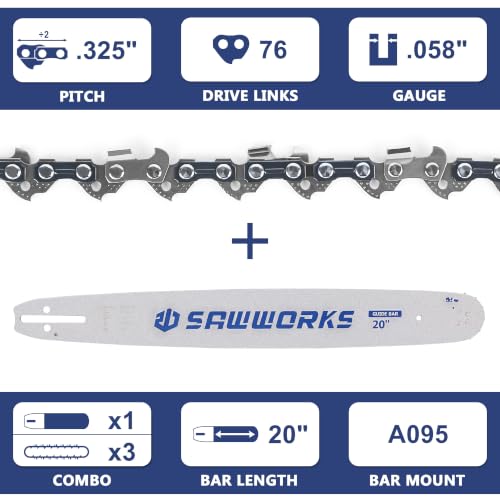

• Specifications: 20 Inch Standard-kerf guide bar, .325" pitch, .058" gauge, 76 drive links (3 Chains + 1 Bar), A095 Tail mount, 12 Sprocket tooth. These bar and chain may kick back, causing serious injury to chain saw operators or bystanders. Use only if trained and experienced in kickback control.
• Precision Forged Steel: Forged from high-quality steel with precision heating control for toughness. Hardened rivets and durable side rails resist wear and chipping, while the laminated body prevents scratches and corrosion for extended service life.

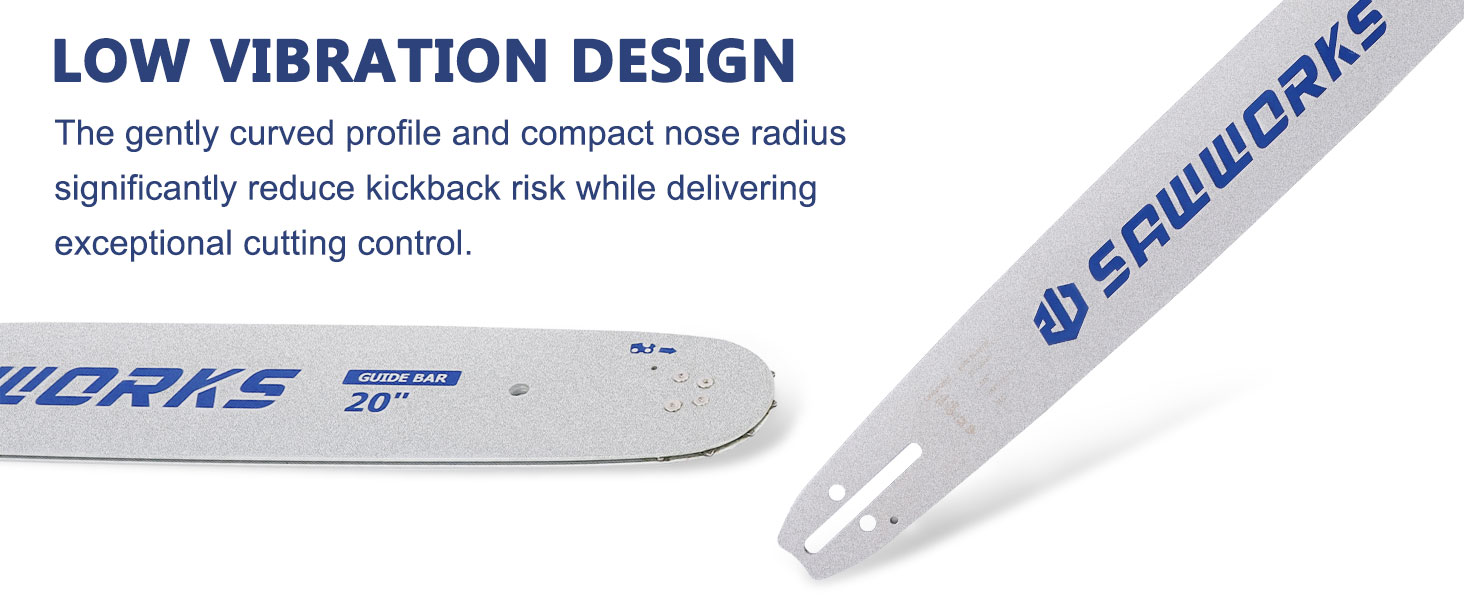

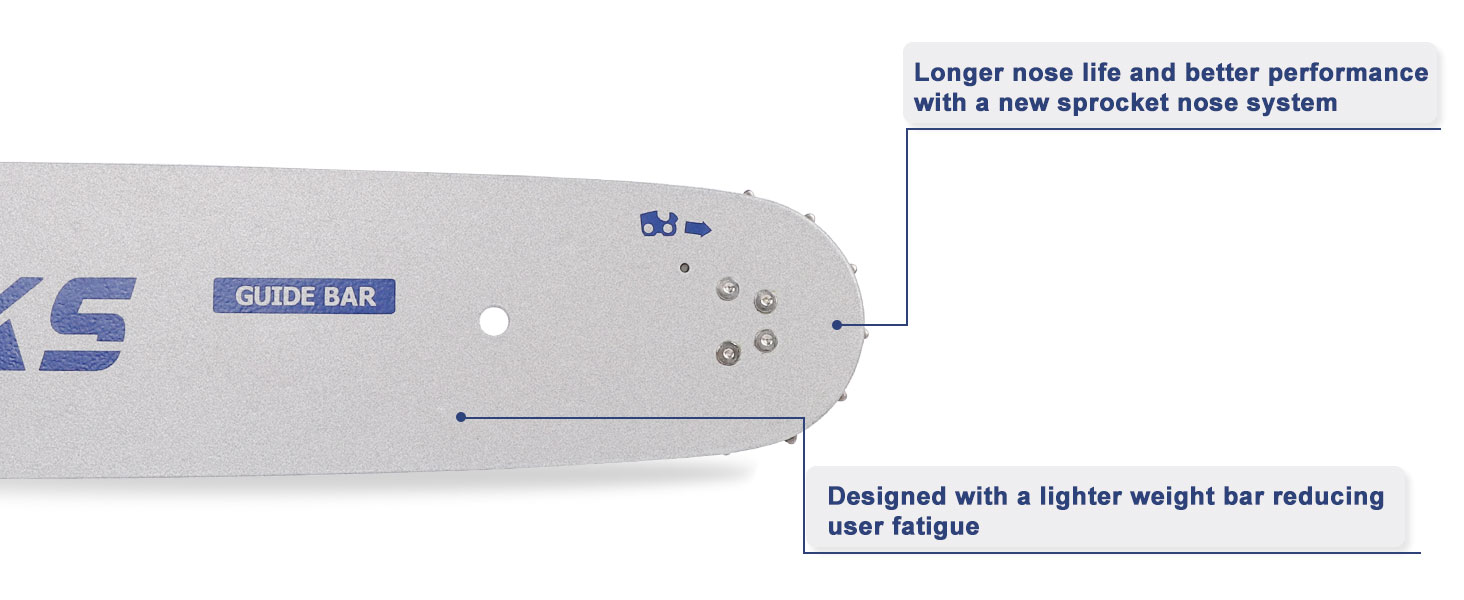

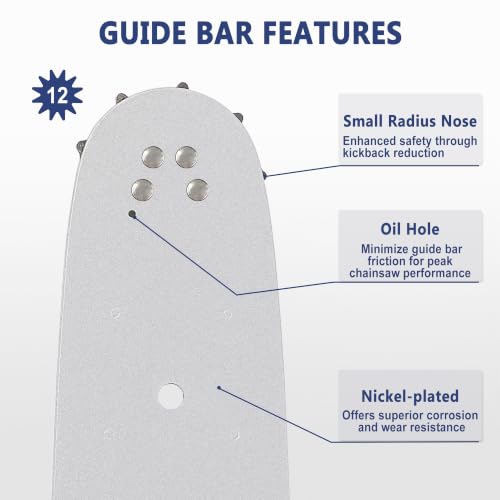

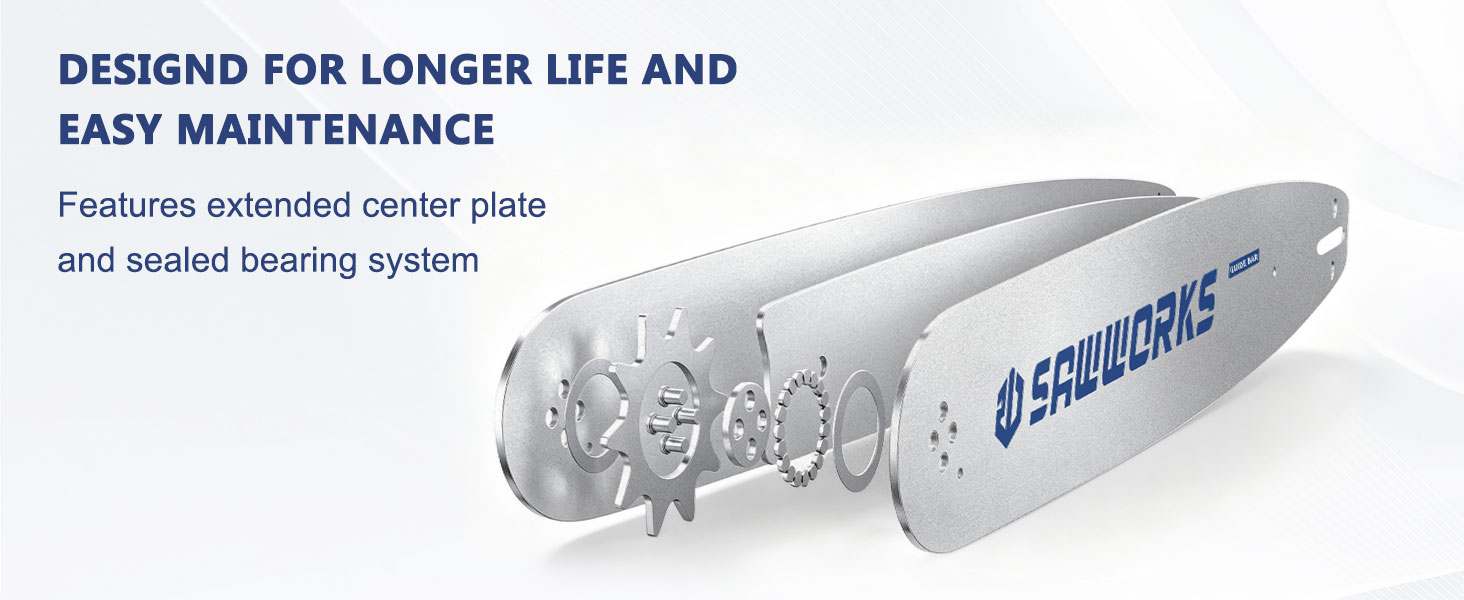

• Balanced Sprocket Nose: Built with lightweight laminated steel for less weight, better balance, and reduced fatigue. Features a bearing-grade steel sprocket nose assembly that resists spreading and wear, while precision bar grooves ensure smooth, accurate cutting.

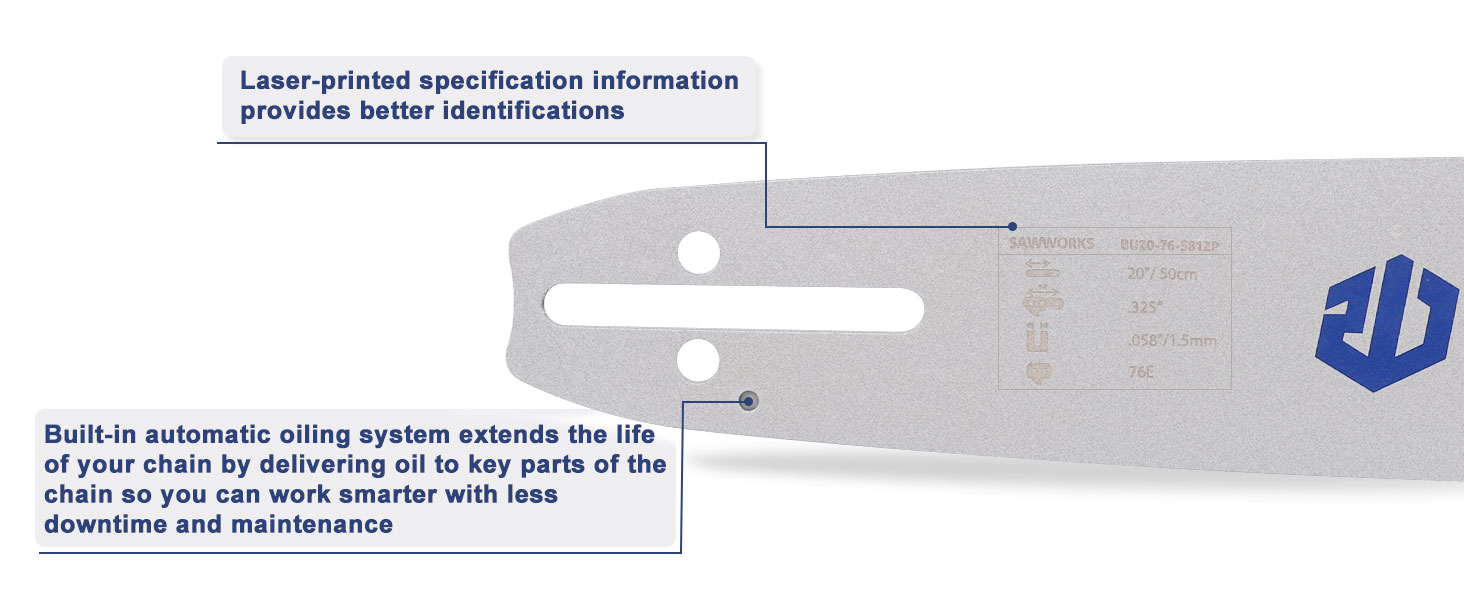

• Optimized Oil Flow: Integrated oiling channels ensure even flow to minimize friction and heat. Precision grooves direct lubricant to the running chain, while optimized nose greasing protects the sprocket nose during operation, reducing operating temperatures for smoother performance.
• Multi-Scene Utility: Ideal for homeowners tackling firewood prep and storm cleanup, plus landscaping pros maintaining yards and clearing lots. To ensure compatibility, see the detail page for specs. If you need assistance, please contact SawWorks Customer Support.

›

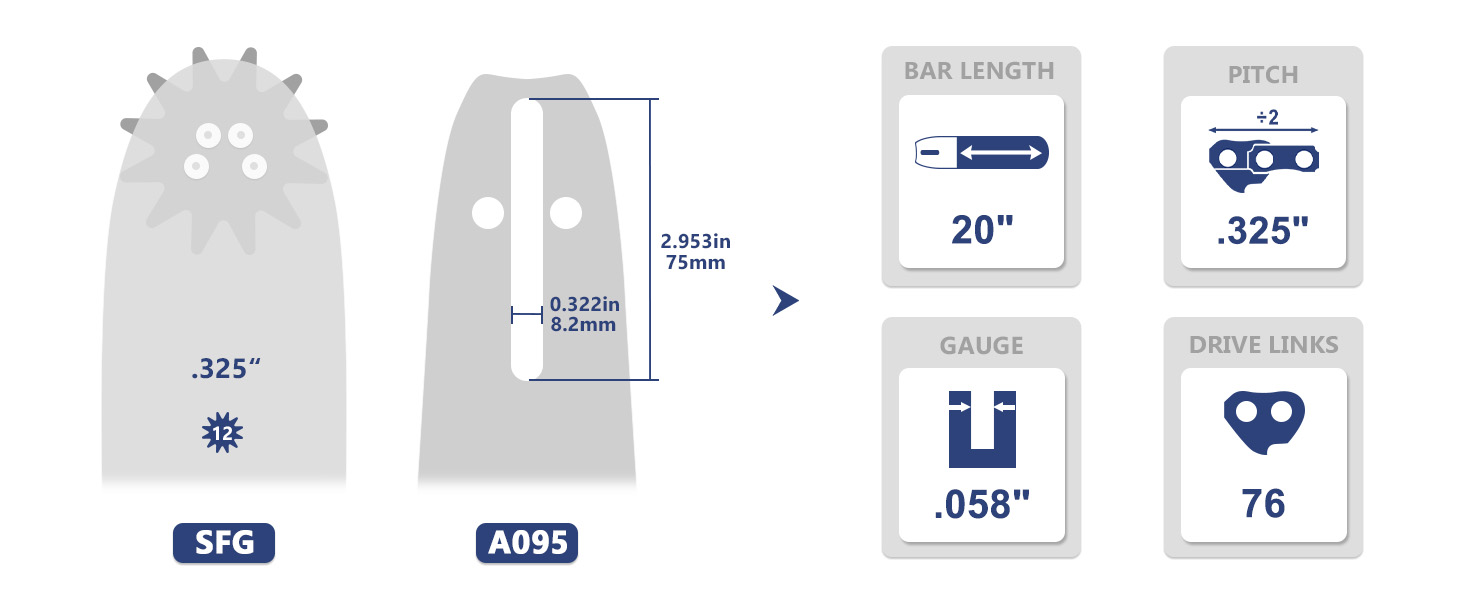

SPECIFICATIONS

Model Fit Guide

Vevor: 58CC, 62CC Gas Chainsaw, CN-62G

Supmixtools: 62cc Gas Chainsaw

Neo-Tec: NCS6200, NCS5800

Garwinner: 62CC Gas Chainsaw

Other Chainsaw: 45CC, 52CC, 58CC, 62CC

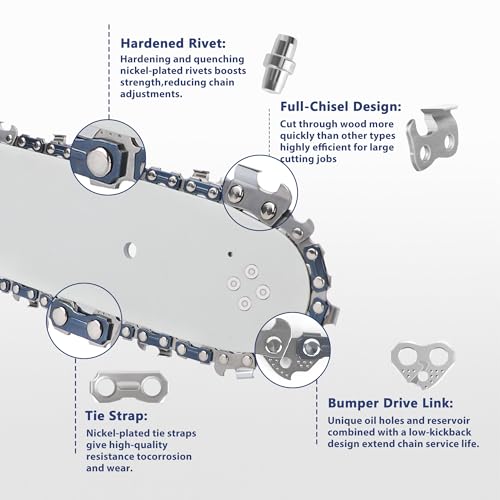

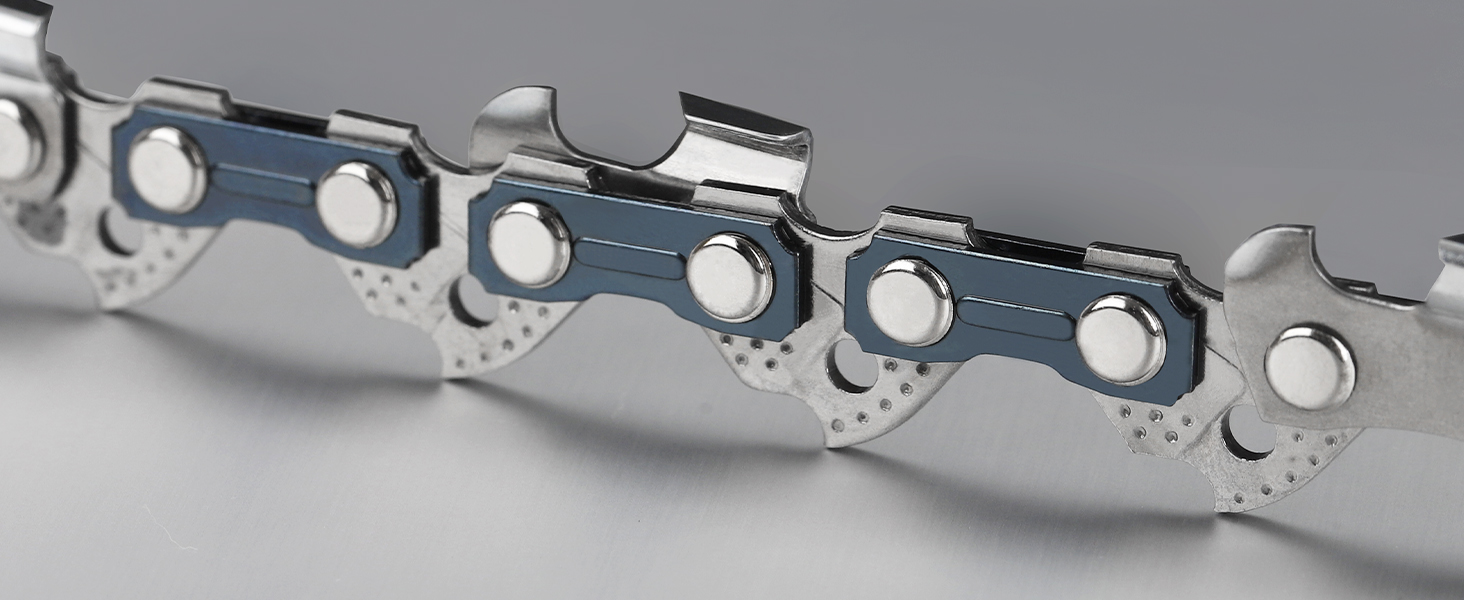

1. SHARP & LONG-LASTING

   Engineered for reduced recoil, extended durability, and precision sharpness. Sustained cutting power

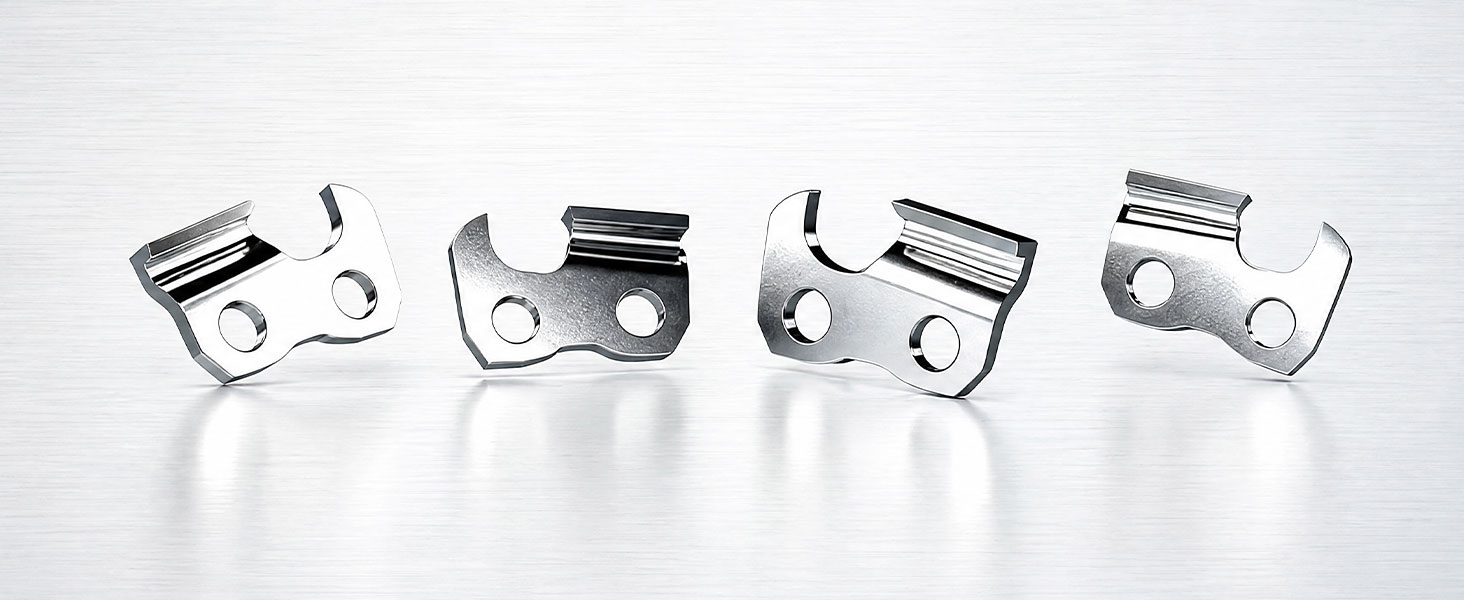

2. STAY-SHARP CUTTER

   Professional design and oil reservoir cut chain-bar friction by 20% and vibration by 30% or more.

3. BUMPER DRIVE LINK

   Unique oil holes and reservoir, combined with a lubrication System, extend chain service life.

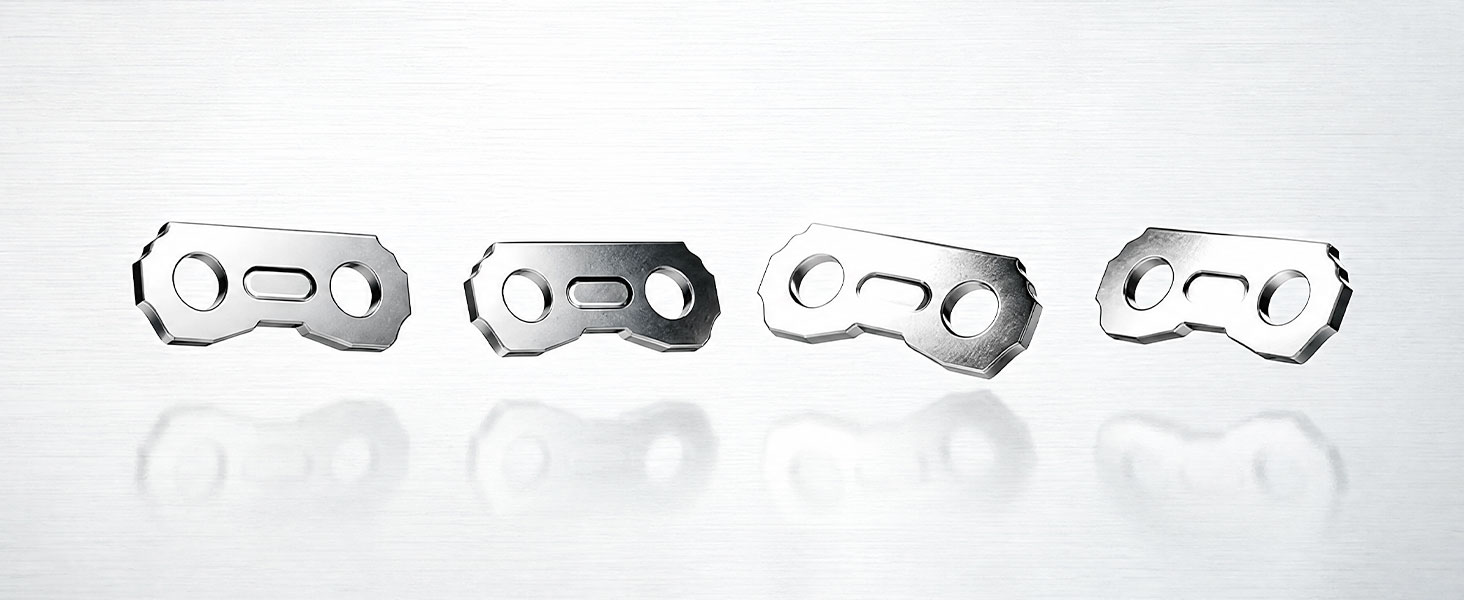

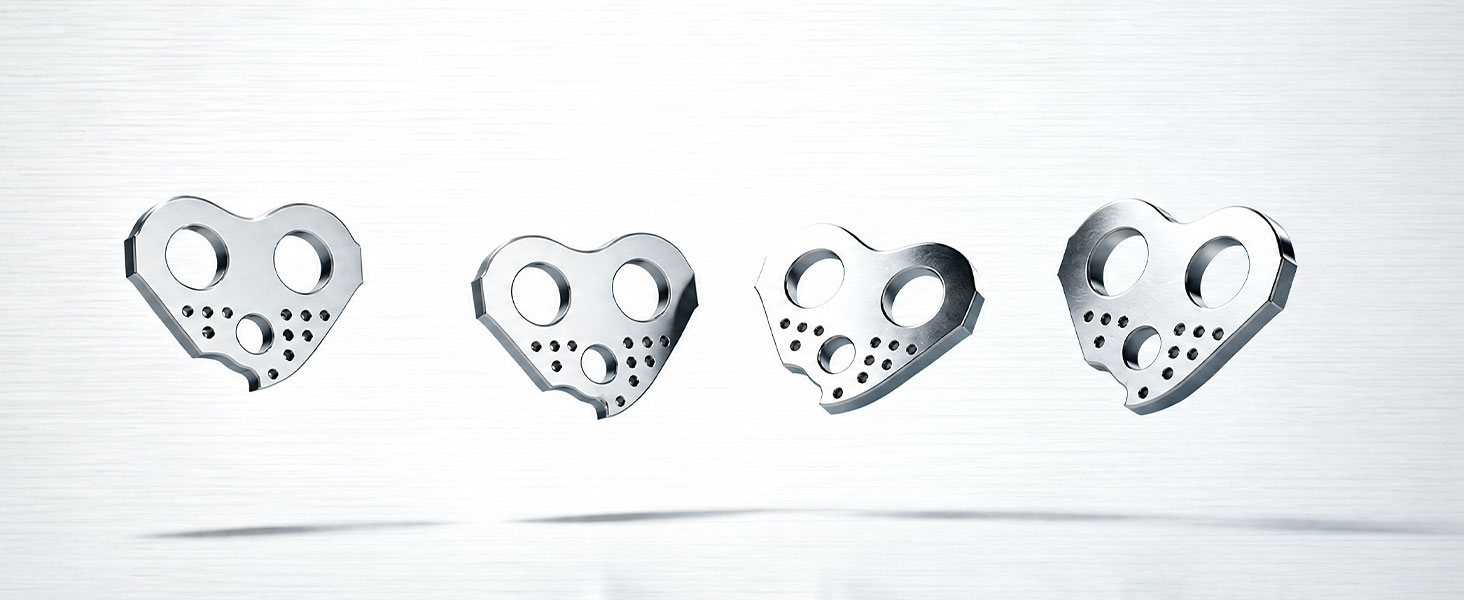

4. TIE STRAP

   Nickel-plated tie straps give high-quality resistance to corrosion and wear.

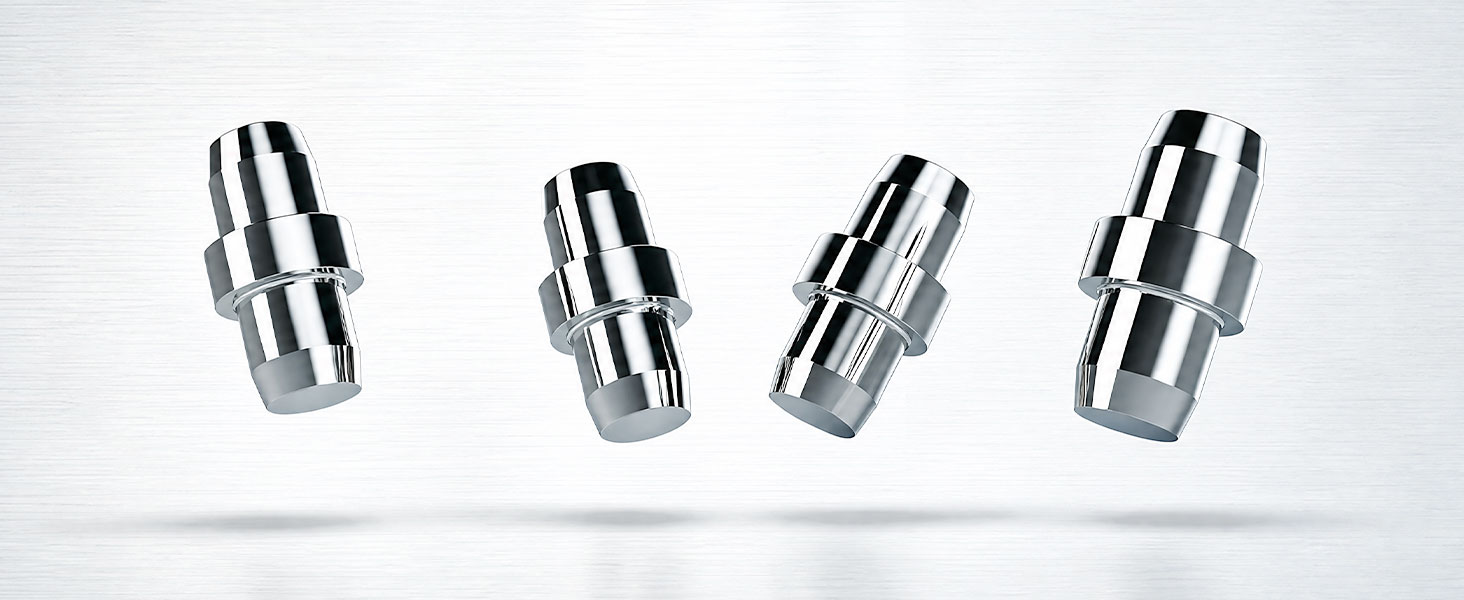

5. HARDENED RIVET

   Hardening and quenching nickel-plated rivets boosts strength, reducing chain adjustments.

1 CHAINSAW CHAIN 2 CUTTER 3 DRIVE LINK 4 TIE STRAP 5 HARDENED RIVET

Similar Sizes or Frequently Bought Together

Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart

Customer Reviews	4.3 out of 5 stars27	4.5 out of 5 stars1,855	4.3 out of 5 stars27	4.3 out of 5 stars27	4.3 out of 5 stars27
Price	$34.99$34.99	$26.99$26.99	$46.99$46.99	$45.99$45.99	$39.99$39.99
Package Contents	3 Chains+ 1 Bar	3 Chains	3 Chains+ 1 Bar	3 Chains+ 1 Bar	3 Chains+ 1 Bar
Tail Mount	A095	/	D025	D025	D176
Sprocket Tooth Count	12	/	12	11	9
Bar Length	20"	20"	20"	20"	20"
Pitch	.325"	.325"	.325"	3/8"	3/8"
Gauge	.058"	.058"	.063"	.050"	.050"
Drive Links	76	76	81	72	70
Chain Type	Full Chisel	Full Chisel	Full Chisel	Full Chisel	Full Chisel

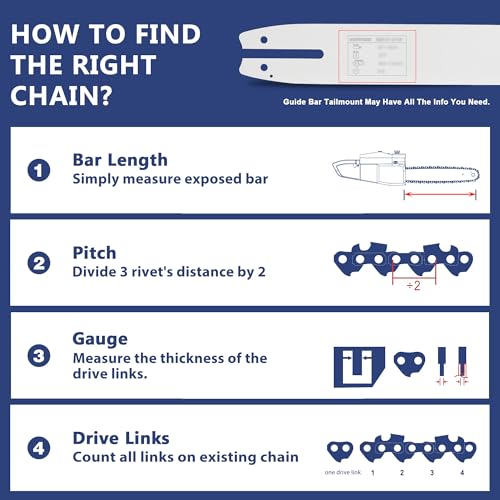

• How to choose the correct size for a guide bar or chain?

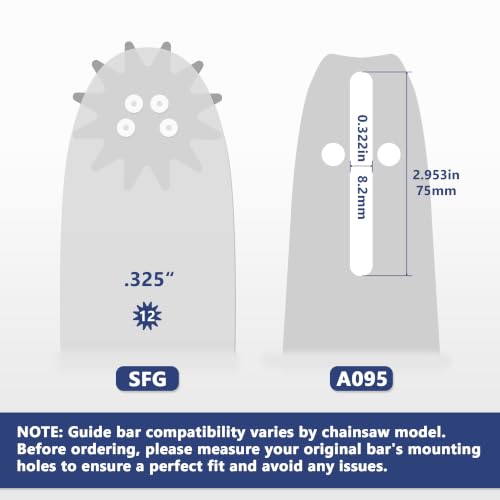

  Confirm pitch, gauge, drive links, tail mount, sprocket nose tooth count, and bar code. Match all specs to your saw.

• How to maintain the guide bar and chain?

  Lubricate regularly, adjust tension, clean bar groove/oil holes after use, flip bar for even wear, and add oil to bearing via front oil hole.

• New chain gets loose quickly. Is it defective?

  No, it's normal "initial stretch." Check and adjust tension frequently during first 2–3 hours. Correct tension: chain pulls up 3–6mm at midpoint and snaps back.

• How to tighten the chain properly?

  1. Disengage chain brake. 2. Loosen bar nuts. 3. Lift bar tip.

  4. Tighten tensioning screw until chain sits snug without slack and rotates freely.

  5. Re-tighten nuts.

• How often to lubricate? Need special lubricant?

  Fill reservoir every refueling and ensure proper oil delivery. Yes, use chainsaw-specific lubricant to prevent wear and damage.
