PowMr MPPT 60A Solar Charge Controller 12V 24V 36V 48V Auto

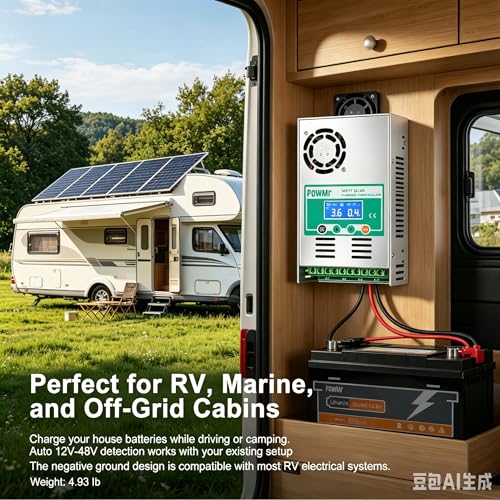

PowMr MPPT 60A Solar Charge Controller 12V 24V 36V 48V Auto, Negative Ground Solar Panel Regulator with LCD Display for Lead-Acid Gel AGM Lithium Battery, for RV Boat Off-Grid System

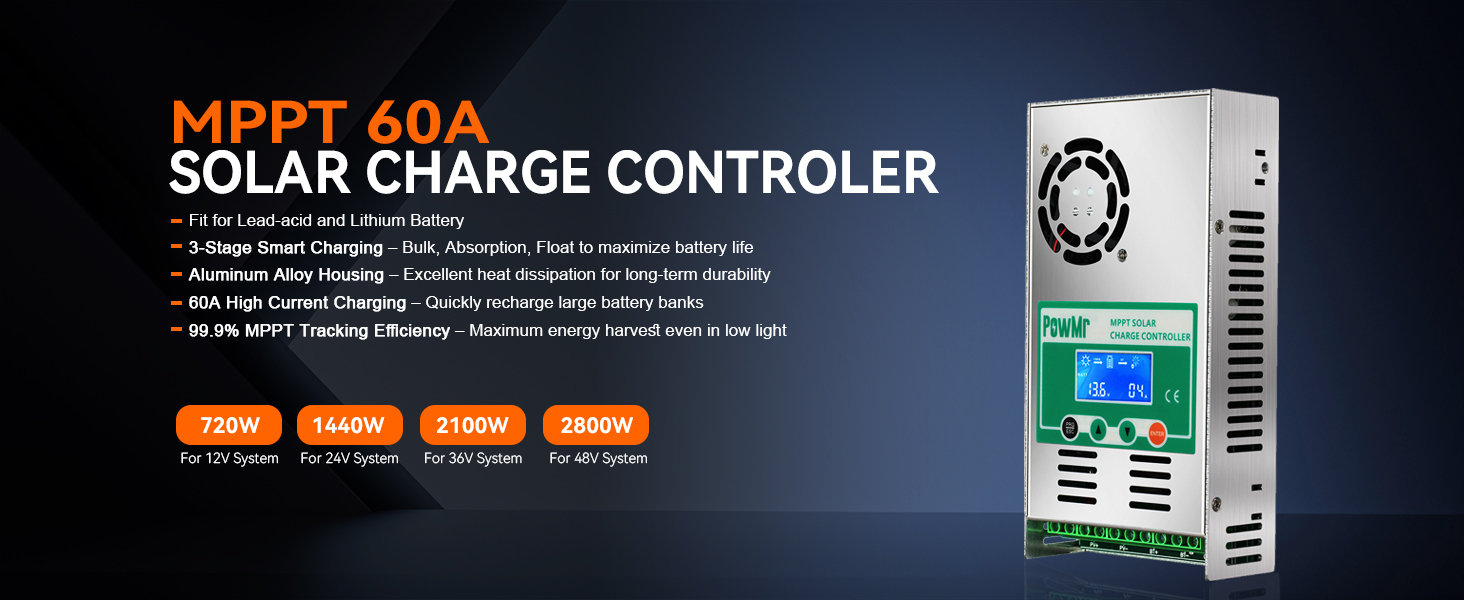

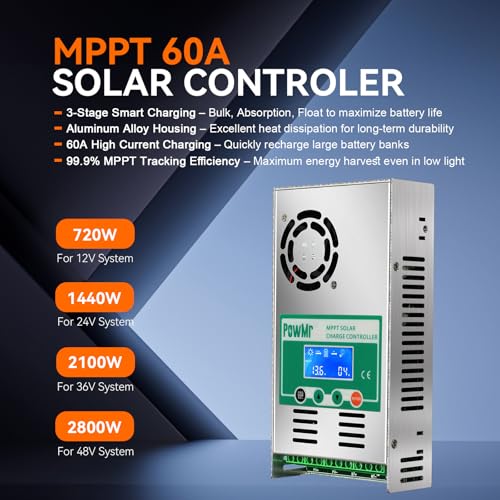

- 【ystem-Specific PV Input & Power Ratings – Critical Specs】This controller auto-detects 12V-48V batteries. Maximum PV input depends on your system: 12V System: 80VDC max input / 720W max solar; 24V System: 105VDC max input / 1440W max solar; 36V System: 160VDC max input / 2100W max solar; 48V System: 160VDC max input / 2800W max solar; Always check your solar panel's Open Circuit Voltage (Voc) before connecting.
- 【Maximize Solar Harvest with True MPPT Technology】Our built-in high-performance DSP controller achieves over 98.1% tracking efficiency, ensuring you capture every available watt from your solar panels. This significantly outperforms standard PWM controllers, meaning faster charging for your off-grid system

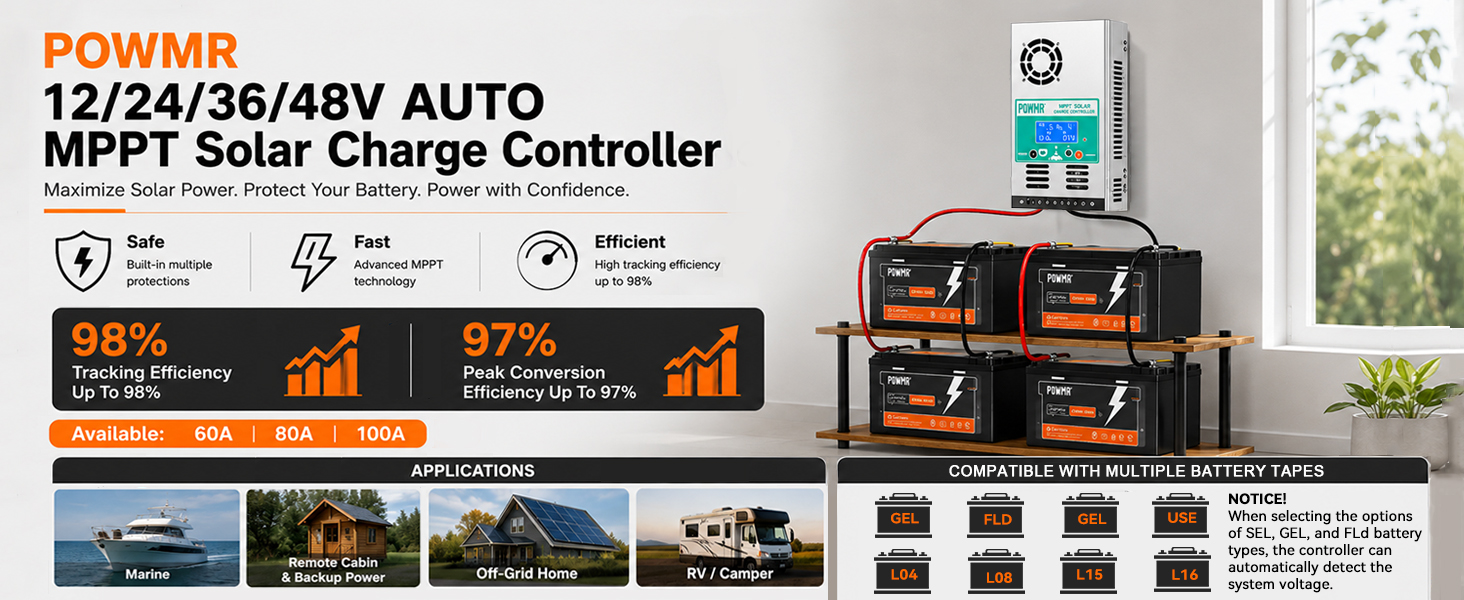

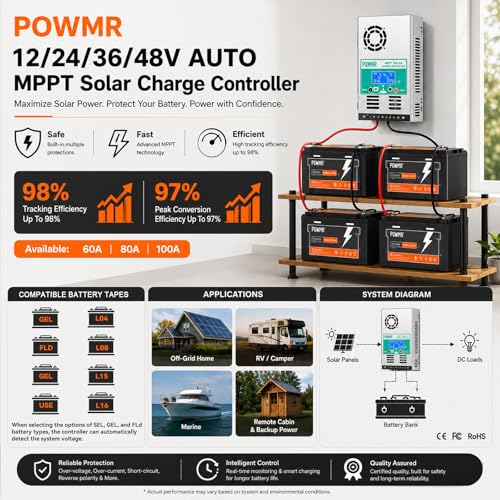

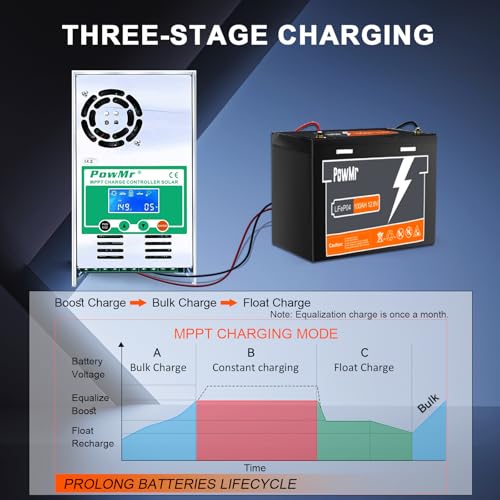

- 【Versatile Battery Support & 3-Stage Charging】Compatible with Sealed (SEL), Gel (GEL), Flooded (FLd), and Lithium (LiFePO4) batteries. The 3-stage charging (MPPT, Absorption, Float) optimizes battery performance and helps extend its service life. (User-defined parameters available in USE mode)

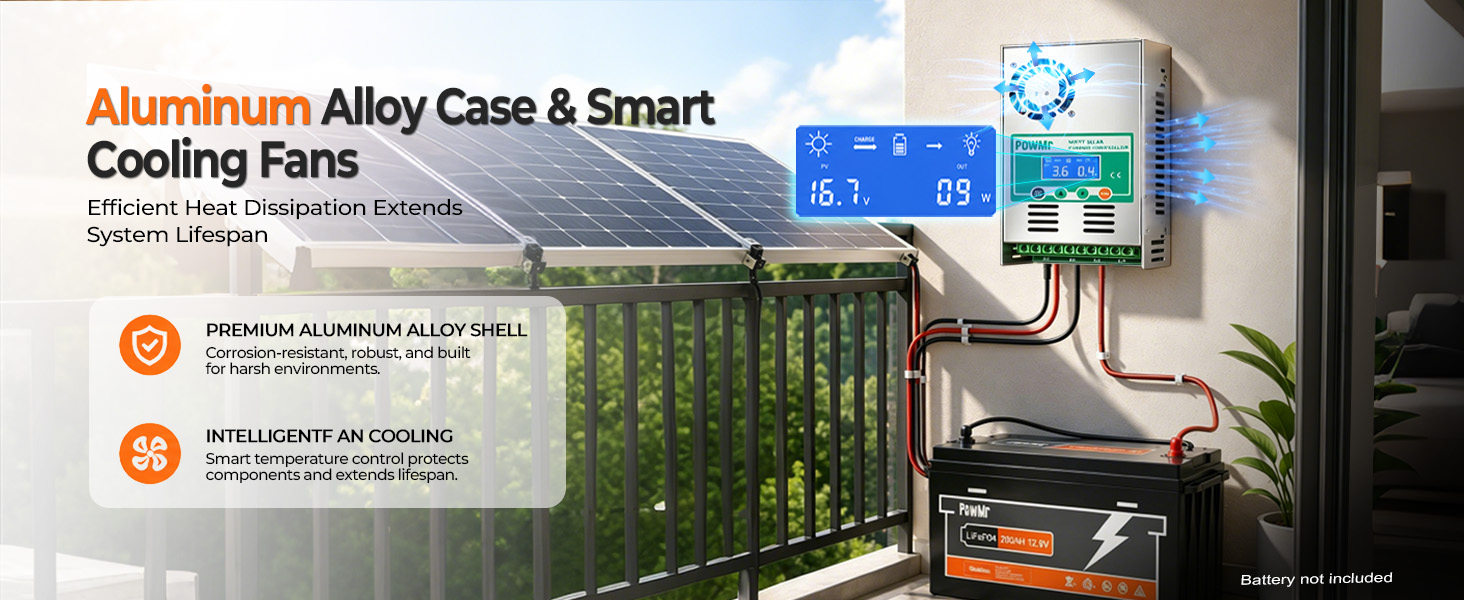

- 【Robust Aluminum Alloy Case & Smart Cooling】The durable aluminum alloy housing provides superior heat dissipation, ensuring stable performance even under heavy 60A charging. Combined with a temperature-controlled fan (activates >104°F/45°C), it keeps the controller cool, quiet, and safe for years

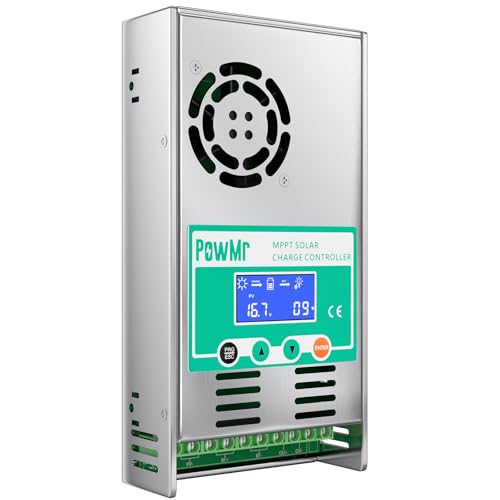

- 【User-Friendly LCD Display & Compact Size】Easy-to-read LCD shows PV voltage, battery voltage, charging current, working mode, and fault codes. The compact design (8.43 x 4.53 x 1.97 inches, 2.43 lbs) allows for easy wall mounting with the included screws
- 【Note】If you use sealed lead-acid, vented gel batteries, etc., you do not need to set any parameters, the controller can be automatically adjusted and work normally; but if you use lithium batteries, you need to adjust the parameters according to the actual battery voltage, because lithium batteries are unstable, for example, acid batteries 12V is 12V, while lithium batteries 12V may be 11.1V or 14.8V
- 【！】Please note that the PV input must be disconnected before setting parameters. If the solar controller displays night mode, please perform a reset using the following method: With only the battery connected to the controller, press and hold the last button for more than 5 seconds to restore the solar controller to factory settings.
| SKU: | B08LZDZ6GP |
| Weight: | 2.4 pounds |
| Dimensions: | 8.43″L x 8.43″W x 8.43″H |
| Brand: | PowMr |
| Part: | US-HHJ-60A-YF |
| Manufacture: | PowMr |
Product description
Este har el trabajo muy bien hecho.
Excelente controlador de carga. Lo nico negativo que tengo sobre l es que los bornes no soportan calibres de cable muy gruesos.
Es muy duradero, es el segundo que compro y lo tengo trabajando en paralelo con el primero.
Mpp
Efficace 98% bon pour batteries lithium et plomb…selon configuration. Permet de mettre plaque solaire 12v ou 24 v series ou plus pour charger batterie 12v. Voltage plus elever cote plaque solaire permet de plus grosse installations avec fils plus petit . Ce mon 2e achat pour le chalet. Note ventillateurs bruyant mais efficace ne pas mettre endroit drangeant. Je recommande a 100%
don't push it too hard!
It seems to be a decent product -but I “blew=up” mine by an input voltage spike. 160v is the absolute max open circuit voltage and while the charging load was being calculated, the excessive “open voltage” killed the internal cpu. It had worked well at 80-100v input but that only produced a 10-20A charging rate. So you can guess the rest of the story!
Powmr 60 amp charge controlle
For the money, it’s a bang for your buck. I bought one of these 5 years ago and it’s still going strong. This will be the fourth one I bought. Powmr definitely produces a quality product at a budget price.
Better than expected
I have had two other mppt units from a well known supplier both of which failed miserably in a very short time and truthfully never did seem to mark as promised. This unit works great and has kept my system fully charged since being hooked up with zero issues. It has only been a few weeks but I expect to buy another for a separate system. Very happy with my choice.
