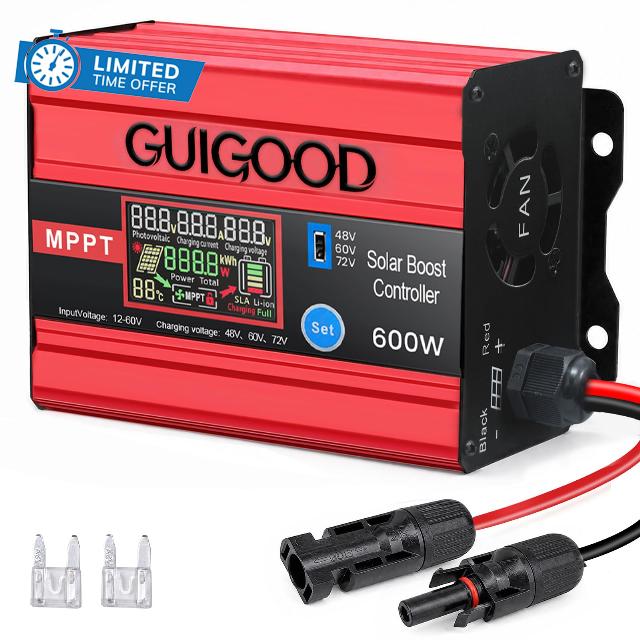

15A Boost MPPT Solar Charge Controller 600W|12-60V

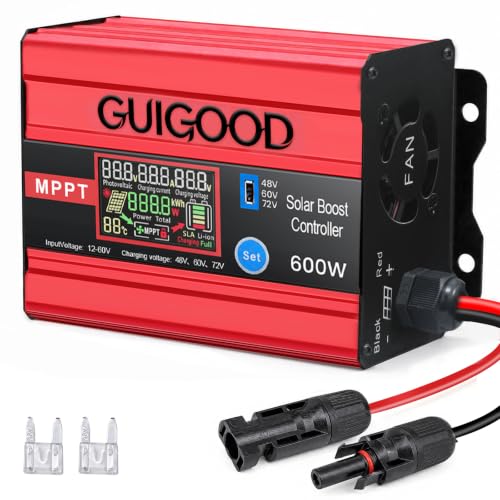

15A Boost MPPT Solar Charge Controller 600W|12-60V to 48/60/72V Step-Up 99% MPPT Tracking, 8A Output for LiFePO4/NMC Lithium/Lead-Acid/AGM/Gel | Color LCD| Golf Cart RV Off-Grid | 1-Year Warranty
- 【15A 600W MPPT BOOST CHARGING】Designed for high-voltage battery systems, this MPPT solar boost charge controller converts 12-60V solar panel input for 48V, 60V and 72V batteries. Supports 10-600W solar arrays, up to 15A PV input current and 8A charging output—ideal for charging higher-voltage batteries from lower-voltage solar panels

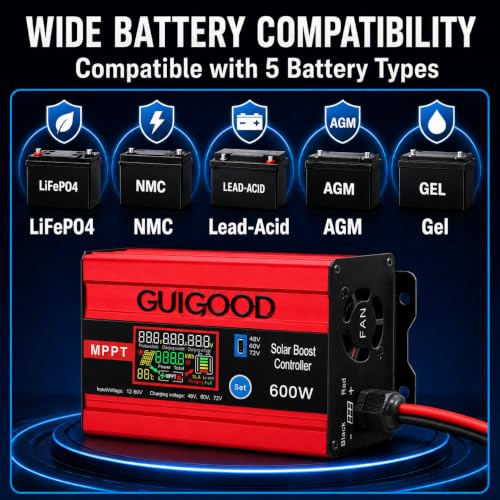

- 【5-IN-1 BATTERY COMPATIBILITY】Compatible with 5 popular battery types: LiFePO4, Ternary Lithium (NMC), Lead-Acid, AGM and Gel batteries. Works with 48V/60V/72V battery systems for golf carts, RVs, boats, cabins, trailers and other off-grid solar applications
- 【99% MPPT TRACKING & 98% CONVERSION EFFICIENCY】Advanced MPPT technology continuously tracks the optimal power point of your solar panels, delivering up to 99% MPPT tracking efficiency and 98% conversion efficiency to maximize available solar energy and provide stable, efficient charging throughout the day

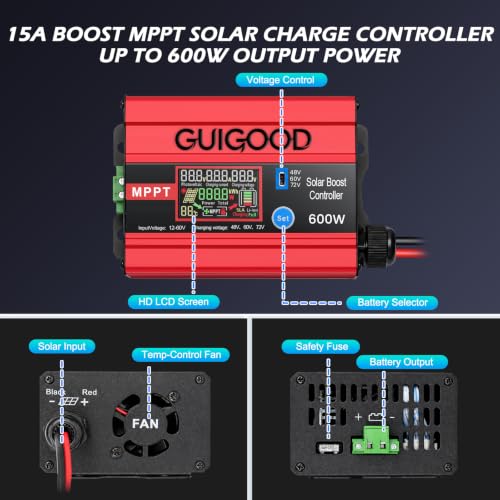

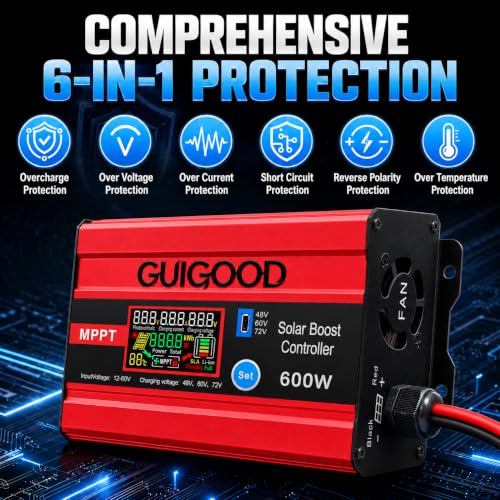

- 【ALL-METAL COOLING & MULTIPLE SAFETY PROTECTIONS】Durable aluminum housing provides efficient heat dissipation for stable operation. Built-in protection against overcharge, over-discharge, reverse polarity, overcurrent, short circuit and overheating helps protect the controller, battery and connected solar system

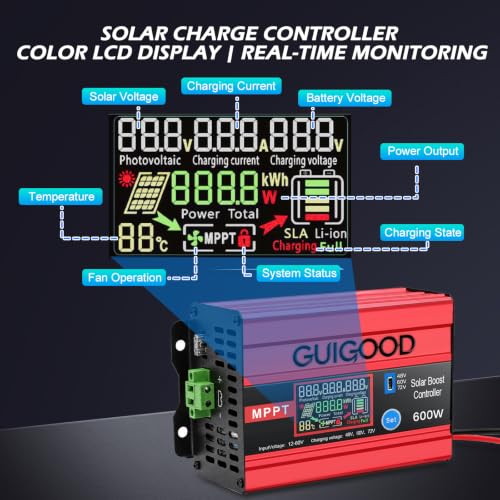

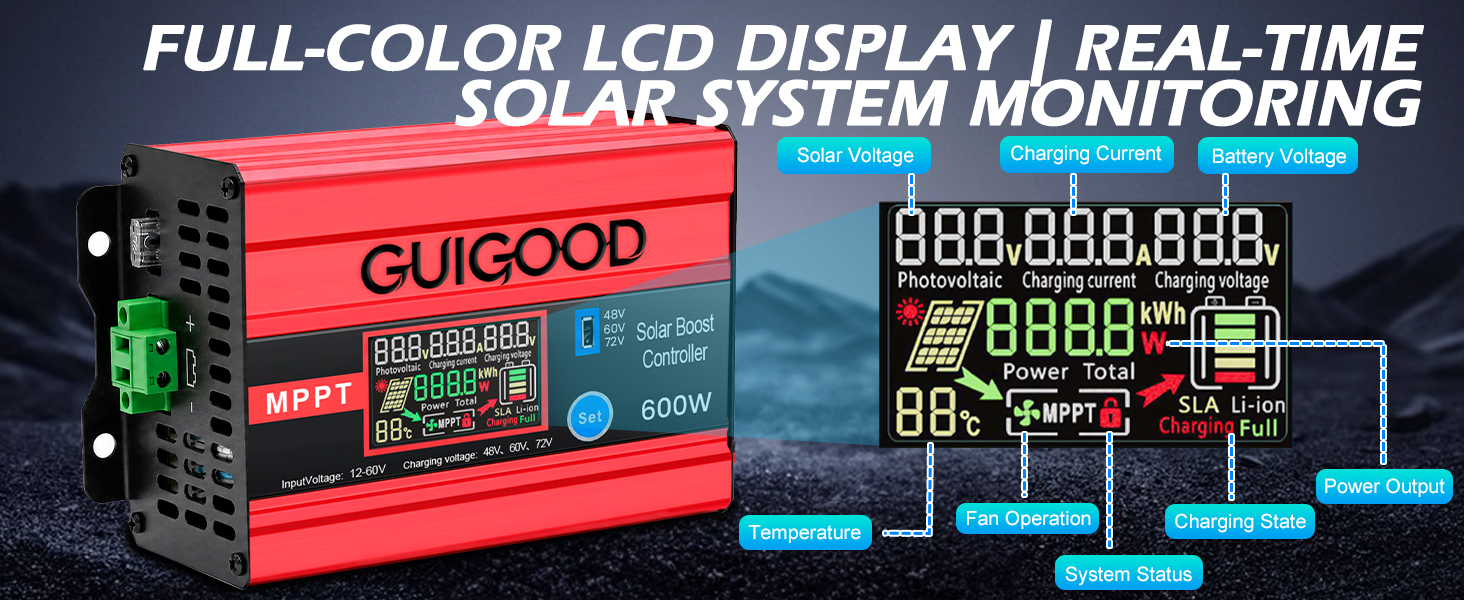

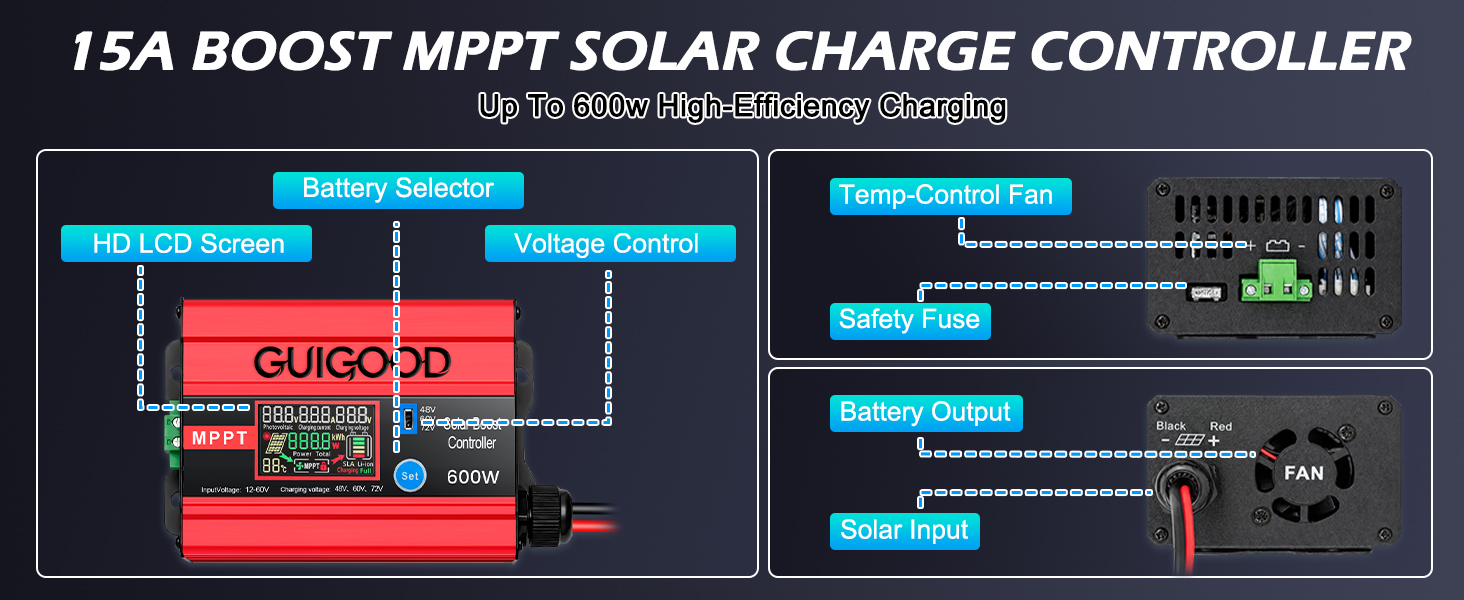

- 【COLOR LCD DISPLAY, MC4 CONNECTORS & 1-YEAR WARRANTY】The bright color LCD screen clearly displays real-time voltage, current, power and operating status for quick system monitoring. Pre-installed MC4 connectors simplify solar panel connection and installation. Compact (5.51"×2.36"×3.7", 1.1lbs) Backed by a 1-year warranty for added confidence and peace of mind
| SKU: | B0H763NHRS |
| Weight: | 1.1 pounds |
| Dimensions: | 5.51″L x 2.36″W x 3.74″H |
| Brand: | GUIGOOD |
| Part: | GU-MPPT 600W 15A MC4-US |
| Material: | Metal |
| Colour: | Red |
| Manufacture: | GUIGOOD |
| Colour: | Red |
| Material: | Metal |
Product description
Good build quality does the job so fa
This 15A MPPT solar charge controller has been working great for my setup. It handles up to 600W efficiently and the MPPT tracking keeps the system pulling solid power even when conditions aren’t perfect. Installation was straightforward and the display makes it easy to monitor voltage, current, and charging status. Build quality feels solid and reliable so far. It’s been charging my batteries consistently without any issues. Excellent value for the performance and features you get. Highly recommend for a small to medium off-grid or backup solar system.
Flexible MPPT
This seems like a solidly built MPPT. It has a very wide range of input voltages, and can be configured to output many as well.
I have a variety of solar generators which accept various input voltages to charge. One thing I like to do is ensure I have the ability to charge these as quickly as possible. Typically that means a pretty high output voltage like 48v. I like the idea of being able to use regular automotive 12v and either recharge or supplement a solar generator in the event it is required.
Using this device, you can take 12v input and transform it into 48v or even 60v. The only caveat is that the amperage will not be very high. Also this generates alot of heat so this device comes equipped with a fan.
I rigged up two 48v step up transformers in the past to output 12a however this was large and bulky and ugly by comparison.
This unit is well built and has alot of funtionality.
Easy to connect and build your own system.
I have several solar panels and I will use this with my extra set of panels. Since this works with up to 600 watts, that works well if you have a set of 400 watt panels. I have learned to be careful when you run them in series,not to go over amp rating of 15 amps. You may need to run them in parallel to lower amps. I don’t have the battery yet for my new setup, but I unplugged my Solar generator and plugged in this controller. The sun was not strong when I plugged it in, but it did light up and show how it works. This would be a cheaper option to build system instead of solar generators. I will use this for a cheaper expansion battery. Power smaller things and have reserve power. This will meet my needs. I like it has a fan built in. With hot summers , that is a must. Seems well made and easy to attach solar panels with standard connectors.
Handy Boost Charge Controlle
Handy, compact and easy to use. I got this for keeping a golf cart (48V system) topped up during down times, when not in use. Lead acid batteries like to be kept at full charge for longest service life.
Allowed me to place a little 100 watt solar panel on the cart’s roof, and boost that panel’s voltage to charge/maintain the golf cart battery pack. Connected to cart batteries via some alligator clips which I attached to the charge controller (sure, the output on this charge controller is pretty low, but the terminals for attaching output wires could have been a little larger – for the end user’s convenience).
Of course one can connect a larger solar panel (up to 600 watts) for times of the year when days are shorter, or are more overcast. Keeps one from having to connect up the cart’s charger to the grid, and pay the high utility price for electricity (getting higher all the time as data centers keep taking and using more and more of available capacity).
Nice and handy little product for charging/maintaining higher voltage battery banks without having to install a whole solar panel array to get output up to the necessary voltage.
Easy Way to Add More Solar Input to My Battery Array
I’m using this as supplemental solar charging for my battery array, and so far it has worked very well. I’ve tested it both with a single 100W solar panel and with three 100W panels wired in series, and it handled both configurations without any trouble.
That flexibility is what I like most about it. My solar setup has grown over time using different panels, so having a controller that lets me make productive use of smaller or oddball groups of panels is really useful instead of having them sitting around unused.
The display is also pretty helpful. I can quickly see the incoming photovoltaic voltage along with the charging voltage, current, power, and controller temperature. With three panels in series I was seeing around 35V coming into the controller while it boosted the charging side to roughly 53V, so it is clearly doing what I bought it for.
The unit feels solid, is compact enough to mount with the rest of my solar equipment, and the built-in cooling fan is a good addition since boost converters can generate some heat.
For me this isn’t my primary solar charge controller, but that’s exactly why I like it. It gives me another way to feed supplemental power into my battery system using panels that otherwise might not fit neatly into the main array. For a DIY solar setup like mine, it has been a very useful addition and a good value.
Application
15A 600W MPPT boost solar charge controller for higher voltage batteries.
Pros
* Wide input/output range
* High efficiency tracking
* Supports multiple battery types
Cons
* Boost design complexity
* Limited 15A current
Conclusion
Capable boost controller. Good for specialized solar setups.
