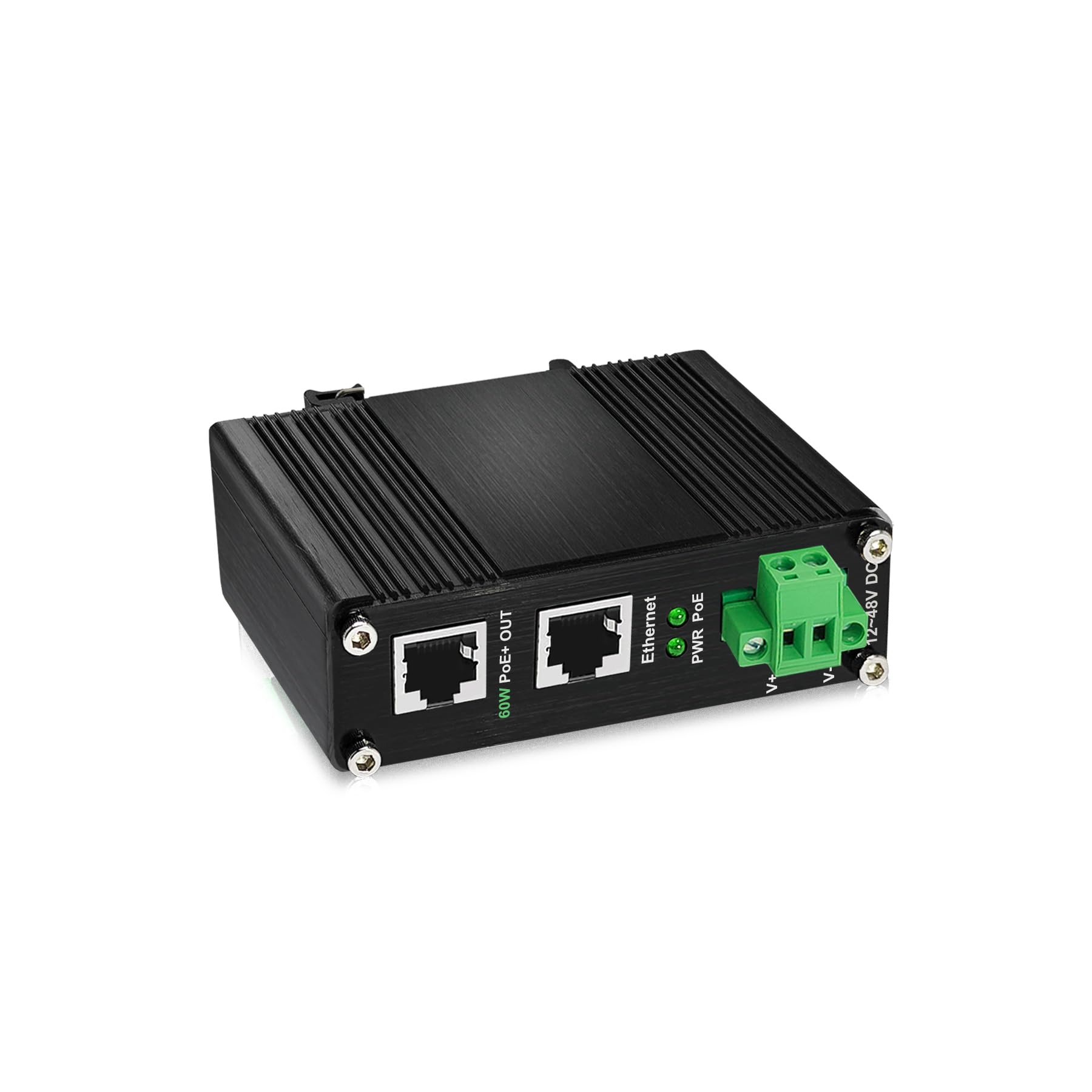

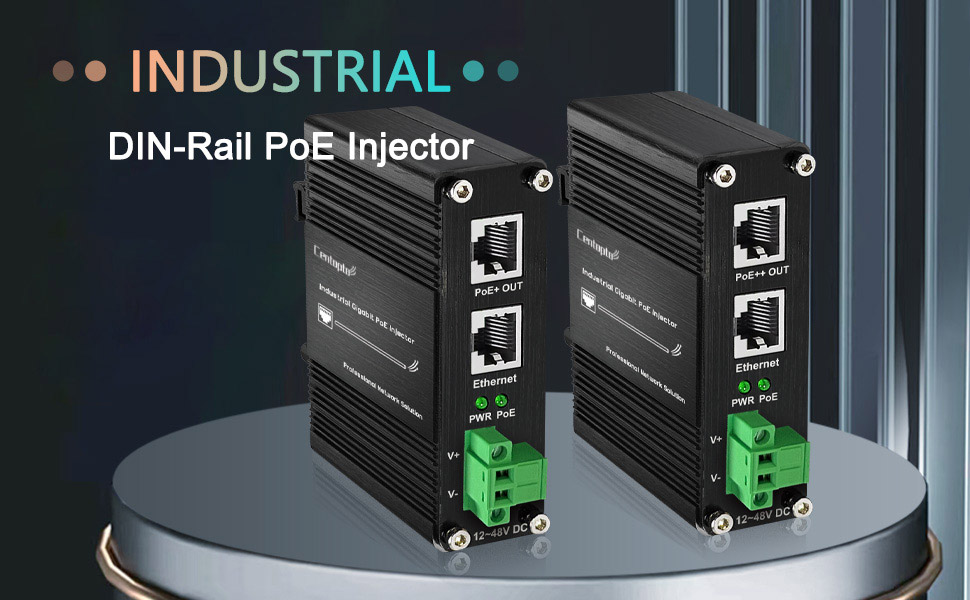

1-Port 10/100/1000 Base-T RJ45 to 1-Port IEEE802.3at 60W PoE Injecto

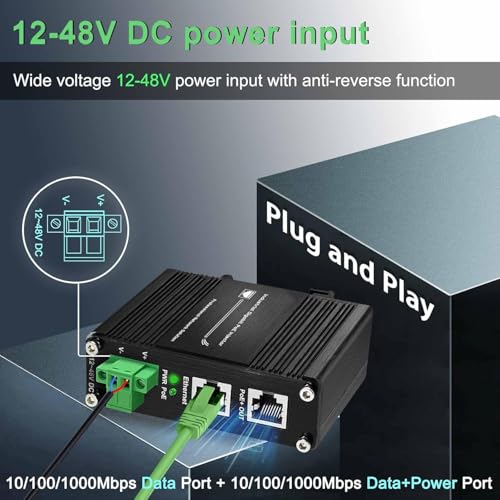

• [12~48V DC Input] – The PoE injector supports 12~48V DC input and boost to 48V PoE output. It will solve the problem that you only have 12V or 24V centralized power supply.
• [Max 60W PoE Output] – With PoE output port, supports IEEE802.3af PoE (15.4W) and IEEE802.3at PoE+(30W). Single port support max 60W PoE.

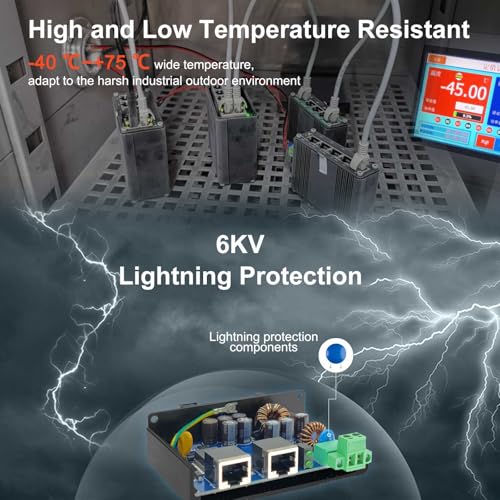

• Industrial Grade Quality – The PoE adapter uses industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.

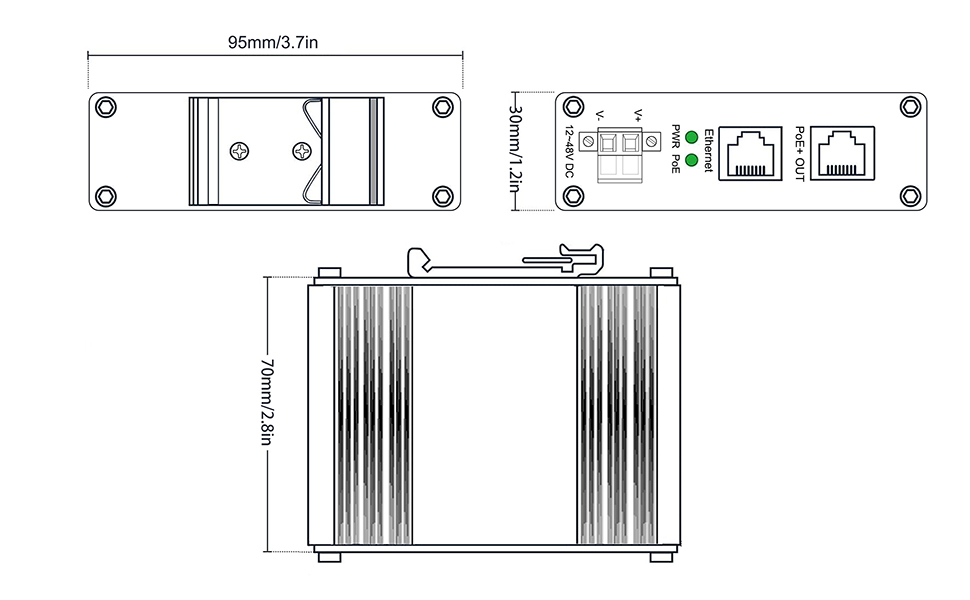

• [Small Size] – The PoE injector size is 3.74×2.76×1.18in, it doesn’t need large space to install.

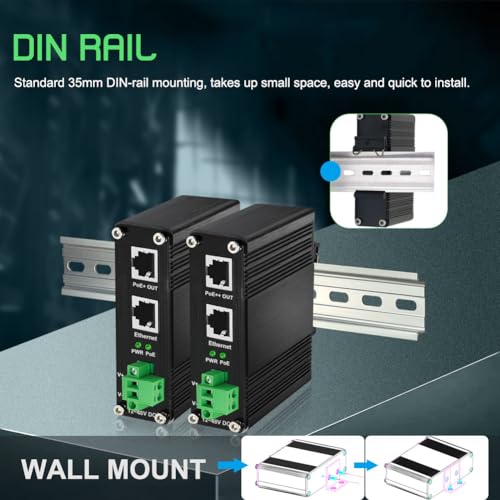

• [Din-Rail & Wall Mount] –The gigabit PoE injector comes with 35mm Din-rail clip and wall mount accessories.

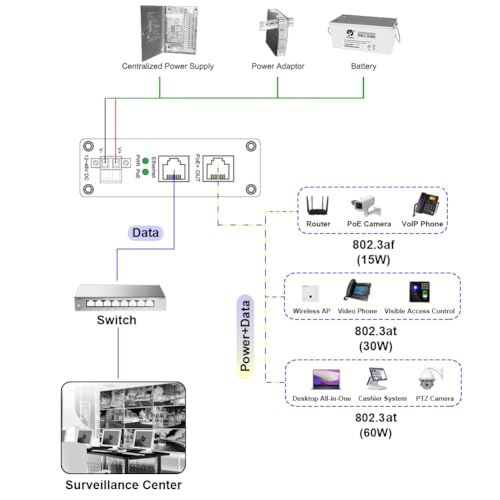

The PoE Injector is a Hardened Gigabit PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.

Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant withI EEE 802.3ab. The PoE Out port compliant with IEEE 802.3 af/at. The POE adapter provides an integrated power solution with 12~48VDC wide range voltage input.

12~48VDC Power Input

RJ45 Ethernet Data Input Port + RJ45 Power Over Ethernet Output Port(Data + Power)

Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment

Support 10/100/1000Base-TX

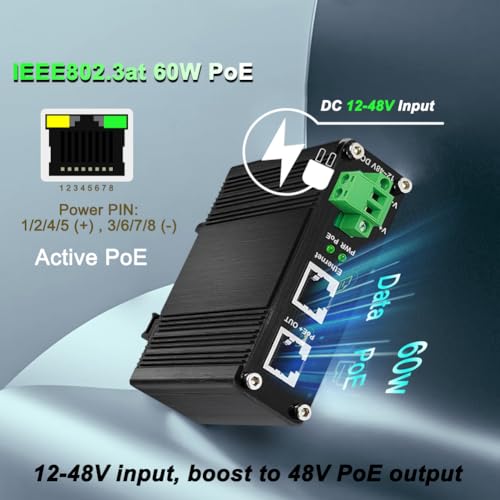

Power Pin Assignment: 30W–4/5(+), 7/8(-); 60W–1/2/4/5(+), 3/6/7/8(-)

Support DIN-Rail & Wall-mountin stallation.

Extensive LED indicators for PoE diagnostics

Environmentally Hardened -40°C to 80°C(-40°F to 176°F) operating temperature

Package:

1 * PoE Injector

1 * POE injector User Manual

1 * L-Shaped Wall Mount bracket

Note: The Power Supply for POE injector is to be purchased separately.

---
