Solar Grid Tie Micro Inverter 1200W, 120V AC Grid-Tied

Solar Grid Tie Micro Inverter 1200W

Solar Grid Tie Micro Inverter 1200W, 120V AC Grid-Tied Output with WiFi Smart App Tracking, 96% Efficiency Pure Sine Wave Inverter for Family Residence, Home & Small Business Energy Saving

  • High-Efficiency Inversion & Pure Sine Wave: Experience a remarkable 96% peak power conversion and an optimized power factor over 0.99. This 1200W micro inverter outputs a grid-quality pure sine wave, ensuring premium defense for delicate household appliances while driving down your monthly electrical expenses

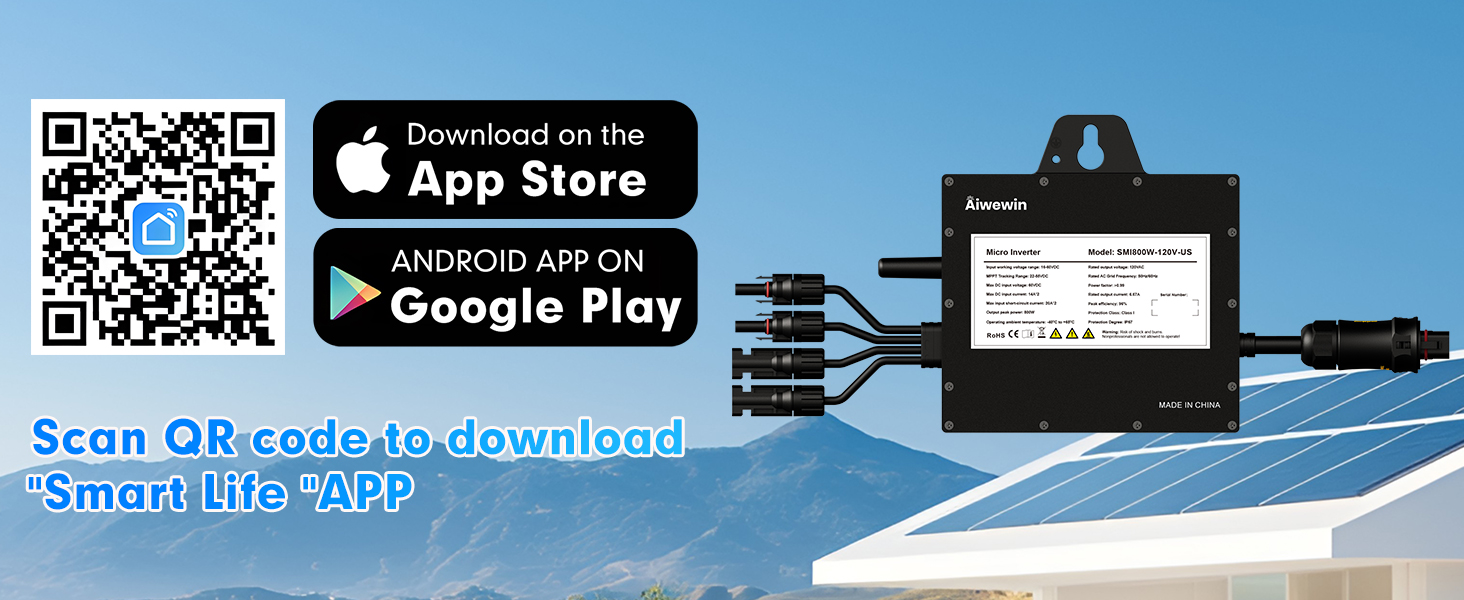

  • WiFi Smart App Control & Remote Monitoring: Seamlessly supervise your solar power generation through a dedicated intelligent App. Featuring a high-sensitivity integrated antenna for uninterrupted wireless connectivity, it allows you to view live voltage, current, and total wattage, alongside interactive historical charts to keep your system performing flawlessly
  • Dual MPPT Tracking for Maximum Solar Yield: Built with dual independent MPPT channels (ranging from 22V to 55V) to extract peak performance from two solar panels individually, minimizing energy loss from cloud cover or partial shading. The adaptive 16-60VDC input offers extensive matching with professional 60-cell and 72-cell solar PV modules

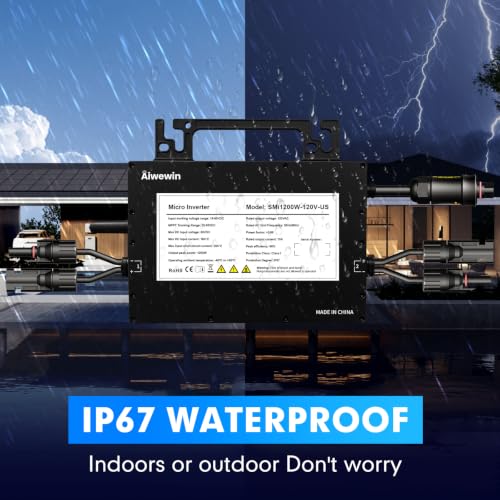

  • All-Weather IP67 Waterproofing & Elite Cooling: Certified IP67 to fully withstand severe rainstorm, airborne dust, and high humidity. Constructed with a heavy-duty die-cast aluminum enclosure that operates as a high-performance heat sink, this robust unit functions reliably under hostile outdoor environments from -40°C up to 65°C
  • Certified Grid-Tie Safety & Auto-Sensing: Fine-tuned for standard 120VAC electrical grids with intelligent 50Hz/60Hz frequency auto-detection. Engineered with multiple industrial-grade protections—including anti-islanding, voltage spikes suppression, and thermal defense—to provide a reliable and hazard-free green energy companion for your residential property

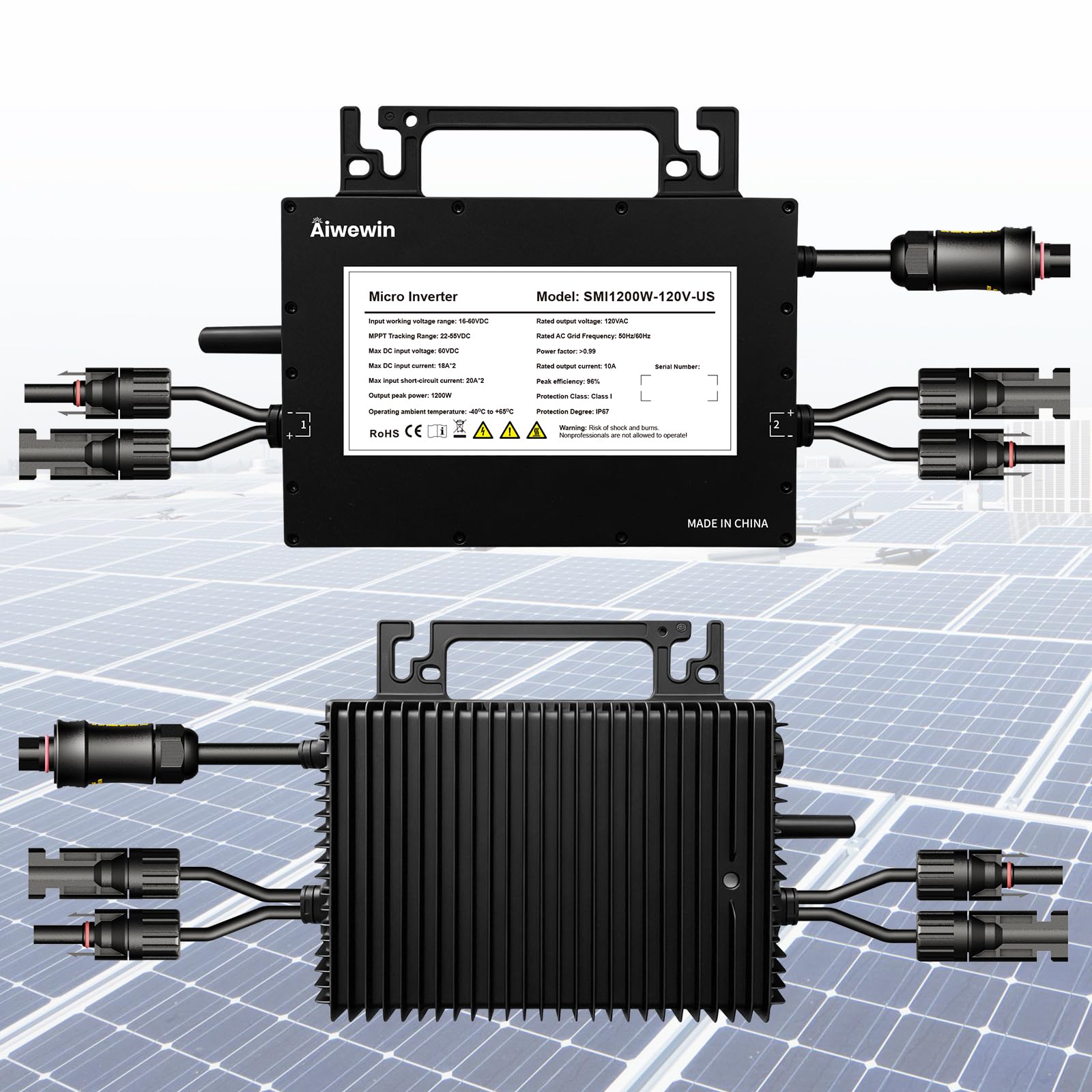

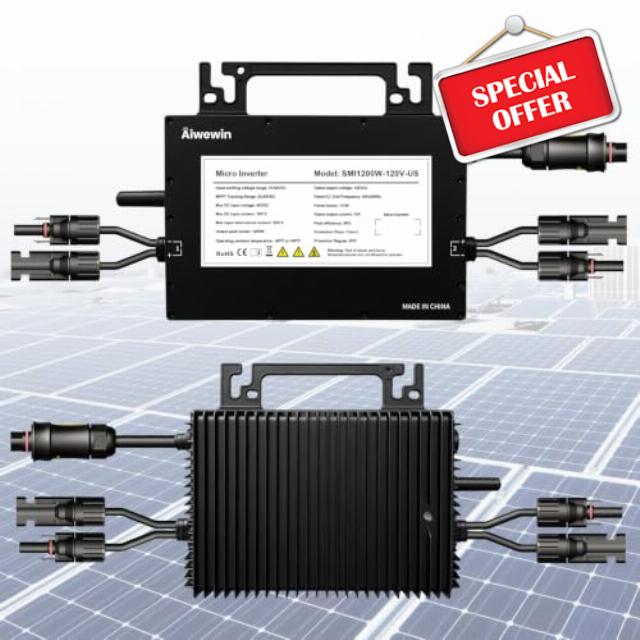

Aiwewin 1200W Solar Grid Tie Micro Inverter

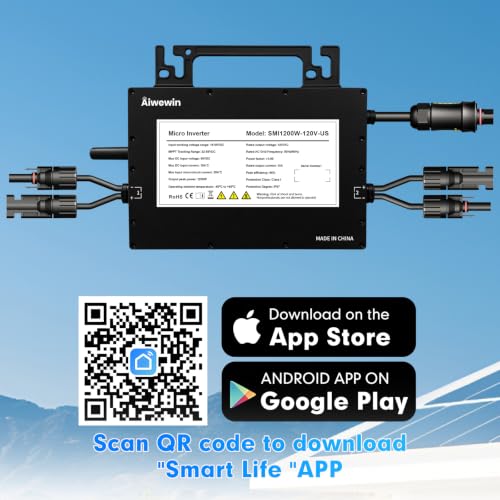

APP Control & MPPT Monitor, Complete control in your hands

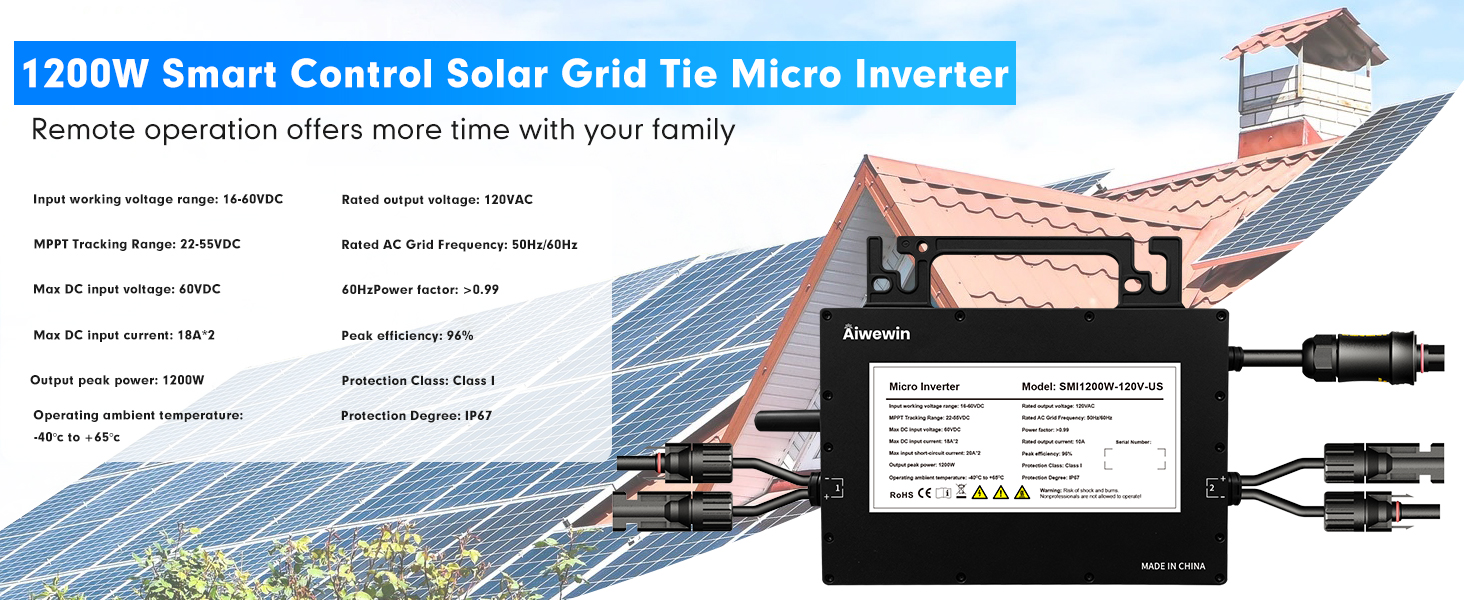

1200W Solar Grid Tie Micro Inverter, APP Control&MPPT Monitor, IP67 Waterproof & Heat protection, Pure Sine Wave Output, for Solar Panel to Home Grid, 16-60VDC to 120VAC, for Home.

PowerMax 1200W
Working Voltagerange16-60 VDC
Max input current18A*2
Max Isc (input)20A*2
Output Voltage range120VAC & Auto
Nominal frequency/range(Hz)50 Hz/ 60 Hz
60HzPower factor>0.99
Distortion(Output current harmonic distortion) THD<3%
Peak Micro Inverter Efficiency96%
Nominal MPPT efficiency0.99
Night power consumption(mW)<0.5W
Ambient temperature range(℃)-40~65℃
WaterproofIP67
Power transmission modeReverse transmission, load priority
Electrical standardsEN 50549-1:2019,EN 50549-2:2019EN 61000-6-1:2007,EN 61000-6-3:2007+A1:2011+AC2012IEC/EN 62109-1:2010,IEC/EN 62109-2:2011

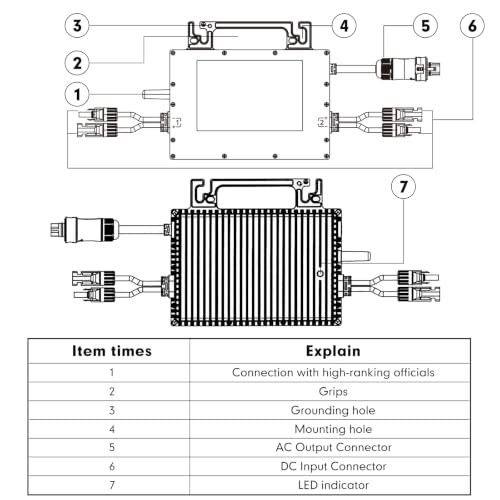

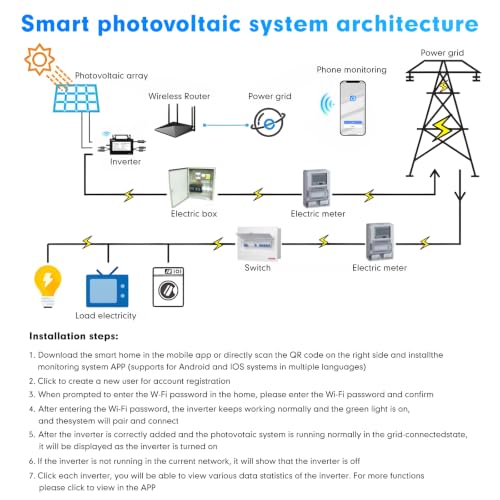

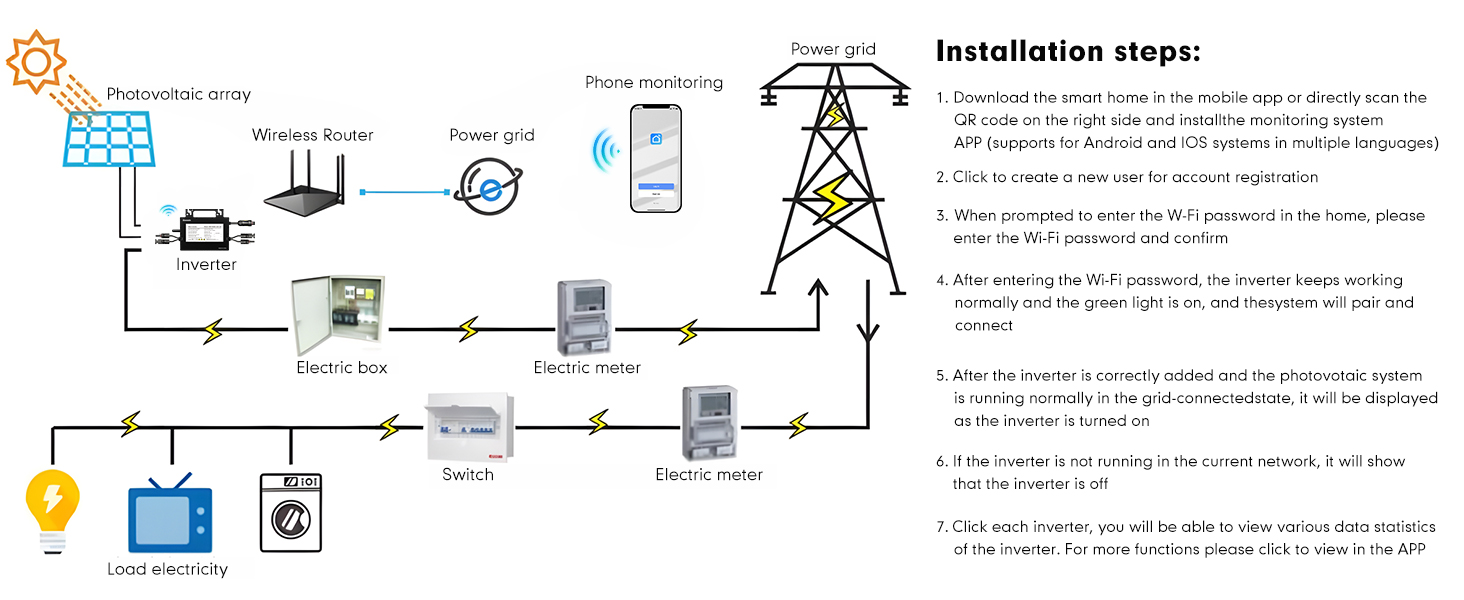

1 Install 2 Information 3 Smart App

SKU: B0GVJYXTCH
Brand: Aiwewin

Product description

Aiwewin 1200W Solar Grid Tie Micro Inverter

1200W SmartControl Solar Grid Tie Micro Inverter1200W SmartControl Solar Grid Tie Micro InverterIP67

1200W Solar Grid Tie Micro Inverter, APP Control&MPPT Monitor, IP67 Waterproof & Heat protection, Pure Sine Wave Output, for Solar Panel to Home Grid, 16-60VDC to 120VAC, for Home.

Power Max 1200W
Working Voltagerange 16-60 VDC
Max input current 18A*2
Max Isc (input) 20A*2
Output Voltage range 120VAC & Auto
Nominal frequency/range(Hz) 50 Hz/ 60 Hz
60HzPower factor >0.99
Distortion (Output current harmonic distortion) THD<3%
Peak Micro Inverter Efficiency 96%
Nominal MPPT efficiency 0.99
Night power consumption(mW) <0.5W
Ambient temperature range(℃) -40~65℃
Waterproof IP67
Power transmission mode Reverse transmission, load priority
Electrical standards EN 50549-1:2019,EN 50549-2:2019EN 61000-6-1:2007,EN 61000-6-3:2007+A1:2011+AC2012IEC/EN 62109-1:2010,IEC/EN 62109-2:2011
  1. microinverter
  2. microinverter
  3. microinverter

4 Responses

  1. Anonymous says:

     United States

    Golden Review Award: 1 From Our Usersdependable performance Solar Grid Tie Micro Inverter 1200W
    The Solar Grid Tie Micro Inverter 1200W has been an excellent addition to my solar setup. One of the things I like most is its compact design. It doesn’t take up much space, but it is solid and well made. I love the fact that it is durable and weather-resistant. This gives me confidence knowing that it can hold up to changing weather without any problems. Installation was straightforward, and once everything was connected, the inverter performed exactly as expected. It delivers a steady and reliable 120V AC grid-tied output, making it a great option for anyone looking to maximize the energy produced by their solar panels. The inverter runs efficiently and holds a steady temperature during operation. This shows how effective the quality and long-term durability of this inverter is. Another feature thats standout to me is the built-in WiFi smart app tracking. The smart app tracker allows me to monitor energy production and system performance from the convenience of my phone. I can easily check real-time output and monitor my system performance without having to do it manually. The inverter is a bit pricey but it is well worth it. I recommend this inverter for home and business owners. The inverter is reliable.

  2. ShaneVFIBvf says:

     United States

    Golden Review Award: 1 From Our UsersSolid Performance, Though Installation Takes Planning
    I evaluated this as part of a planned small grid-tied solar setup, not as a casual plug-in gadget, so I went through the enclosure, connectors, controls, and the WiFi monitoring the way I would with any device that ties into household wiring. I want to be clear that I did not perform a utility interconnection without the required electrical and utility review, because a 120V grid-tie inverter is exactly the kind of product where that step is not optional. My assessment focuses on build quality, connection integrity, and how the monitoring behaves in normal daytime operation.

    The enclosure, cable exits, connectors, and strain relief are what deserve close attention on a product like this, and mine looked orderly out of the box. It is rated for 1200W at 120V AC grid-tie operation with a pure sine wave output and a claimed 96% efficiency, and the WiFi app is meant to give per-unit production tracking. On inspection I found no exposed conductors, the connectors seated firmly, and the strain relief at the cable entries was molded in rather than an afterthought. The housing feels sealed and solid, which matters for something that may live outdoors near an array.

    Performance has been steady across normal daytime operation. This is a product you appreciate after several ordinary days rather than in a dramatic first impression, because the value is in consistent reporting and a clean, low-heat installation. I paid particular attention to connector fit, cable strain relief, operating temperature, and whether the app’s numbers tracked what I expected from the panel in changing light. The app paired without much drama and the pure sine wave output measured clean on my meter, though as always the ratings and circuit requirements have to be respected before anything is energized. Across changing cloud cover the reported figures moved the way I expected rather than lagging or spiking, and the unit ran only mildly warm to the touch after hours of sun, which is reassuring for something that may sit exposed near the panels.

    After setup, maintenance mostly means keeping the connections dry and clean, periodically checking for looseness, and watching for any unusual heat or discoloration at the terminals. That is a normal responsibility for any grid-tied electrical accessory rather than a flaw specific to this unit. The WiFi monitoring actually helps here, because a sudden drop in reported output is an early warning that something needs a physical check, so the app doubles as a maintenance tool rather than just a novelty readout.

    The useful features show up in daily operation rather than only on the spec sheet. The app tracking is the standout, since being able to see production without climbing to the array is genuinely convenient, and the pure sine wave output and 96% efficiency claim held up well enough in my informal checks to feel honest rather than optimistic. It earns its place by being an organized, monitorable piece of a small system rather than a sealed black box you cannot verify.

    The reason I am keeping this at four stars is specific. The documentation and certification details deserve careful verification for your jurisdiction, and this is not a product I would call plug-and-play for an average homeowner, since correct interconnection genuinely requires electrical knowledge and often utility sign-off. That is a real consideration rather than a defect, but buyers should go in expecting a planned installation rather than an afternoon project, and should not skip the code and permitting steps.

    This makes the most sense for experienced DIY users who understand ratings, wiring, heat, and strain relief, and who will verify local interconnection rules before energizing anything. It earned the rating because the core function is strong, the monitoring is genuinely useful, and the main limitation is entirely manageable when the unit is matched to the right setup and installed responsibly by someone who knows what a grid-tie install involves.

  3. NolanFlj7606 says:

     United States

    Golden Review Award: 1 From Our Users1200w microinverter wirh 2x 600w mppt inputs
    This inverter works well, it disconnects instantly when there is a sudden loss of grid power, it comes back online pretty quickly. The wifi/app is through smart life, but it is only accessible when the inverter is online with both ac and solar power. It consumes about 8-9% of the solar input which was fairly consistent from 25w to 600w. Unfortunately I could not maximize the use of this and my 200w panels as my panel’s voc is 25v whcih a string of 3 is over the 60v solar limit of the inverter. I was able to test it with 2x200w panels in series on each input, as well as putting the 2 pairs in parallel on one mppt input. With the 800w of panels all on one mppt input the inverter maxed out at 600w of solar power and ~540w of ac output. With 4 panels, 2x200w panels on each input I was seing 660w of solar input and 600w of ac power, with only one pair of panels on just one mppt input the solar power was 330w and the output was 300w, and with 2 panels just in parallel, the output was nearly the same, the current is limited to 18amps on each input so I only tested 2 panels in parallel for that. The panels average 160w+ across other charge controllers so I have no complaints with this inverter getting the max input from my panels.

    I did not see any ul listing for this so that may be a problem with your local power conpany and local regulations. The inverter comes with a standard wall plug and the solar connects with mc4 connectors.

  4. Anonymous says:

     United States

    Golden Review Award: 1 From Our UsersGrid plugged inverte
    Application

    1200W solar grid-tie micro inverter with WiFi app monitoring.

    Pros

    * Pure sine wave, 96% efficiency

    * WiFi smart tracking

    * Easy PV integration

    Cons

    * may piss off your utility

    * Grid-tied only

    Conclusion

    Solid micro inverter for home solar. Effective savings.
