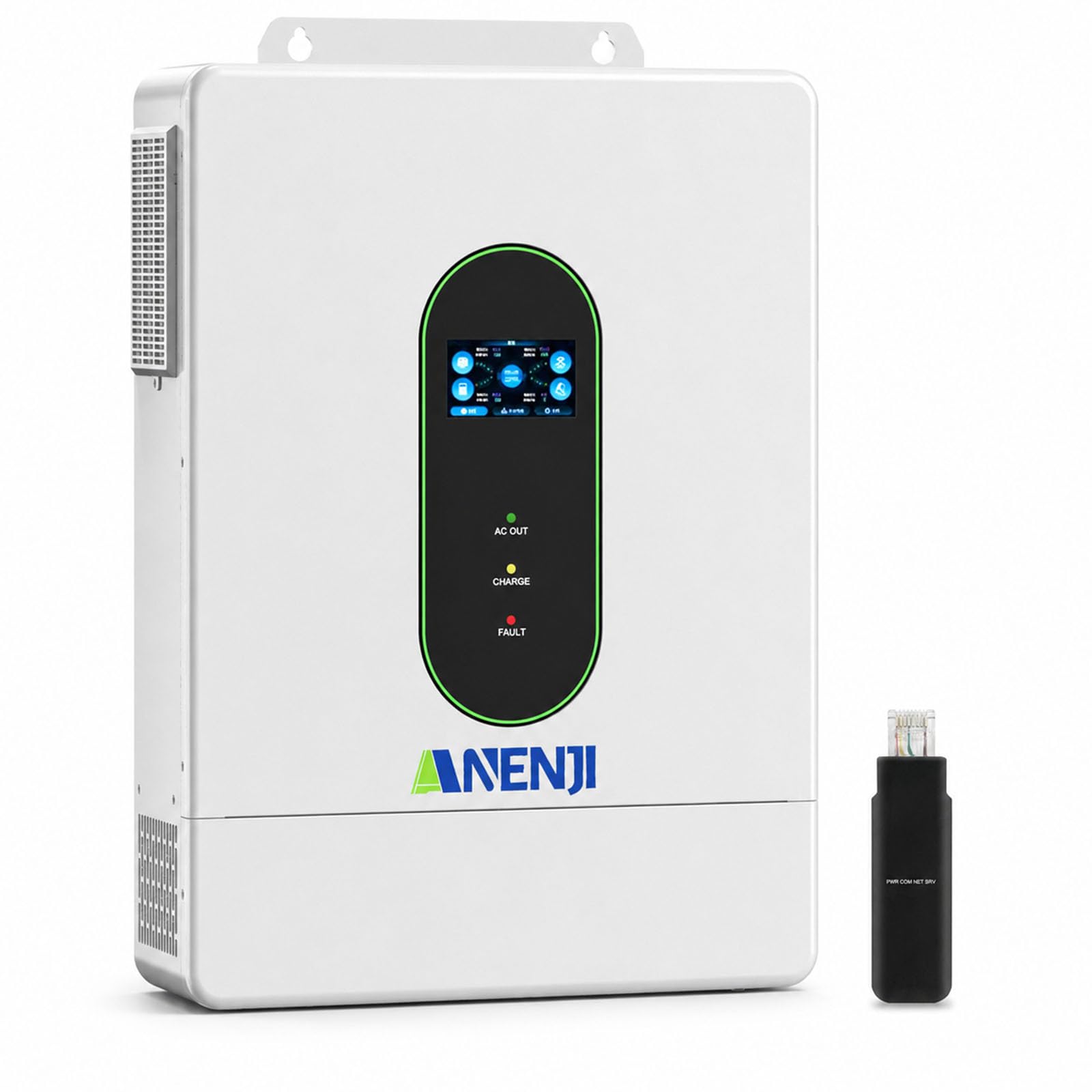

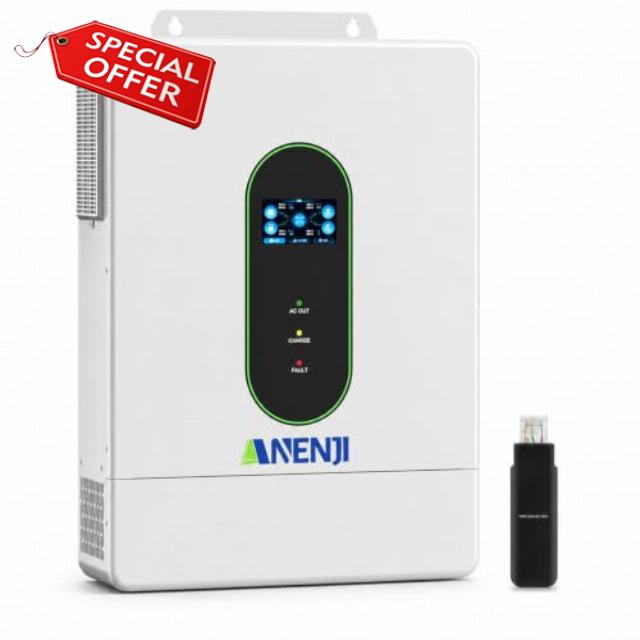

12000W Hybrid Solar Inverter 48V DC to 110/220V AC, Pure Sine Wave

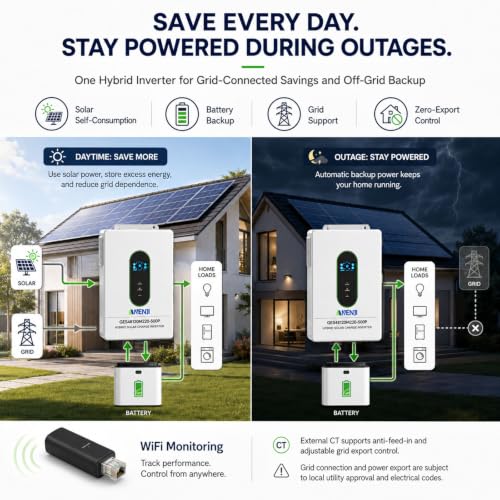

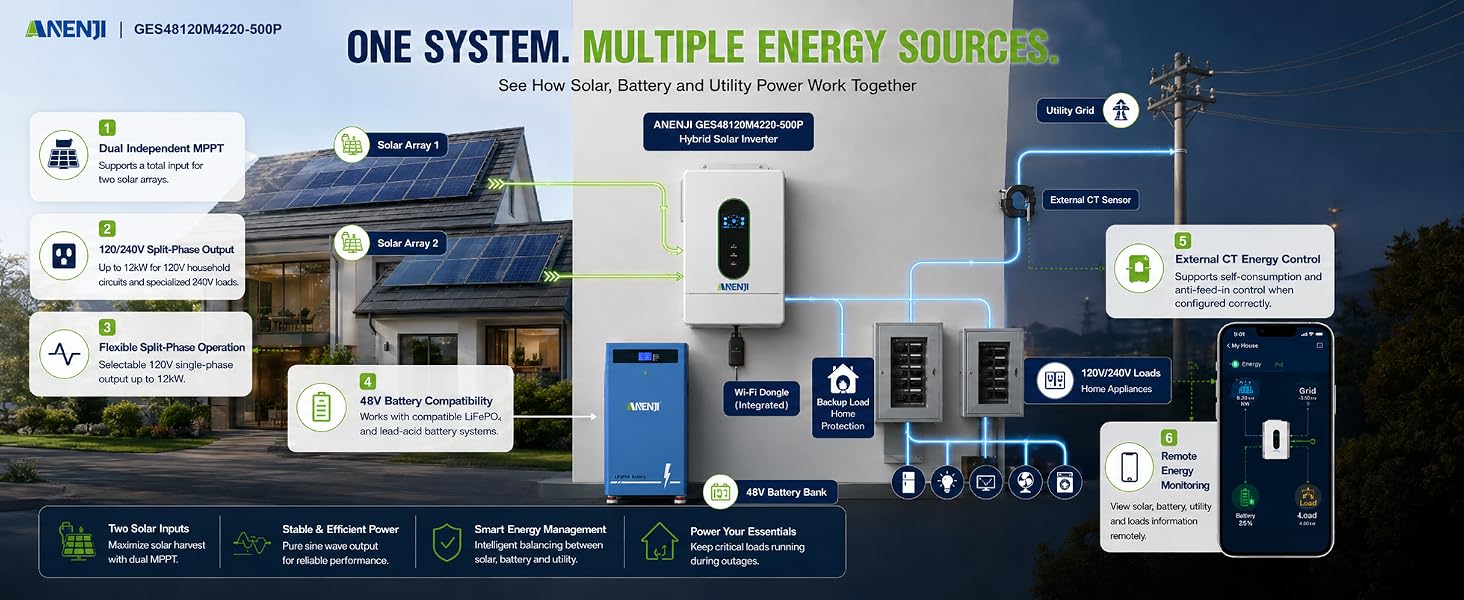

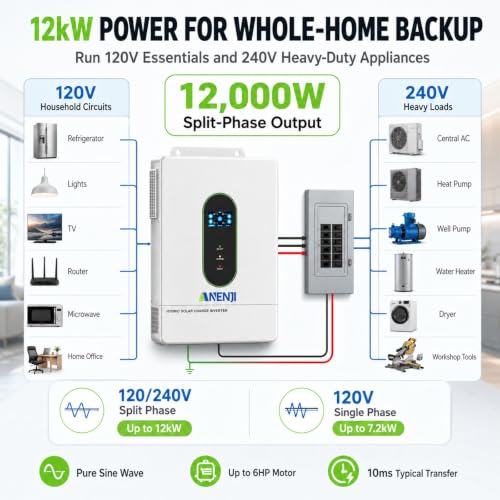

• & : Converts 48V DC power from solar panels or batteries to 120V single-phase / 240V split-phase AC, delivering 12,000W continuous output and 24,000W peak output to easily power heavy-duty appliances (cookware, televisions, workshops equipment) and daily loads. Supports up to 6,000W+6,000W PV input with max 500VDC, perfectly matching off-grid/on-grid solar systems for homes, RVs, cabins, and workshops.

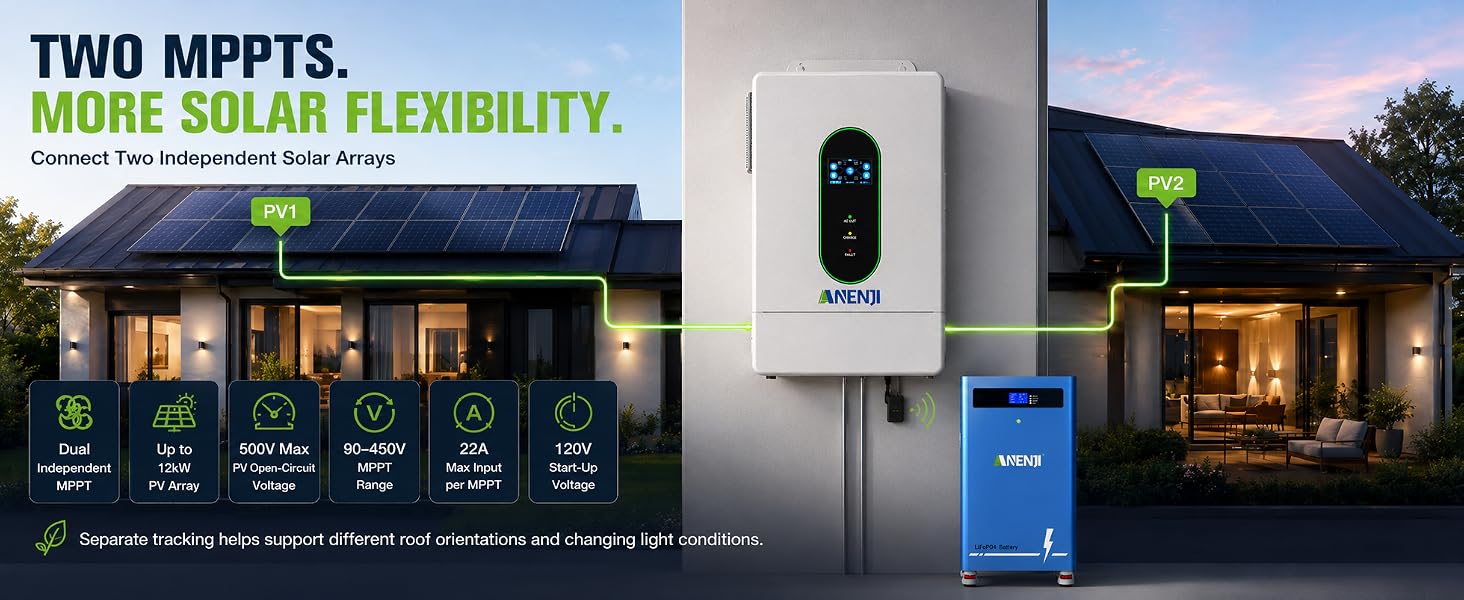

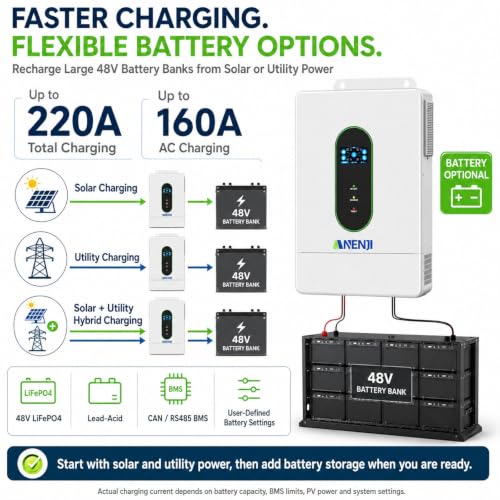

• & – : Equipped with 2 MPPT solar charging controllers and max 220A battery charging current, maximizing solar energy harvesting and boosting charging efficiency by up to 30% compared to traditional controllers. Compatible with high-voltage PV arrays (up to 500VDC), it ensures stable and fast charging even under varying light conditions. Works seamlessly with 48V AGM, GEL, Lead-acid, Li-ion, and LiFePO4 batteries, and supports no-battery operation for direct solar-to-load use.

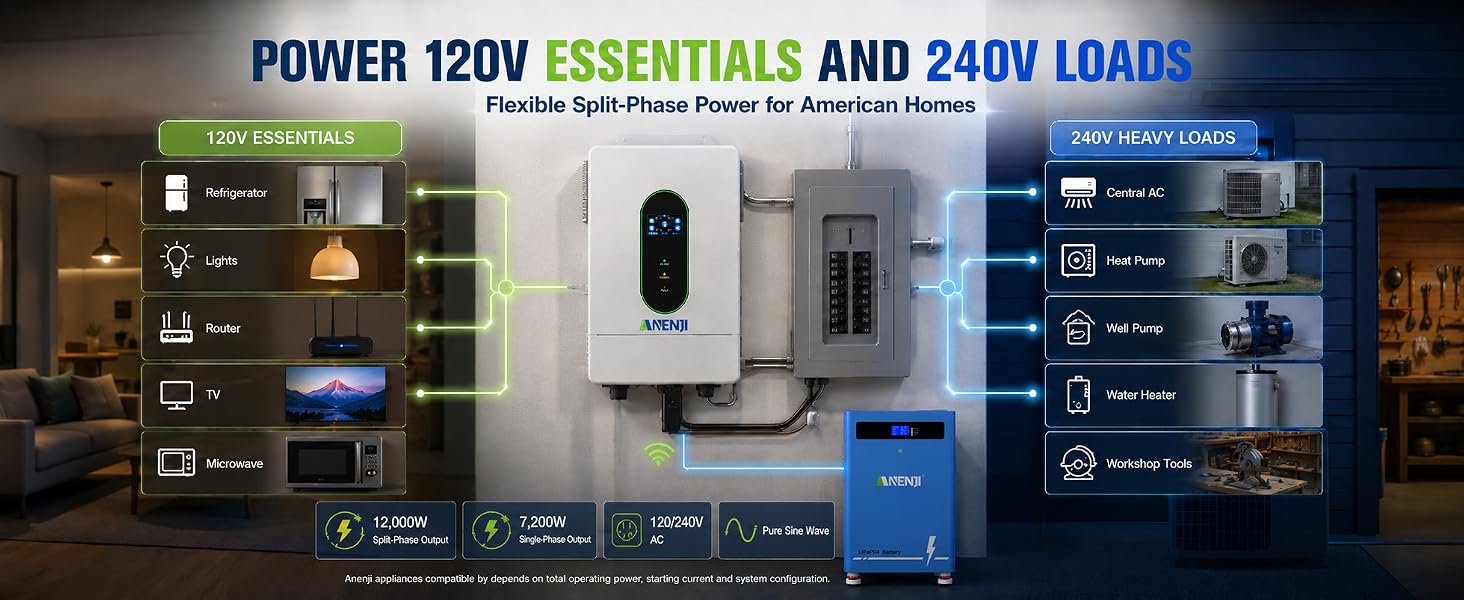

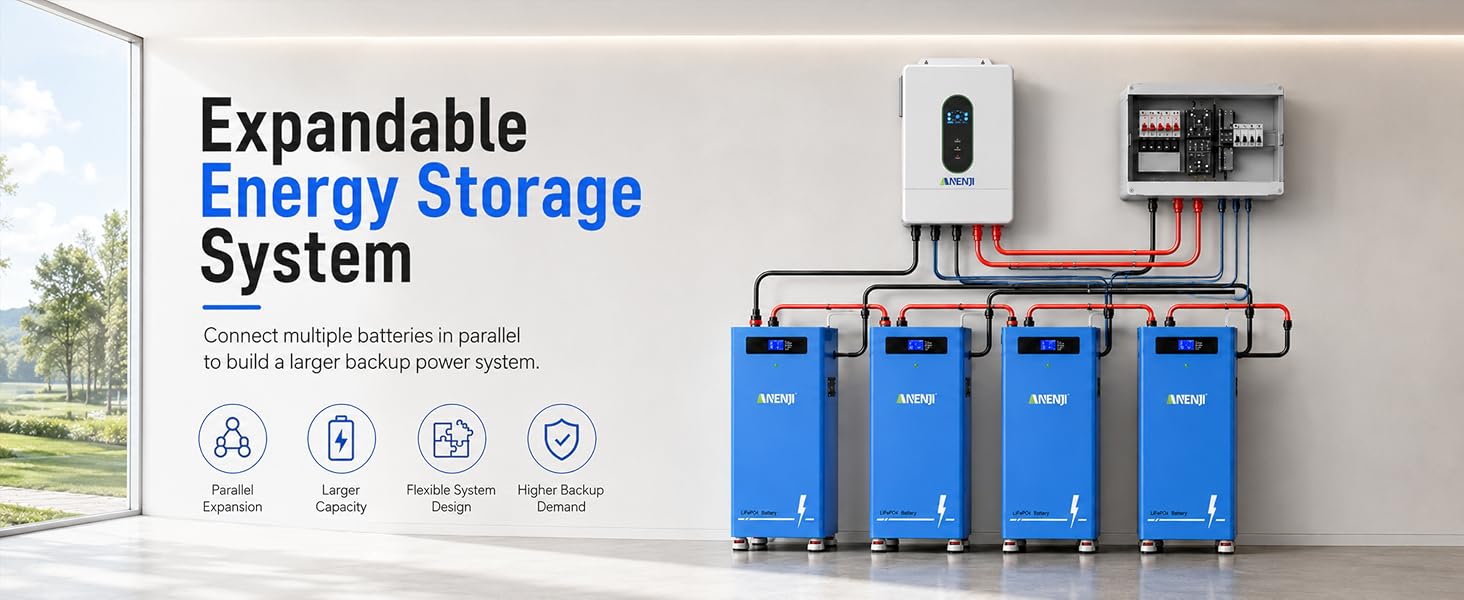

• & : Supports parallel connection of up to 6 units, expanding the maximum output power to 72kW for larger power demands. A single unit provides 120V single-phase or 240V split-phase output; 3 units can achieve 208V three-phase output. Parallel connection not only increases total power but also enhances surge capacity, making it suitable for both residential and small commercial solar systems that require scalable power solutions.
• & : Adopts a new exterior design and hardware topology, paired with advanced digital control technology for superior performance. Features an OLED light-touch screen with high-definition display, accurate touch response, and intuitive operation interface, allowing you to easily monitor and adjust parameters. Supports flexible monitoring modes (WIFI-enabled, as indicated by model ANJ-12000W-LVP-WIFI) for real-time status check anytime, anywhere.

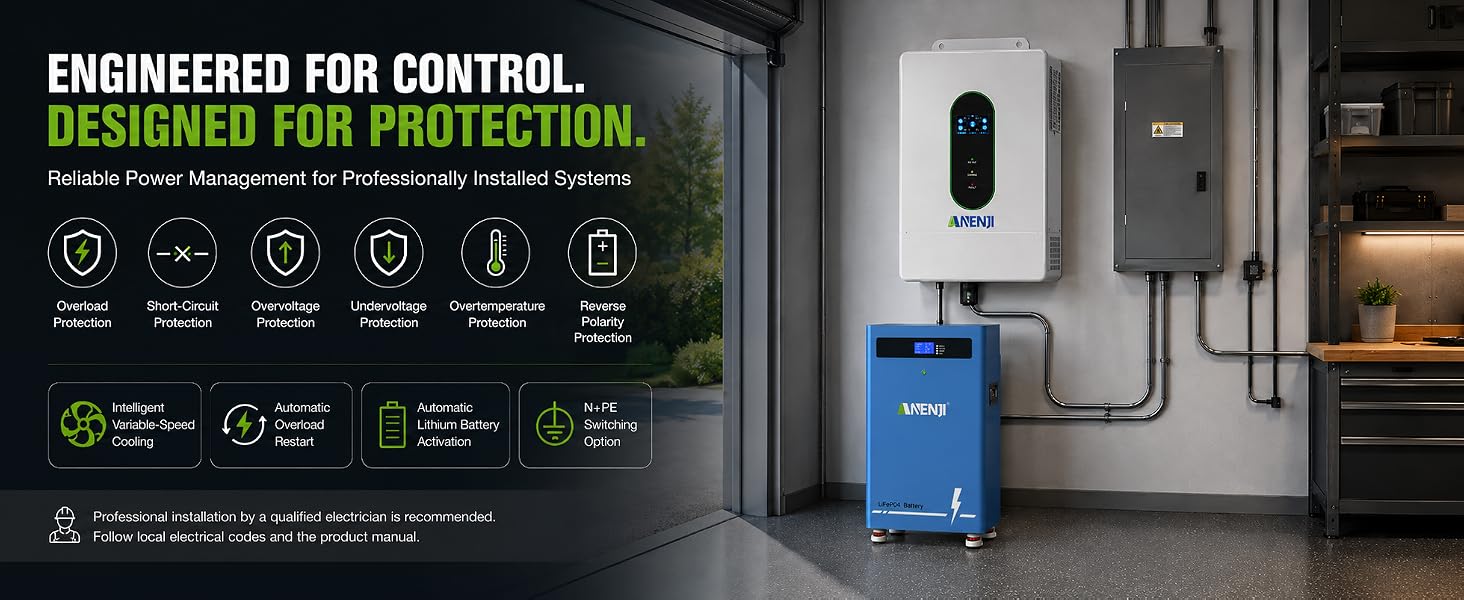

• & : Boasts an IP65 dustproof enclosure, making it durable for indoor and semi-outdoor use, capable of withstanding harsh environments (heat, humidity, dust). Equipped with a smart variable-speed cooling system based on power consumption for efficient heat dissipation. Comprehensive hardware and software protection mechanisms (overvoltage, undervoltage, reverse polarity, short circuit) extend equipment and battery lifespan. Max efficiency exceeds 95%, ensuring energy-saving operation, and UL1741 certified for reliable and safe use.

Notice:

1. If you need any help with settings or fault code, please contact anenji168 at outlook dot com.Thanks

2. WhatsApp: +86 188 0375 9233.

3. BusinessHours:MondaytoFriday,9:00AM-6:00PM(GMT+8)
