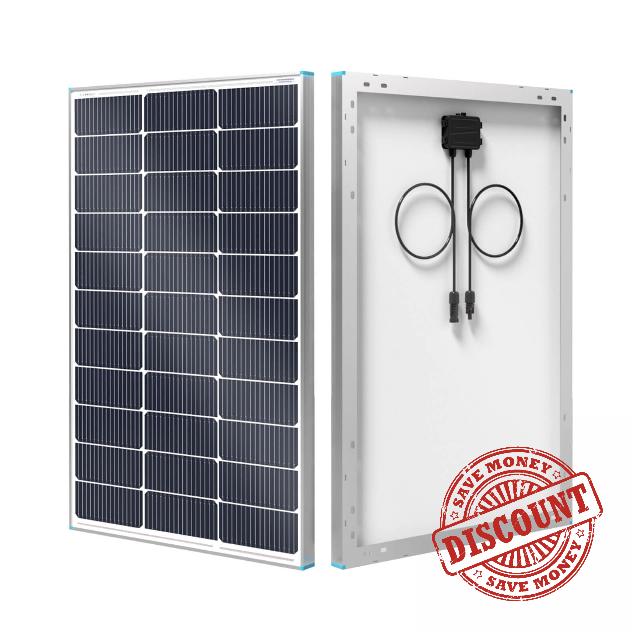

Renogy Solar Panel 100 Watt 12 Volt, High-Efficiency

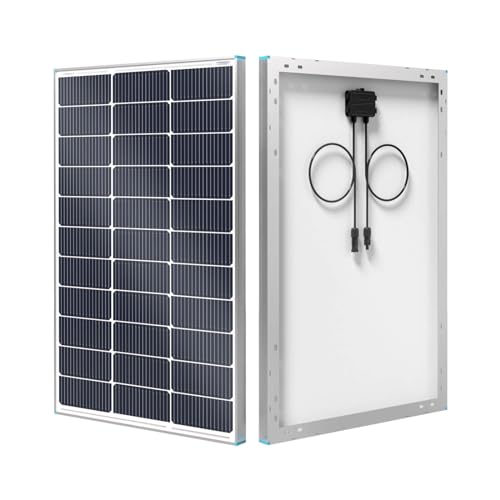

Renogy Solar Panel 100 Watt 12 Volt, High-Efficiency Monocrystalline PV Module Power Charger for RV Marine Rooftop Farm Battery and Other Off-Grid Applications, RNG-100D-SS, Single 100W

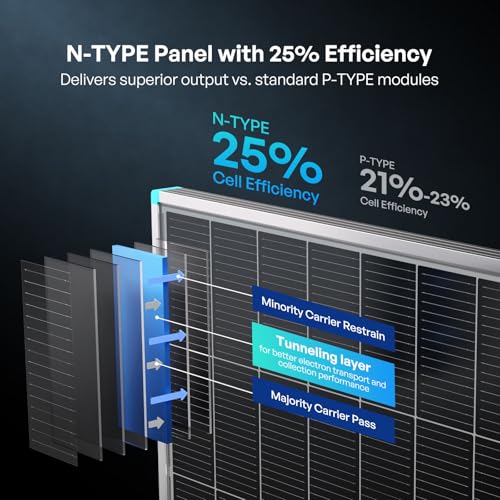

- – % ? – Renogy's 100w solar panel features A+ grade n-type solar cells, achieving an impressive 25% conversion efficiency. This slolar panel delivers 20W more power output compared to standard solar panels 100 watt of the same design, making it an excellent choice for solar energy solutions.

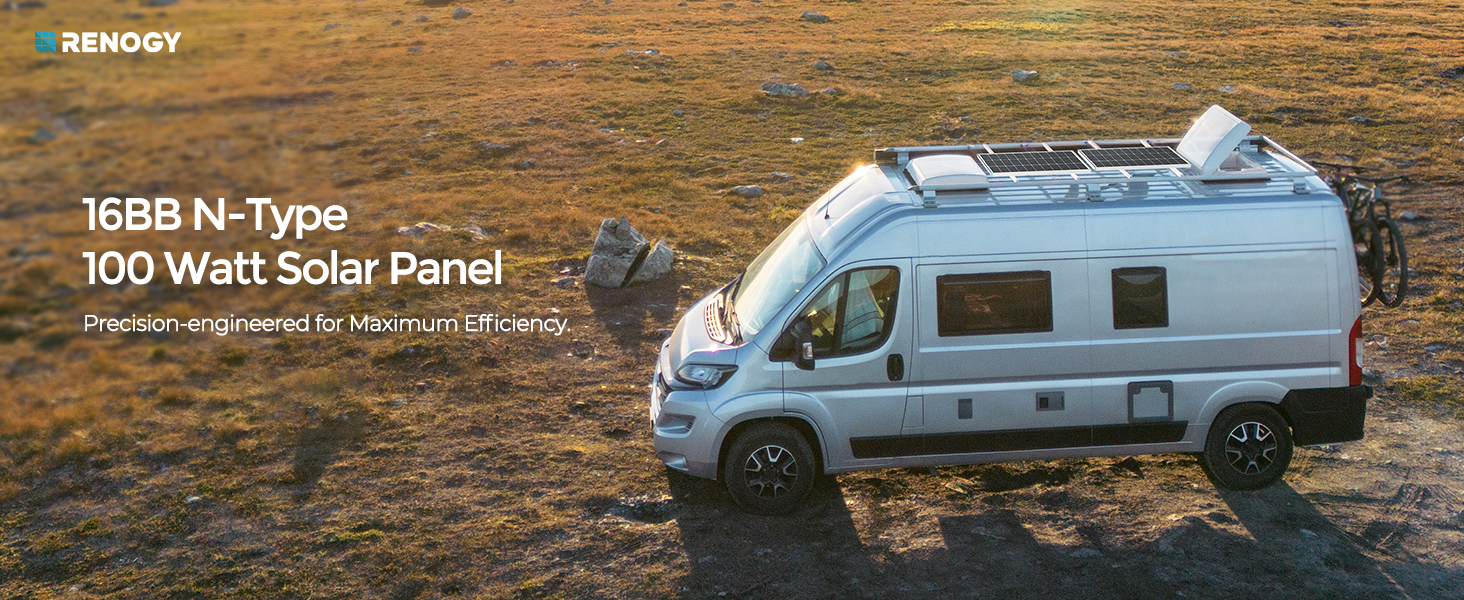

- – Employing advanced 16BB N-Type solar panel technology, this 100 watt solar panel enhances photoelectric conversion efficiency while minimizing the risk of hot spots and hidden cracks. This results in a longer lifespan and superior performance for your solar panel kit.
- – Renogy 100w solar panel is 11% smaller and 8% lighter than its predecessor, providing the same power output in a more compact, space-saving design—ideal for tight spaces in Mini Van Life.

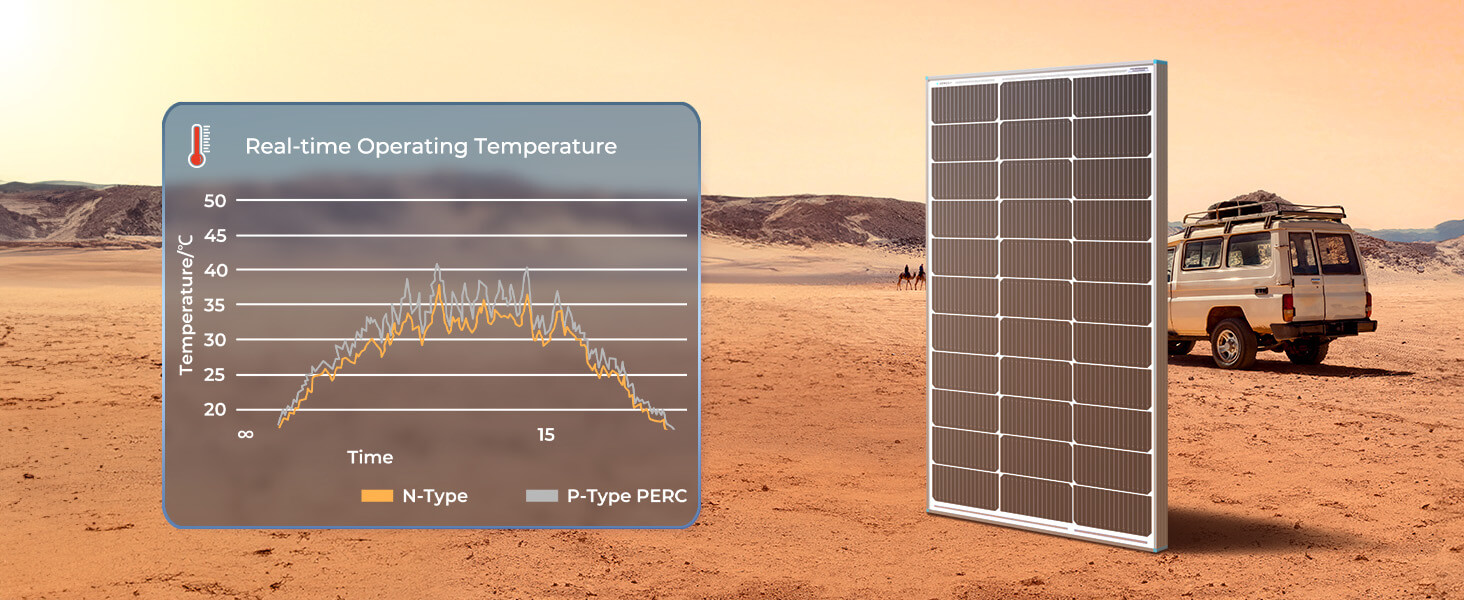

- ? – The Renogy 100 watt solar panel features a low temperature coefficient of -0.29%/℃, which reduces power loss in high temperatures. This characteristic significantly boosts power generation, especially during summer months or in extremely hot climates.

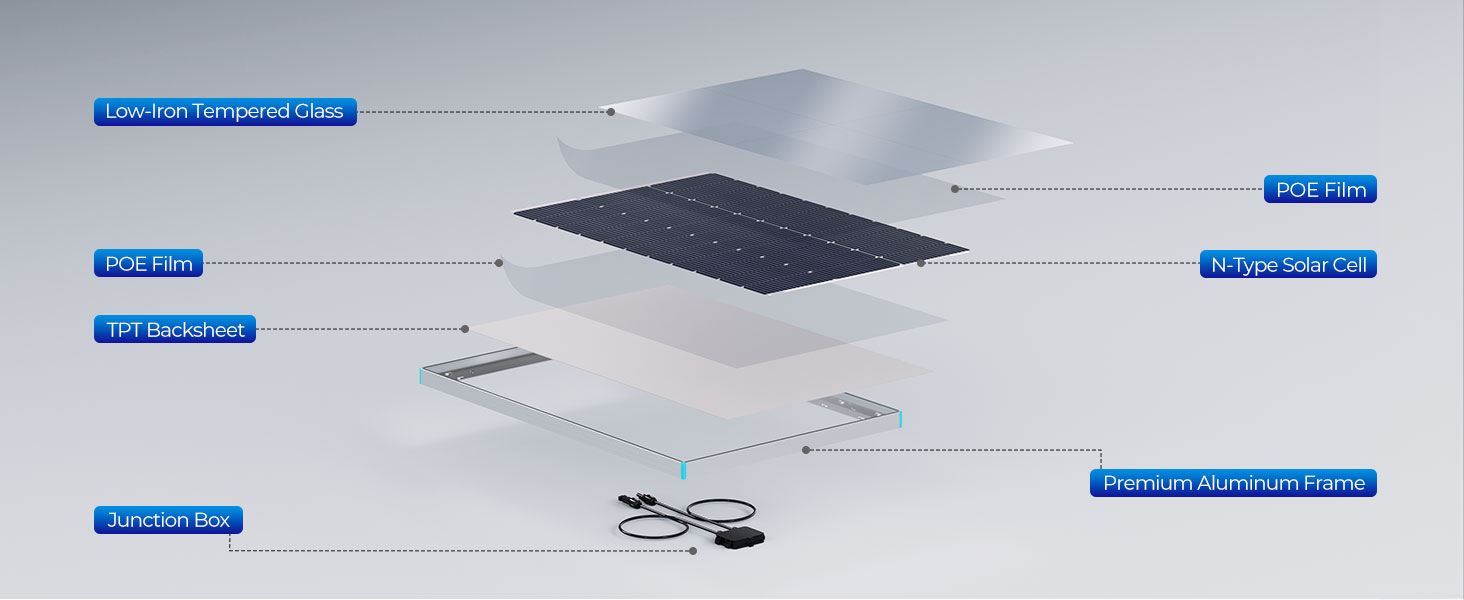

- – With an IP65 rating, this 12v solar panel is designed to endure snow, rain, and heat for decades. The low-iron tempered glass and corrosion-resistant aluminum frame of the renogy solar panels ensure exceptional durability and performance in all weather conditions.

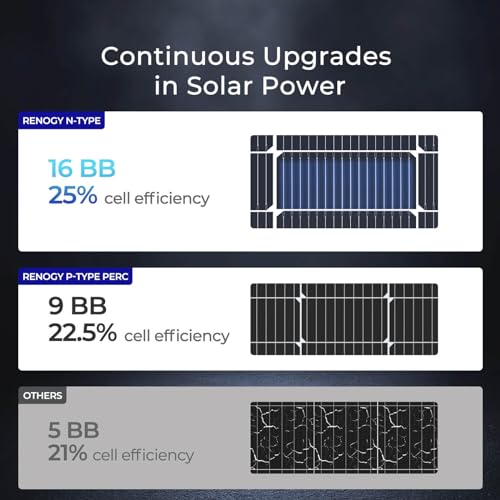

16BB for Higher Conversion Efficiency
Advanced 16BB cell technology maximizes energy conversion while enhancing durability by minimizing the risk of microcracks.
Stronger Aluminum Frame for Enhanced Durability
Crafted from aluminum alloy over 1.1mm thick, this solar panel boasts a sturdier frame compared to competitors', ensuring enhanced durability.

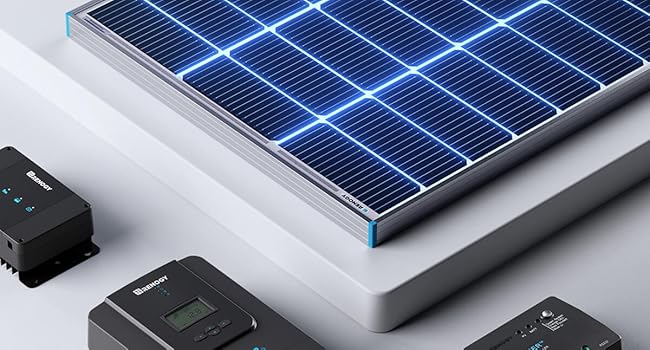

Compatible with 99% of Charge Controllers
This panel, with an open-circuit voltage of less than 25V, is compatible with various MPPT/PWM charge controllers.

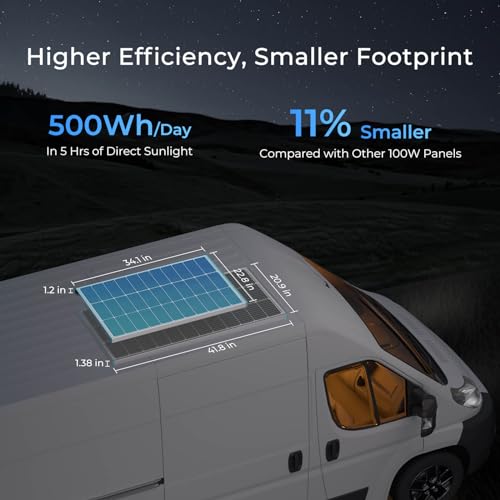

Effortless Power, Compactly Installed
This 100W n-type solar panel is 8% lighter and 11% smaller than a p-type PERC 100W solar panel. This makes installation easier and allows for more space for panel expansion.
Specifications
| Max Power at STC | 100W |
| Open Circuit Voltage | 22.79V |
| Short Circuit Current | 5.31A |
| Optimum Operating Voltage | 19.97V |
| Optimum Operating Current | 5.01A |
| Cell Efficiency | 25% |
| Dimensions | 34.1×22.8×1.2in/865x578x30mm |
| Weight | 13.0lbs/5.9kg |
| Maximum System Voltage | 600VDC |
| Maximum Series Fuse Rating | 15A |
| Module Efficiency | 20.0% |
| Operating Temperature | -40°F~194°F / -40℃~90℃ |
What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use.
Why is my solar panel under producing ?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
How should I connect solar panels in my electrical circuit (series vs parallel)
Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect;
How many solar panels do I need ?
To determine solar panel needs, calculate the power load (Watts) and capacity (Watt-hours). Size the battery bank based on minimum capacity, then adjust panel quantity or power input accordingly.
What is the meaning of 12V in the product title，Why is this value different from the voltage of the solar panel？
When you open the product page, you will see a title like "xxx Watt 12 Volt Solar Panel". The "12V" here does not refer to the voltage of this solar panel (VOC or VMP), but to the fact that one xxxW solar panel is suitable for 12V system.
| SKU: | B07GF5JY35 |
| Weight: | 13 Pounds |
| Dimensions: | 34.1"L x 22.8"W x 1.2"H |
| Brand: | Renogy |
| Model: | Renogy Solar Panels 100 Watt 12 Volt |
| Manufacture: | Renogy |
Product description
Effortless Power, Compactly Installed
This 100W n-type solar panel is 8% lighter and 11% smaller than a p-type PERC 100W solar panel. This makes installation easier and allows for more space for panel expansion.
Specifications
| Max Power at STC | 100W |
| Open Circuit Voltage | 22.79V |
| Short Circuit Current | 5.31A |
| Optimum Operating Voltage | 19.97V |
| Optimum Operating Current | 5.01A |
| Cell Efficiency | 25% |
| Dimensions | 34.1×22.8×1.2in/865x578x30mm |
| Weight | 13.0lbs/5.9kg |
| Maximum System Voltage | 600VDC |
| Maximum Series Fuse Rating | 15A |
| Module Efficiency | 20.0% |
| Operating Temperature | -40°F~194°F / -40℃~90℃ |
What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use.
Why is my solar panel under producing ?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
How should I connect solar panels in my electrical circuit (series vs parallel)
Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect;
How many solar panels do I need ?
To determine solar panel needs, calculate the power load (Watts) and capacity (Watt-hours). Size the battery bank based on minimum capacity, then adjust panel quantity or power input accordingly.
What is the meaning of 12V in the product title，Why is this value different from the voltage of the solar panel？
When you open the product page, you will see a title like “xxx Watt 12 Volt Solar Panel”. The “12V” here does not refer to the voltage of this solar panel (VOC or VMP), but to the fact that one xxxW solar panel is suitable for 12V system.
I had the need to build a exhaust fan for my small greenhouse. I decided to have it solar powered and run on 12v instead of running extension from the house. I have watch a fair number of videos with RV’ers and Van Life travelers that spoke very highly about the Renogy 100 watt panel. I did some additional research and decided on still going with Renogy. They may not be the least expensive, but I can see how they got the great reputation. The panel came in simple but sturdy packaging. I unboxed and tested right away and provided the proper voltage. The panel is a quality build. It has provided reliable charging power to the small battery bank I have in the greenhouse that powers the exhaust fan and a couple of other USB fans I have in the greenhouse to move the air around. I have it attached to and small frame I built out of galvanized angle iron. (If anyone likes the look, all I did was buy the angel iron set used to secure garage door tracks to the ceiling. The sizes in the package worked out perfectly. That, some nuts and bolts and your good to go.)
I have purchased a second panel for the additional power I will need for a water pump for the greenhouse. I would recommend the panel to anyone who wants a small panel. The panel prices seem to move up and down a bit so watch the prices.
Update 5/30/21 I am a bit frustrated. My second panel came damaged (during shipping) and the replacement panel that was even more damaged with shattered glass. Both were handled by the USPS. It would appear that the panels are dropped or slammed into things when shipped. Amazon only offered the return on the second replacement and I will have to reoder the panel as a new order. Note to AMAZON – Don’t ship these using the USPS. The other shippers may cost more, but two returns are not making it cheaper….
Update 8/19/21
Just a quick update. I received the second panel in June and it was in perfect shape. I have had the green house fans running all summer without any issues. Refund from the second returned panel was taking longer than the allotted time frame. I contacted customer service through the website chat function and the rep was great!! 5 stars. Responsive and took care of crediting my account right then.
Renogy is a very good company and puts out some wonderful products. I recently bought a solar panel, and was truly disappointed when it did not come with mounting brackets. 🙁
The power of this panel is within advertised specifications. I am getting 1.5 Amps cloudy, and 5.5 Amps sunny. 18Vdc cloudy 22Vdc sunny. I needed a adapter for the connection and a extension cable to hook up my little RV. I have two 50AH batteries and it charges just fine. With batteries sitting, no charging, read 12.65Vdc. When I connected the Renogy Panel, it was reading 13.46Vdc. So the panel is charging like it should. The panel is great and I like that it has some weight to it. It is rigid so I can mount it to the roof racks on my trailer. Also when buying extension cables or adapters from other sources, you might not get a good connection because of the moulding process. Just check the inside of the connector for plastic covering the contact points. This is from the manufacturing process. Just use a little knife to scrape it out. Be careful and don’t cut yourself. After that you should be good. Use a multi meter and check all cords and connection points. Also make sure you don’t cross wires. Overall with the right cords, it is easy to install and hookup. The price is great and I will be buying more soon.
Impressed with quality and power output of these Renogy 100 watt solar panels.
I ordered 1 Renogy 100 watt panel to try them out. This panel works very well! 4.9 Amps in noon sun in March in Canada.
Using a Renogy Rover Elite MPPT charge controller, the output peaked up to 6.5 A to the battery at noon.
I have 2 other economy brand 100 Watt panels that only produce 3.5 A each in the same place and time. I just thought the sun was not that strong in Canada, but comparing the Renogy panel vs economy brand panels show how good they are.
I will buy more of these Renogy panels.
I have 3 of the 100 watt panels in service for about a year. 1 is flat mounted on a truck, the other two are on a rack wired in parallel. They are fantastic. The flat panel will pull down 70 watts during the late spring, summer, and early fall. There’s nothing more severe than mounting a panel to a motor vehicle and this unit has proven it is durable.
The two mounted on a rack are setup at 45 degrees and will routinely pull down 195-200 watts (95 to 100 watts each!) per my Victron MPPT controller. It’s April here in Oregon, and on a sunny day I’m averaging 1.2 kilowatts with these two panels. You can’t ask for better performance. They’ve held up to PNW weather without issue. I’ll be buying a pair of 200 watt panels for my trailer soon.
While the rest of Renogy’s product line is pretty mediocre, their solar panels are fantastic. Buy with confidence.
A great solar panel that delivers over 100 watts
I got a really good price on this panel so I gave it a try. We had a 21 degree blue sky day in Michigan so I hooked the panel up. I lined the panel up accurately on the sun and it was pushing 118 watts.
