Ugoos AM9 PRO TV Box Android 14.0 Amlogic S905X5-J 4GB RAM
Ugoos AM9 PRO TV Box Android 14.0 Amlogic S905X5-J 4GB RAM 64GB ROM 2.4G/5G Dual WiFi Ethernet 1000M USB 3.0 BT5.3 Support AV1 VP9 H.265 4K HDR Box
- [Amlogic S905X5-J and Android 14 OS] Ugoos AM9 PRO Android TV Box is powered by Amlogic 905X5-J Quad core ARMv9.0 Cortex-A510 CPU, With AV1 HDR; It runs on the generic Android OS Android 14.0
- [4GB RAM+64GB ROM] Ugoos AM9 PRO gets 4GB Memory and 64GB internal storage, Works on Android 14.0 OS; Device can support H.266, AV1 and other well-know Video Formats
- [Dual WiFi 2.4GHz/5GHz and BT5.3] AM9 PRO gets 2.4 GHz and 5 Ghz complies with 11a/b/g/n/ac/ax 2T2R IEEE802, Max: 1201 Mbps; Bluetooth 5.3
- [4K HDR and AV1] AM9 PRO has stable 4K 120fps resolution for streaming and audio perfectly without jerking, which allows you to play 4K 120fps; H.265 videos smoothly, Support AV1 and 4K HDR content, enjoying the fantastic video viewing experience. More bright-coloured video for less data, save 20%-30%

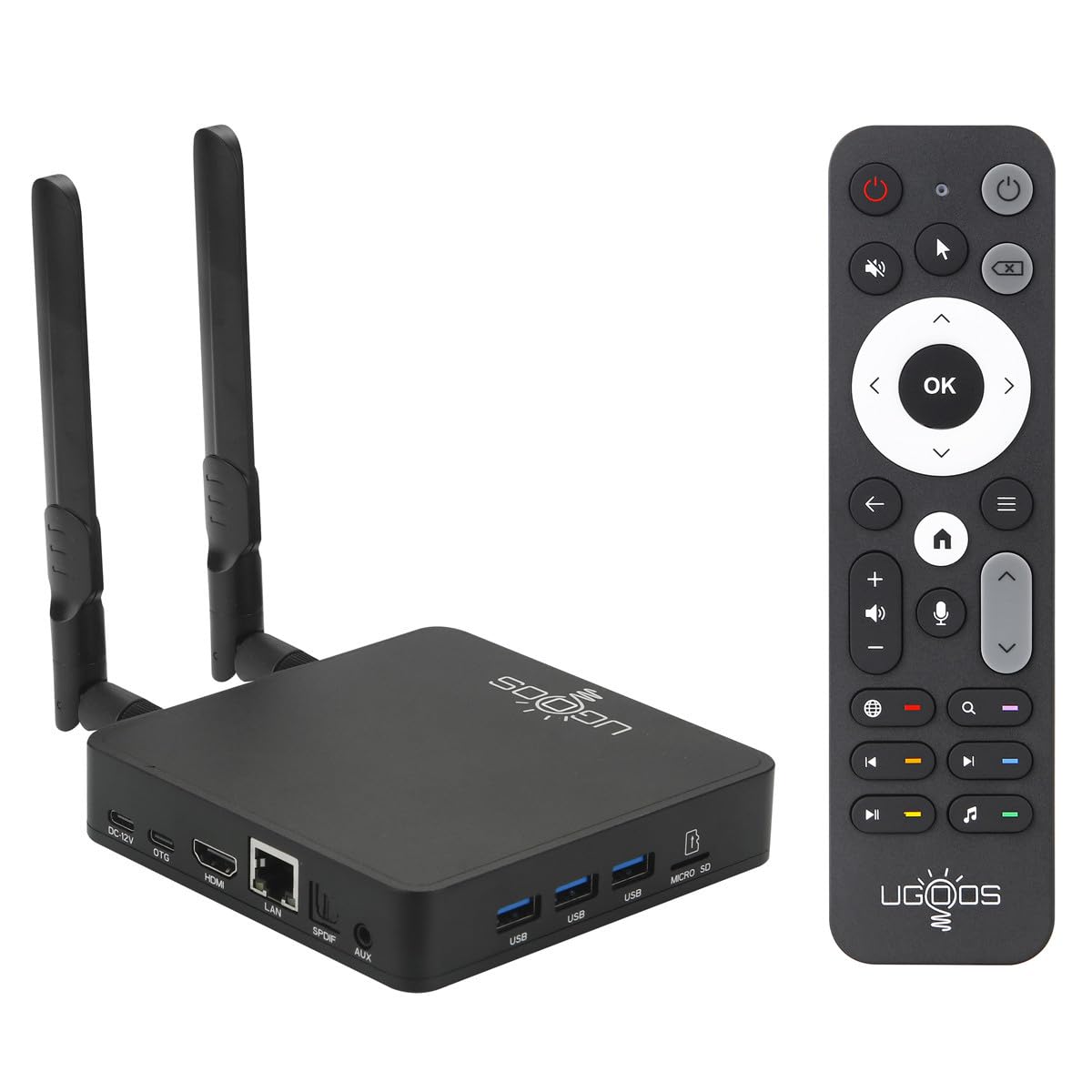

- Package contents: Ugoos AM9 PRO Box, BT Remote Control; Power Adapter; HD Cable; English User Manual
Specifications
Operation System: Android 14.0

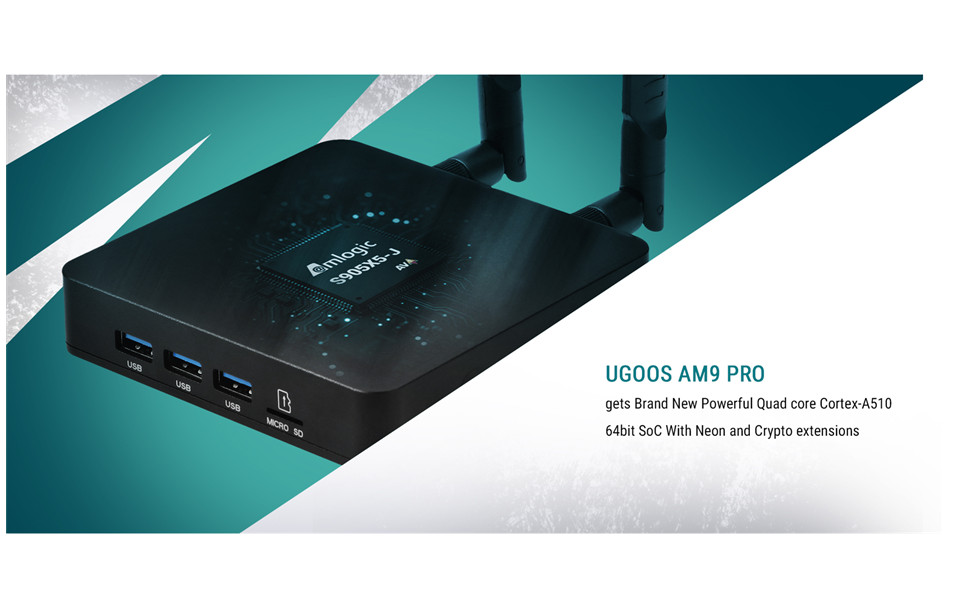

CPU: Amlogic 905X5-J Quad core ARMv9.0 Cortex-A510 CPU
GPU: ARM G310 V5 GPU
RAM: 4GB LPDDR5
Storage Capacity (Flash): 64GB (EMMC)
Supports: H.266, AV1, VP9, H.265, H.264, MPEG-4/2/1
WIFI: AP6275P, WIFi 802.11a/b/g/n/ac/ax 2T2R IEEE802.11a/b/g/n/ac/ax Max:1200 Mbps
Bluetooth 5.3 Module
Power Supply: TYPE-C 12V/1.67A

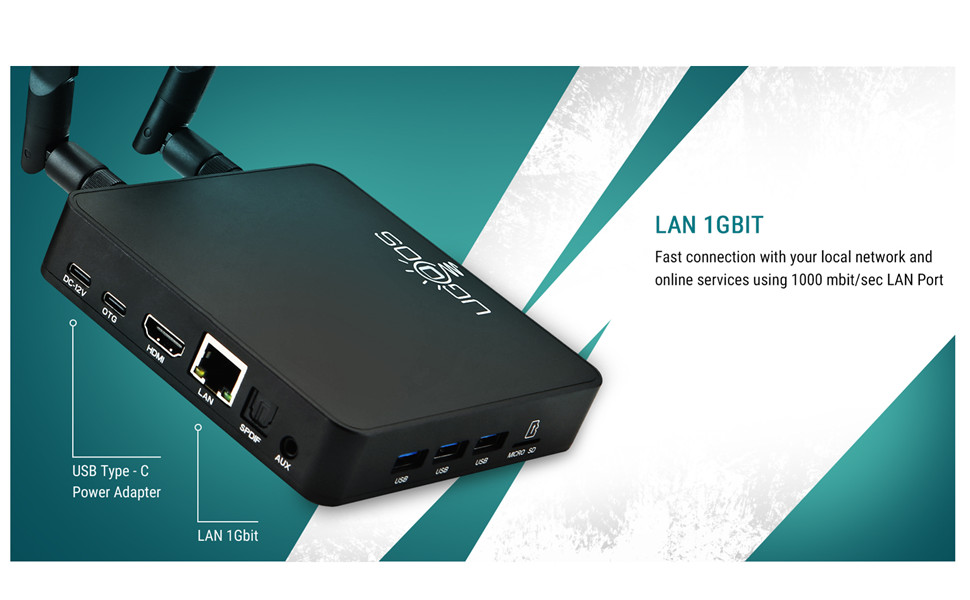

Network: 1*RJ45 1000M (1000M Ethernet Integrated IEEE 802.3 10/100/1000M Ethernet MAC with RGMII interface)
Package Contents
1 x Ugoos AM9 PRO Box
1 x BT Voice Remote
1 x Power Adapter
1 x HD Cable
1 x English User Manual
Interfaces
- HD Output: Built-in HD 2.1b, 4Kx2K 60fps max resolution output
- USB Port: USB A: HOST 3.0*3; USB TYPE-C: OTG 2.0*1
- Optical Output: 1*SPDIF
- HDR: Support
- Antenna: 2 Extra Antennas
- Port: 1 x TF Card
- Dimensions: 116X116x28 mm (4.57×4.57×1.10 inches)
- Gift Box Size 150*160*90 mm; (5.90×6.30×3.54 inches)
| SKU: | B0GGHDBQ1D |
| Weight: | 1.9 pounds |
| Dimensions: | 7.68 x 7.68 x 2.76 inches |
| Model: | AM9 PRO |
| Manufacture: | Ugoos |
Product description
Very fast and works well
Perfect Plex box! After all these years, no issues with bandwidth, audio, full codec support and it’s a fast device. My setup AM9 pro, Homatics Box R 4k plus and Amb6.
Get one
Flawless video and audio playback with full support of audio codecs(DTS HD MA, DTS X, TRUE HD (ATMOS), etc)
The AM9 Pro version introduces Dolby Vision support which was missing in the regular AM9, but still supports HDR 10/HDR 10+ as well as SDR.
I have had very little issues with the box, just a few random reboots here and there which I’m sure will get fixed in a firmware update as ugoos seems to update fairly often.
The box is fast, made of durable metal shell, stays cool, and supports all of today’s video/audio codecs.
The only thing that some may not like is it’s not a certified Android box, meaning don’t buy this and expect to be able to watch your favorite official streaming services in 1080p or 4k – this box is not for that, but it will play all of your locally owned 1080p or 4k media files in different media players just fine.
It Rocks
I am not compensated by anyone for posing this review!
Received mine last week, and it rocks in specs compared to Onn and the other major products. If you lack the knowledge on how to add apps to an Android box, it can be a struggle at times. However, once you know how to program the box (plenty of videos out there to guide you), you’ll be set for years to come.
Just look at the specs compared to other devices, and you will see the big differences I am talking about. My favorite feature is the Ai upscalling feature, it makes the other boxes look sad! This Ai upscaling feature makes watching TV to a 4K experience!
