Solimeta Hydraulic Top Link Cat.1-1 with Locking Block

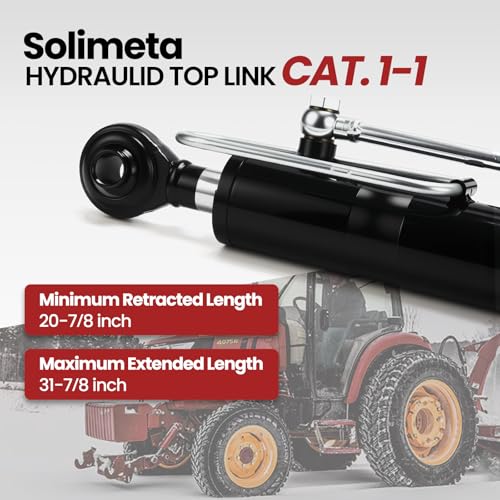

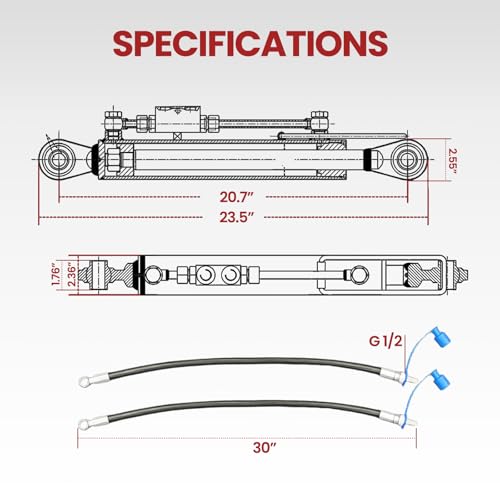

Solimeta Hydraulic Top Link Cat.1-1 with Locking Block Hydraulic Cylinder (20-7/8″~31-7/8″) with 2 Hoses & G3/8″ Check Valve
- Perfect Fit for Cat. 1-1 Tractors This Hydraulic Top Link Cat.1-1 is designed for direct installation on Cat. 1-1 tractors, widely used in waste recycling, transportation, and various agricultural operations.
- Heavy-Duty Steel Construction Built with high-strength steel for superior durability and rust resistance. The cylinder tube is made of AISI 1020 steel, while the piston rod uses AISI 1045 steel, ensuring long-lasting performance in demanding conditions.
- Powerful Performance This Hydraulic Cylinder delivers a push force of 7,060 lbs (31.4 kN) and pull force of 4,800 lbs (21.5 kN), with a maximum working pressure of 2,320 psi (16 MPa) for reliable operation.

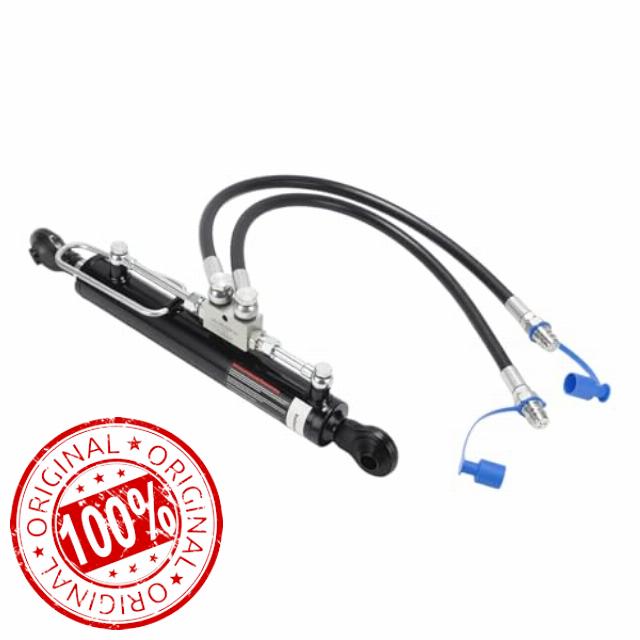

- Complete Kit Included Comes with hydraulic cylinder, 2 hoses, G3/8" check valve, and all necessary mounting hardware for quick and easy installation—no additional purchases required.
- Bidirectional Check Valve Control Equipped with check valve that reduces the need for frequent adjustments, providing convenient operation for improved work efficiency.
- ❤️Warm Reminder All products undergo quality testing before delivery, so minor oil residue may remain. This is normal and ensures your product has been thoroughly inspected.
Solimeta Hydraulic Top Link Cat.1-1 with Locking Block Hydraulic Cylinder (20-7/8″~31-7/8″) with 2 Hoses & G3/8″ Check Valve Perfect Fit for Cat. 1-1 Tractors This Hydraulic Top Link Cat.1-1 is designed for direct installation on Cat. 1-1 tractors, widely used in waste recycling, transportation, and various agricultural operations. Heavy-Duty Steel Construction Built with high-strength steel for superior durability and rust resistance. The cylinder tube is made of AISI 1020 steel, while the piston rod uses AISI 1045 steel, ensuring long-lasting performance in demanding conditions. Powerful Performance This Hydraulic Cylinder delivers a push force of 7,060 lbs (31.4 kN) and pull force of 4,800 lbs (21.5 kN), with a maximum working pressure of 2,320 psi (16 MPa) for reliable operation. Complete Kit Included Comes with hydraulic cylinder, 2 hoses, G3/8″” check valve, and all necessary mounting hardware for quick and easy installation—no additional purchases required. Bidirectional Check Valve Control Equipped with check valve that reduces the need for frequent adjustments, providing convenient operation for improved work efficiency. Warm Reminder All products undergo quality testing before delivery, so minor oil residue may remain. This is normal and ensures your product has been thoroughly inspected.
| SKU: | B0G64JGSLD |
| Weight: | 23 pounds |
| Dimensions: | 8.5 x 6.1 x 25 inches |
| Model: | S72013 |
| Manufacture: | Solimeta |
Get more from your attachments, easily adjustable top link
What a great addition to my tractor! This Hydraulic Top Link Cat.1-1 with Locking Block Hydraulic Cylinder (20-7/8″~31-7/8″) with 2 Hoses & G3/8″ Check Valve from Solimeta is a complete top link kit. Just install the hydraulic hoses to the cylinder and it is ready for use. Pull the pins in your manual top link for the last time. Install this hydraulic top link and attach the included lines to your rear remotes. What a difference! No more manual adjustments to get an attachment level or at the correct angle, and with this being hydraulic, you can add downward pressure to land planers, box blades or any other attachment that could use more down force to get the job done. Excellent product. Every tractor should have one!
