4-Gallon Battery Powered Backpack Sprayer, Compatible

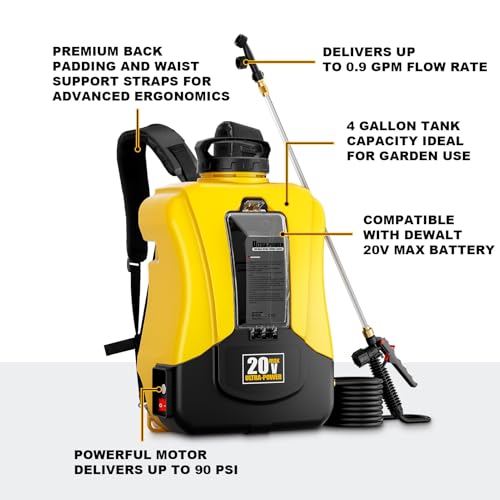

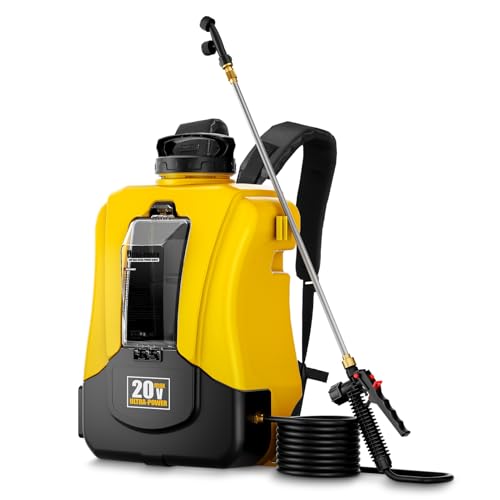

4-Gallon Battery Powered Backpack Sprayer, Compatible with DeWalt 20V MAX, 0-90 PSI Adjustable, 100+ Gal Per Charge, Cordless Garden Sprayer for Lawn Care, Tool Only (Battery Not Included)
- COMPATIBLE WITH DEWALT 20V MAX BATTERY (TOOL ONLY): Locks securely with standard 20V MAX Lithium-Ion batteries (DCB200, DCB203, DCB204, DCB205). Important: With a compact, weather-resistant lid, this sprayer fits batteries up to 5.0Ah (Large 6.0Ah+ or FlexVolt packs will not fit).
- EXTENDED RUNTIME & HIGH EFFICIENCY: Powered by a 40W electric motor, this 4-gallon backpack sprayer delivers exceptional energy savings. A single 5.0Ah battery provides up to 2.5 hours of continuous spraying (approx. 100+ gallons per charge), ideal for large properties and landscaping.
- DIAPHRAGM PUMP & 0-90 PSI VARIABLE PRESSURE: The reliable diaphragm pump and adjustable pressure knob let you fine-tune the 0.9 GPM flow. Switch instantly from a low-pressure mist for delicate watering to a high-pressure stream with a 20-25 ft vertical reach for applying lawn nutrients.
- TELESCOPING WAND & 5 VERSATILE NOZZLES: Features a 21-inch non-corrosive stainless steel wand that extends up to 40 inches. Includes a reinforced hose with strain relief to prevent kinking, plus 5 specialized nozzles (Butterfly, F-type, Three-shower, Five-hole, Copper) for versatility.
- UV-PROTECTED TANK & NITRILE/FKM SEALS: Built for harsh environments, the HDPE tank features UV protection. Premium Nitrile/FKM seals safely handle liquid fertilizers and standard water-soluble solutions without leaking. The fully enclosed compartment securely shields the battery from moisture.
- PRO-GRADE ERGONOMIC HARNESS SYSTEM: Designed to reduce fatigue during all-day use, the deluxe harness system includes wide padded shoulder straps, a critical adjustable hip belt, and a breathable mesh back pad. This evenly distributes the 4-gallon tank weight, offering superior comfort.
- ULTIMATE 4-TIER WARRANTY & SUPPORT: Backed by our comprehensive promise: 1) 90-Day no-questions return, 2) 1-Year "Old-for-New" replacement, 3) 3-Year limited warranty, 4) Lifetime Technical Support. We stand behind our quality so you can work with absolute confidence in this sprayer.
20V Max Backpack Sprayer Specifications
| Product Type | Battery Backpack Sprayer |
| Tank Capacity | 4 Gallons |
| Operating Pressure | 0 – 90 PSI (Variable/Adjustable) |
| Flow Rate | Max 0.9 GPM |
| Spray Distance (Vertical) | 20 – 25 ft |
| Pump Type | Diaphragm Pump |
| Power Source | Compatible with DeWalt 20V MAX Lithium-Ion Battery (Tool Only) |
| Battery Compatibility | DCB200, DCB203, DCB204, DCB205 (Large 6.0Ah+ or FlexVolt batteries Not Fit) |
| Runtime (Volume) | 100+ Gallons per charge (approx. 25-30 tank fills) |
| Runtime (Time) | Up to 2.5 hours of continuous spraying (with 5.0Ah battery) |
| Tank Material | High-Density Polyethylene (HDPE) with UV Protection |
| Seal Material | Nitrile/FKM Seals |
| Wand Specs | 21-inch to 40-inch Telescoping Wand, Non-corrosive stainless steel |
| Included Nozzles | Butterfly Single-head Nozzle, F type Dual-head Nozzle, Three-shower Nozzle, Five-hole Nozzle, Copper Nozzle |
| Harness Type | Deluxe harness system with wide, padded shoulder straps |
| Waist/Chest Strap/Back Pad | Adjustable hip belt & Breathable mesh back pad |
Top 10 Customer Questions & Answers – 20V Max Backpack Sprayer
Q1: Does this sprayer come with a battery and charger? A: No, this is a "Tool Only" unit. It does not include a battery or a charger. You will need to use your existing standard DeWalt 20V MAX Lithium-Ion battery to operate it.
Q2: Will my DeWalt 20V/60V FlexVolt battery or 6.0Ah battery fit in the compartment? A: No, they will not fit. To protect the battery from moisture and dust, the unit features a fully enclosed and sealed battery compartment. It is specifically designed to fit standard DeWalt 20V MAX batteries up to 5.0Ah (such as DCB200, DCB203, DCB204, and DCB205). Larger capacity batteries (6.0Ah+) and FlexVolt batteries are physically too bulky for the protective lid to close and lock securely.
Q3: How should I clean the sprayer after using fertilizers or other solutions? A: Proper maintenance is crucial for maximizing the lifespan of the diaphragm pump and seals. After each use, you must never leave solutions sitting in the tank overnight. Please empty the tank completely, then fill it with up to 4 gallons of clean water. Run the sprayer to flush the clean water through the pump, hose, and wand. Repeat this flushing process 2 to 3 times to ensure all residue is completely cleared out and to prevent future clogging.
Q4: How far can this sprayer shoot? I need to reach the second story of my house and tall trees. A: When adjusted to the maximum 90 PSI high-pressure setting, the sprayer can reach up to 20–25 feet vertically. This makes it highly effective for spraying tall tree canopies, second-story siding, or high windows without needing a ladder.
Q5: How long will a standard 5.0Ah battery last on a single charge? A: A fully charged 5.0Ah battery provides up to 2.5 hours of continuous spraying. This allows you to spray over 100 gallons of liquid (approximately 25 to 30 full 4-gallon tank refills) before needing to recharge, making it perfect for large properties.
Top 10 Customer Questions & Answers – 20V Max Backpack Sprayer
Q6: Is the spray pressure adjustable, or is it just one speed? A: It is fully adjustable! The unit features a variable pressure dial that allows you to smoothly adjust from 0 up to 90 PSI. You can instantly dial it down for a gentle mist for delicate greenhouse plants, or turn it up for a high-pressure stream to clean siding and decks.
Q7: Can I use wettable powders or harsh solutions in this tank? A: Yes. The sprayer is equipped with a heavy-duty Diaphragm Pump, which is much better at handling wettable powders without clogging compared to standard gear pumps. It also features premium Nitrile/FKM seals and a UV-protected tank that safely handle standard liquid fertilizers, plant nutrients, and water-soluble solutions. (Note: Flammable liquids should never be used).
Q8: What kind of nozzles does it come with? Is the wand made of plastic? A: The wand is made of non-corrosive, heavy-duty stainless steel (telescoping from 21 to 40 inches). The sprayer includes 5 specialized nozzles to cover all applications: a Butterfly Single-head, F-type Dual-head, Three-shower, Five-hole, and a Copper Nozzle. It also features a universal connection for aftermarket attachments.
Q9: How heavy is this backpack when completely full of water? A: Four gallons of liquid weighs approximately 33.4 lbs. Combined with the dry weight of the machine and the battery, the total weight will be around 43–45 lbs when fully loaded. However, our pro-grade deluxe harness—featuring a breathable mesh back pad, wide padded shoulder straps, and an adjustable hip belt—helps distribute this weight evenly across your body to significantly reduce fatigue.
Q10: Do I have to manually pump this at all like traditional sprayers? A: Not at all. This is a fully automatic, battery-powered electric sprayer. The 40W electric motor and diaphragm pump do 100% of the work. Just squeeze the handle and spray, completely eliminating the arm and shoulder fatigue associated with traditional manual pump-action backpack sprayers.
| SKU: | B0G84PP87T |
| Dimensions: | 10"W x 22.5"H |
| Brand: | Paxwrenx |
| Model: | EF-20BS |
| Colour: | Yellow / Black |
| Manufacture: | Paxwrenx |
| Colour: | Yellow / Black |
Product description
20V Max Backpack Sprayer Specifications
| Product Type | Battery Backpack Sprayer |
| Tank Capacity | 4 Gallons |
| Operating Pressure | 0 – 90 PSI (Variable/Adjustable) |
| Flow Rate | Max 0.9 GPM |
| Spray Distance (Vertical) | 20 – 25 ft |
| Pump Type | Diaphragm Pump |
| Power Source | Compatible with DeWalt 20V MAX Lithium-Ion Battery (Tool Only) |
| Battery Compatibility | DCB200, DCB203, DCB204, DCB205 (Large 6.0Ah+ or FlexVolt batteries Not Fit) |
| Runtime (Volume) | 100+ Gallons per charge (approx. 25-30 tank fills) |
| Runtime (Time) | Up to 2.5 hours of continuous spraying (with 5.0Ah battery) |
| Tank Material | High-Density Polyethylene (HDPE) with UV Protection |
| Seal Material | Nitrile/FKM Seals |
| Wand Specs | 21-inch to 40-inch Telescoping Wand, Non-corrosive stainless steel |
| Included Nozzles | Butterfly Single-head Nozzle, F type Dual-head Nozzle, Three-shower Nozzle, Five-hole Nozzle, Copper Nozzle |
| Harness Type | Deluxe harness system with wide, padded shoulder straps |
| Waist/Chest Strap/Back Pad | Adjustable hip belt & Breathable mesh back pad |
Top 10 Customer Questions & Answers – 20V Max Backpack Sprayer
Q1: Does this sprayer come with a battery and charger? A: No, this is a “Tool Only” unit. It does not include a battery or a charger. You will need to use your existing standard DeWalt 20V MAX Lithium-Ion battery to operate it.
Q2: Will my DeWalt 20V/60V FlexVolt battery or 6.0Ah battery fit in the compartment? A: No, they will not fit. To protect the battery from moisture and dust, the unit features a fully enclosed and sealed battery compartment. It is specifically designed to fit standard DeWalt 20V MAX batteries up to 5.0Ah (such as DCB200, DCB203, DCB204, and DCB205). Larger capacity batteries (6.0Ah+) and FlexVolt batteries are physically too bulky for the protective lid to close and lock securely.
Q3: How should I clean the sprayer after using fertilizers or other solutions? A: Proper maintenance is crucial for maximizing the lifespan of the diaphragm pump and seals. After each use, you must never leave solutions sitting in the tank overnight. Please empty the tank completely, then fill it with up to 4 gallons of clean water. Run the sprayer to flush the clean water through the pump, hose, and wand. Repeat this flushing process 2 to 3 times to ensure all residue is completely cleared out and to prevent future clogging.
Q4: How far can this sprayer shoot? I need to reach the second story of my house and tall trees. A: When adjusted to the maximum 90 PSI high-pressure setting, the sprayer can reach up to 20–25 feet vertically. This makes it highly effective for spraying tall tree canopies, second-story siding, or high windows without needing a ladder.
Q5: How long will a standard 5.0Ah battery last on a single charge? A: A fully charged 5.0Ah battery provides up to 2.5 hours of continuous spraying. This allows you to spray over 100 gallons of liquid (approximately 25 to 30 full 4-gallon tank refills) before needing to recharge, making it perfect for large properties.
Top 10 Customer Questions & Answers – 20V Max Backpack Sprayer
Q6: Is the spray pressure adjustable, or is it just one speed? A: It is fully adjustable! The unit features a variable pressure dial that allows you to smoothly adjust from 0 up to 90 PSI. You can instantly dial it down for a gentle mist for delicate greenhouse plants, or turn it up for a high-pressure stream to clean siding and decks.
Q7: Can I use wettable powders or harsh solutions in this tank? A: Yes. The sprayer is equipped with a heavy-duty Diaphragm Pump, which is much better at handling wettable powders without clogging compared to standard gear pumps. It also features premium Nitrile/FKM seals and a UV-protected tank that safely handle standard liquid fertilizers, plant nutrients, and water-soluble solutions. (Note: Flammable liquids should never be used).
Q8: What kind of nozzles does it come with? Is the wand made of plastic? A: The wand is made of non-corrosive, heavy-duty stainless steel (telescoping from 21 to 40 inches). The sprayer includes 5 specialized nozzles to cover all applications: a Butterfly Single-head, F-type Dual-head, Three-shower, Five-hole, and a Copper Nozzle. It also features a universal connection for aftermarket attachments.
Q9: How heavy is this backpack when completely full of water? A: Four gallons of liquid weighs approximately 33.4 lbs. Combined with the dry weight of the machine and the battery, the total weight will be around 43–45 lbs when fully loaded. However, our pro-grade deluxe harness—featuring a breathable mesh back pad, wide padded shoulder straps, and an adjustable hip belt—helps distribute this weight evenly across your body to significantly reduce fatigue.
Q10: Do I have to manually pump this at all like traditional sprayers? A: Not at all. This is a fully automatic, battery-powered electric sprayer. The 40W electric motor and diaphragm pump do 100% of the work. Just squeeze the handle and spray, completely eliminating the arm and shoulder fatigue associated with traditional manual pump-action backpack sprayers.
I was excited to try this product, and it did not disappoint. I used it to get rid of harmful insects around my home, and it performed the job very well. The spraying was consistent and made the whole process easy and efficient. Thank you — I’m very happy with this product.
Great backpack sprayer, with many attachments. Perfent for garden or nursery.
This is a very well built battery powered backpack sprayer. It comes with the tank, shoulder harness, sprayer, hose, and numerous different sprayer ends. It is easy to set up for use, by simply connecting the hose to the tank, filling the tank, installing a compatible battery, and adjusting the dial on the side of the tank for the desired spray pressure.
The sprayer is designed to operate with the DeWALT 20V battery platform. As I’ve been on the Makita battery platform for a long time, and have many Makita batteries, I use an inexpensive adapter so that I can use the Makita batteries in DeWalt compatible tools that I have. This is a great way for anyone that is already on a specific battery platform (DeWALT, Makita, Milwaukee), to use between the different brand tools. As the splash shield cover on this backpack sprayer is on the lower side for being able to fit the adapter and full size 5Ah Makita battery, I’m using the 2Ah Makita batteries that I have. The 2Ah with an adapter fits under the splash shield fine. It will just require changing the battery out if using for extended spraying times.
The sprayer works fantastic in operation. It is comfortable on the back/shoulders, the pressure is easy to adjust, and it has exceptional performance. I also like that the hose can be unscrewed from the tank and the water will not leak from the tank port.
I have only ever used hand pump pressurized sprayers, this performs so much better in comparison. The sprayer comes with numerous different spray head attachments to get the right mist/flow of water required.
I looked at the comparable big name backpack sprayers and they are listed for around twice the cost. Overall, this is a great value sprayer considering it’s low list price, abundant attachments, and great performance.
Excellent sprayer especially if you don’t need the batteries and charge
I purchze this backpack sprzyer because I have plenty of 20v Dewalt tools b and batteries i I don’t need any more batteries or chargers. with this sprayer I use my own Dewalt 20 v 5amp batteries from my tools. I mixed up 2 gallons of insecticide and did my entire front yard and the battery still showed fully charged. Best backpack sprayer other than dewalt but half the price. No leaks and the pump shuts off when you let go of the trigger saving battery power. 71 years old and can only take the weight of 2 gallons at a time but this saves me a lot of time. Would highly recommend this unit especially if you already have the 20 V Dewalt batteries and chargers.
Perfect for food plots. Runs forever on my DeWalt 20V.
Picked this up specifically for targeted weed control on my food plots. I’ve already run about 16 gallons through it using my existing DeWalt batteries, and I’m seriously impressed. Battery efficiency is killer—one 20V pack easily lasts for four or more full tanks. The adjustable nozzle dials right into the spray pattern I need, no leaks or issues. Best part? The pressure knob and power switch are easy to reach while I’m walking, so I can adjust the flow on the move without taking the backpack off. Huge time saver compared to my old manual sprayers.
