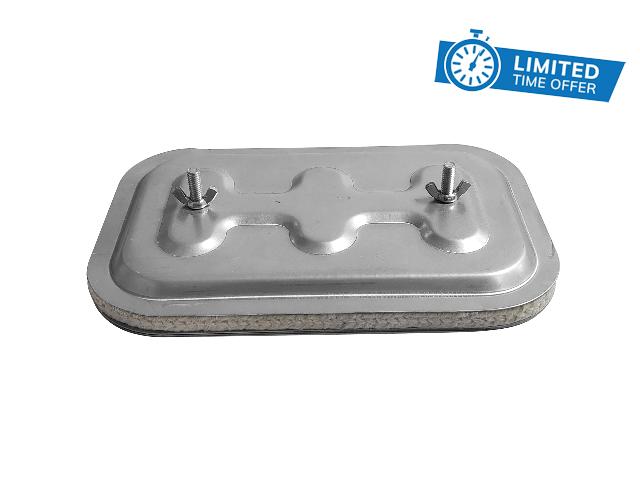

Duct Access Door 10” x 6” High Temperature Grease Duct
Duct Access Door 10” x 6” High Temperature Grease Duct Access Door (5 Pack)

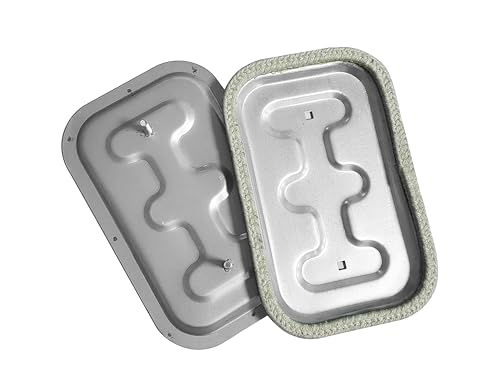

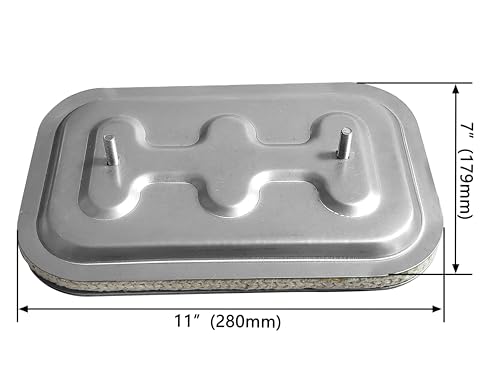

- Opening Size: 10" x 6" Door Size: 11" x 7". Meets NFPA 96 Standards. Constructed of two layers of stamped,hot dipped galvanized steel and one 16 GA black iron back plate for ultimate safety and durability.
- Hi-Temp Ceramic Fiber Gasket is permanently bonded to the outside panel of the access door to eliminate leakage.
- Temperature Rating: 2300°F (1260°C) max; Designed in accordance with NFPA 96 standards.
- Zinc plated conical springs between the inner and outer plates to facilitate opening; Zinc coated wing nuts can be easily turned by hand, no wrenches required.
- With removable mounting studs, the Duct Access Door is easy to install.
Duct Access Door provide easy access to grease ducts or high-temperature duct systems. They are simple to install and provide a leak-resistant seal. Featuring a ceramic fiber gasket, template for precise cut-outs, and zinc-coated wing nuts for secure closure.
● Effortless opening and closing – no special tools required

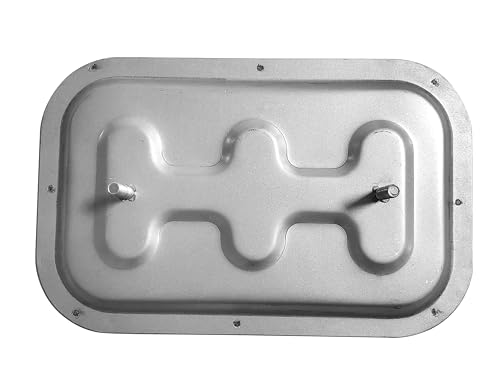

● 16 GA black iron backing plate with smooth interior
● No frame to install and seal
● The two layers of metal inside the door are spot-welded together at the rim
● Inside surface of door is smooth to reduce friction
| SKU: | B0F1MZ44T5 |
| Weight: | 16.5 pounds |
| Size: | 10"L×6"W |
| Dimensions: | 0.8 x 10 x 6 inches |
| Brand: | FICBXRA |
| Model: | GAD10×6 |
| Colour: | Silver |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | FICBXRA |
| Assembly: | No |
| Colour: | Silver |
| Size: | 10"L×6"W |
Well-made access doors and easy to install
I used these while adding access points to a grease duct system, and they were exactly what I needed. The doors are sturdy, fit securely, and the hardware made installation straightforward. Once installed, they sealed up nicely and provide easy access for future cleaning and inspections. Buying the 5-pack was convenient for completing the entire project without having to order additional parts.
Perfect fit and fully compliant!
This 5-pack of grease duct access doors is exactly what I needed for our commercial kitchen setup. The 10″ x 6″ opening size is accurate, and the dual-layer galvanized steel construction feels incredibly heavy-duty and safe. They also look great!
What I love about them:
NFPA 96 Compliant: Meets all safety codes for peace of mind.
High Heat Rating: Handles up to 2300F with a durable ceramic gasket.
Tool-Free Use: Wing nuts and conical springs make them easy to open by hand.
Simple Installation: The removable mounting studs saved a lot of time during setup.
No leaks, highly durable, and a great value for a 5-pack. Highly recommend!
Heavy-Duty Construction and Convenient Duct Maintenance
The material is thick and substantial, with neat edges, ensuring no noticeable looseness after installation in the ductwork. The 10×6 inch opening size is practical, allowing cleaning personnel easier access to the duct interior and the removal of accumulated grease using scrapers, brushes, and cleaning equipment—significantly more convenient than without the access door. The five-piece set is suitable for simultaneous installation on long exhaust ducts, near bends, or other locations requiring regular inspection, eliminating the need to purchase individual pieces; the quantity and price are reasonable. Before installation, I determined the location based on the duct layout, internal obstructions, and subsequent operating space, then accurately marked and drilled the opening according to the door dimensions. After correct installation, the door panel fits tightly against the duct surface, closing and locking smoothly, without noticeable vibration, abnormal noise, or edge warping during normal operation of the exhaust system. The high-temperature sealing structure can withstand the working environment of commercial kitchen exhaust ducts, maintaining a good seal even after cleaning and reclosing. It is important to note that these access doors are crucial components of fire protection and exhaust systems and should not be installed arbitrarily based solely on convenient installation locations. The number, spacing, direction, and distance from seams and obstructions of access panels should comply with local regulations and piping system requirements. The temperature rating and applicable range of the access panels must also match the actual equipment. Before cutting ductwork, all relevant equipment must be shut down and internal safety confirmed. The metal edges after drilling are extremely sharp; cut-resistant gloves and safety goggles must be worn during operation. After a period of use, the access panels remain sturdy, without significant rust, deformation, or difficulty in opening. Cleaning personnel can also more quickly access areas of grease buildup inside the duct. Overall, this 5-piece set of high-temperature grease duct access panels is solidly constructed, practically sized, and reliably sealed, significantly improving the efficiency of inspection and cleaning of commercial kitchen exhaust ducts. As long as the installation location is selected according to applicable specifications and correctly installed by personnel familiar with fume extraction systems, it is a durable, convenient, and highly recommended set of access panels.
