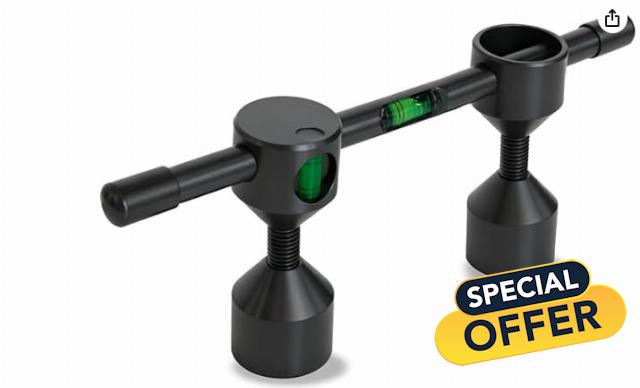

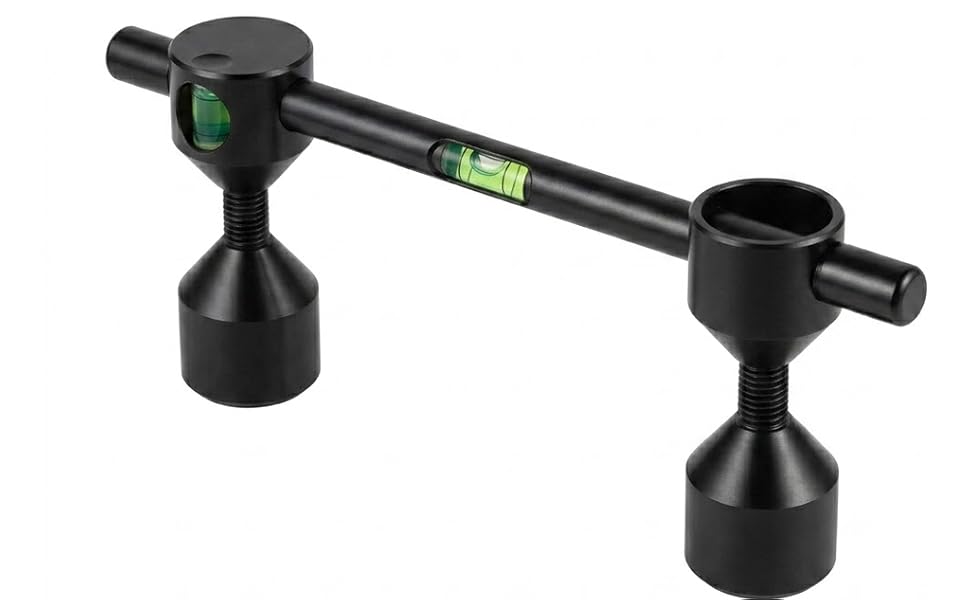

Threaded Pipe Flange Aligner Pipe Level Leveler Tool 1/2-1-7/16″ This pipe level leveler tool features integrated vertical horizontal bubble vials for simultaneous calibratio

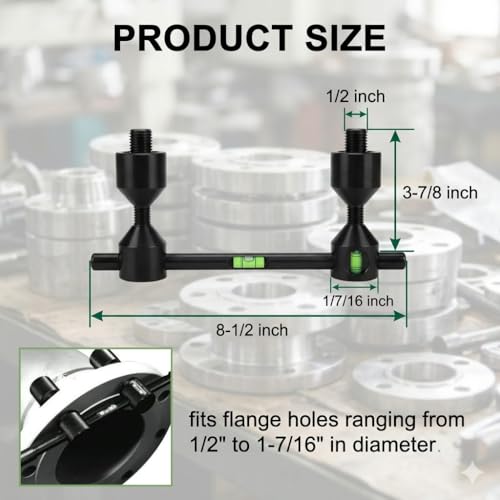

• WHAT FLANGE HOLES DOES THIS TOOL FIT? This aligner is compatible with flange holes from 1/2 in to 1-7/16 in diameter. It serves as a reliable pipe level companion, centering within holes to secure alignment.
• HOW DOES THIS FLANGE ALIGNER SAVE SETUP TIME? Featuring vertical and horizontal bubble vials, this leveler tool facilitates simultaneous alignment in 1 step. Users can complete two-hole calibration and horizontal leveling without rechecks.

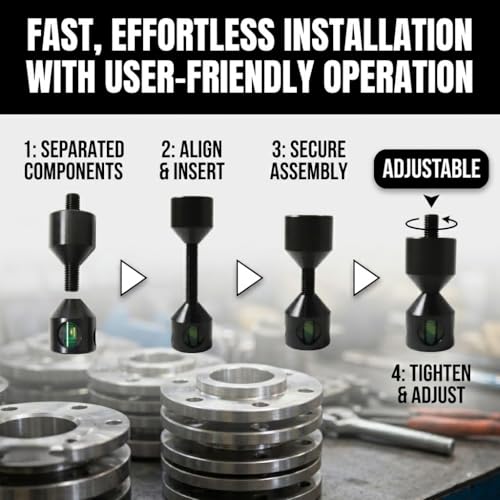

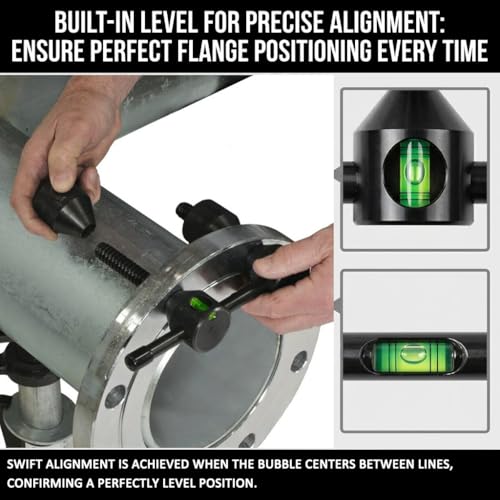

• WHAT IS THE OPERATION METHOD FOR ALIGNMENT? Loosen the cone, pass the screw through the flange hole, reattach the cone, and tighten. The integrated vials on this pipe level show alignment when the bubble rests between the lines.
• WHAT MATERIAL ENSURES THE STABILITY OF THE TOOL? Machined from 1215 alloy steel with a black oxide finish, this leveler tool provides wear tolerance and dimensional accuracy. The robust body maintains layout positioning under heavy loads.
• WHERE CAN THIS ALIGNMENT DEVICE BE USED? This industrial-grade pipe level aligner is ideal for municipal water pipelines, fluid transport networks, and conduit construction, providing physical layout positioning for joint setups.

WHICH INDUSTRIAL PIPELINE APPLICATIONS ARE FULLY COMPATIBLE WITH THIS ALIGNMENT DEVICE?

Universally Compatible with Standard 1/2 In to 1-7/16 In Flanges for Municipal and Fluid Transport Systems

This versatile Flange Aligner Will Fit Flanges across municipal water supply networks, commercial fluid transport systems, and industrial conduit construction projects. Engineered as an essential pipefitter companion, it provides precise two-hole alignment for standard threaded flanges within the 1/2 in to 1-7/16 in specification range, ensuring seamless joint integration every time.

NEED TO CUT PIPE FLANGE ALIGNMENT TIME IN HALF WITHOUT REPEATED MANUAL MEASUREMENTS?

Simultaneously Calibrate Flange Holes and Level Pipes in One Step Using Built-in Dual Bubble Vials

Achieve rapid two-hole alignment and dual-axis leveling instantly with this specialized Pipe Level Leveler Tool. Featuring integrated vertical and horizontal bubble vials, it eliminates tedious rechecks during heavy-duty joint setups. Engineered for professional pipefitters, it combines hole centering and horizontal balancing into a single, effortless process to double your installation efficiency on every job site.

TIRED OF FLANGE ALIGNMENT TOOLS THAT BEND OR DEFORM UNDER HEAVY-DUTY PIPING LOADS?

Solid 1215 Alloy Steel Construction with Black Oxide Finish Delivers Extreme Load Stability

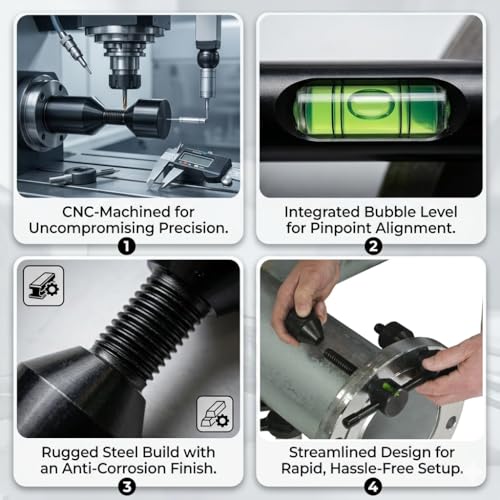

Machined from high-strength solid 1215 alloy steel, the core body provides exceptional dimensional accuracy and wear tolerance. Enhanced by a protective black oxide surface treatment, this heavy-duty Flange Aligner maintains rigid layout positioning under extreme industrial pressures, ensuring the structural body never deforms or loses calibration when securing large-diameter pipe flanges.

HOW CAN YOU ENSURE HIGH-PRECISION CENTERING ACROSS VARIOUS FLANGE HOLE SIZES?

Self-Centering Cone System Safely Secures Flange Hole Diameters Ranging from 1/2 In to 1-7/16 In

Designed with a precision-tapered self-centering cone, this industrial-grade Diameter Threaded Pipe Flange Leveler securely expands and locks inside diverse flange holes. Passing through holes from 1/2 in to 1-7/16 in, the engineered threaded locking mechanism provides rock-solid physical layout positioning, eliminating wobble or slippage during critical fluid transport and municipal pipeline joint operations.

HOW DOES THE FUZIDDN ALIGNER DELIVER SUPERIOR PERFORMANCE FROM EVERY ANGLE?

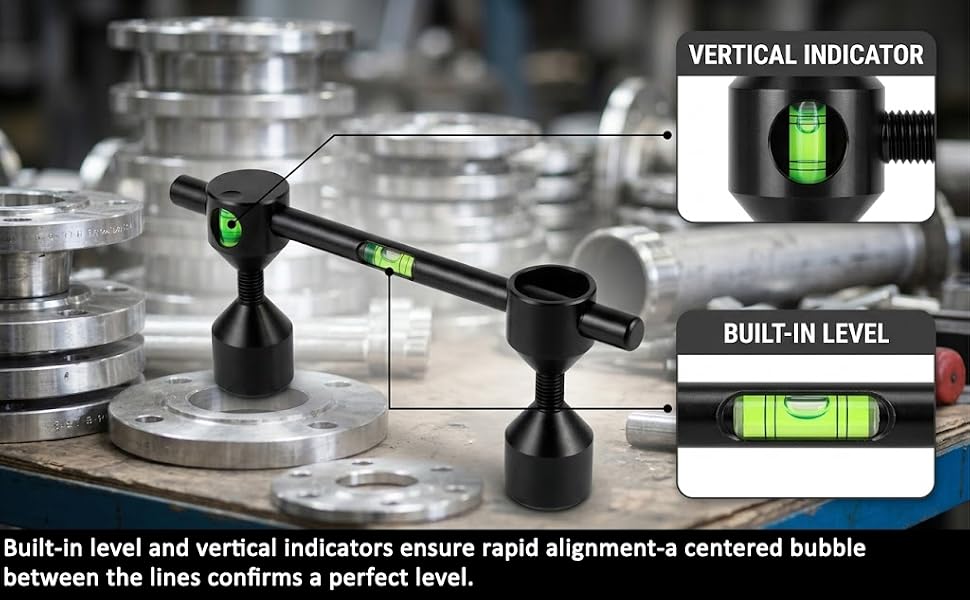

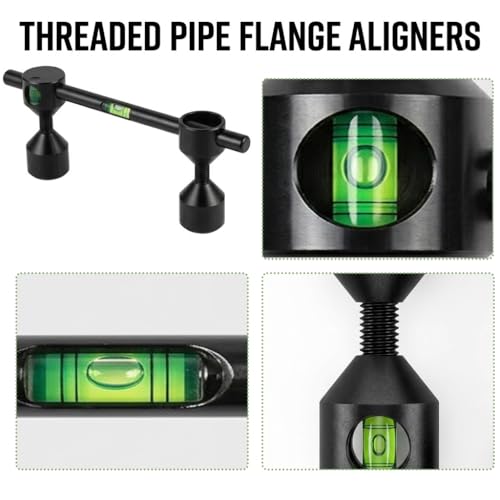

Viewed from the top, the built-in vertical and horizontal bubble vials allow real-time visual inspection during setup. The precision Pipe Level Leveler Tool indicator lets installers verify both horizontal axis alignment and vertical plane accuracy simultaneously at a single glance.

Looking at the mechanical core, the threaded self-centering cone slides smoothly into flange holes ranging from 1/2 in to 1-7/16 in. This robust Flange Aligner locks the center axis firmly, eliminating operational margin of error during municipal pipe joint assembly.

Examined from the side profile, the high-density 1215 alloy steel body resists physical impact and heavy loading. Treated with a sleek black oxide surface layer, this tool withstands rigorous job site friction while protecting internal thread accuracy for extended field utility.

---

Product description

WHICH INDUSTRIAL PIPELINE APPLICATIONS ARE FULLY COMPATIBLE WITH THIS ALIGNMENT DEVICE?

Examined from the side profile, the high-density 1215 alloy steel body resists physical impact and heavy loading. Treated with a sleek black oxide surface layer, this tool withstands rigorous job site friction while protecting internal thread accuracy for extended field utility.
