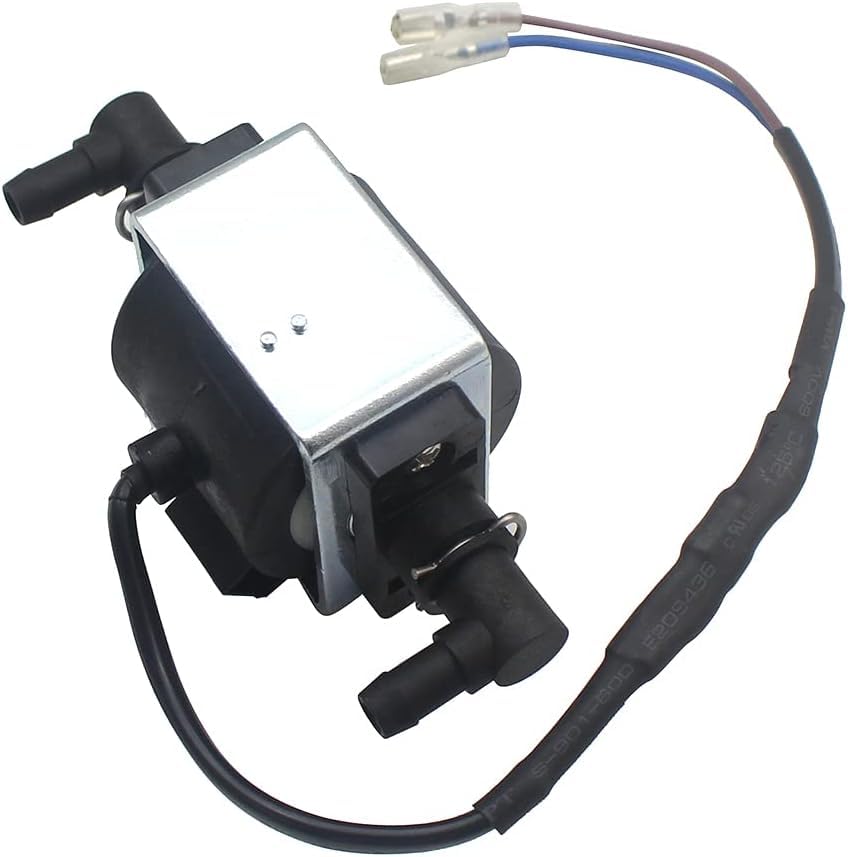

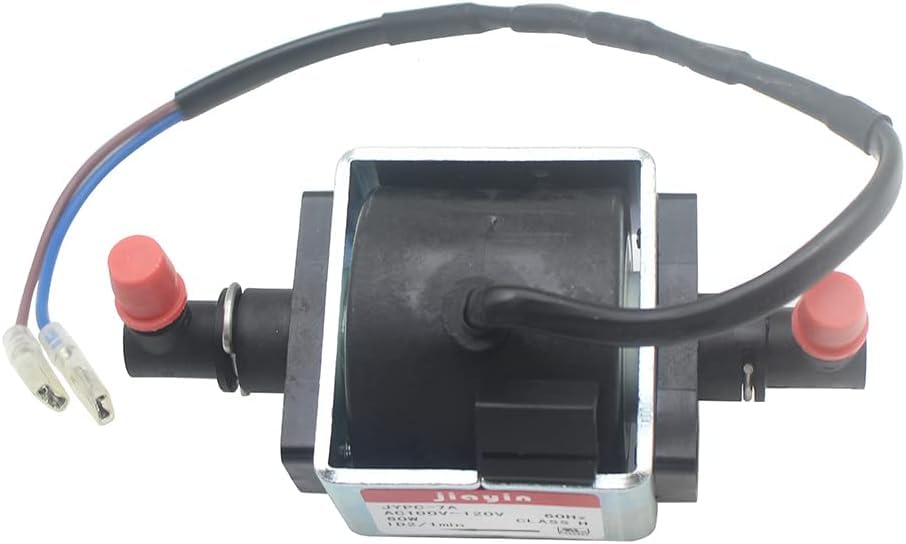

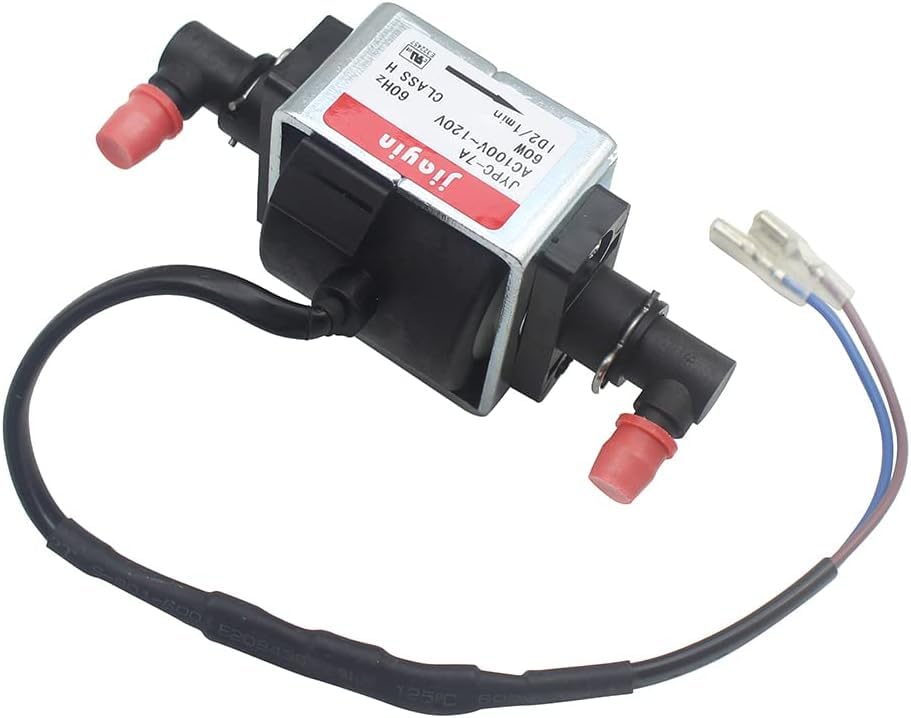

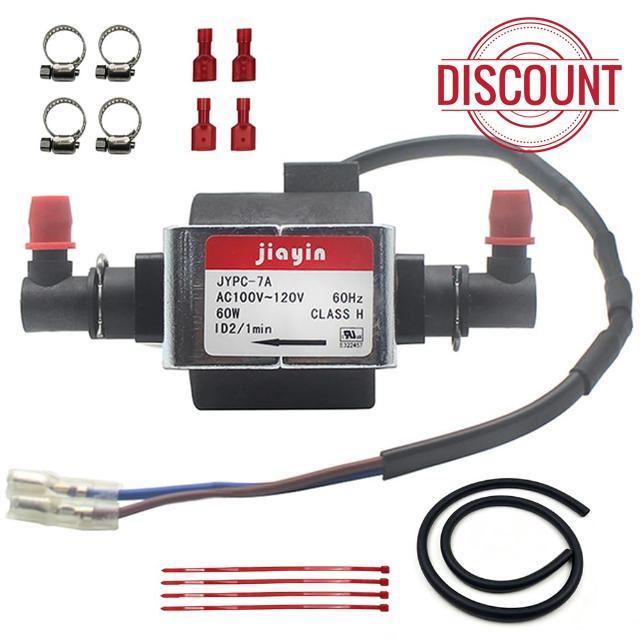

Jiayin JYPC-7A Spray Pump AC 110-120V 60Hz 60W Replacement

Jiayin JYPC-7A Spray Pump AC 110-120V 60Hz 60W Replacement Fit for Rug Doctor Mighty Pro X3, MP-C2D, DCC-1 Carpet Cleaner, w/Terminals, Clamps, Hose, Ties, 2600cc/min Diode Pump

• 1.【Complete All-In-One Replacement Pump Kit 】： Different from ordinary bare pumps, our package comes withfull matched installation accessories to save your extra shopping time. The kit includes 4PCS (1/4”) insulated spade female and male terminals, 4PCS 6-16mm 304 stainless steel worm gear hose clamps, 1M 3/8”( ID) NBR nitrile rubber smooth hose and 6PCS zip ties. Perfect match for your machines, plug and splice for smooth installation.
• 2.【OEM-Level Pump Performance & Perfect Compatibility】: jiayin JYPC-7A electromagnetic water pump is a direct OEM replacement for Mighty Pro (MP-C2D), Mighty Pro X3 and DCC-1 carpet cleaners. It provides 2600±15% cc/min stable flow rate and 0-2.0 Bar (29 PSI) working pressure, effectively repairs no-spray, weak spray and low water pressure issues, restoring your carpet cleaner to brand-new working condition.
• 3. 【Built-in Diode & Standard Wiring Setup】: This pump is pre-installed with a built-in diode to ensure stable 60Hz operation. Please remove the original inline diode on your Rug Doctor machine to avoid dual-diode series connection causing pump failure. Adopts standard wiring: brown wire for hot/black wire, blue wire for neutral/white wire. Equipped with matched 1/4” spade terminals, perfectly fits original machine sockets without loose connection.
• 4. 【Premium Upgraded Accessories for Leak-Proof & Durable Use】: We upgraded all vulnerable accessories for long-term use. The 3/8” NBR nitrile rubber hose resists carpet cleaning detergent corrosion, no swelling or leakage. 6-16mm adjustable stainless steel worm clamps fit perfectly after hose assembly, locking tightly without water leakage. Extra zip ties fix wires and hoses firmly, preventing loosening and wear caused by machine vibra.
• 5. 【Scientific Intermittent Duty & Long Service Life】: Rated at AC 110-120V, 60Hz, 60W with standard intermittent duty cycle (2 minutes ON / 1 minute OFF). Suitable for water and non-corrosive cleaning solution, max resistant temperature up to 70℃. We recommend cleaning the tank filter screen before installation and avoid dry running, which greatly extends the pump’s service life.

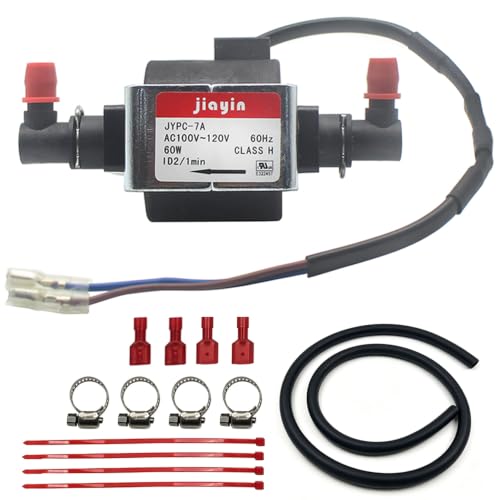

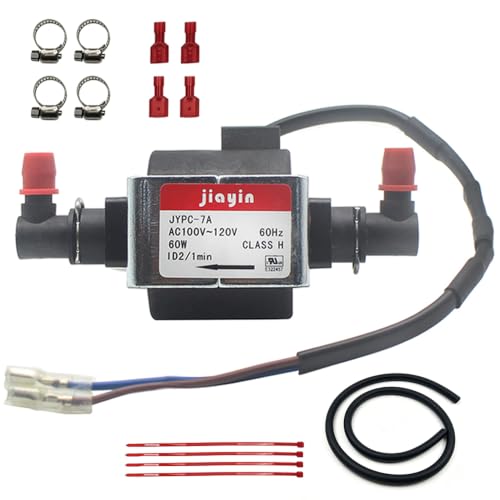

Revive Your Carpet Cleaner with All-In-One Jiayin JYPC-7A Pump Kit!

Tired of purchasing scattered accessories separately when replacing your carpet cleaner pump? Our upgraded Jiayin JYPC-7A magnetic water pump package integrates all matched installation parts, solving the biggest pain point of traditional bare pump replacement. This pump strictly follows OEM specifications, perfectly compatible with Mighty Pro X3, MP-C2D and DCC-1 carpet cleaning machines, delivering stable spray pressure and consistent water flow for daily deep carpet cleaning work.

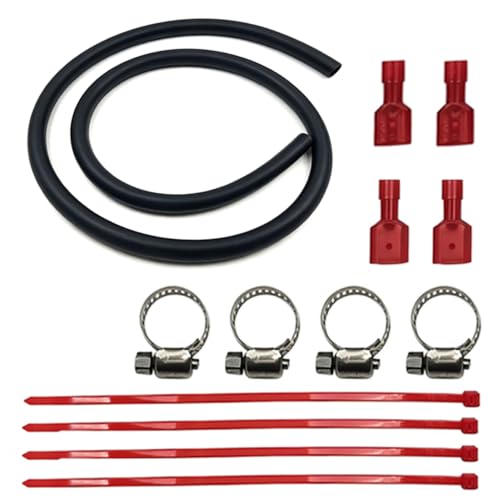

Full Package Accessories List (Everything You Need):

• ✅ Installation Manual
• ✅ 4PCS 6.35mm (1/4″) Insulated Spade Female & Male Terminals (Perfect fit original machine sockets)
• ✅ 4PCS 6-16mm 304 Stainless Steel Worm Gear Hose Clamps (Leak-proof & reusable)
• ✅ 1M 3/8″ (10mm ID) NBR Nitrile Smooth Rubber Hose (Detergent-resistant, no swelling)
• ✅ 4PCS Heavy-Duty Zip Ties (Fix wires & hoses against vibration)

Core Product Specifications:

• Model: Jiayin JYPC-7A
• Voltage: AC 110-120V, 60Hz
• Power: 60W
• Flow Rate: 2400cc/min (±10%)
• Max Working Pressure: 2.0 Bar
• Working Cycle: Intermittent (2min ON / 1min OFF)
• Applicable Media: Water & Non-corrosive cleaning solution
• Max Ambient Temperature: 70℃ (158℉)
• Feature: Built-in Diode, Corrosion Resistant

Professional Installation Tips to Avoid Failure:

1. Diode Reminder: This pump has a built-in diode. Please remove the original inline diode on your Rug Doctor machine to avoid series connection and weak spray.
2. Wiring Instruction: Brown wire connects to machine hot/black wire, blue wire connects to neutral/white wire. The matched 1/4″ terminals ensure perfect plug-in fit.
3. Hose Installation: Cut the NBR hose into 20-25cm for inlet and outlet pipes, reserve slack to avoid tension during machine vibration, fix with 6-16mm worm clamps for tight sealing.
4. Grounding Safety: Reuse the ground screw and ground wire from your old pump for safe operation.
5. Life Extension: Clean the tank filter screen before installation and never run the machine dry, effectively preventing pump burnout.

Wide Compatibility

Ideal replacement for Mighty Pro MP-C2D, Mighty Pro X3, DCC-1 and other similar carpet extractors with 2.0Bar 2400cc/min magnetic spray pump requirements. Complete kit design allows beginners to finish installation quickly without extra tool and accessory preparation.
