ASRock Z690-C/ac ATX Mohterboard, Intel 14th/13th/12th Gen, DDR4 5333+ (OC), PCIe 5.0, 9 Phase Dr.MOS, 802.11ac WiFi

• System Compatibility: ATX (12"x9.6") fits standard cases; verify chassis clearance before purchase.
• Dedicated Support: Contact us via Amazon for any product questions or assistance.

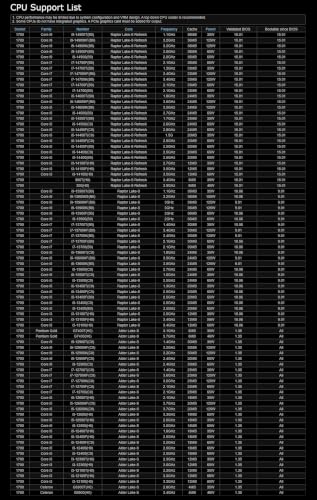

• 14th, 13th & 12th Gen Intel Support: LGA1700 socket with 9-phase Dr.MOS design for stable CPU performance.
• High-Speed DDR4 Memory: 4 DIMM slots, 5333+ (OC), 128GB max, supports XMP 2.0 and ECC (non-ECC mode).
• PCIe 5.0 Ready: One PCIe 5.0 x16 slot for graphics, plus PCIe 4.0 x16 and PCIe 3.0 x16/x1 slots for expansion.
• 4x M.2 & 4x SATA3: Hyper M.2 (Gen4x4), Hyper M.2 (Gen4x4), Hyper M.2 (Gen4x4 & SATA3), Ultra M.2 (Gen3x4 & SATA3) plus 4x SATA3 ports.
• Dual Networking: Intel Gigabit LAN and 802.11ac WiFi module with Bluetooth for wired and wireless connectivity.

• Front USB 3.2 Gen2x2 Type-C: 20 Gb/s front panel header for ultra-fast data transfers.
• Premium Audio & HDMI Output: Realtek ALC897 7.1 CH HD Audio with Nahimic, HDMI 2.1 output for integrated graphics.
• ASRock Super Alloy Durability: Premium 50A chokes, Dr.MOS, high-density glass fabric PCB, and full spike protection.

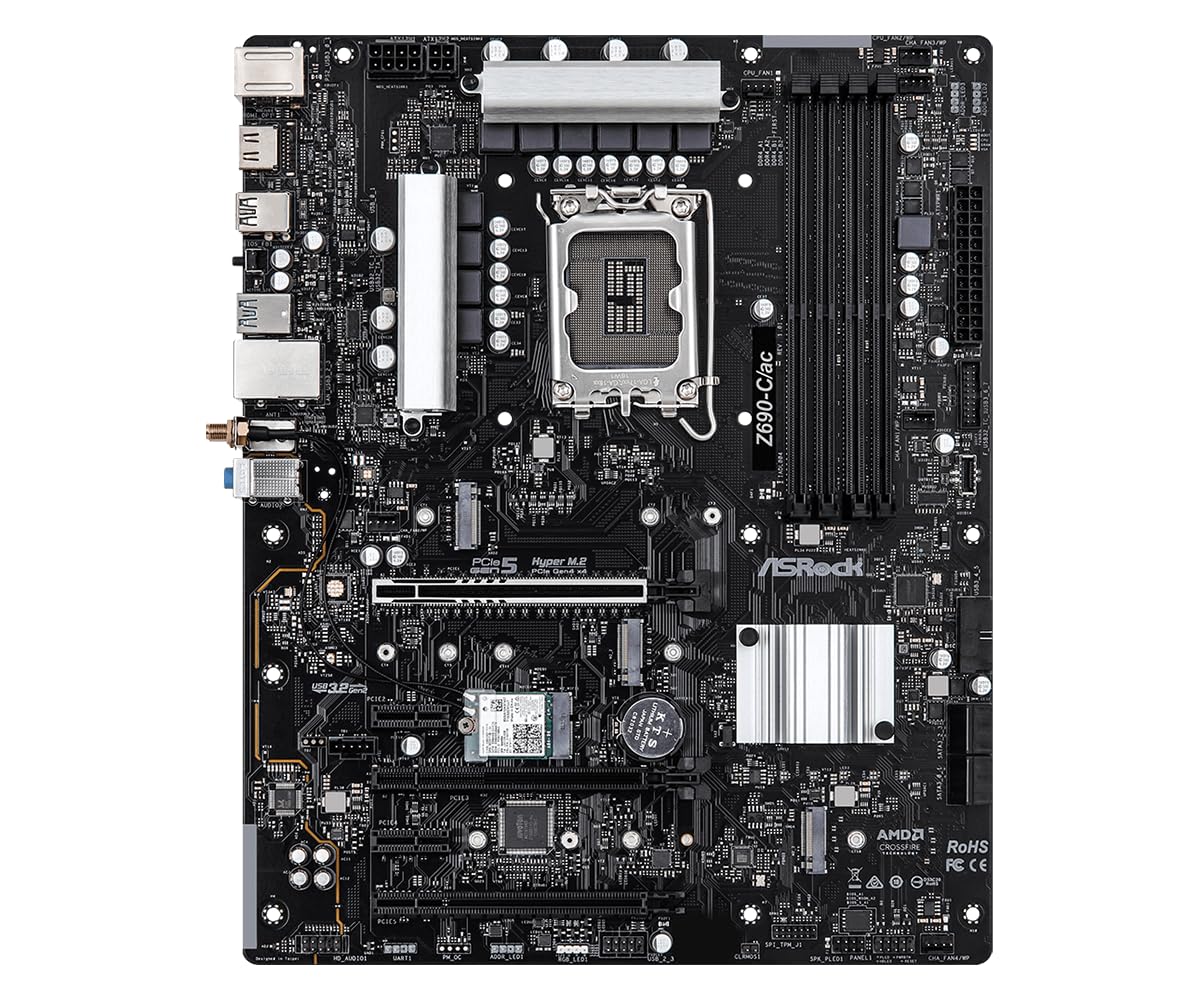

The ASRock Z690-C/ac is a versatile ATX motherboard designed for Intel’s 14th, 13th, and 12th Gen Core processors on the LGA1700 platform. Featuring a 9-phase Dr.MOS power design and support for DDR4 memory overclocked up to 5333+ MHz, this board delivers stable performance for gaming, productivity, and everyday computing. With four DIMM slots supporting up to 128GB of memory, you’ll have plenty of capacity for demanding applications and multitasking. Storage and expansion are standout features of the Z690-C/ac. It includes four M.2 sockets: two Hyper M.2 supporting PCIe Gen4x4 NVMe SSDs, one Hyper M.2 supporting PCIe Gen4x4 and SATA3, and one Ultra M.2 supporting PCIe Gen3x4 and SATA3. This provides exceptional flexibility for high-speed storage configurations. Four SATA3 ports offer additional storage for HDDs or SSDs. A PCIe 5.0 x16 slot accommodates the latest graphics cards, while additional PCIe 4.0 x16 and PCIe 3.0 x16/x1 slots provide flexibility for expansion cards. The board also features Intel Gigabit LAN and an integrated 802.11ac WiFi module with Bluetooth for both wired and wireless networking. Connectivity is comprehensive with a front panel USB 3.2 Gen2x2 Type-C header (20 Gb/s), rear USB 3.2 Gen2 Type-A and Type-C ports (10 Gb/s), plus additional USB 3.2 Gen1 and USB 2.0 ports. The Realtek ALC897 7.1 CH HD Audio codec with Nahimic Audio delivers immersive sound for gaming and entertainment. Built with ASRock Super Alloy components including premium 50A chokes, Dr.MOS, and high-density glass fabric PCB, the Z690-C/ac offers durability and long-term reliability. Whether you’re building a gaming rig, a workstation, or a home server, the ASRock Z690-C/ac provides a solid foundation with excellent storage flexibility and modern connectivity.
