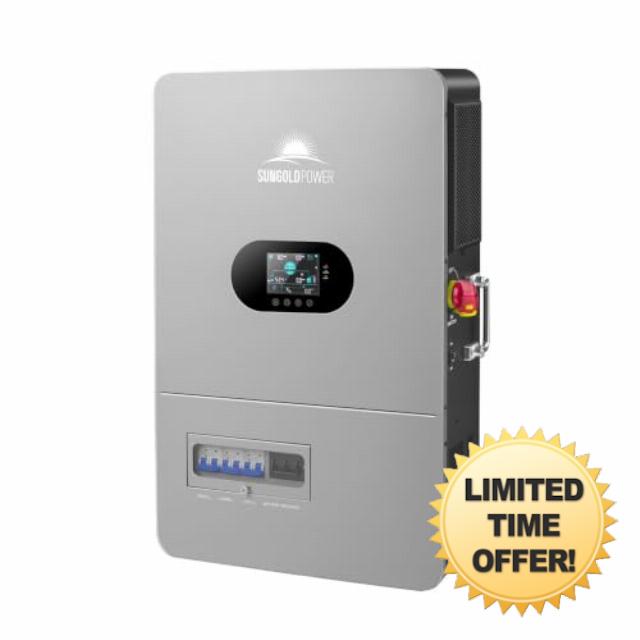

SUNGOLDPOWER 12000W 48V Solar Inverter,120V/240V Split Phase Pure Sine Wave All-in-One Inverter with Dual 22A MPPT,PV RSD,200A Charger, Parallel 6 Units for Off-Grid Home,RV,Farm(FR12K-B)

• 1. 【12000W Powerful All-in-One Hybrid Solar Inverter】 SUNGOLDPOWER FR12K-B 12000W all-in-one solar inverter combines a 12KW pure sine wave inverter, solar charger, and battery charger in one powerful unit. Designed for 48V battery systems, it delivers stable 120V/240V split-phase output for off-grid homes, backup power, farms, cabins, workshops, and remote locations.

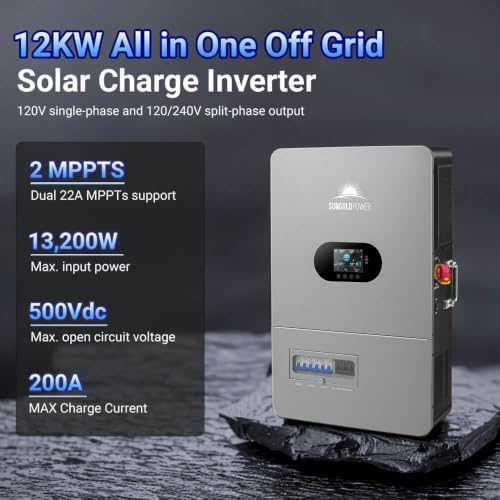

• 2. 【13200W High PV Input Capacity with Dual MPPT & RSD】 Equipped with dual independent MPPT solar controllers, SUNGOLDPOWER 12000W solar inverter supports up to 6600W + 6600W PV input (13.2KW total). With a wide MPPT voltage range of 125-425Vdc and 500Vdc maximum PV open-circuit voltage, it allows flexible solar array configurations and improves solar energy harvesting efficiency. Built-in PV Rapid Shutdown (RSD) enhances system safety.

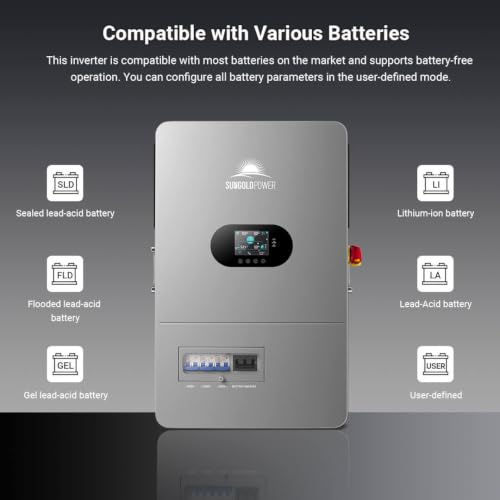

• 3. 【200A High-Speed Battery Charging & Wide Battery Compatibility】 SUNGOLD 12KW Inverter supports up to 200A solar battery charging current and up to 120A charging current from grid/generator input. Compatible with Li-ion, lead-acid, and user-defined battery types, with a 48V battery voltage range of 40-60Vdc, providing reliable and efficient charging performance for high-capacity energy storage systems.

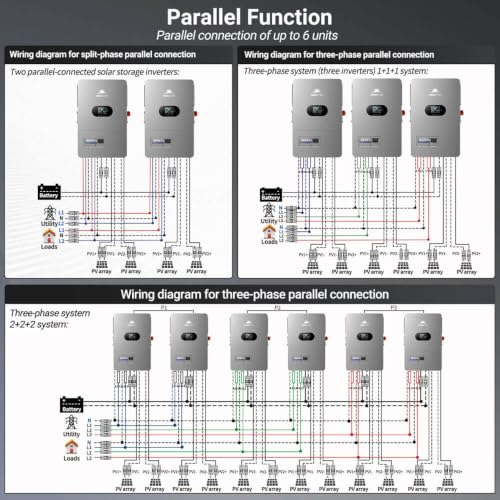

• 4. 【Expandable Parallel System & Flexible Power Output】 Support parallel connection of up to 6 units for a scalable system with up to 72KW output capacity. The 120V/240V split-phase output design provides flexible power configurations for various residential energy needs.

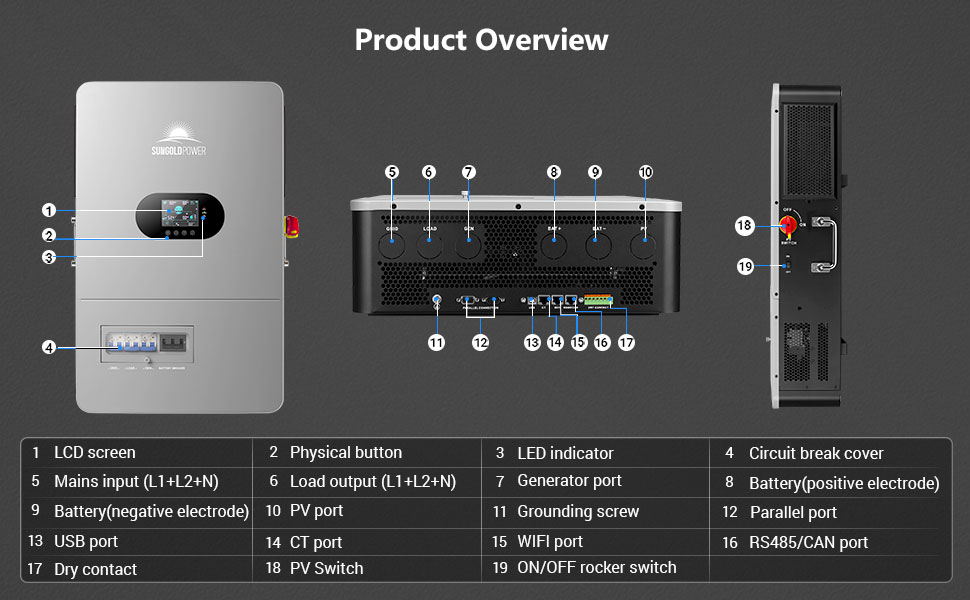

• 5. 【Built-in AC Input & Output Breakers for Easy Installation】 Featuring built-in AC input and output circuit breakers, this all-in-one inverter provides multiple layers of protection while simplifying installation. The integrated design reduces additional wiring requirements and helps create a cleaner, safer, and more convenient solar power system.

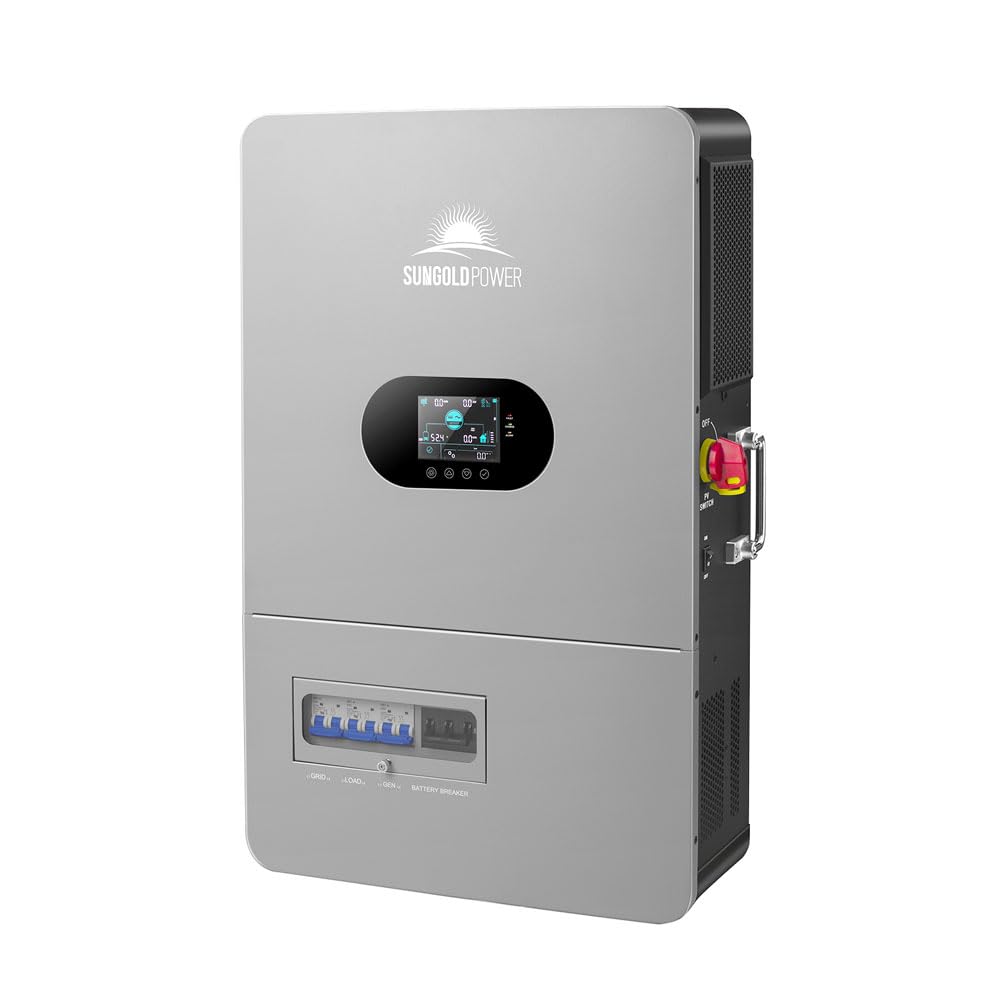

The SUNGOLDPOWER 12000W 48V Hybrid Solar Inverter is an all-in-one pure sine wave inverter designed for off-grid and backup power systems. It provides reliable 120V/240V split-phase output, supports dual 22A MPPT solar charging, and allows up to 6 units to operate in parallel for expanded power capacity. With built-in PV Rapid Shutdown, AC protection breakers, and a powerful 200A charger, it is an ideal solution for homes, farms, RVs, and other off-grid applications.

---

From the manufacturer

Other Specifications of SUNGOLDPOWER FR12K-B Hybrid Inverter

Noise: <60dB

Operating Temperature Range: 14~131 °F, >113°F Derated

Cooling Method: Intelligent Air Cooling

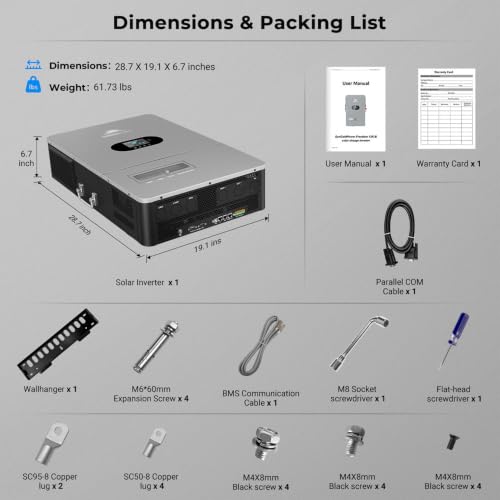

Dimensions: 28.7 x 19.1 x 6.7 in

Weight: 61.73lbs

Bypass Overload Phase Current: 63A

Self Consumption < 100W
