HQST 100W 12V Solar Panel, 9BB, 23% High Efficiency, Grade

9BB

HQST 100W 12V Solar Panel, 9BB, 23% High Efficiency, Grade A+ Cells, IP65 Monocrystalline, Compact 31.8x 27.5x 1.18 inch, 2400Pa Wind Load, 5400Pa Snow Load, for RV, Camping, Grid

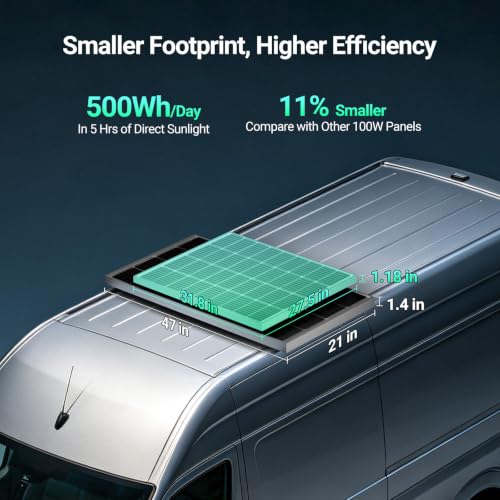

  • 【Compact Size, Optimal Space Utilization】 The HQST 100W solar panel features a square design, 31.8x 27.5x 1.18 inch, 11% smaller than traditional for limited roof areas and confined spaces, maximizing power output within the available space.

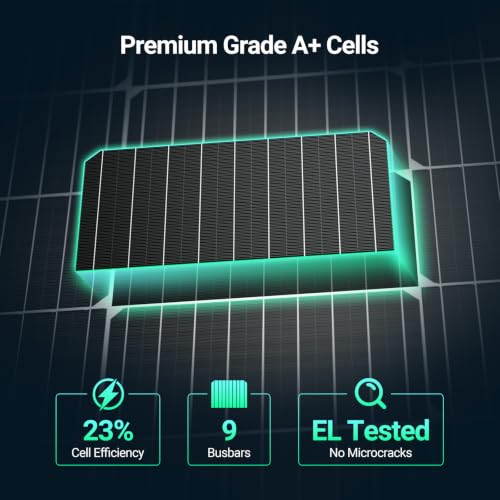

  • 【Grade A+ Cells, Up to 23% High Conversion】 The HQST 100W 12V monocrystalline solar panel features high-quality 166mm Grade A+ cells with 100% EL testing, ensuring zero cracks and up to 23% conversion rate, surpassing other traditional options.

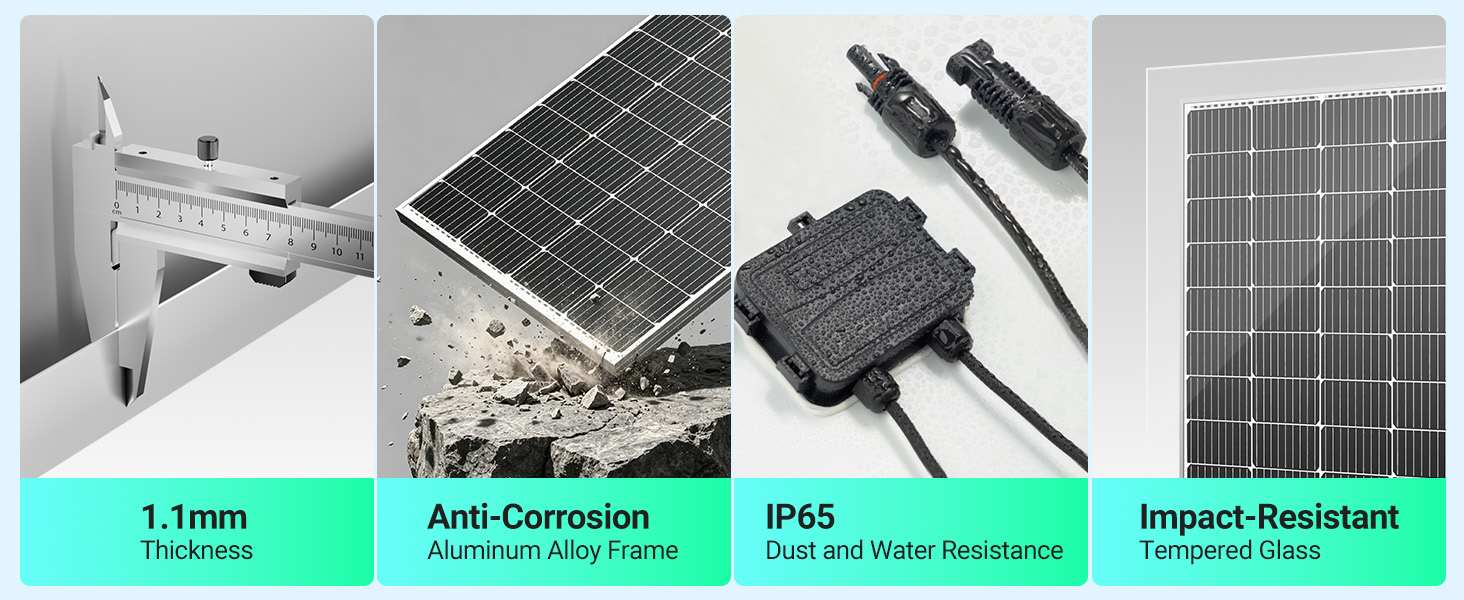

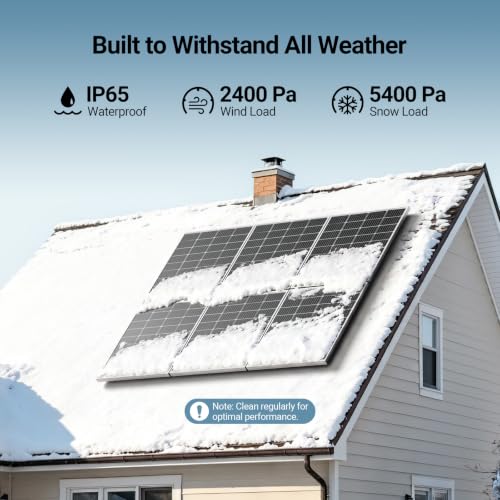

  • 【Built to Withstand All Weather】 This solar panel withstands 2400Pa wind loads and 5400Pa snow loads, while the IP65-rated solar connectors and junction box provide robust protection against water splashes and rain. The anti-corrosion aluminum alloy frame ensures decades of reliable outdoor performance.

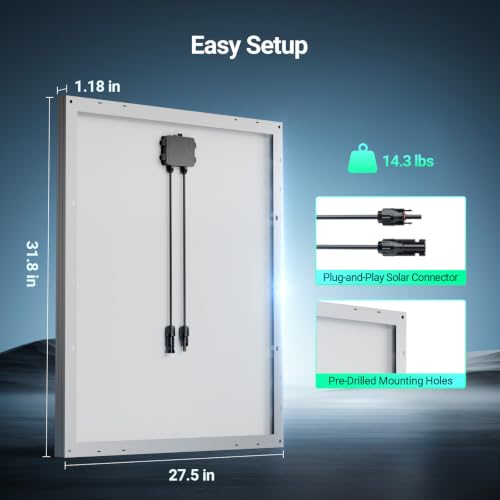

  • 【Fast and Easy Installation】 The solar panel comes with pre-drilled holes on the back, facilitating fast and secure mounting, making it perfect for various off-grid applications such as RVs, camper vans, motorhomes, rooftops, cabins, yachts, and more. Additionally, it is directly compatible with HQST Z Brackets and Tilt Mounts (not included) for effortless installation.

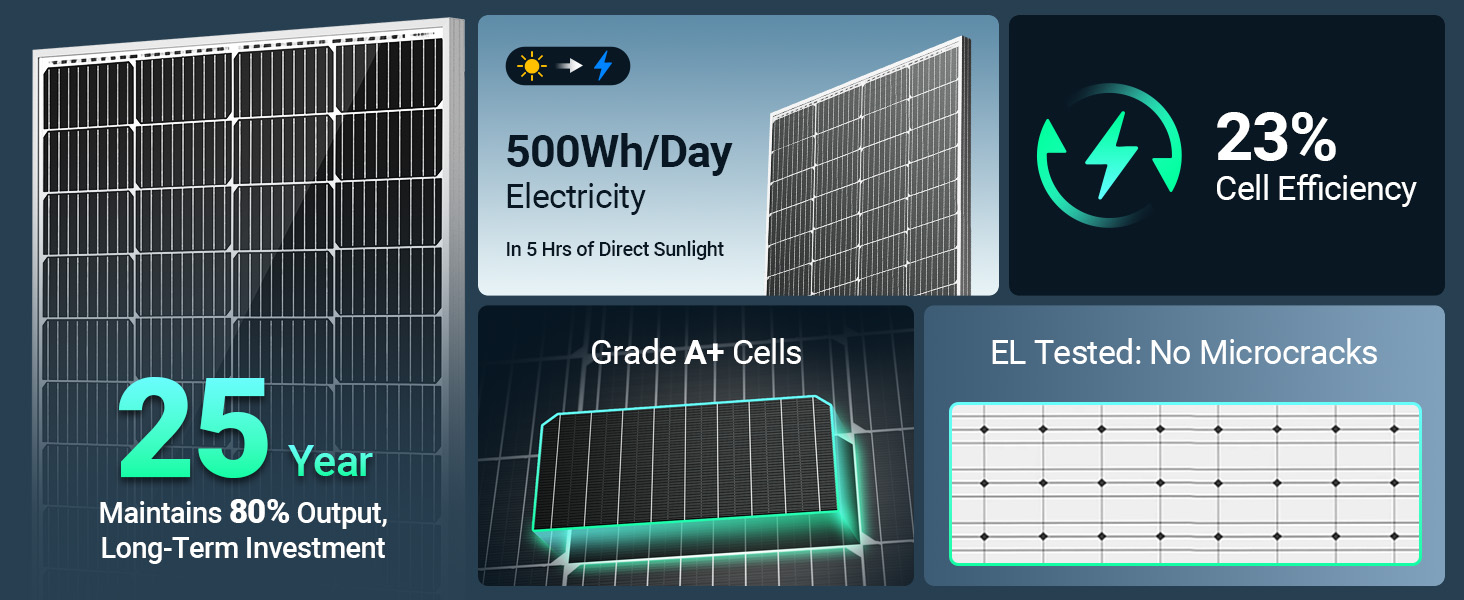

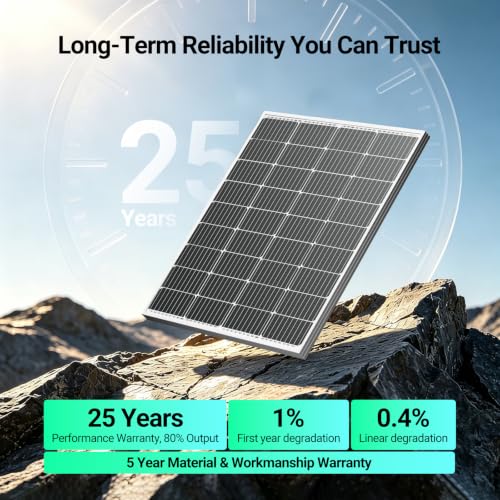

  • 【Choose HQST's Solar Panels】 Backed by a 5-year product assurance and boasting an impressive 80% output power retention even after 25 years of use, these HQST solar panels offer unparalleled reliability, making them the ideal choice for building or upgrading your solar power solution.

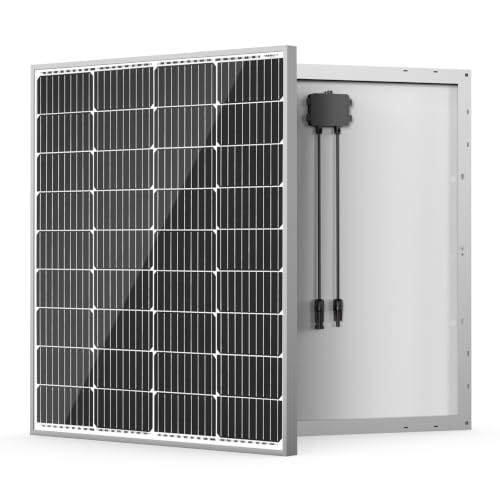

HQST 100 Watt 12 Volt Monocrystalline Solar Panel

Max Power at STC100W
Open Circuit Voltage24.3 V
Short Circuit Current5.21 A
Optimum Operating Voltage20.4 V
Optimum Operating Current4.91 A
Cell EfficiencyUp to 23%
Maximum System Voltage600 VDC UL
Maximum Series Fuse Rating15 A
Front GlassLow Iron-Tempered Glass
FrameAnti-Corrosion Aluminium Alloy
ConnectorsMC4 Solar Connectors
IP RatingIP65
Dimensions31.8 x 27.5 x 1.18 in / 807 x 699 x 30 mm
Weight14.3 lbs / 6.5 kg

SKU: B0H4152J7K
Dimensions: 31.8″L x 27.5″W x 1.18″H
Brand: HQST
Model: HSP100DL-36
Manufacture: HQST

Product description

Compact. Easy install. Build to last.Product features

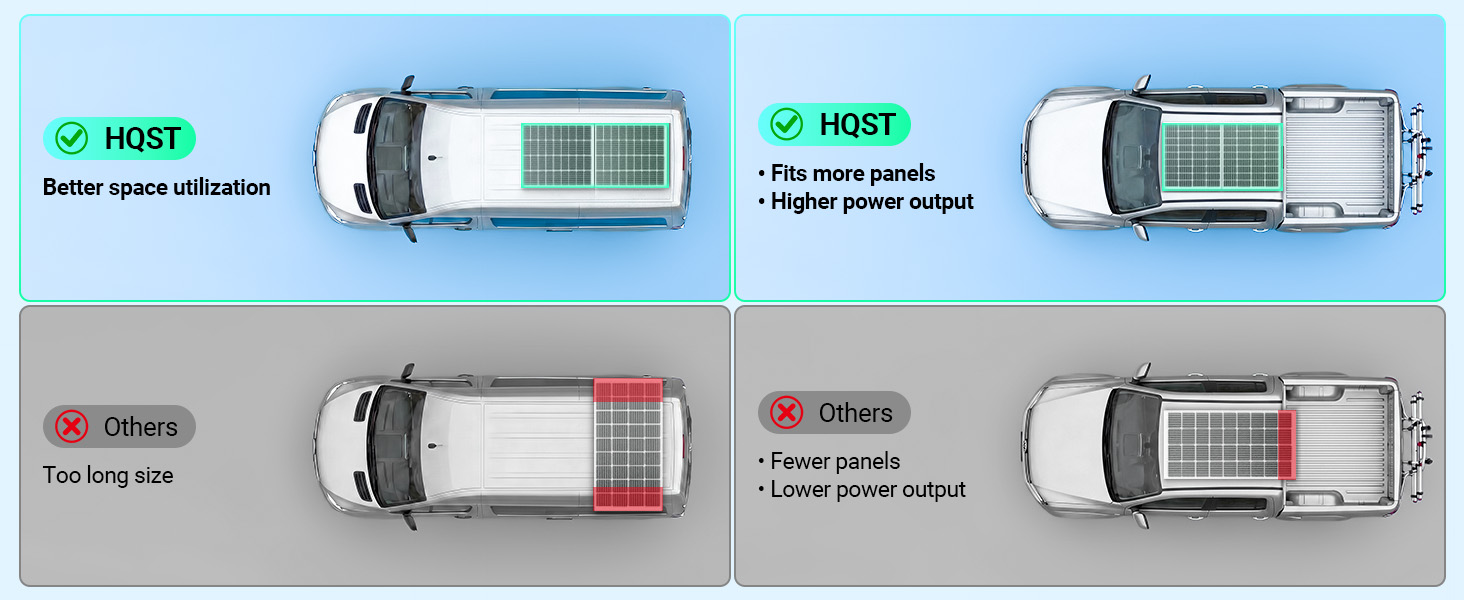

  1. HQST solar panel has better space utilization.
  2. HQST solar panel offers more watts in limited space - perfect for your RV, rooftop, or boat.
  1. product features
  2. Stable output, no matter the weather.

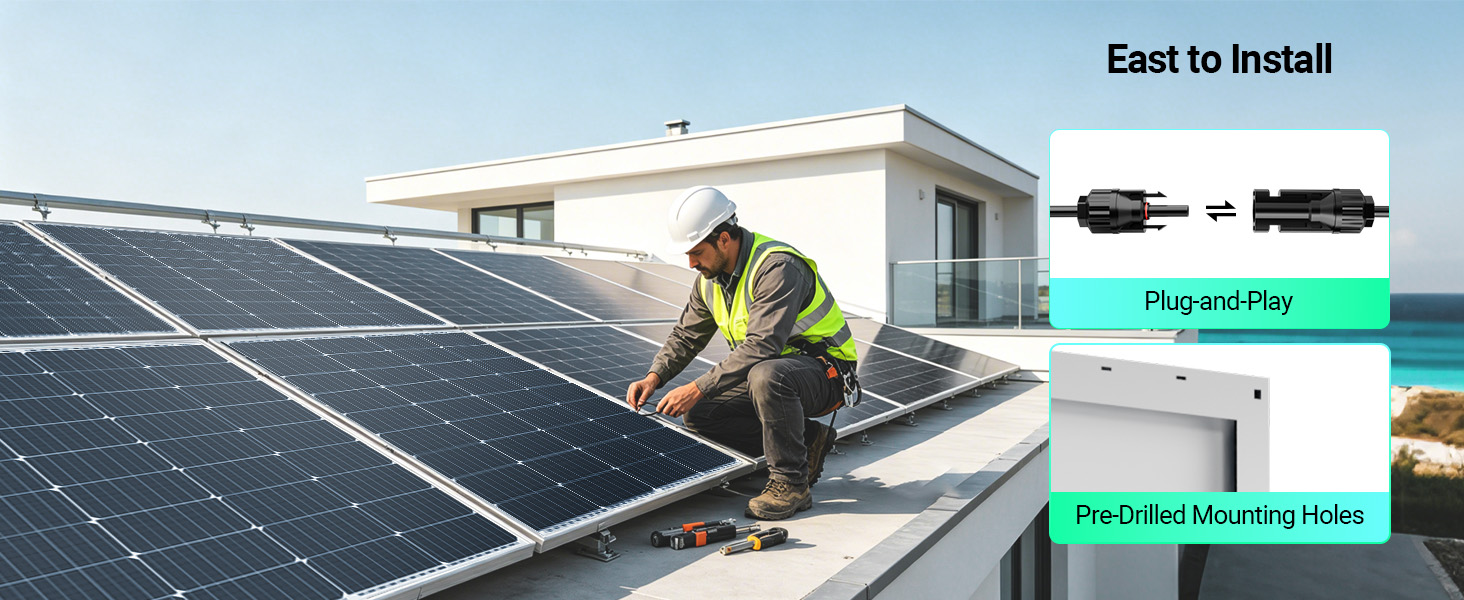

  1. Easy to install

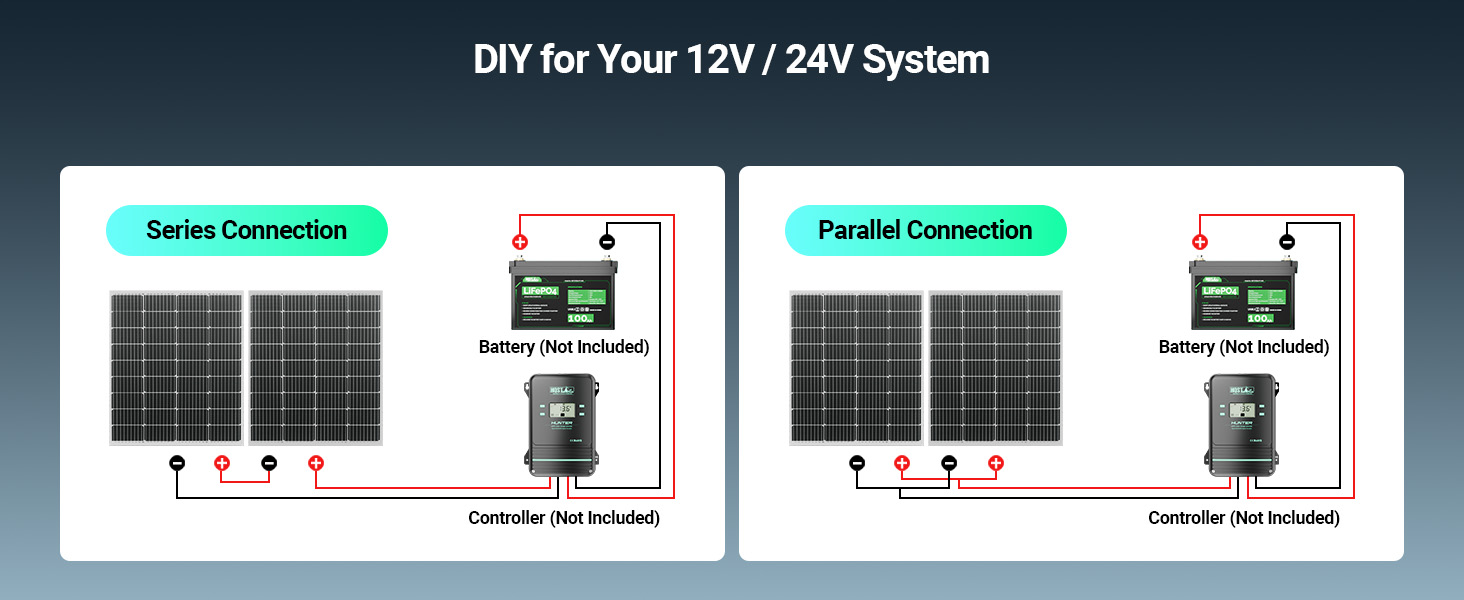

  2. DIY for your 12V/24V system

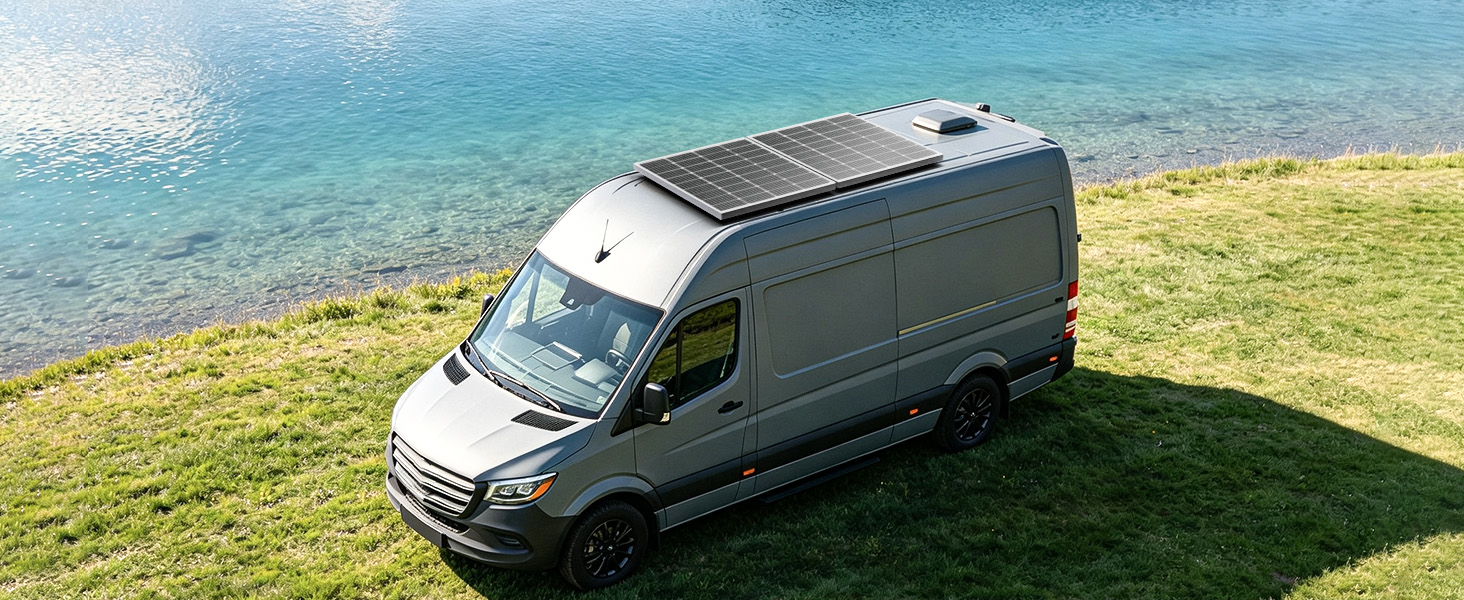

  1. RVs

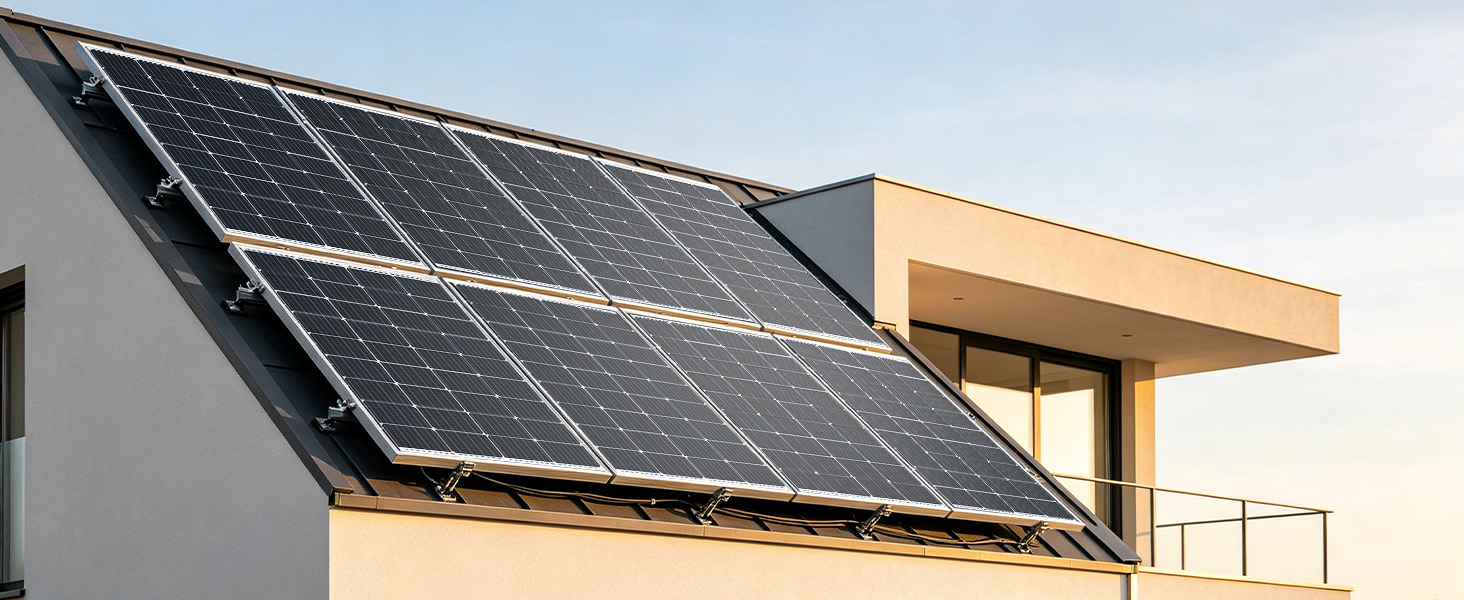

  2. Rooftops

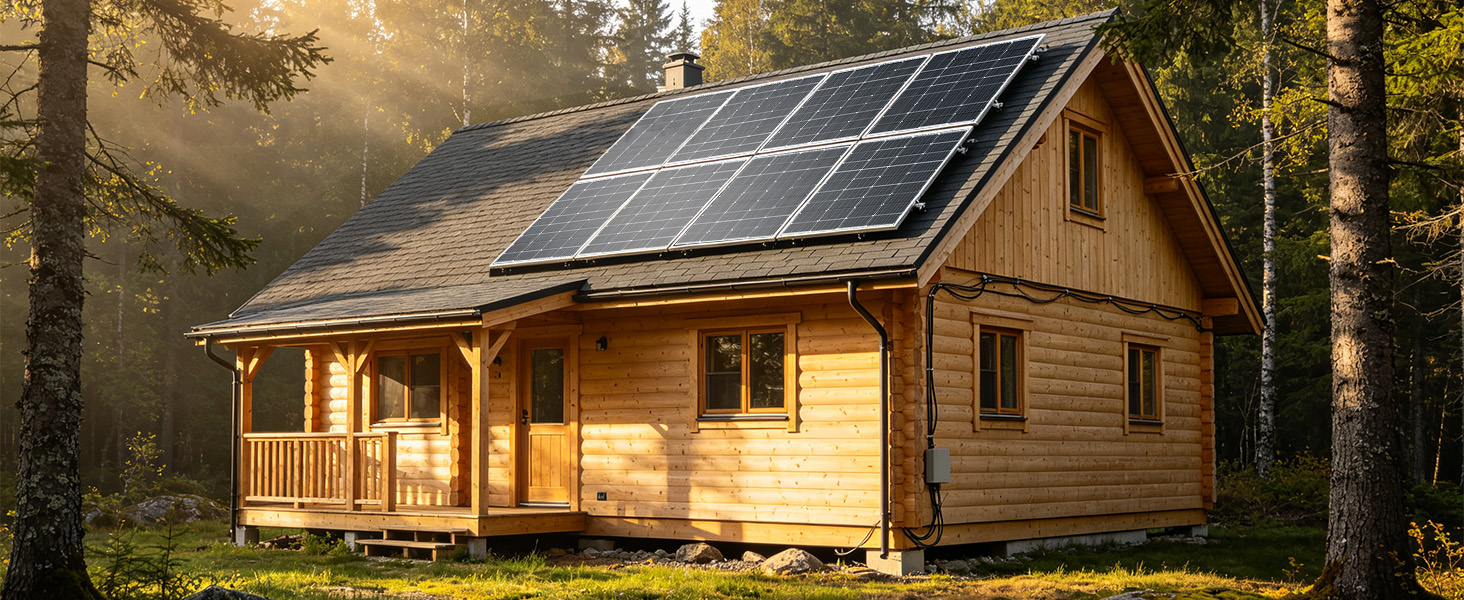

  3. Cabins

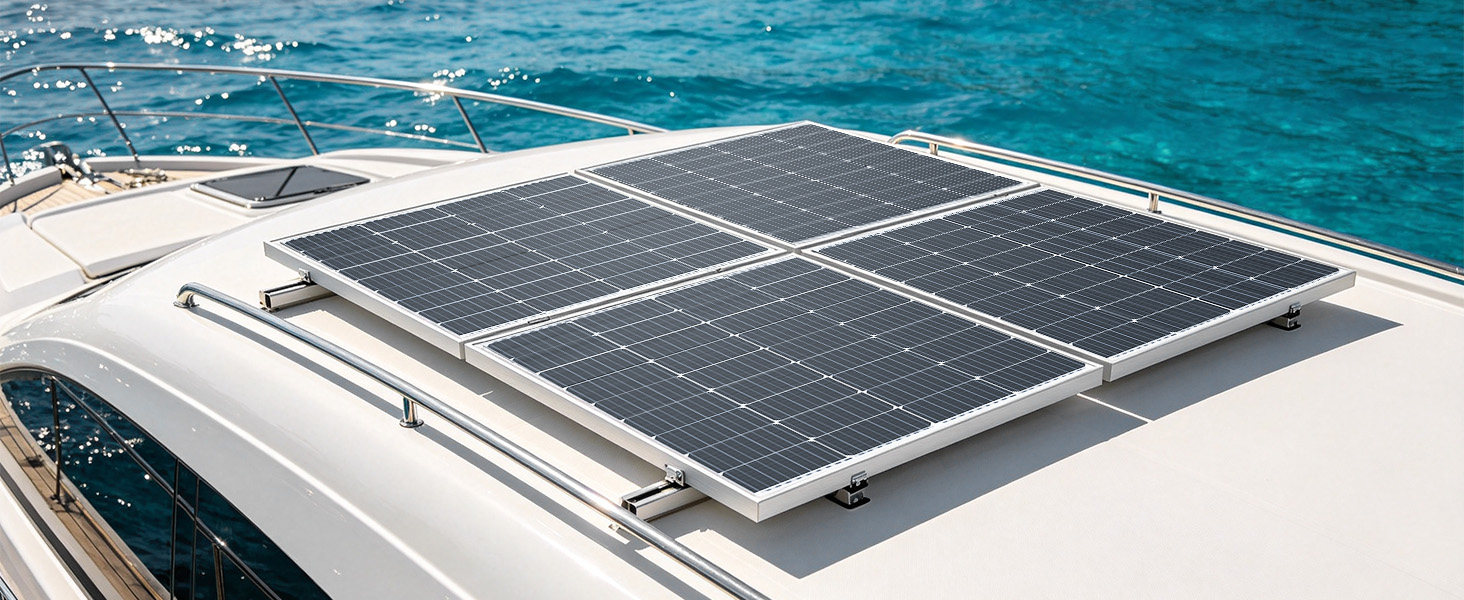

  4. Marine
  5. Camping

HQST 100 Watt 12 Volt Monocrystalline Solar Panel

Max Power at STC 100W
Open Circuit Voltage 24.3 V
Short Circuit Current 5.21 A
Optimum Operating Voltage 20.4 V
Optimum Operating Current 4.91 A
Cell Efficiency Up to 23%
Maximum System Voltage 600 VDC UL
Maximum Series Fuse Rating 15 A
Front Glass Low Iron-Tempered Glass
Frame Anti-Corrosion Aluminium Alloy
Connectors MC4 Solar Connectors
IP Rating IP65
Dimensions 31.8 x 27.5 x 1.18 in / 807 x 699 x 30 mm
Weight 14.3 lbs / 6.5 kg
