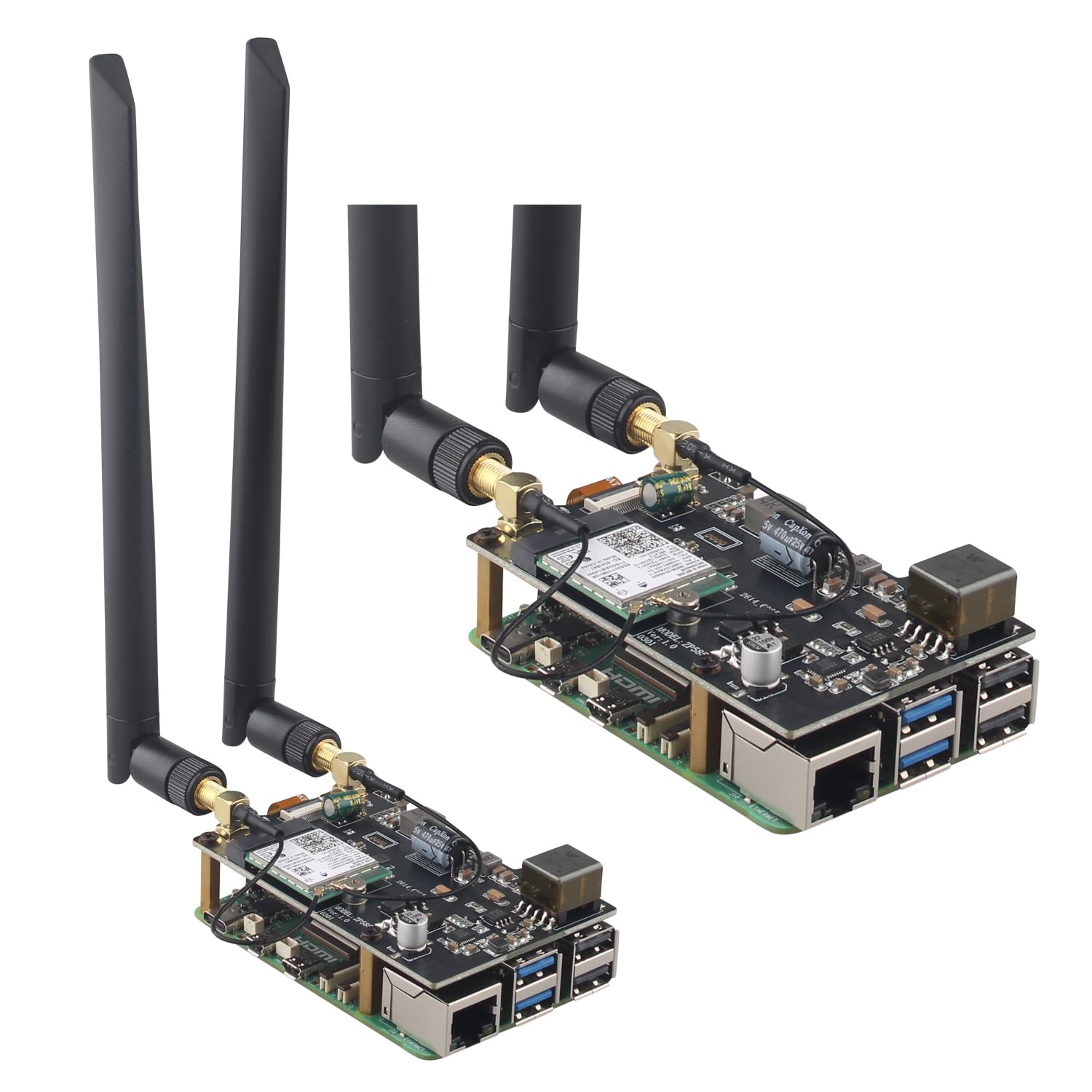

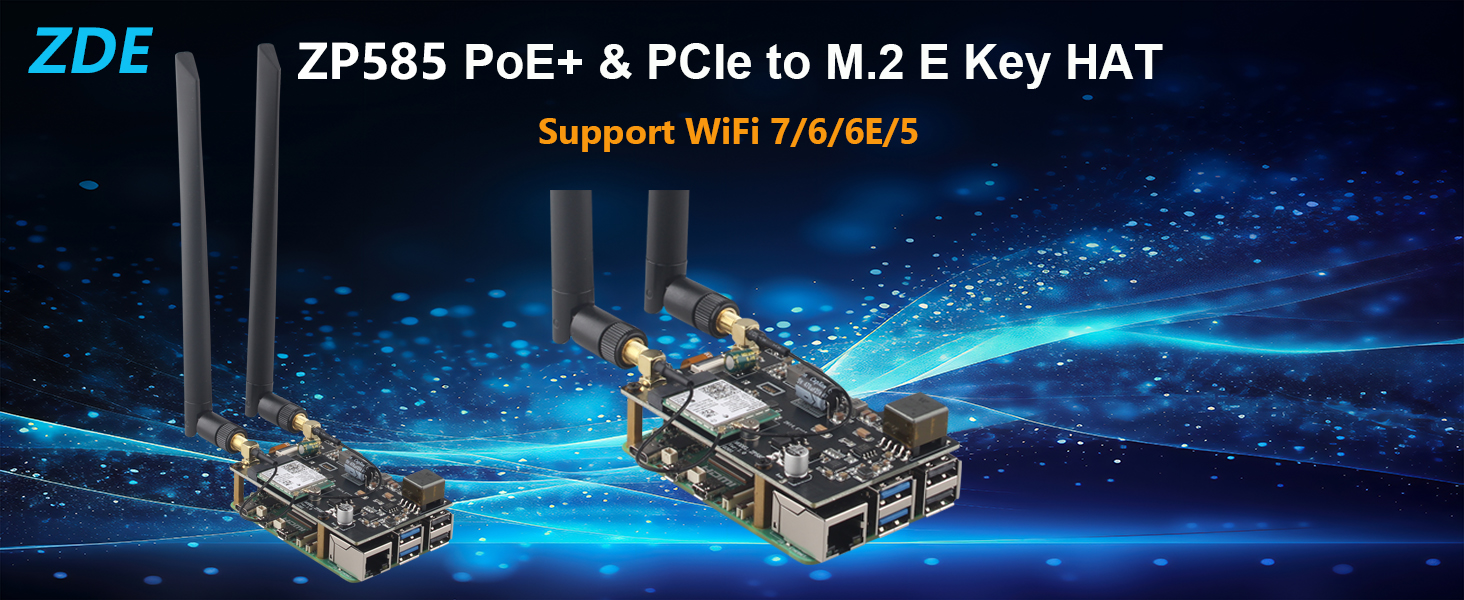

ZDE ZP585 PoE+ HAT PCIe to M.2 E Key WiFi7 6 6E 5 HAT Adapter Expansion Board Power Over Ethernet for Raspberry Pi 5 Support Google TPU WiFi 7 BE200 WIFI6E AX210 MT7922 WIFI6 AX2

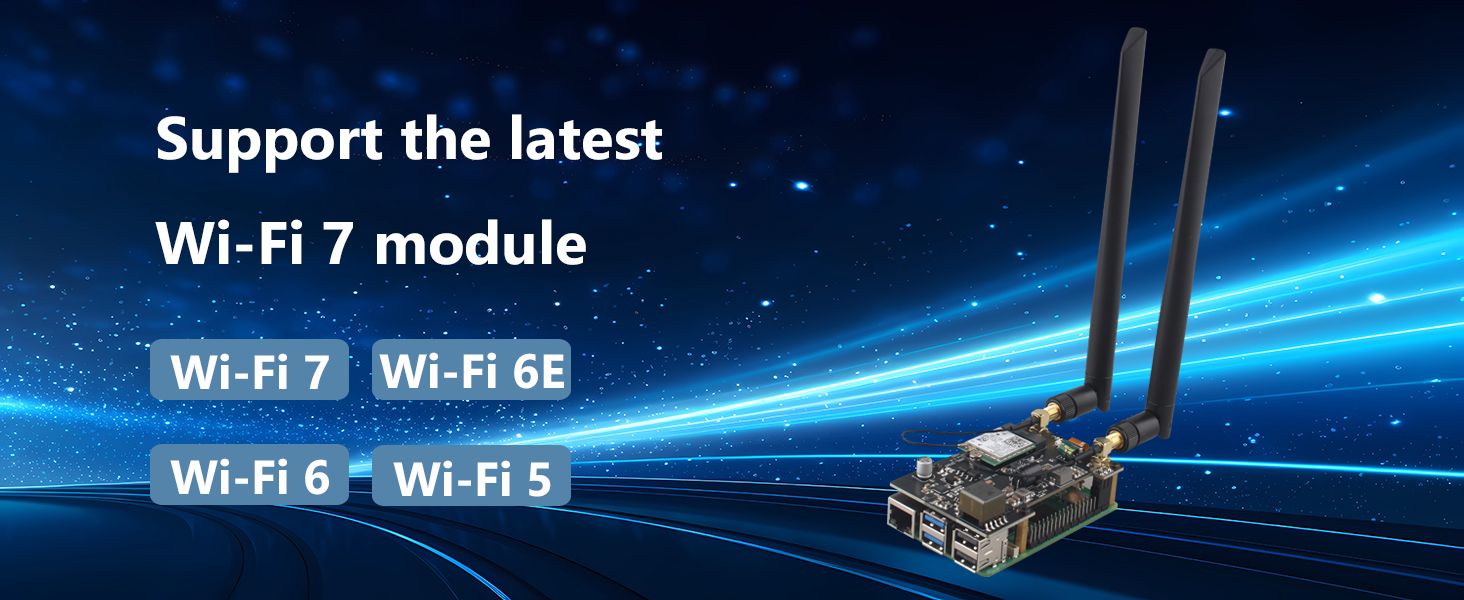

• The PoE+ HAT is an adapter board with PCIe interface for WIFI7, allowing Raspberry Pi 5 motherboard to use the latest WIFI7 module. The WIFI7 module can be inserted into the ZP585 HAT via the M.2 E-KEY interface, which provides an opportunity for a wide range of Raspberry Pi 5 users to be able to use the latest WIFI7.

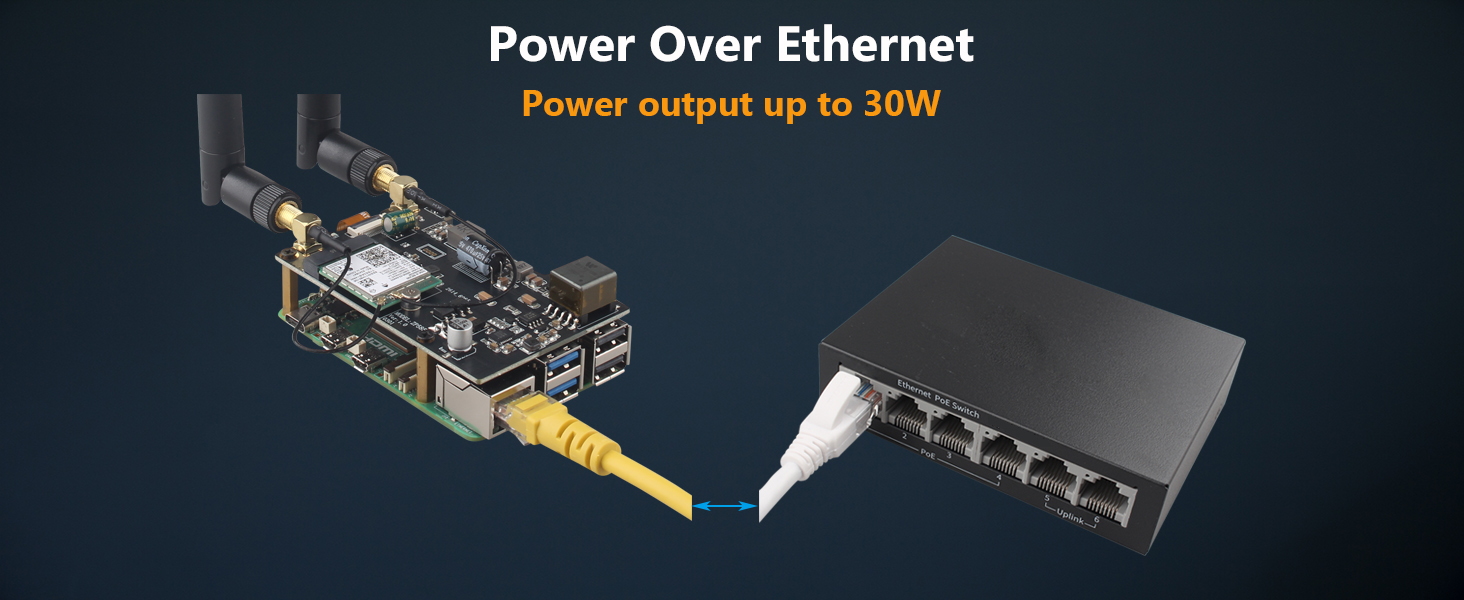

• Suitable for use with a PoE router or switch that supports the IEEE 802.3af/at networking standard. Providing both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
• At present, Ubuntu supports wireless network cards of WIFI7 WIFI6(E) WIFI5, which can be used without installing drivers. The currently supported network cards include BE200, 8265C, AX200, AX210, MT7922.
• To use the WiFi7/6/6E/5 wireless network cards, the Raspberry Pi OS needs to install a driver, it depends on how familiar you are with the wifi driver and Raspberry Pi OS. We have instructions about driver BE200, AX200, AX210.

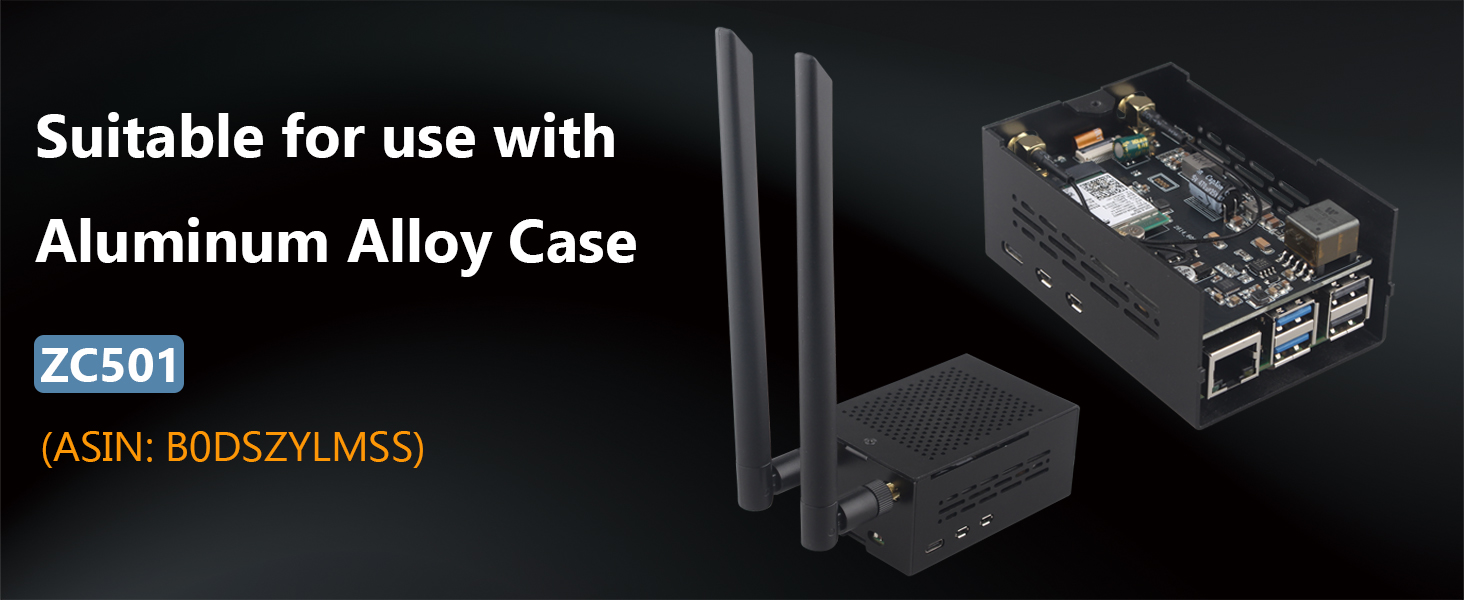

• This expansion board is suitable for use with aluminum alloy case. For aluminum alloy enclosure, please refer to ZC501 (ASIN: B0DSZYLMSS); for Active Cooler, please refer to ZP536(ASIN: B0DSZYHNF5).

›

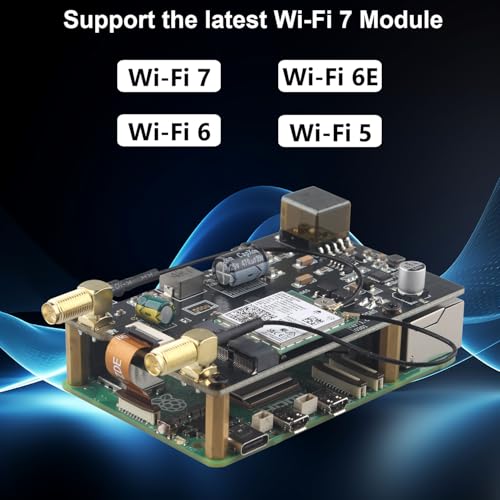

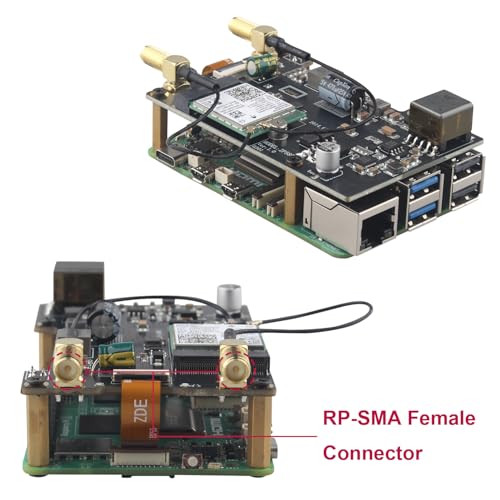

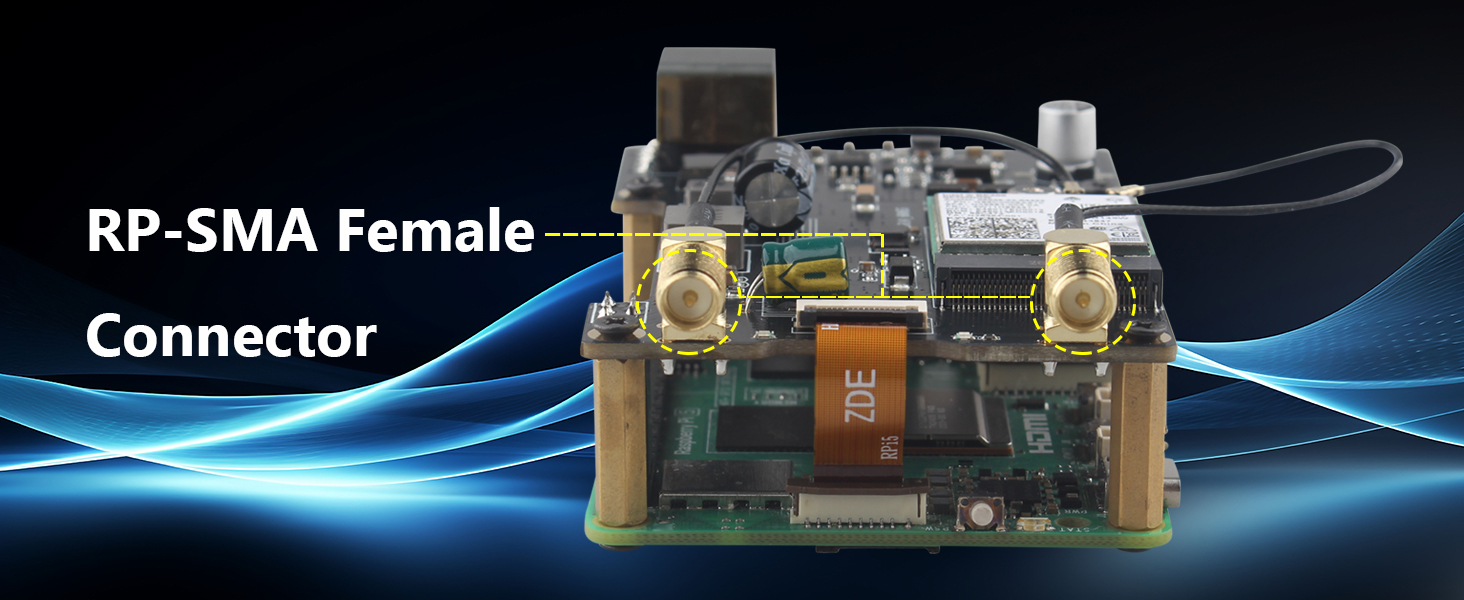

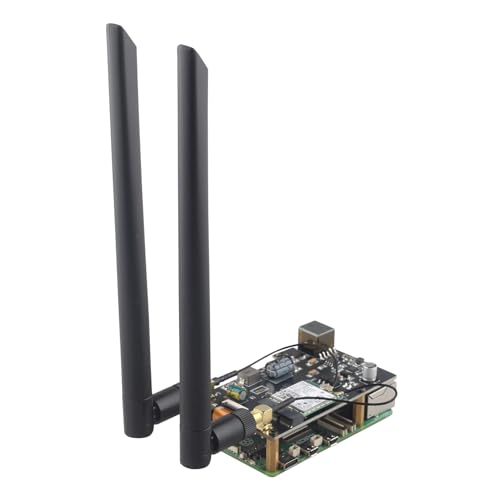

1 Support WiFi 7/6/6E/5 2 Antenna Connector

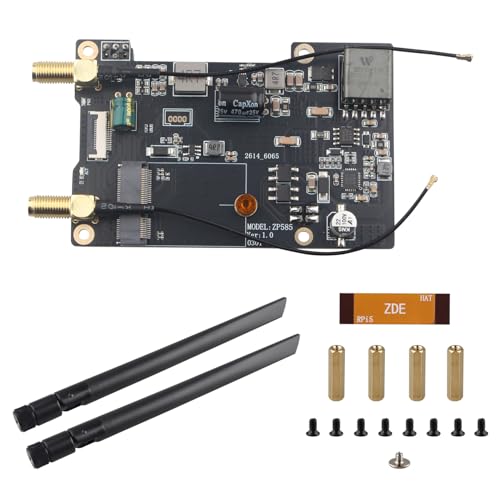

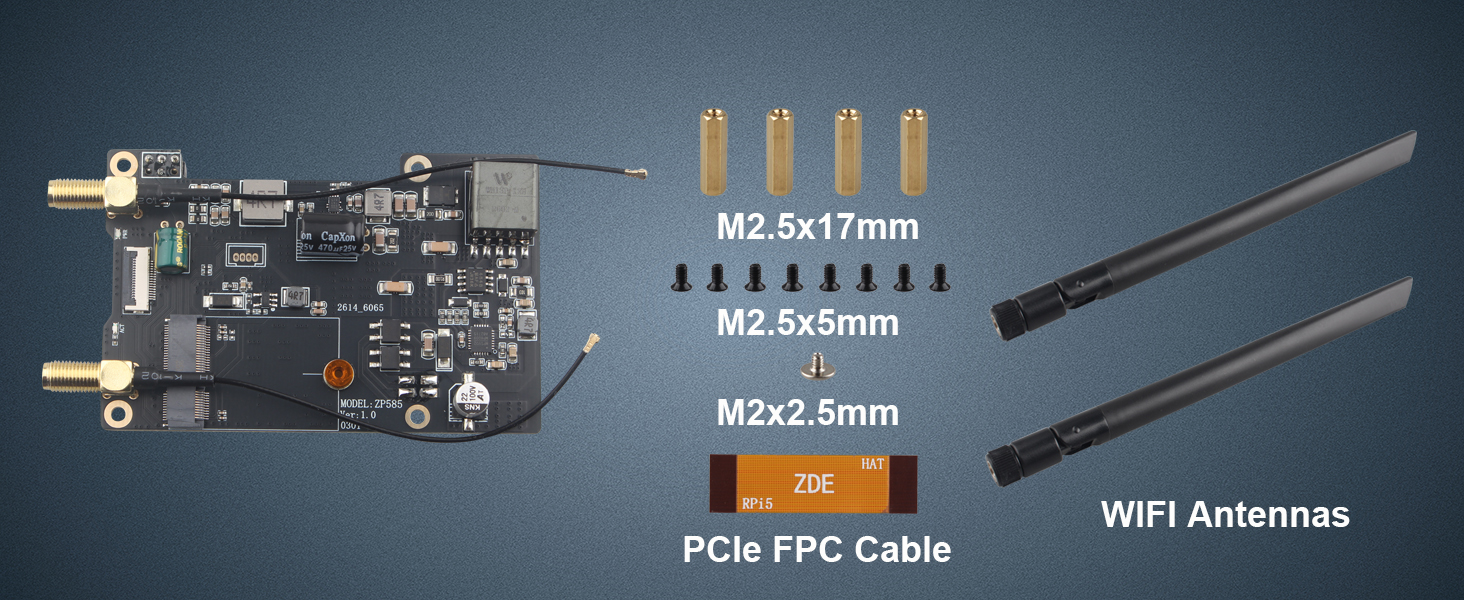

1 Matching Case 2 Packing List

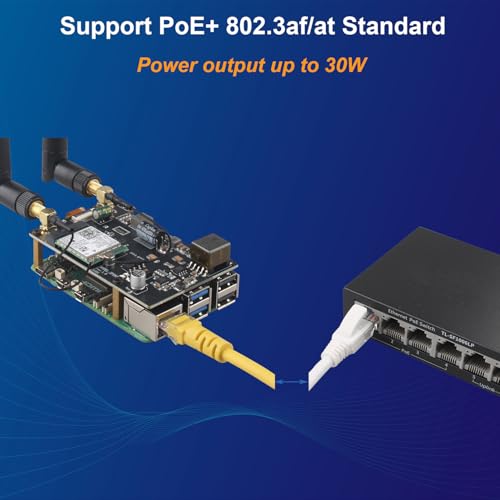

• What kind of PoE standard does the HAT support?

  It supports PoE+ 802.3af/at Standard, power output up to 30W.

• Which case does the HAT support?

  It supports our aluminum case ZC501 (ASIN: B0DSZYLMSS).

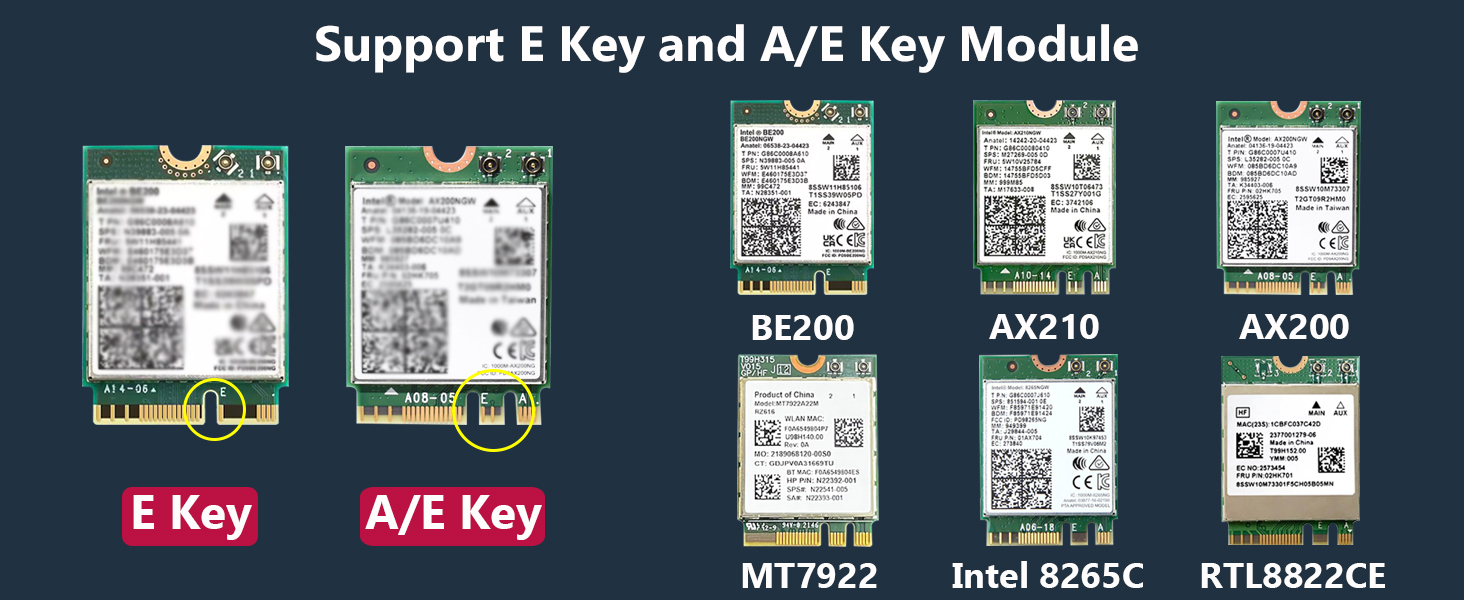

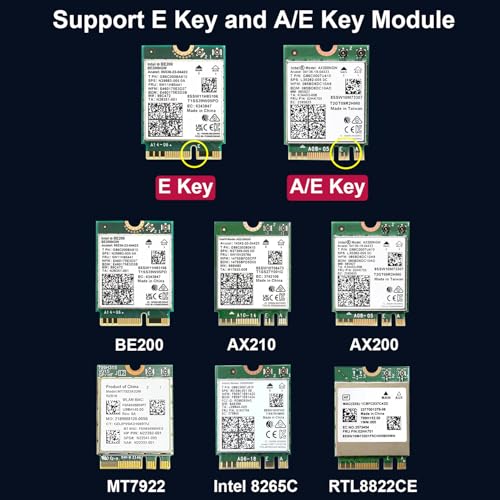

• What kind of module interface does it support?

  It supports E Key and A/E Key module.

• Which network cards does it support?

  It supports BE200, AX210, AX200, MT7922, intel 8265C and RTL8822CE.

• How do operating systems support WiFi?

  At present, Ubuntu and Raspberry Pi OS support wireless network cards of WIFI 7 WIFI 6(E) WIFI 5. To use the WiFi 7/6/6E/5 wireless network cards, Ubuntu doesn't need to install driver, but the Raspberry Pi OS needs to install a driver.
