Osee GoStream Deck HDMI Pro Live Streaming Multi Camera Video Mixer Switcher with NDI Updatable
REGULAR PRICE: £295.00
About this item

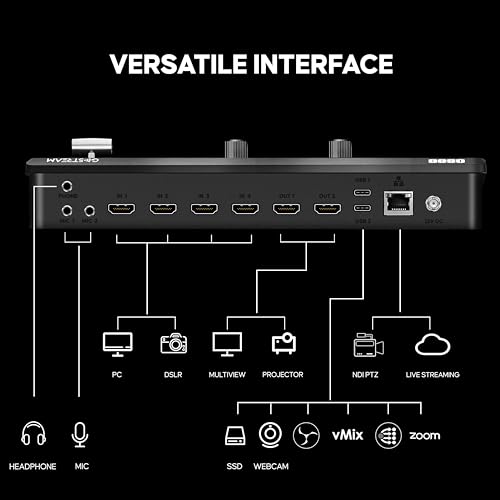

【Rich Connection Ports】 The Osee GoStream Deck video switcher comes with 4 HDMI inputs and 2 HDMI outputs, allowing you to connect four different media sources and two displays for MultiView and monitoring. It also includes 2 Type-C ports (input/output) for webcam input/output, SSD connection, and PC connectivity, 1 Ethernet port for live streaming and NDI HX input, 2 audio inputs and 1 headphone output for monitoring audio quality or recording, and 1 SD card slot for recording or playing files directly.
【Audio Control, Recording and Playback 】 The Osee GoStream Deck video switcher features various audio control buttons and adjustable knobs. It comes with headphone and microphone input for your live-streaming audio system. Additionally, it provides professional audio effects, including EQ, Limiter, Fader, etc. The GoStream Deck can record your PGM to an SD card or USB SSD while simultaneously playing back MP4 files for intros, breaks, etc.
【3 Streaming & Landscape / Portrait streaming】 This live streaming video switcher can simultaneously stream to 3 platforms like YouTube, Facebook, Zoom, or any RTMP server via the Ethernet port. Alternatively, you can use the USB output to stream through PC software like OBS or vMix. In addition, it supports both landscape and portrait modes to suit your various needs.

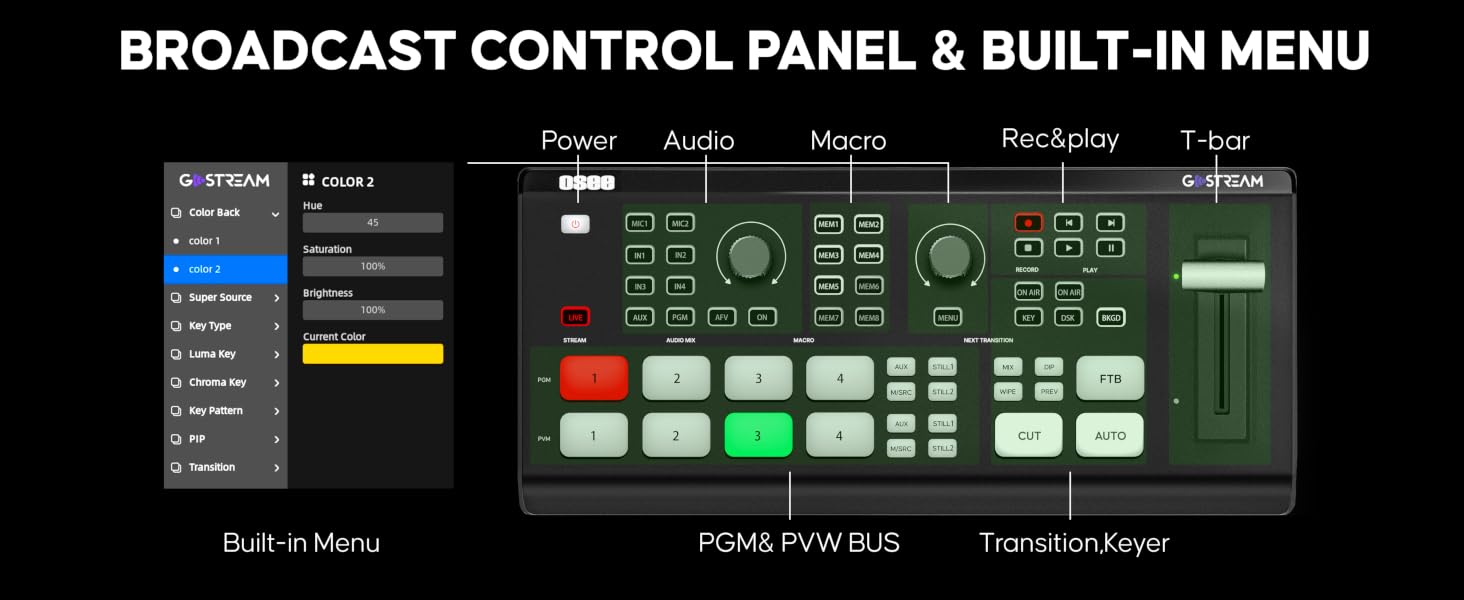

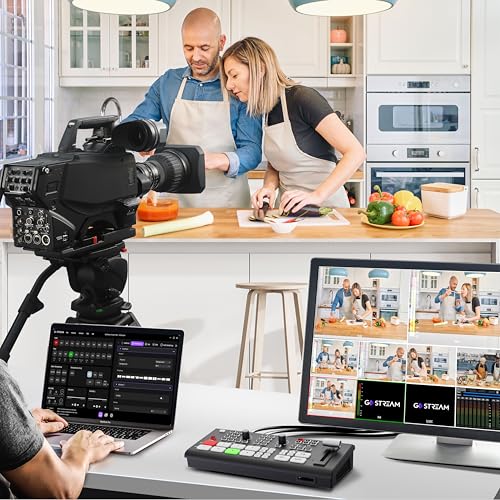

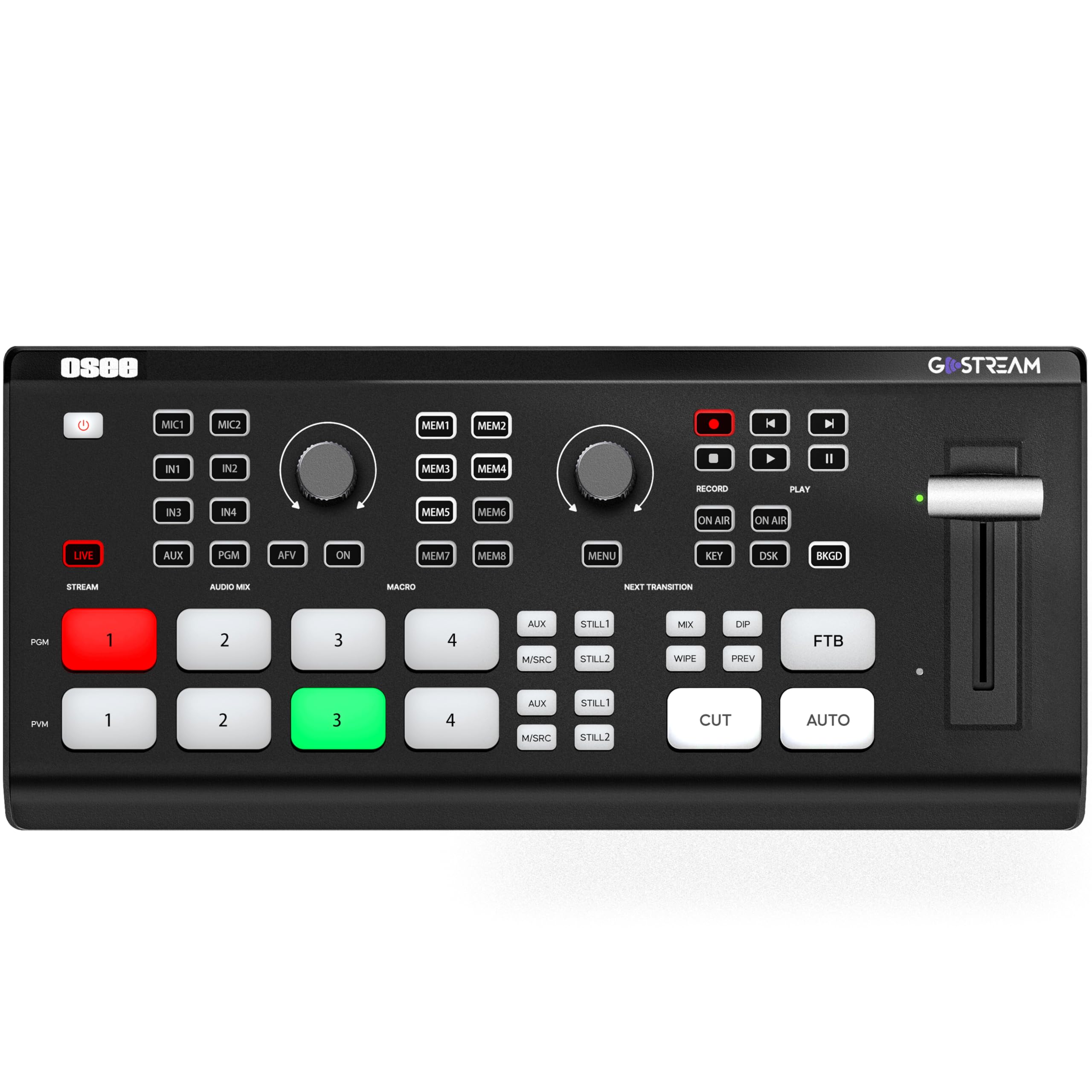

【Efficient Control】 The GoStream Deck features a hard control panel with PVW/PGM buses, T-Bar, and Macros – perfect for broadcast-quality streaming in education, conferences, worship, live events, and weddings. With its built-in menu system, you can control your live production without a PC. Additionally, we provide free PC control software and a companion control module for expanded functionality.
【Convenient Graphics Overlay】 This video mixer supports MultiSource functionality with dual video windows, background options, and graphics overlay – ideal for church broadcasts, podcasts, online meetings, panel discussions, and TV-quality live productions. Downstream keyer for logo and lower-third overlays. Upstream keyer supporting green screen, chroma key, PIP (Picture-in-Picture), and pattern effects.
【Excellent Experience】Auto-switching takes care of shooting angle switching without manual control, keeps smooth talking in a podcast. Osee video mixer professional multilingual customer service team to solve various after-sales problems, please feel free to contact us if you have any questions.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

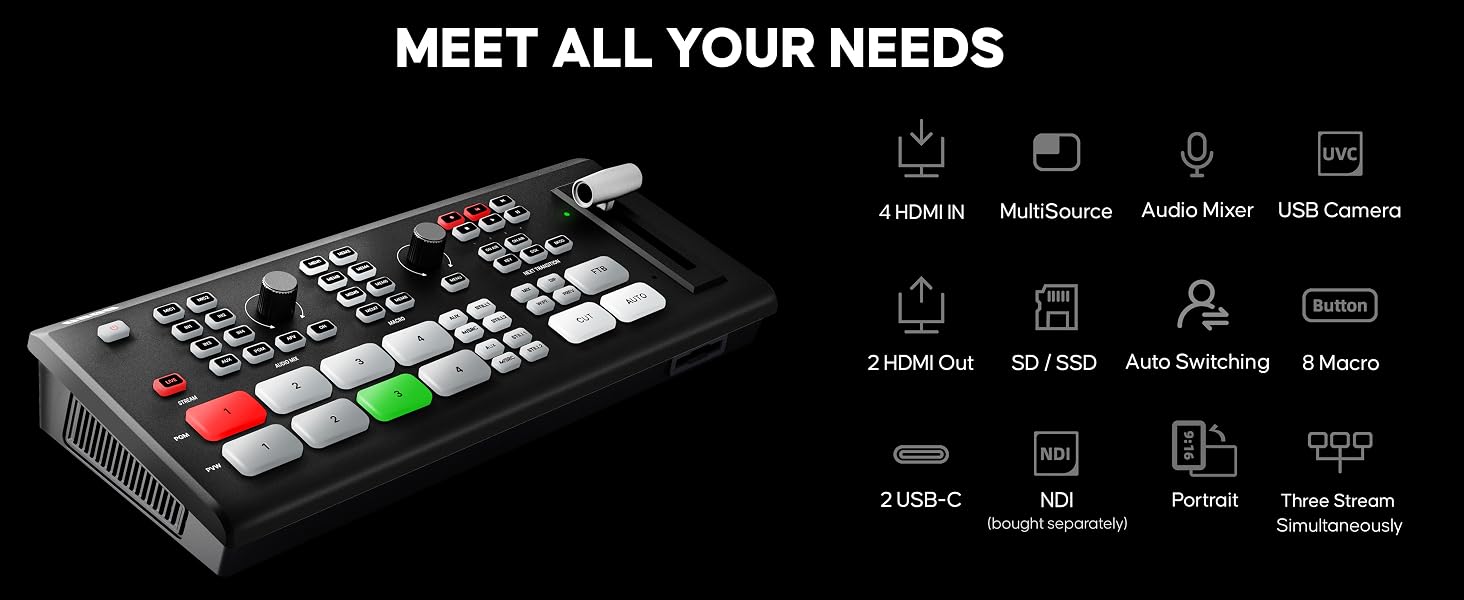

All in One Multi-Camera Video Switcher
5 Video Inputs
IN 1~4: HDMI type A, 12bit YCC 4:2:2 or 8bit RGB 4:4:4; AUX channel: Configurable between webcam input, MP4 playback, NDI HX camera(PTZ, wireless phone, screen capture)
3 Video Outputs
OUT 1: Program Output by default; OUT 2: Multiview Monitoring Output by default; USB 1: Type-C webcam out for OBS, Zoom, Vmix etc.
SD Card & SSD
For video playback, recording, still image upload, stream key import, profile import and export, firmware upgrade (check the requirement of SD card for high data rate up to 80Mb/s recording)
2 Audio Input
MIC 1~2: 3.5mm Stereo Mini Jack, support MIC, MIC+power and Line
1 Audio Output
PHONE: 3.5mm Stereo Mini Jack, audio monitoring with adjustable level
Direct Streaming
Ethernet: Supports 10/100/1000 BaseT and 3 simultaneous destinations for live streaming, using Real Time Messaging Protocol (RTMP) over ethernet.
Video Formats
Video Input Formats: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30/50/59.94/60; Video Output/Streaming Formats: 1080p24/25/30/50/60
Control Ways and Tally System

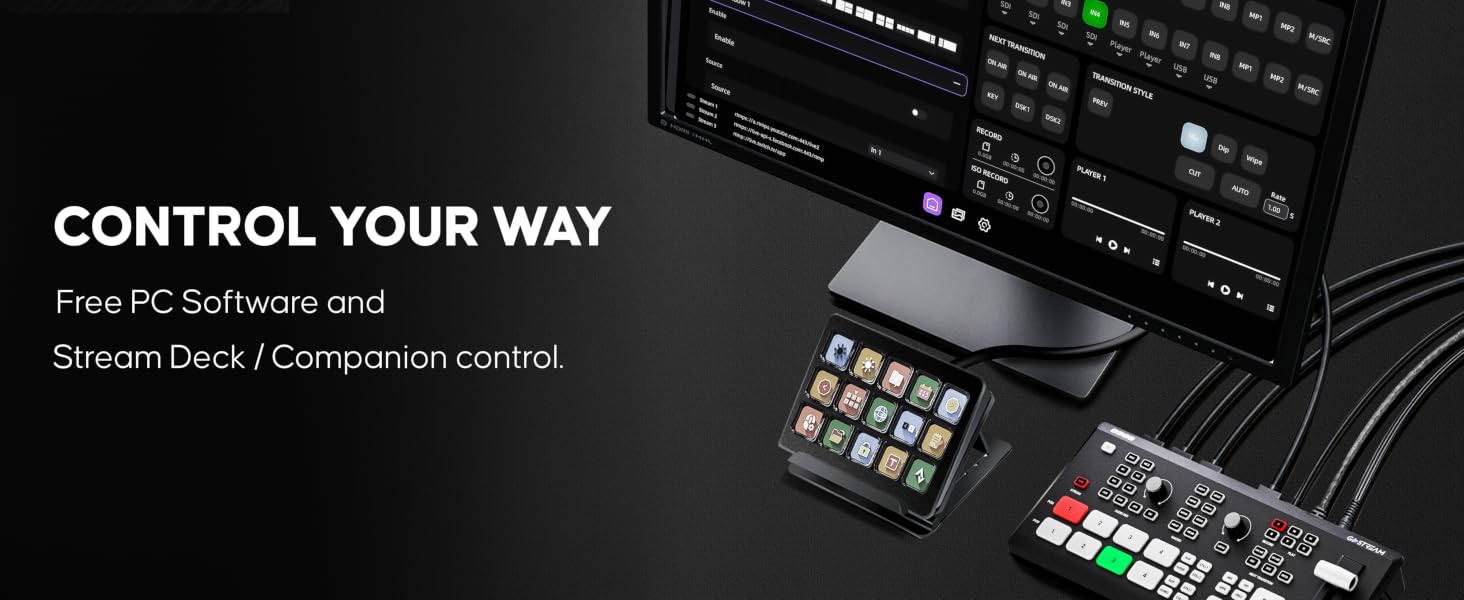

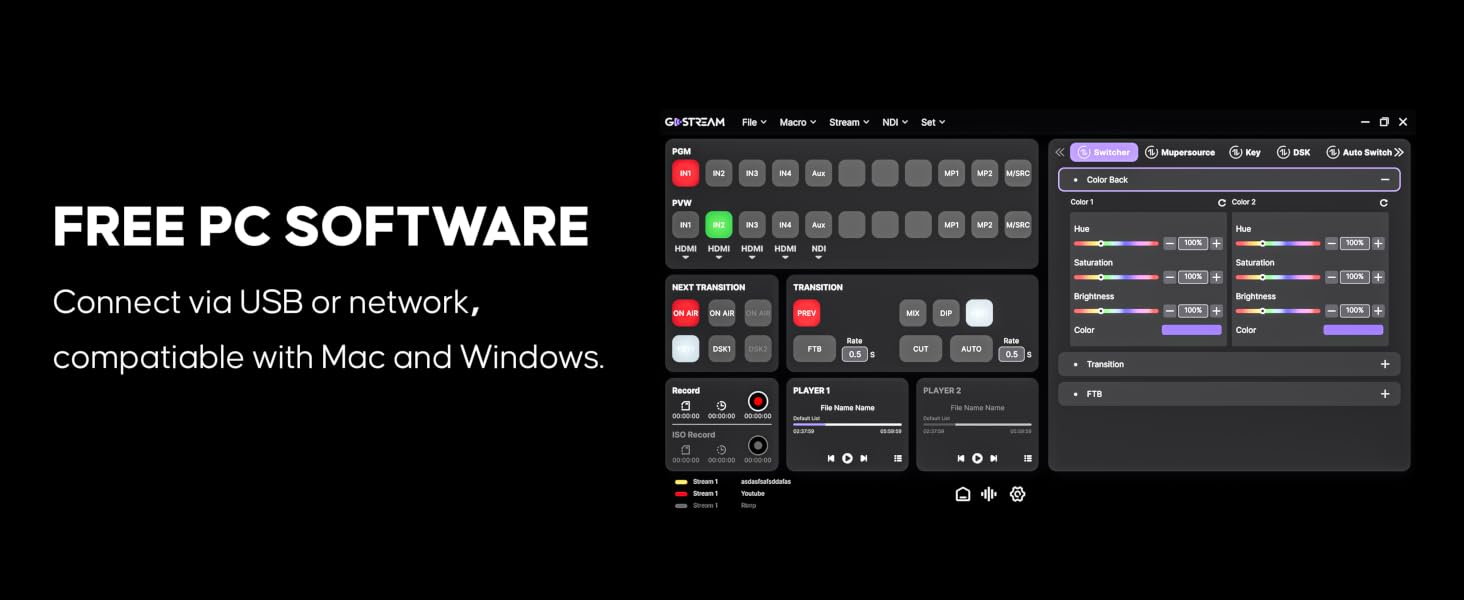

Broadcast control panel, Built-In menu, Free PC software for both MAC & Win, Companion( Stream Deck) module. Open Tally API for your own Tally system based on the network.
Video Effects
Upstream Key: 1; Downstream Key: 1; Chroma Key: 1, Luma Key: 1, Transition: 18 user selectable patterns with versatile modification; Layer of the ME composition engine: 6; Color Generator: 2 on bus and 3 for dedicated effects; Pattern Generator: 2; PIP: 1 Video Source Overlay on video or still Background Source; Super Source: 2 Video Sources Overlay on video or still Background Source; Still Image: 2 still generator with key and fill, 32 still storage with key and fill, support PNG format
Vioce based camera auto switching (Close-up/Wide Angle).

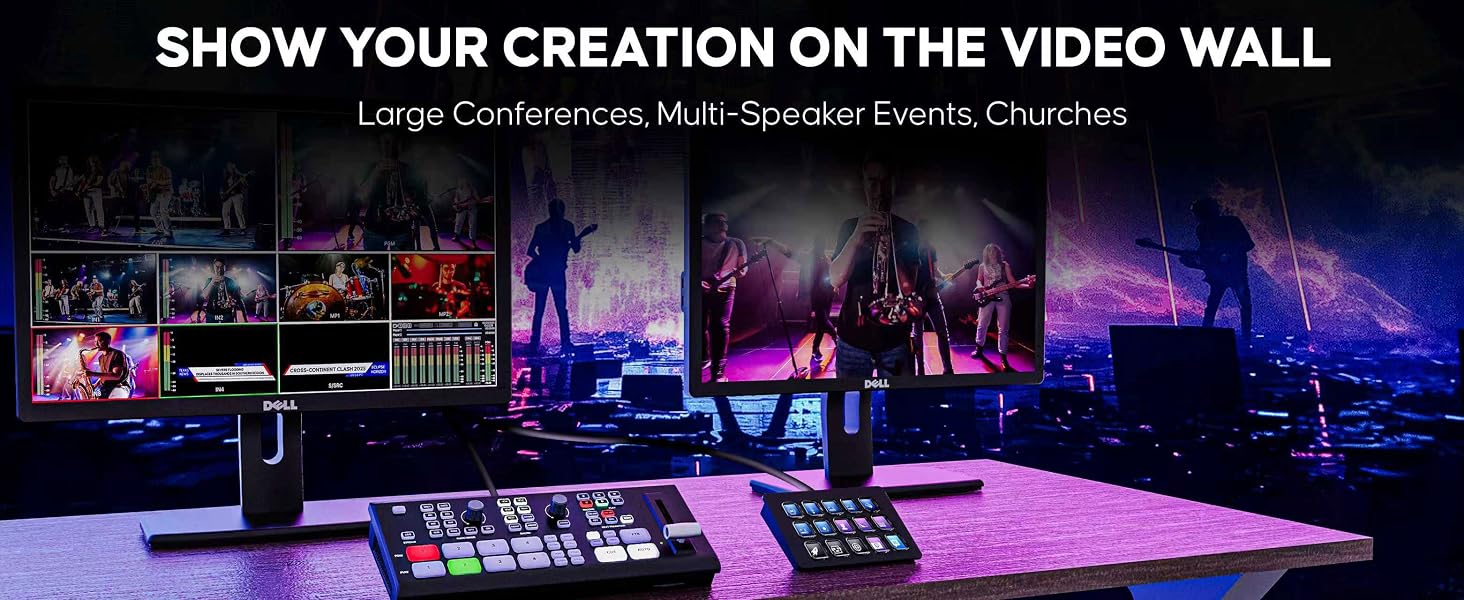

Multiview Monitoring
Left Right Configurable Program&Preview/HDMI IN 1~4/UVC/Still 1/Still 2/Source Label (UMD)/Tally/Marker/Audio Meter/Fade Level/Audio On and AFV Status/Recording/Streaming/Control Menu
Recording
High quality H.264 recording up to 70Mb/s, can be set to a different data rate while streaming. Each recording session limited to 5 hours.
Playback
Playback high quality video up to 70mb/s, transition triggers automatic playback, finishing playback triggers the next transition, 3 playback modes including Repeat/Sequential/Play Once
Macro
8 Macros on the panel and up to 100 in the PC software, the Macro files can be import from or export to SD card for sharing with others
Environmental
Input Voltage: External 12V DC; Consumption: 12W; Product Dimensions: 25.24*11.08*4.93 cm; Net Weight: 0.51 KG; Package (Box): 29.5*17.1*7.5 cm; Gross Weight: 0.9 KG; Working Temperature: 5°C to 40°C (41°F~104°F)
