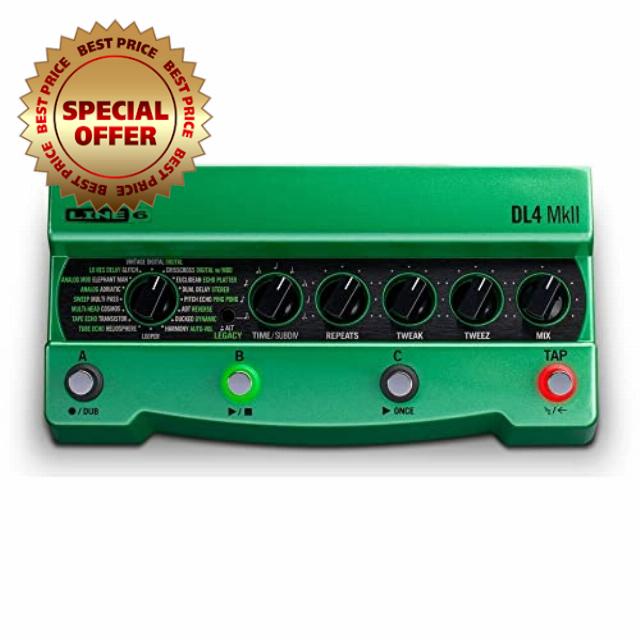

Line 6 DL4 MKII Delay Modeler, Gree

• Identical knob and footswitch layout as the original DL4
• 30 delays total: 15 new MkII delays drawn from the HX family of amp and effects processors, 14 original DL4 delays, and Echo Platter, taken from the rackmount Echo Pro
• 2 Looper types—mono/stereo and pre/post signal path options
• Up to 240 seconds of looping time, or several hours with optional microSD card
• XLR dynamic microphone input for vocal processing and looping
• MIDI In, Out/Thru DIN connectors—receives PC and CC messages
• 128 Presets via MIDI, with footswitch control of up to six

• Switchable true, buffered, or DSP bypass
• Input for optional expression pedal or two additional footswitches

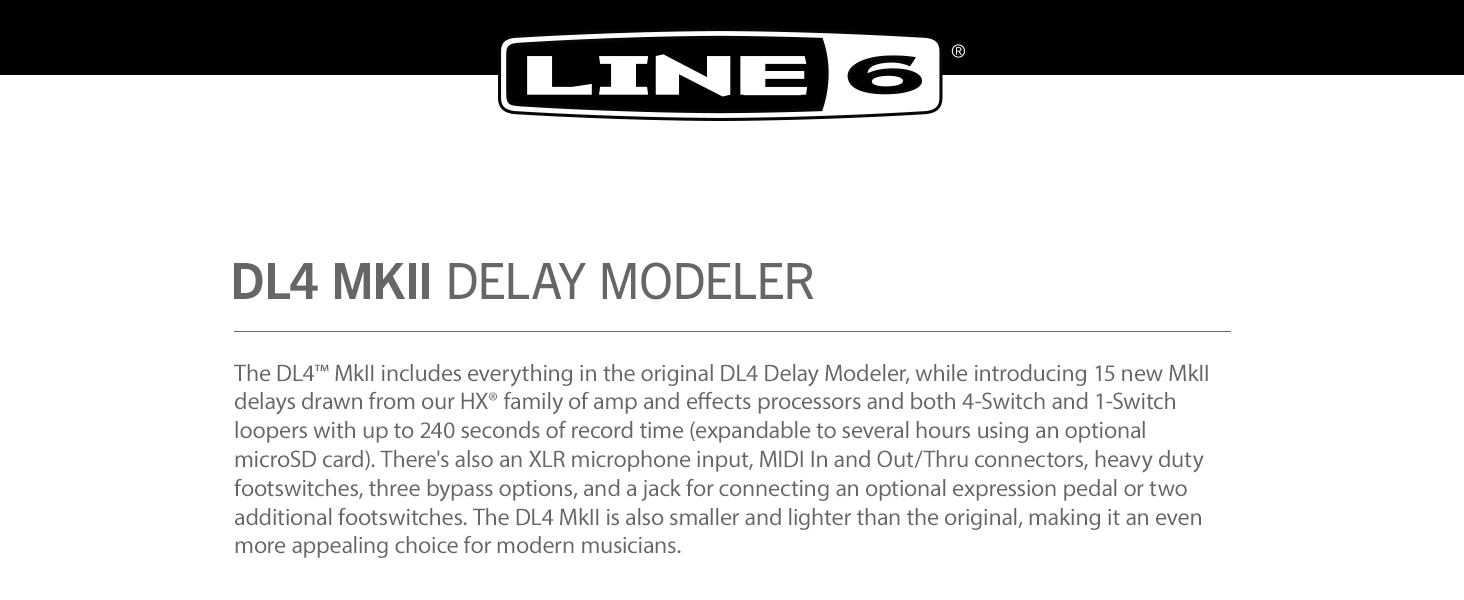

The DL4 Delay Modeler has remained one of the most widely used delay pedals in the world for more than two decades. The DL4 MkII includes all the sounds and features of the original, while introducing new sounds and features. The 15 new MkII delays were drawn from our HX family of amp and effects processors and the 4-Switch and 1-Switch looper types offer up to 240 seconds of record time (expandable to several hours using an optional microSD card). There’s an XLR microphone input, MIDI In and Out/Thru connectors, heavy duty footswitches, three bypass options, and a jack for connecting an optional expression pedal or two footswitches. The DL4 MkII is also smaller and lighter than the original, making it an even more appealing choice for modern musicians.

---

From the manufacturer

1.
2.
3.
4.
5.

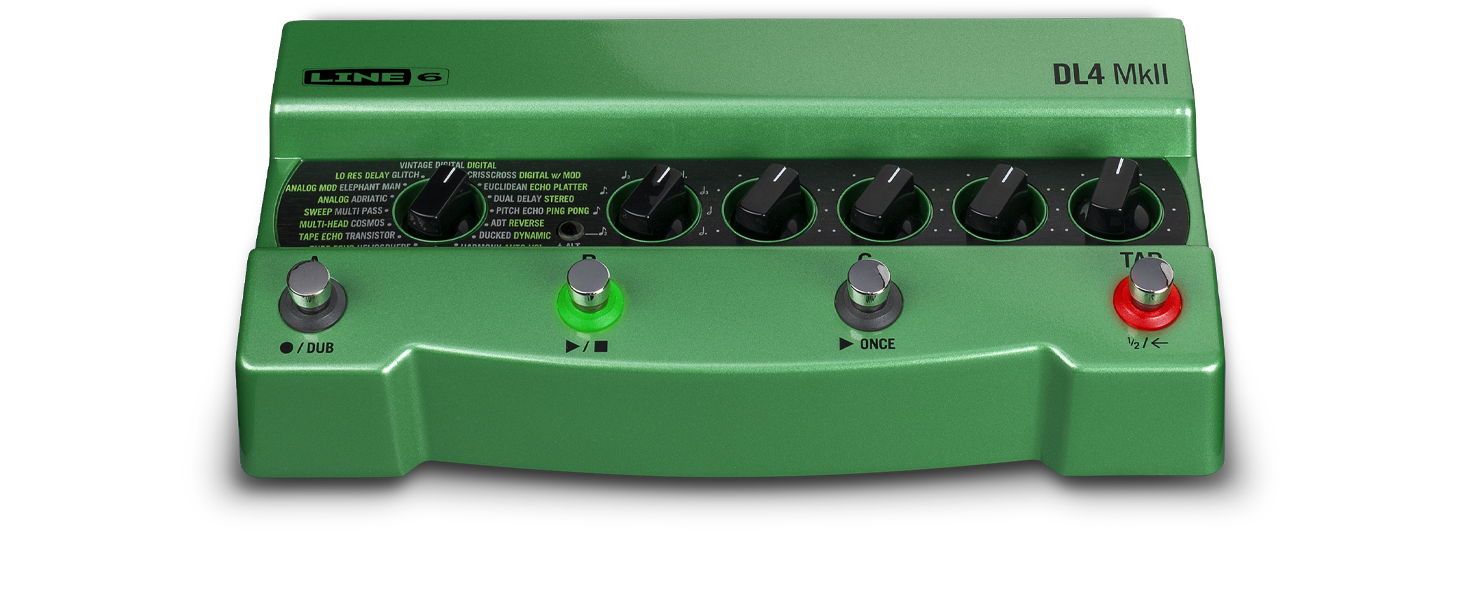

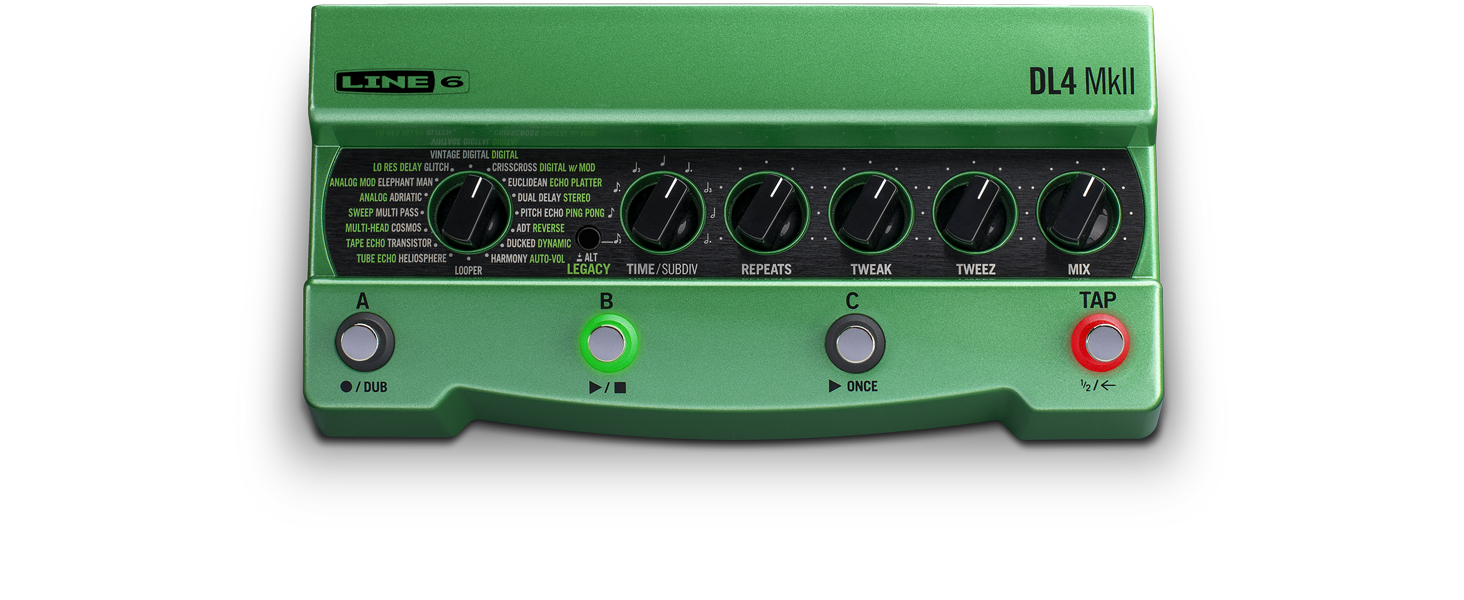

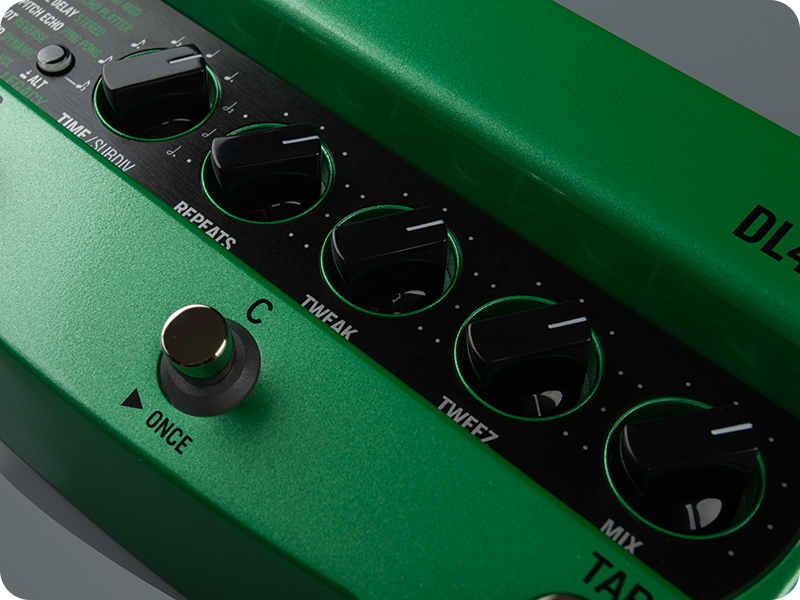

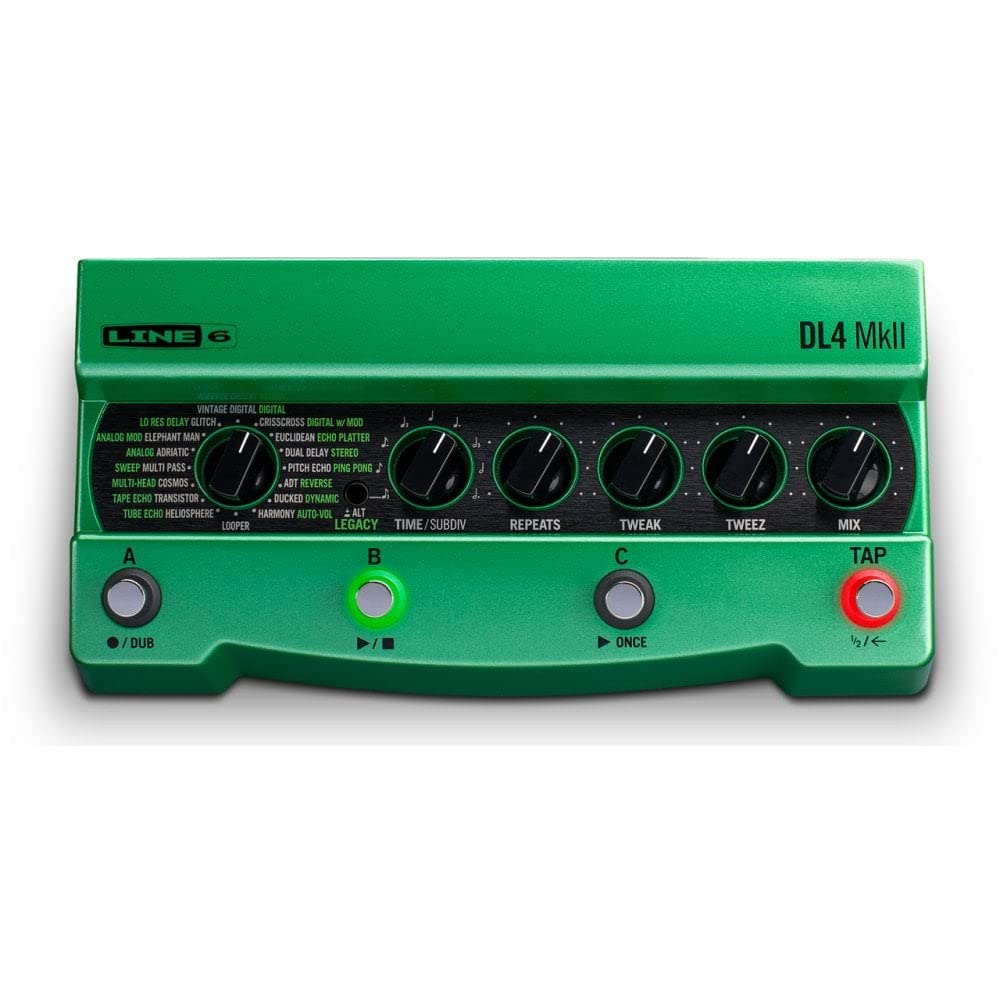

1. CONTROL LAYOUT




   DL4 MkII utilizes the same layout of knobs and footswitches as the original. Pressing the Legacy button converts DL4 MkII into a DL4.

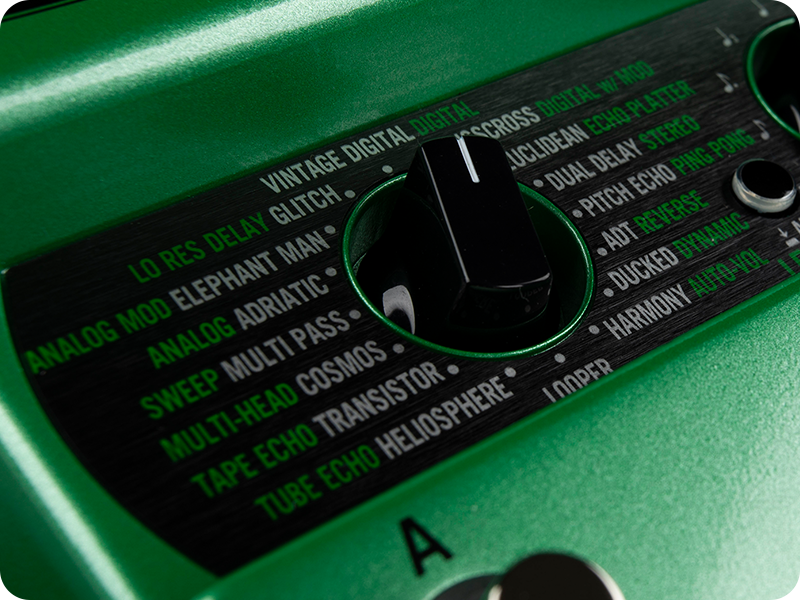

2. DELAY




   There are 30 delays total: 15 new MkII delays drawn from the HX family of amp and effects processors, 14 original DL4 delays, and Echo Platter, taken from the rackmount Echo Pro.



3. LOOPING




   The 4-Switch Classic Looper and the 1-Switch Looper operate in either mono or stereo and may be positioned before or after other effects.



4. LOOPING TIME/MICRO SD




   Onboard memory provides up to 240 seconds of recording time, expandable to several hours using an optional microSD card, which also enables a loop to be stored in memory.

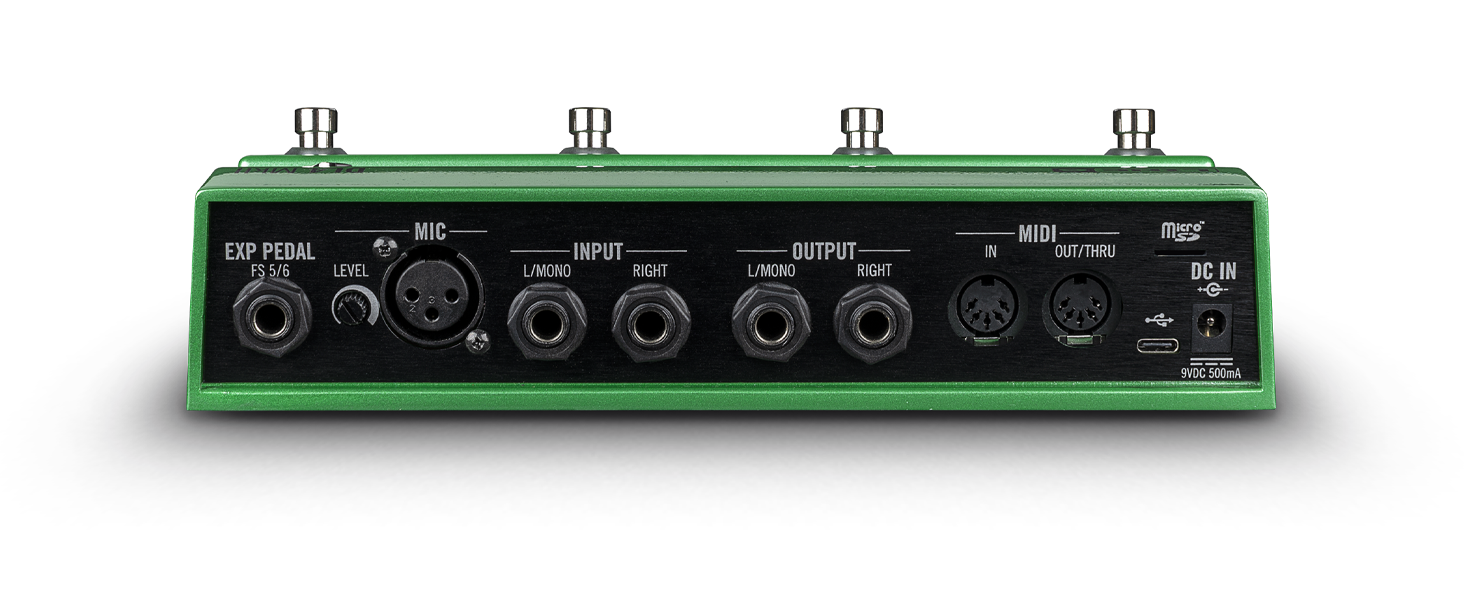

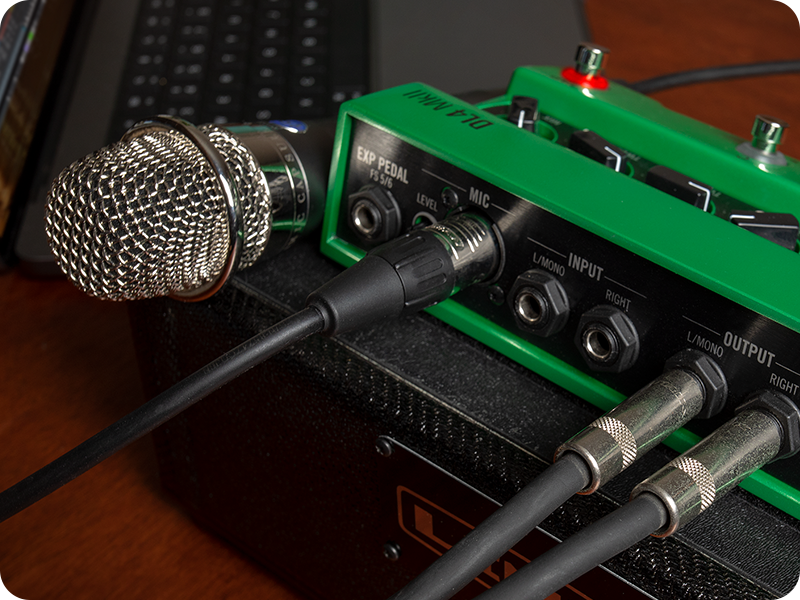

5. XLR MICROPHONE INPUT




   Connect a dynamic microphone to the XLR input for vocal (or acoustic instrument) processing and looping, and adjust the gain using the Trim control.

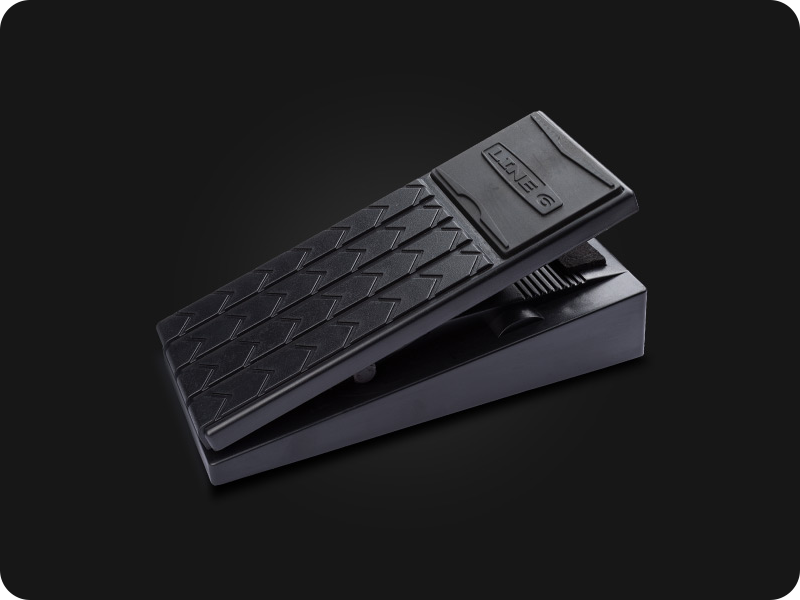

6. EXTERNAL CONTROL




   Connect an optional expression pedal (automatically assigned to relevant effects parameters), two assignable external footswitches, or one of each.



DC POWER

DL4 MkII may be powered using the included 9V DC center negative 500mA power supply or most third-party power supplies.
