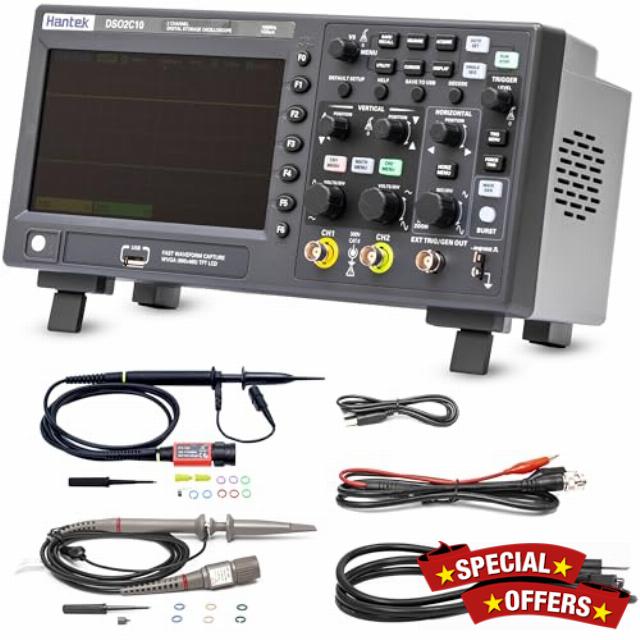

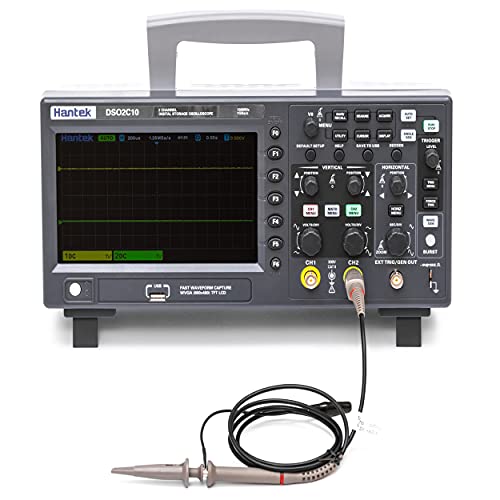

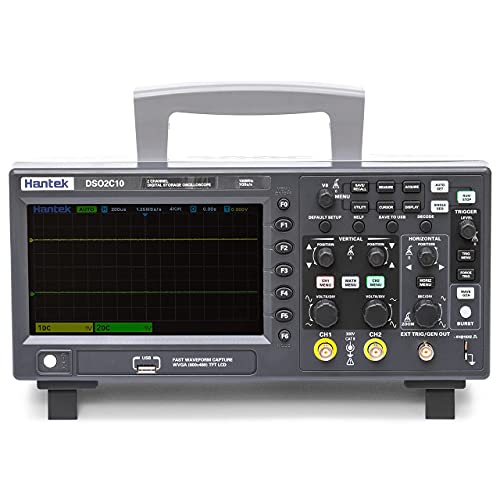

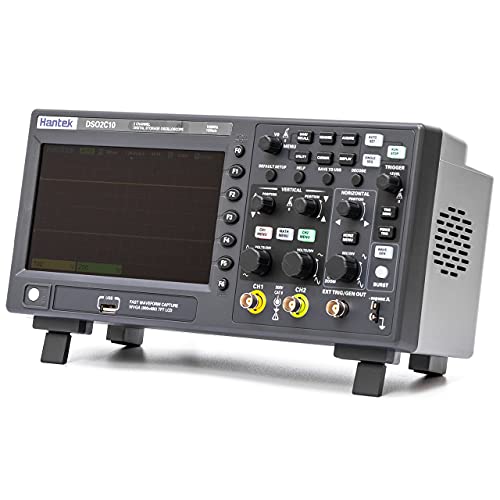

Hantek DSO2C10 Digital Storage Oscilloscope 100MHz Bandwidth

Hantek DSO2C10 Digital Storage Oscilloscope 100MHz Bandwidth 2CH Dual Channel 1GSa/s 8M Memory Depth with High Voltage Probre

• Cost-effective economy oscilloscope.
• Support arbitrary waveform output, 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes.
• Useful commissioning instrument for various fields such as communication, aerospace, national defense, embedded systems, computers, research and education.
• Package weight of the Product: 5.95 Pounds

›

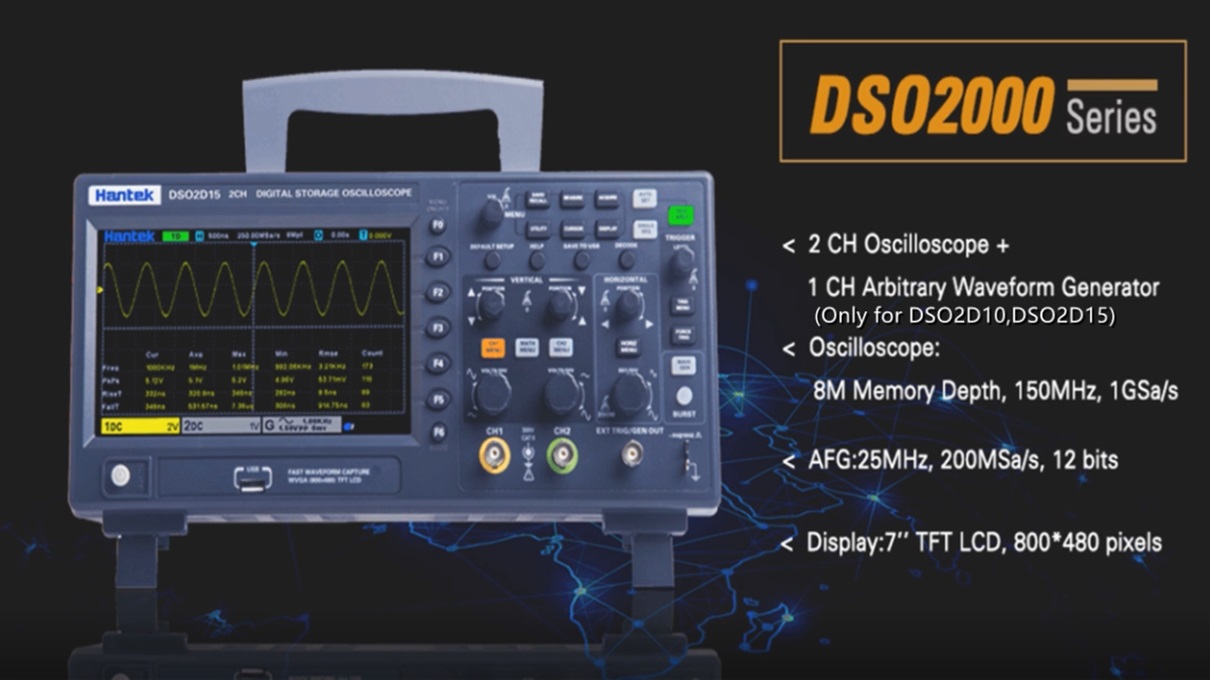

Hantek DSO2C10 Digital Storage Oscilloscope – A updated version of DSO5102P

Product introduction

Hantek oscilloscopes are extensive use in many scopes and well-know for the DSO5102P, and there is a mature technology in this industry. Hantek DSO2C10 also continue to use the same motherboard and chip-set of the DSO5000 series and it is a upgrade version.

DSO2C10 is a cost-effective oscilloscope, with 8M memory depth, 100MHz bandwidth, 1GSa/s, 3-digit digital voltage meter, 6-digit hardware frequency indicator functions and abundant SCPI remote command control. This lab oscilloscope supports BUS decode and protocol analysis includes RS232/UART, I2C, SPI, CAN, LIN. This DSO2C10 digital oscilloscope can connect the laptop, that allows direct and efficient observation of data. The function of this oscilloscope is suitable for use in personal hobbies, maintenance devices and small-scale laboratory. Hantek DSO2C10 oscilloscope is a professional device in many industries, such as communications, aerospace, embedded systems, computer, R&D, education and so on.

Supports 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of auto measurements with statistics;

PC software only supports windows7/8/10 32-bit and 64-bit, do not support OS

Model: DSO2C10

• 100 MHZ analog channel bandwidth
• 2 channels which are respectively controlled by independent knobs
• Sampling rate up to 1 GSa/s
• 8M memory depth
• Vertical resolution: 8bit
• No AWG;

Key Features

• Vertical range 2mV/div ~ 10V/div
• Trigger: Edge,Pulse, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC
• BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
• Save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures

• A 3-digit digital voltage meter and a 6-digit hardware frequency indicator
• 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.
• 2 sets of digital voltmeters
• Support threshold testing, free measurements within the screen
• Abundant SCPI remote command control
• USB Host/Device.

• 32 kinds of auto measurements with statistics

• Can save 10 sets of reference waveforms
• CSV waveforms and settings
• The USB one-click screenshot function.

• 2 sets of DVM
• 3-digit digital voltage meter and 6-digit hardware frequency indicator functions

• Serial bus trigger and decode
• with the protocol monitoring function

• 8M memory depth

• PASS/FAIL

• Mathematical operation and FFT

• X-Y format and display in dual windows

Applications

• Electronic circuit design and debugging
• Electrical circuit function test
• Inspect instantaneous signal
• Industrial control and measuring
• Products quality control
• Education and training

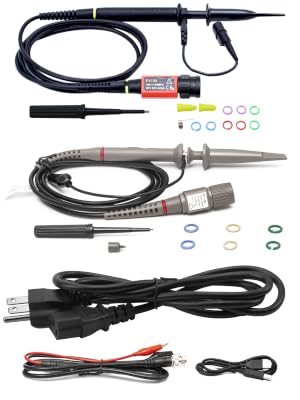

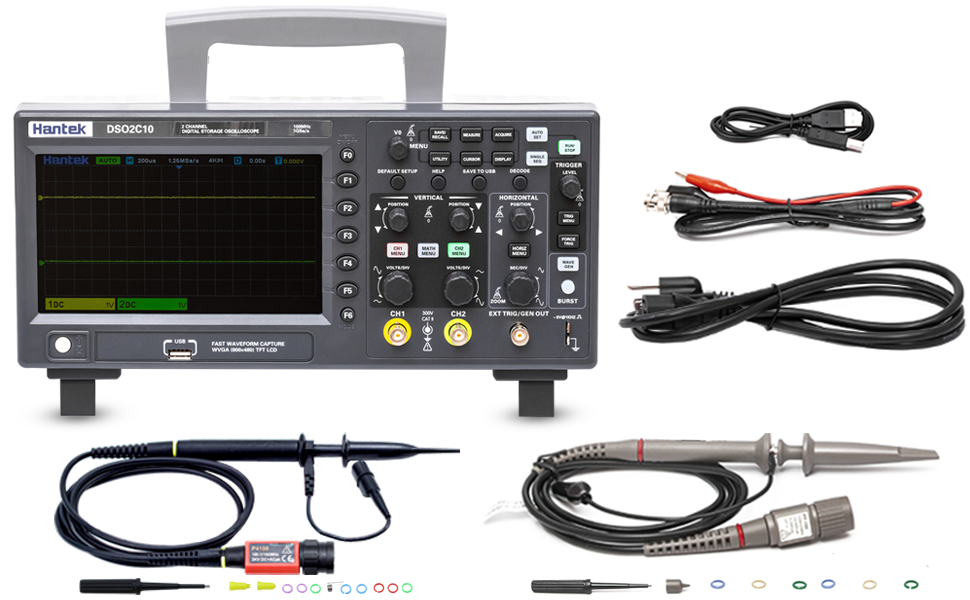

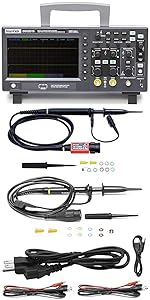

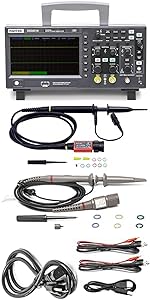

Accessories

what's include the package

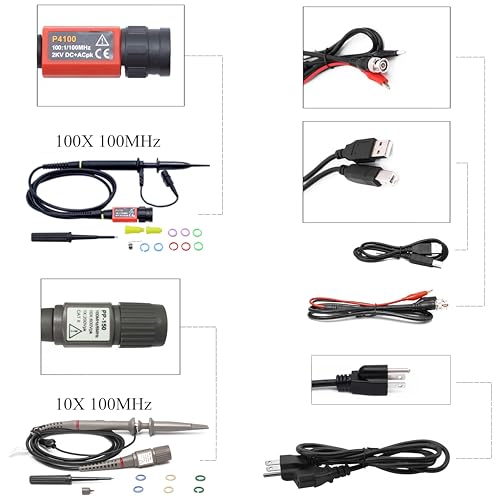

• A Passive Probe*1 – PP150 (100MHz/6MHz)
• A High Voltage Probe*1 – P4100 (100MHz/100X/2000V)
• A Test Lead with two clips*1
• A Power Line*1
• A USB Line*1

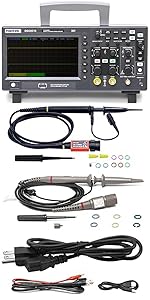

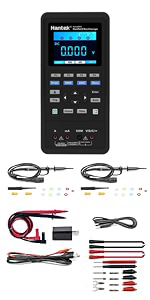

Customer ReviewsPriceBandwidthChannelSample RateArbitrary WaveformAWGMaximum record length

	Add to Cart		Add to Cart	Add to Cart
4.4 out of 5 stars154	3.9 out of 5 stars32	4.3 out of 5 stars72	4.6 out of 5 stars188	4.4 out of 5 stars268	4.3 out of 5 stars770
$189.89$189.89	— no data	$229.99$229.99	$233.99$233.99	— no data	— no data
100 MHZ	150MHZ	100 MHZ	150MHZ	70MHZ	100MHz
2CH	2CH	2CH+1CH	2CH+1CH	2CH+1CH	8CH
1GSa/s (single channel),500MSa/s (two channels)	1GSa/s (single channel),500MSa/s (two channels)	1GSa/s (single channel),500MSa/s (two channels)	1GSa/s (single channel),500MSa/s (two channels)	250MSa/s(Single-channel), 125MSa/s(Dual-channel)	2.4MSa/s
no data	no data	200MSa/s	200MSa/s	250MSa/s	no data
no data	no data	✓	✓	✓	no data
Single channel maximum 8M,Two channels maximum 4M	Single channel maximum 8M,Two channels maximum 4M	Single channel maximum 8M,Two channels maximum 4M	Single channel maximum 8M,Two channels maximum 4M	Max. 6K for single-channel; 3K samples per dual-channel	4K
