Dayton Audio MA1260 Multi-Zone 12 Channel Amplifier (MA1260)

• 12 channels (6 stereo zones) in one convenient enclosure
• Independent and bus inputs enable unparalleled flexibility
• Bridgeable channel outputs provide additional power when needed
• Independent channel gain controls allow the output of each speaker to be perfectly matched
• Multi-stage protection circuitry for reliability and easy troubleshooting of audio system
• Temperature controlled cooling fans

Dayton Audio MA1260 Multi-Zone 12 Channel Amplifier 60WPC

Dayton Audio's MA1260 12-channel Class D amplifier packs versatility and efficiency into a compact package that is suited ideally for zoned sound distribution.

Key Features

• 12 channels (6 stereo zones) in one convenient enclosure
• Efficient Class D design delivers superior audiophile sound quality and performance
• Independent and bus inputs enable unparalleled flexibility
• Bridgeable channel outputs provide additional power when needed
• Independent channel gain controls allow the output of each speaker to be perfectly matched
• Converts easily from rack-mount to tabletop configurations
• Installer-friendly setup and connections

Power Management

Includes Automatic, 12V Trigger, and Manual power modes

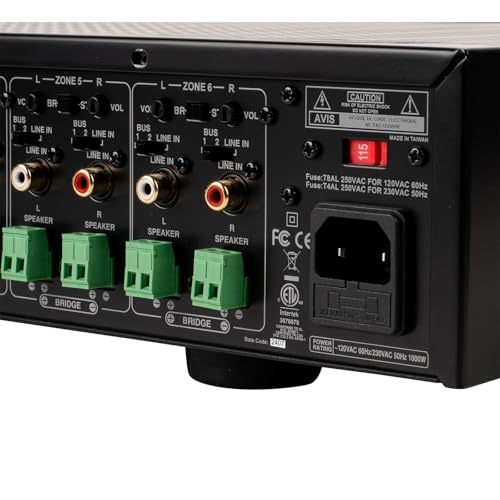

Bridgeable Outputs

Two channels can be bridged to increase the total power to that zone with a single switch

Stereo and Mono Inputs

Two Bus inputs can be routed to any channel, or use individual inputs per channel

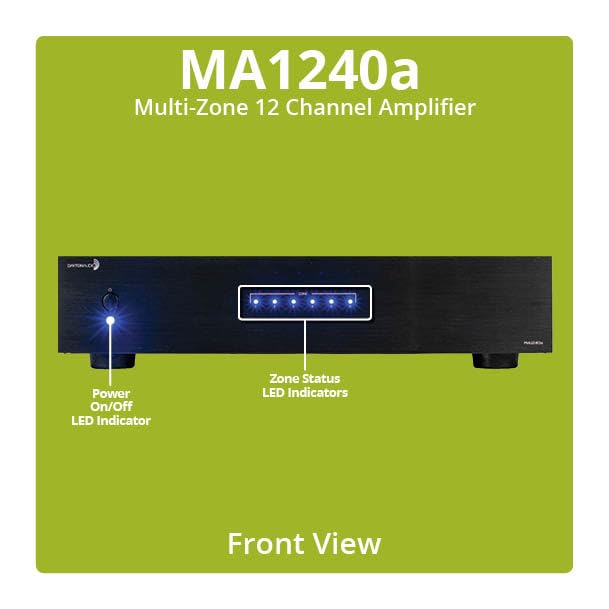

Status LEDs

Each zone has bi-color LEDs to indicate its operational status

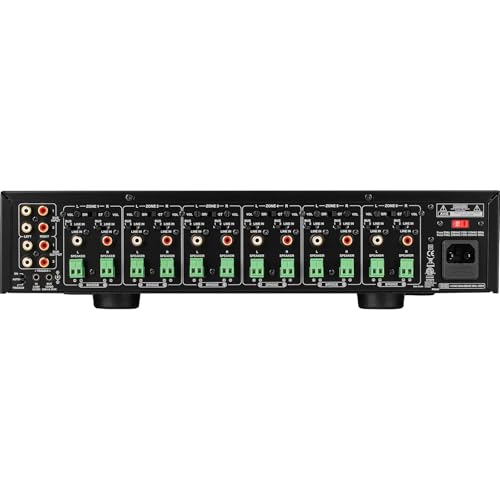

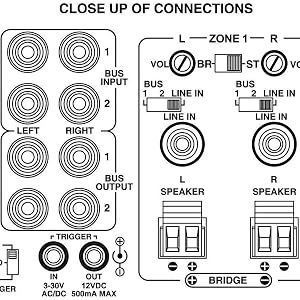

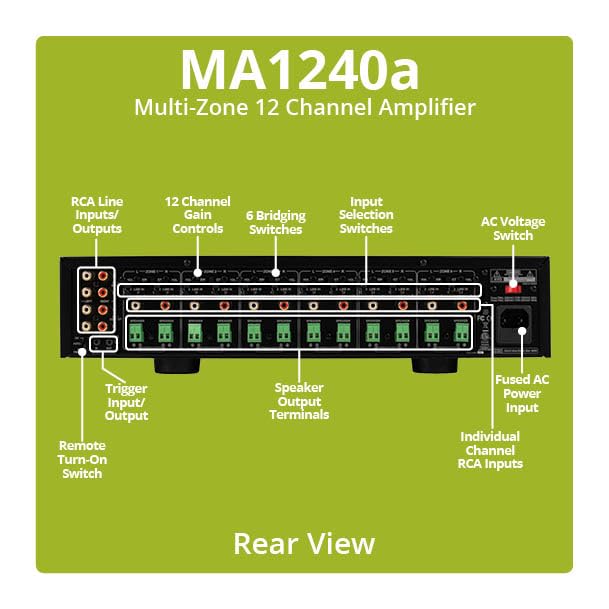

Inputs and Outputs

Two common or BUS inputs feed audio signals from standard line-level audio sources to any or all channels. Each of the twelve channels has its own dedicated input and independent level adjustment to provide further flexibility. By simply flipping a single switch, two channels can be bridged to increase the total power output for that zone. This is helpful when extra power is needed in certain areas.

Convenient Features

Manual, automatic on/off, or triggered 12V input turn-on modes facilitate easy integration into automated systems. For quick and easy troubleshooting of the system, each pair of channels or zones has a bi-color LED to indicate its operational status. Use 14-18 AWG stranded two-conductor loudspeaker wire with Phoenix style connectors.

NOTE: See setup addendum when using in-wall volume controls. You can find this document under "Manuals and Resources" on this page.

Specifications

---

Product description

Dayton Audio MA1260 Multi-Zone 12 Channel Amplifier 60WPC

Convenient Features

Manual, automatic on/off, or triggered 12V input turn-on modes facilitate easy integration into automated systems. For quick and easy troubleshooting of the system, each pair of channels or zones has a bi-color LED to indicate its operational status. Use 14-18 AWG stranded two-conductor loudspeaker wire with Phoenix style connectors.

NOTE: See setup addendum when using in-wall volume controls. You can find this document under “Manuals and Resources” on this page.

Specifications

Channels:	12
Power Handling (RMS):	45 Watts
Power Handling (MAX):	80 Watts
Frequency Response:	8Hz – 48kHz
Input Sensitivity:	450 mV
SNR, A-Weighted:	110 dB
Total Harmonic Distortion:	0.08%

Inputs:	12 individual inputs, 2 Stereo Bus Inputs.
Outputs:	2 Stereo Bus Outputs
Power Requirements:	120 – 240 VAC
Standby Consumption:	0.46 Watts
Dimensions:	16.7″ W x 14.25″ D x 4″ H
Weight:	40 lbs.
