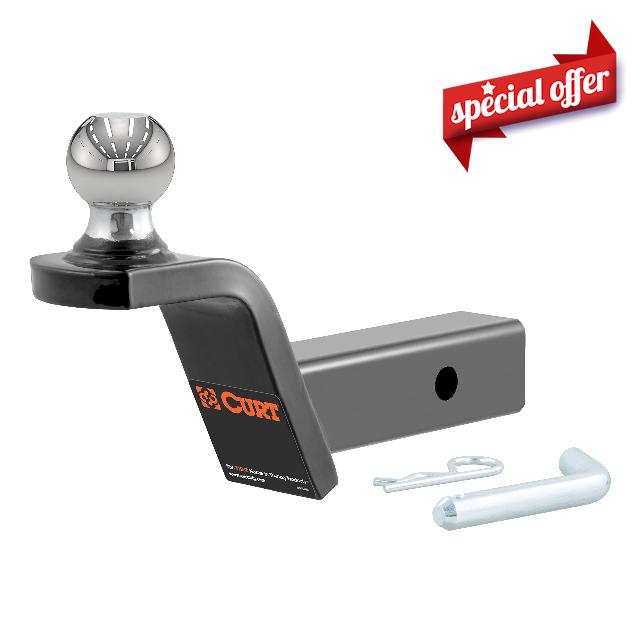

Curt 45155 2″ Fusion Ball Mount with 2″ Welded Ball

• DEPENDABLE STRENGTH — Rated to tow 7,500 lbs. gross trailer weight and 750 lbs. tongue weight, this welded one-piece Fusion ball mount is built for towing within the limits of the lowest-rated component.
• VERSATILE USE — This trailer hitch ball mount has a 2" x 2" shank to fit standard 2" receiver hitches and provides a 2" rise to help level your vehicle-trailer setup.

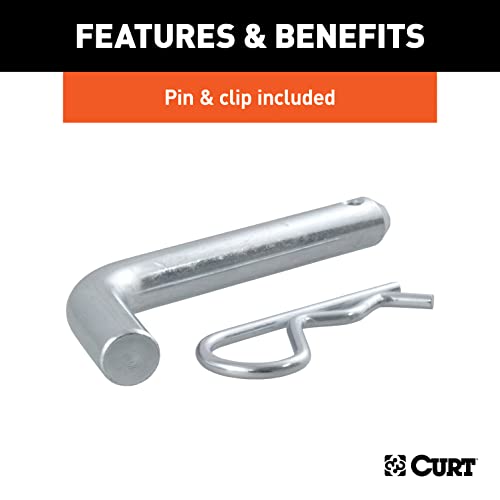

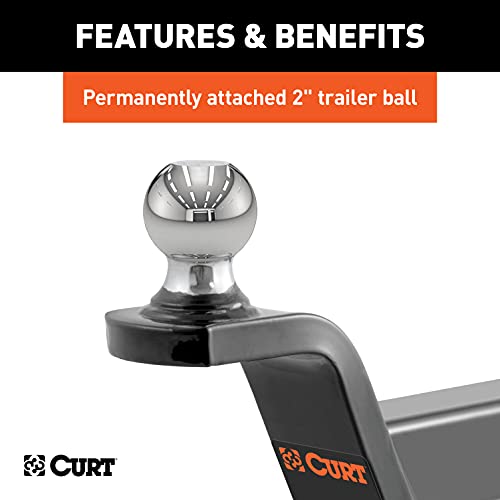

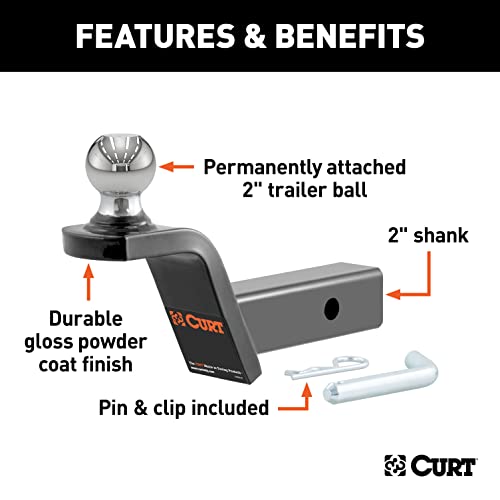

• SECURE TOWING — Ready-to-tow design includes a permanently welded 2" trailer ball for trailers with a 2" coupler, plus an included hitch pin and clip for mounting to the receiver.
• CORROSION-RESISTANT — The ball mount is protected with a durable black powder coat finish, while the welded trailer ball features a polished chrome-plated finish for long-term outdoor use.
• EASY TO INSTALL — Insert the rounded shank into a compatible 2" receiver, secure it with the included hitch pin and verify your trailer uses a 2" coupler before towing; not for 1-1/4" receivers or unmatched coupler sizes.

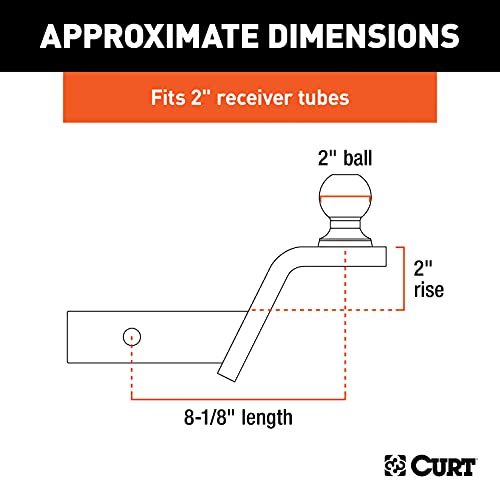

Arm yourself with confidence with a CURT Fusion ball mount. Much like our loaded ball mounts, CURT Fusion mounts come with a trailer ball pre-attached to the mounting platform to provide a ready-to-tow solution right out the package. Unlike a loaded ball mount, however, a Fusion ball mount features a trailer ball that is permanently fixed to the shank structure, making it stronger than a traditional non-welded ball mount. With their fixed tow ball, Fusion ball mounts are also very similar to our Euro Mount ball mounts. Besides increased strength, one advantage of a permanently attached trailer ball is that it can never be loosened or stolen from your vehicle. CURT Fusion ball mounts come with 2″ x 2″ shanks and include a pin and clip with each unit. This particular Fusion mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight rating of 750 lbs. It measures 8-1/8″ long, has 2″ of rise and comes with a 2″ diameter trailer ball. CURT Fusion ball mounts are great for towing most standard size trailers, including utility trailers, livestock trailers, boat trailers and campers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Each unit is robotically welded to ensure accurate, consistent cuts and clean, strong weld lines. Once welded, these ball mounts undergo a cleaning process that creates a flawless surface for the application of our highly durable gloss black powder coat finish for long-lasting resistance to corrosion and chipping.

---

From the manufacturer

How to determine drop or rise

After you know how much weight you will be towing and the size of your receiver tube, you will need to determine the drop or rise necessary for your trailer.

Drop or rise is the amount of height difference between the trailer and your tow vehicle, whether that difference is positive (rise) or negative (drop).

The diagram offers a quick explanation for how to determine your needed drop or rise. Take the distance from the ground to the top of the inside of your receiver tube opening (A), and subtract it from the distance from the ground to the bottom of the trailer coupler (B).

B minus A equals C, the drop or rise.
