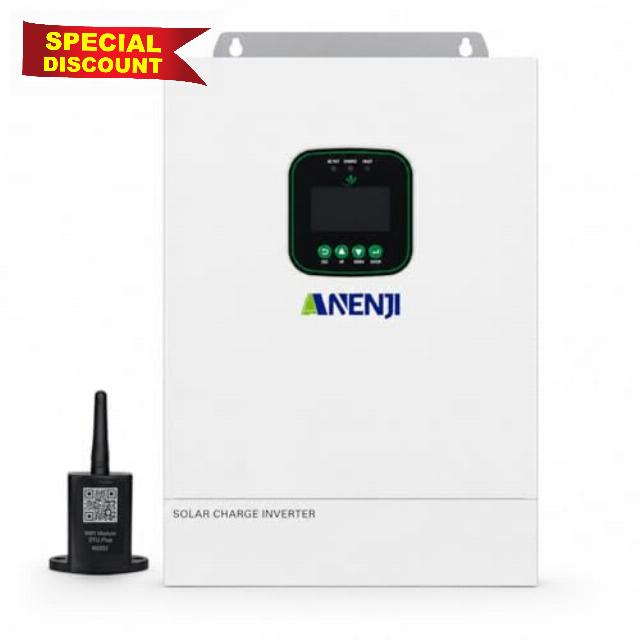

6500W Hybrid Solar Inverter 48V,Dual MPPT,300V 60A

6500W Hybrid Solar Inverter 48V

6500W Hybrid Solar Inverter 48V,Dual MPPT,300V 60A Charger,Split Phase 120V,Support Parallel Pure Sine Wave Off-Grid+On-Grid Inverter for Home Loads,Lead Acid/Lithium Battery Compatible

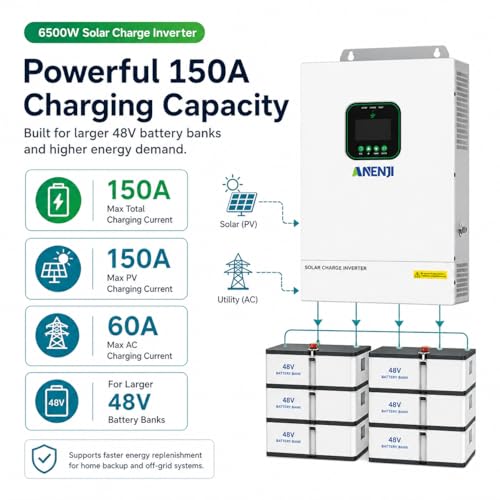

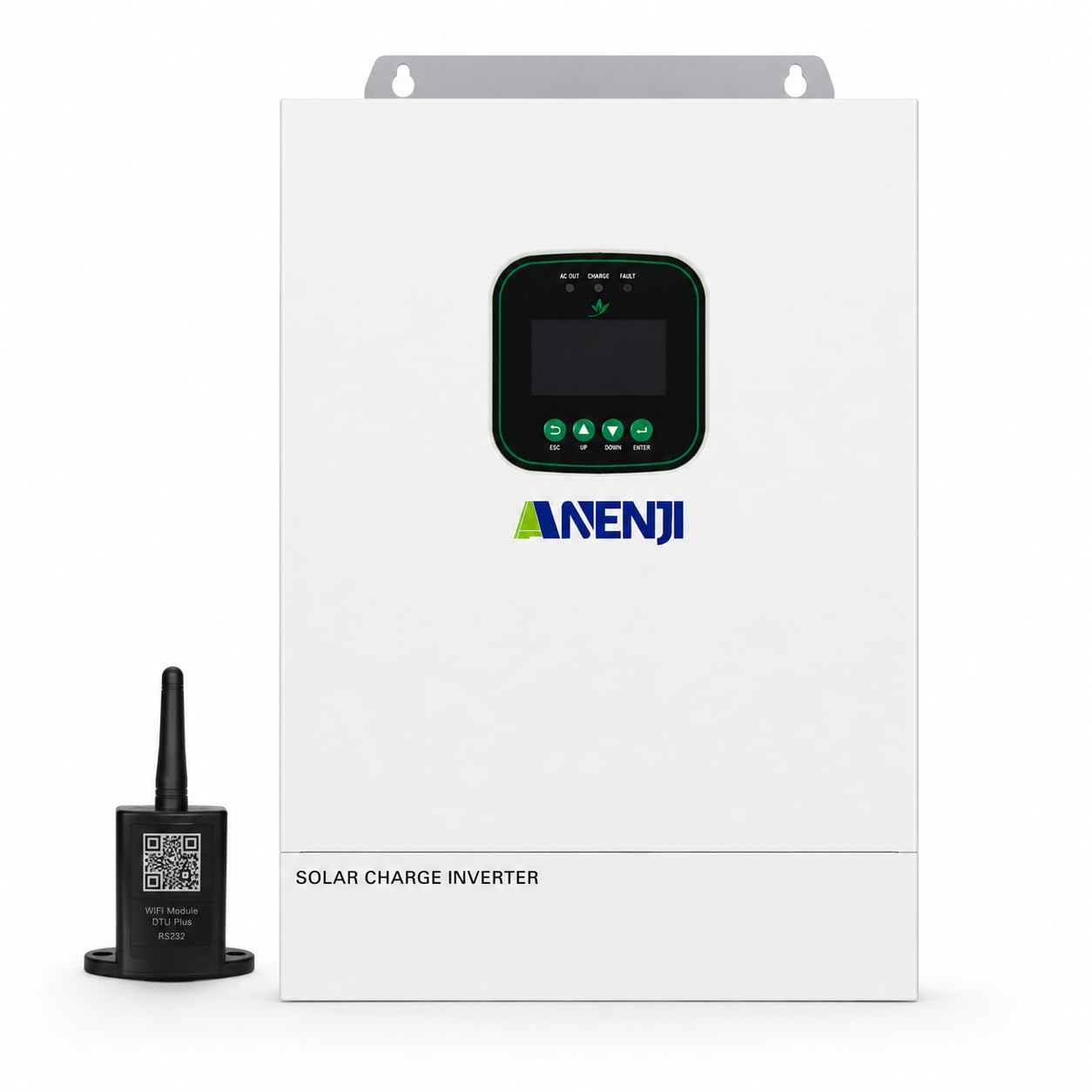

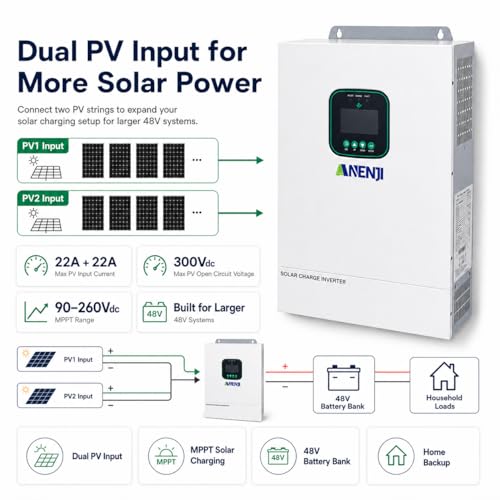

  • 【ALL-IN-ONE SOLAR CHARGE INVERTER】Converts 48V DC to 120Vac AC and is equipped with a powerful dual-channel MPPT solar charge controller. Features an LCD display and touch buttons, with optional WiFi/GPRS remote monitoring. Single AC output. Max. PV Array Power 4500W + 4500W; Max. PV Array Open Circuit Voltage 300VDC; PV Array MPPT Voltage Range 90VDC–260VDC; Max. Solar Input Current per Channel 22A; Max. Solar Charge Current 150A (configurable); Max. AC Charge Current 120A; Max. Combined Charge Current (PV + AC) 150A.

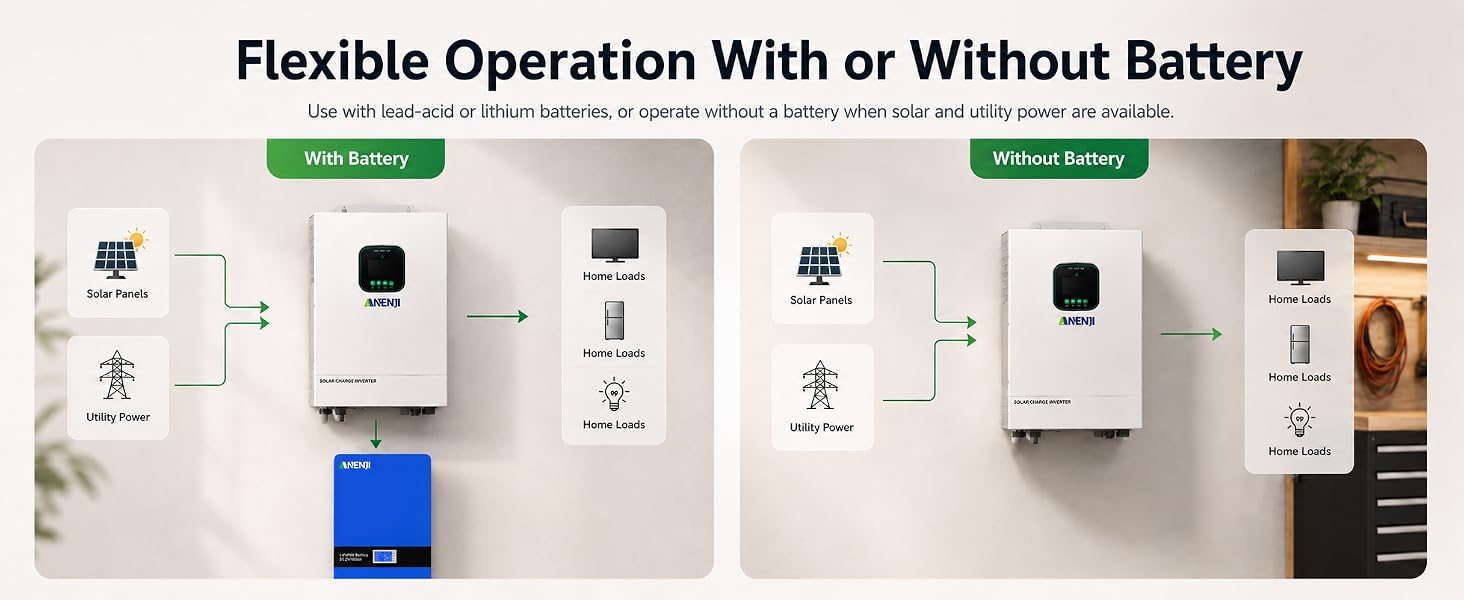

  • 【OPERATION WITH AND WITHOUT BATTERIES】The ANJ Series All-in-one Solar Charge Inverters support standard battery operation mode and simultaneous battery-less operation. The inverter can power the load directly from the PV array and/or the AC grid (Mains) without requiring a battery to be connected. (When no battery is connected, the minimum PV operating voltage must reach 80 Vdc). Furthermore, the inverter features a dual lithium battery activation function (enabled by default), which can be triggered by PV or AC mains to reactivate a dormant battery.

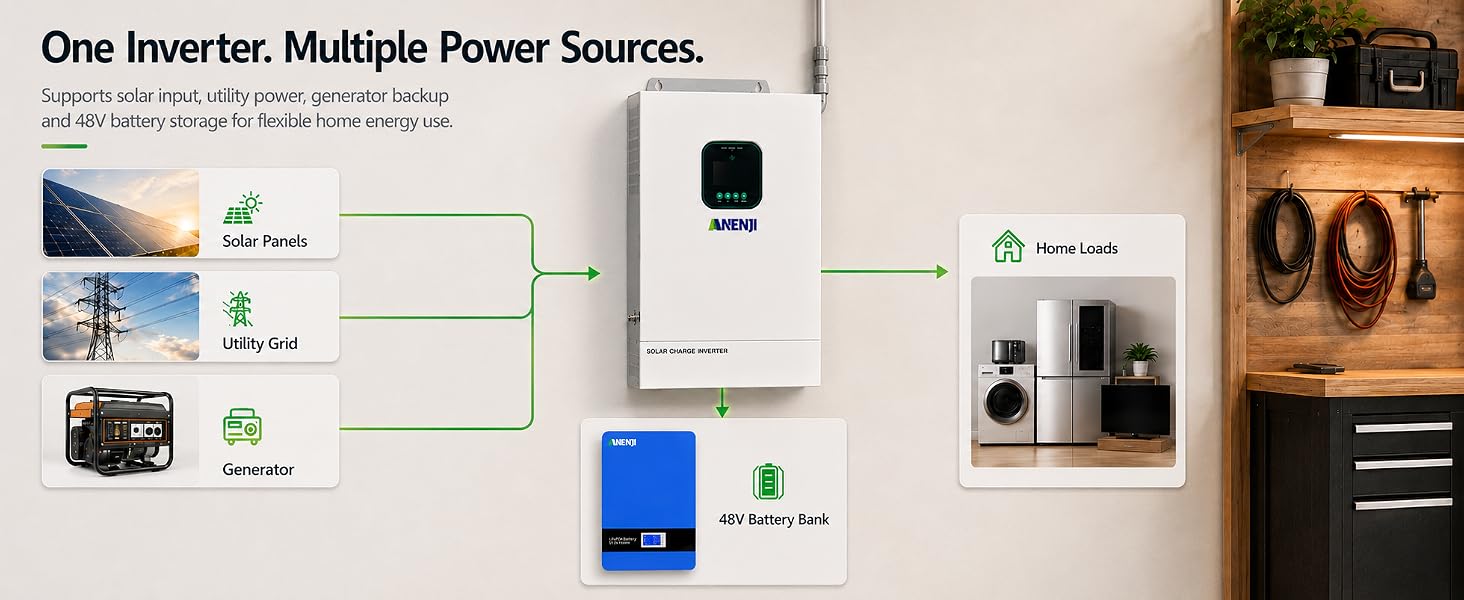

  • 【VARIOUS OUTPUT MODES】The inverter offers several configurable AC output priority modes: Utility Priority (UTL): Switches to battery/inverter power only when the mains fails. Battery Priority (BAT): Primarily uses battery power, only switches to utility power when the battery is low. Solar Priority (SOL): Primarily uses PV energy, switches to utility power when solar energy is insufficient or the battery is low. Hybrid Mode (HBR): Allows for grid-tied or load-following (anti-backfeed) operation based on settings.
  • 【FOUR CHARGING MODES AND COMPREHENSIVE PROTECTION FEATURES】Four battery charging modes can be configured via the inverter settings: Only Solar, Mains Priority, Solar Priority, and Hybrid Charging (CSO – default). Additionally, the inverter features numerous protection functions (Over/Under Voltage, Overload, Overtemperature, Short Circuit, Reverse Polarity, etc.) for the device, battery, and connected loads. Supports communication with the BMS of various lithium battery manufacturers.

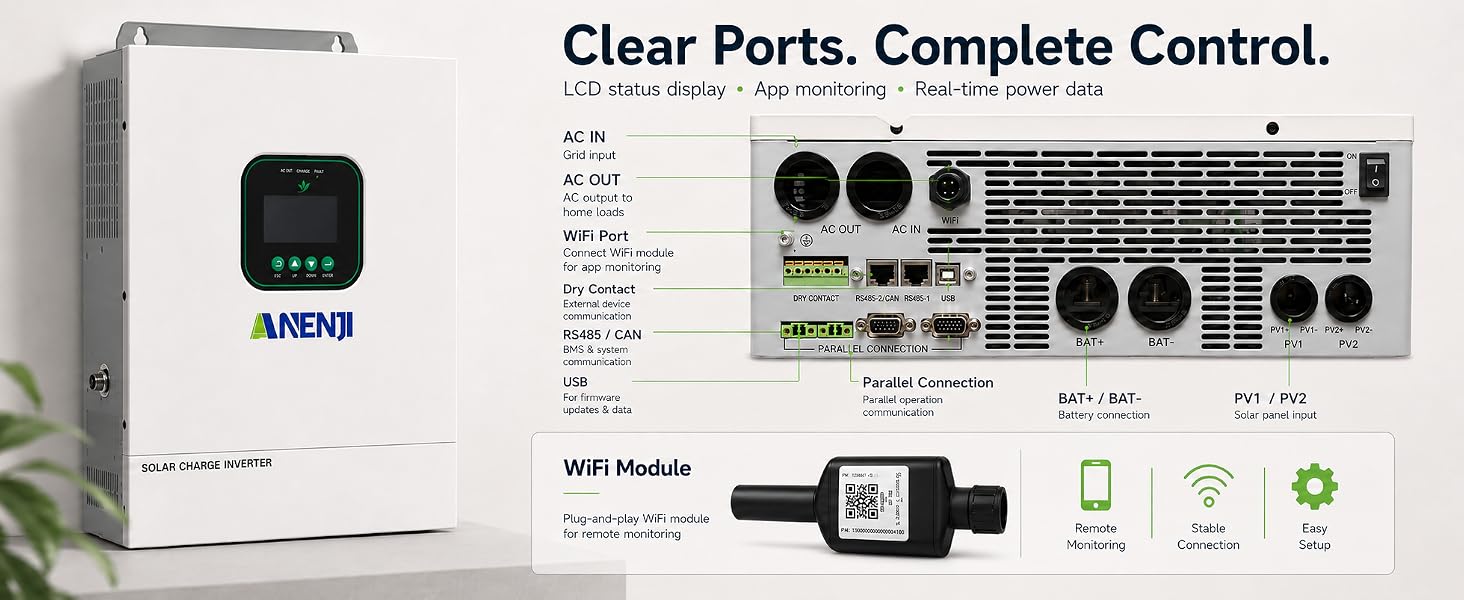

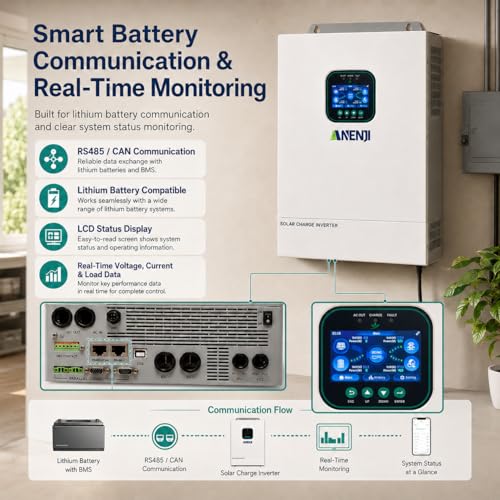

  • 【LCD DISPLAY AND TOUCH BUTTONS FOR REAL-TIME MONITORING】The Solar Inverter is equipped with an LCD display and touch buttons that show system data and operational status in real-time via a comprehensive interface with status icons. In case of a fault, a detailed fault code is displayed, enabling quick troubleshooting. Three LED indicators (AC OUT, CHARGE, FAULT) provide immediate visual status feedback.
›

  • Can this inverter work without batteries?

    Yes. This hybrid solar inverter can operate without a battery when solar panels and/or utility power are available. For more stable backup power and night-time use, we recommend connecting a compatible 48V battery bank.

  • What battery system is this inverter compatible with?

    This inverter is designed for 48V battery systems and supports both lithium and lead-acid batteries. For lithium batteries, please make sure the battery voltage, charging parameters, and BMS communication settings are properly matched before use.

  • How many solar panels can I connect?

    Solar panel quantity depends on the inverter’s maximum PV input voltage, PV input current, and total PV power rating. Please make sure the solar array stays within the allowed input range to avoid damage.

  • What should I check before buying?

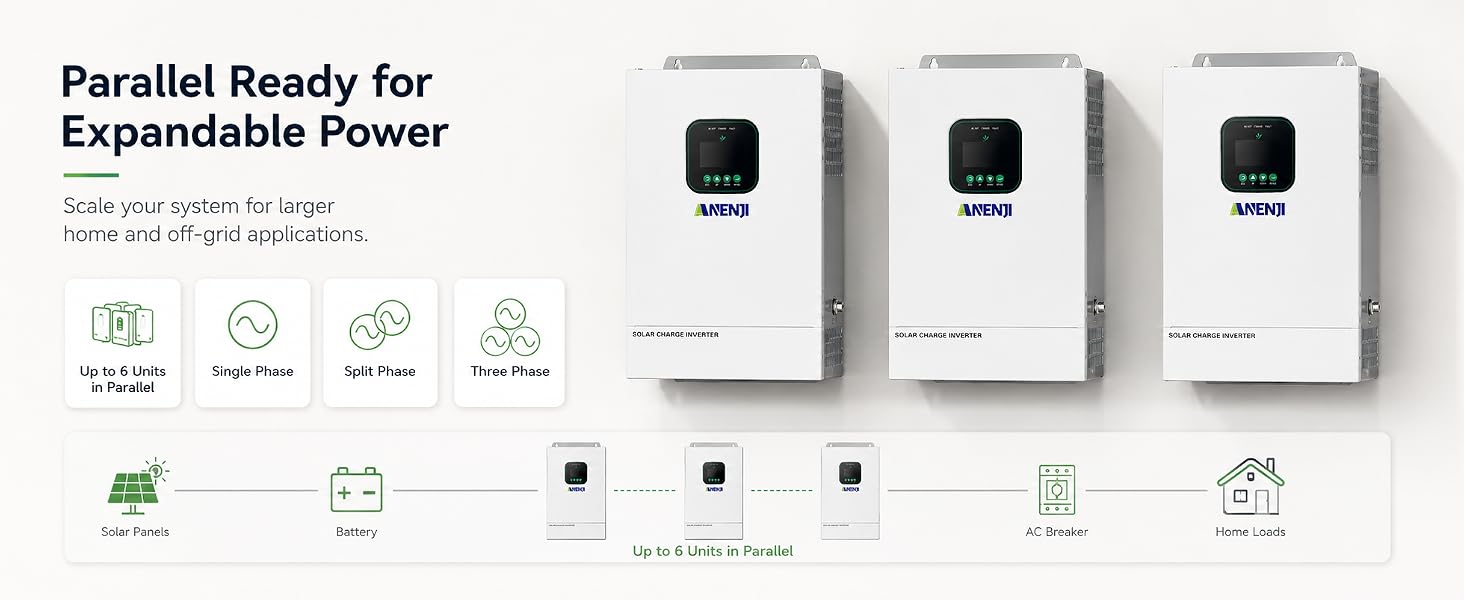

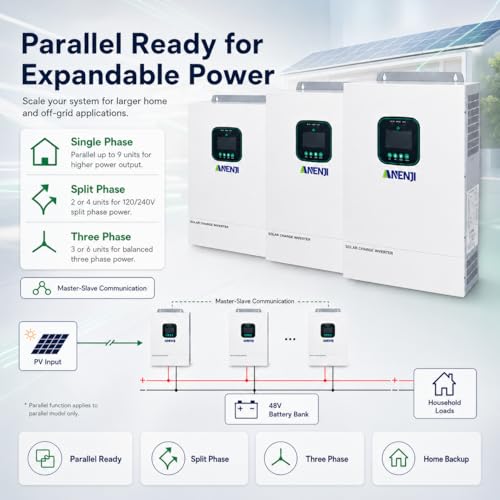

    Please confirm your battery voltage, battery type, solar panel voltage range, total load power, startup surge, AC output requirement, and whether you need split-phase or parallel operation.

SKU: B0GRFH9HGJ
Brand: Anjfylque

Product description

Hybrid Solar InverterHybrid Solar Inverter
  1. Hybrid Inverter
  2. Hybrid Inverter
  3. Hybrid Inverter
  1. Hybrid Inverter
  2. Hybrid Inverter
  3. Hybrid Inverter
Hybrid Solar InverterHybrid Inverter

  • Yes. This hybrid solar inverter can operate without a battery when solar panels and/or utility power are available. For more stable backup power and night-time use, we recommend connecting a compatible 48V battery bank.

  • This inverter is designed for 48V battery systems and supports both lithium and lead-acid batteries. For lithium batteries, please make sure the battery voltage, charging parameters, and BMS communication settings are properly matched before use.

  • Solar panel quantity depends on the inverter’s maximum PV input voltage, PV input current, and total PV power rating. Please make sure the solar array stays within the allowed input range to avoid damage.

  • Please confirm your battery voltage, battery type, solar panel voltage range, total load power, startup surge, AC output requirement, and whether you need split-phase or parallel operation.
