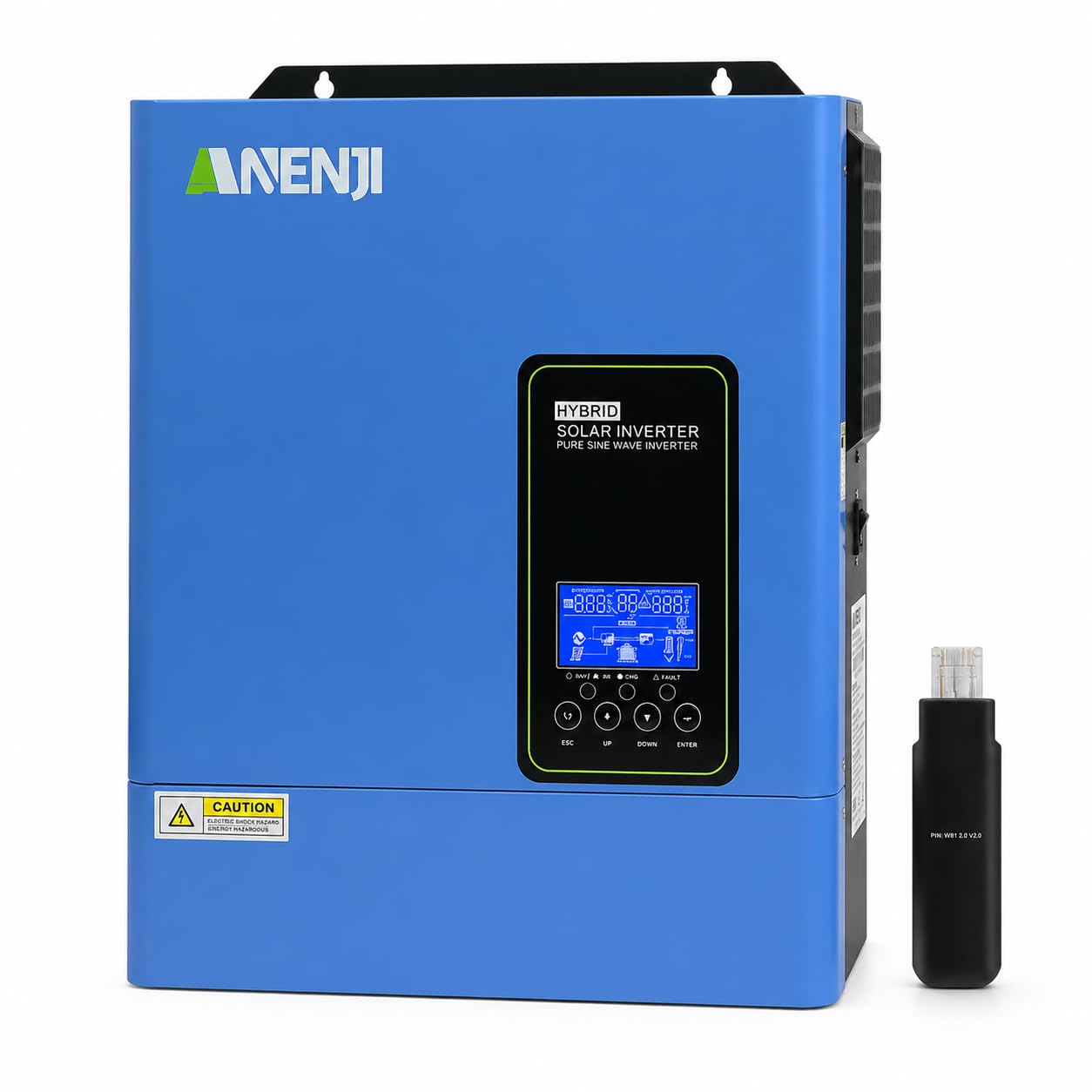

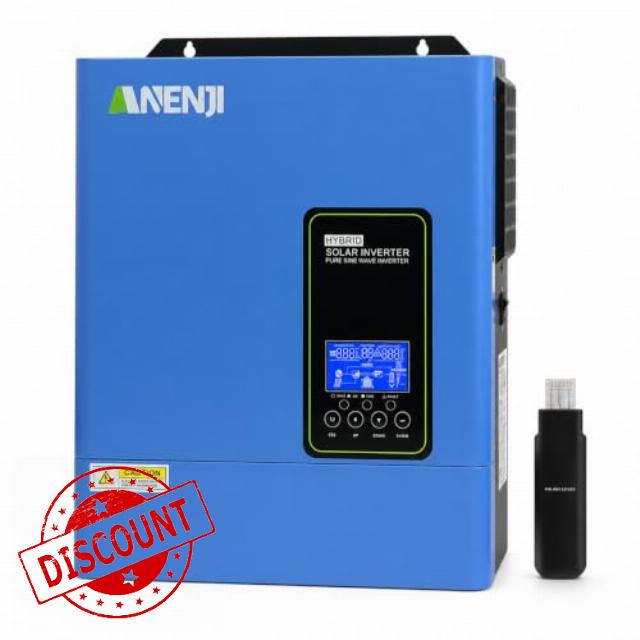

4200W 24V Hybrid Solar Inverter, 120V Pure Sine Wave Inverter Charger with 120A MPPT Solar Charger, Max 6200W PV Input, 500VDC PV, Off Grid Inverter for Home, RV, Cabin, Battery Backup

• 4200W Pure Sine Wave Output：This 24V hybrid solar inverter provides 4200W rated power with pure sine wave output, designed for 120V AC loads in off-grid solar systems. It helps power common household appliances, lights, fans, refrigerators, small tools, and emergency backup loads with stable AC output.
• Built-in 120A MPPT Solar Charger：The inverter integrates a high-efficiency MPPT solar charger with up to 6200W rated PV input, 500VDC maximum PV open-circuit voltage, 60V-500V MPPT voltage range, 27A max PV input current, and 120A max PV charging current, allowing flexible solar panel configuration for 24V systems.
• All-in-One Inverter Charger Design：Combines a pure sine wave inverter, MPPT solar charger, and AC battery charger in one unit. It supports solar, utility, and battery power sources, making it suitable for off-grid homes, RVs, cabins, workshops, garages, and backup power systems.
• Adjustable Working & Charging Modes：Supports multiple output source priority modes, including Utility First, Solar First, SBU, and SUB. The charger source can also be set to Solar First, Solar and Utility, or Only Solar, helping users adjust the system according to solar availability, battery status, and backup power needs.
• Compatible with 24V Battery Systems：Designed for 24V battery systems and supports AGM, flooded, user-defined, and lithium battery settings. Battery charge voltage and low DC cut-off voltage can be adjusted through the LCD settings. The unit also includes RS232, RS485, dry contact port, LCD display, and LED indicators for system monitoring.

MODEL：ANJ-4.2KW-LV-W
Capacity：4.2KVA/4.2KW
Parallel Capability：NO
Split phase operation：NO
Built-in WIFI：NO

INPUT
Nominal Voltage：110/120VAC
Acceptable Voltage Range：95-140VAC(For personal Computer);70-140VAC(For Home Appliances)
Frequency：50/60 Hz(Auto sensing)

OUTPUT
Nominal Voltage：110/120VAC+5%
Surge Power：8400VA
Frequency：50/60Hz
Waveform：Pure Sine wave
