SM&MM Six Motor Core Alignment Fiber Fusion Splicer

SM&MM Six Motor Core Alignment Fiber Fusion Splicer Automatic FTTH Fiber Optical Welding Splicing 5S Heating 15S (Ai-9)

3 In 1 Fiber Holder suit for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable;Splice Loss:0.025dB(SM)、0.01dB(MM)、0.04dB(DS/NZDS);Fiber diameter:Cladding Diameter：80-150μm、Coating Diameter：100-1000μm;Fiber Cleave Length:Coating less than 250µm：8-16mm、Coating less than 250-1000µm:16mm.
Built-In power meter (Wavelength 850nm/1300nm/1310nm/1490nm/1550nm/1625nm); Built-in Visual Fault Locator 2hz And Constantly Bright Mode.
With 5-inch 800X480 high-resolution screen, is up to 300 times focus magnifications;5s fast splicing 15s fast heating.Once splicing reaches to 50,000 times free replacement a new machine
Through the phone app, splicing is easy to operate.10 Languages to switch freely :English,french,Russion,Italian,Portuguese,Polish,Spanish,Thai,Arabic
Lifetime Friendly Customer Service,if have problem,pls contact us using the amazon message box,we will solve your problem in time and must give you a satisfactory solution .At the same time,you also need a little patience.

›

Check Offer Price

A-9 Optical fiber fusion splicer

A-9 Optical fiber fusion splicer Feature

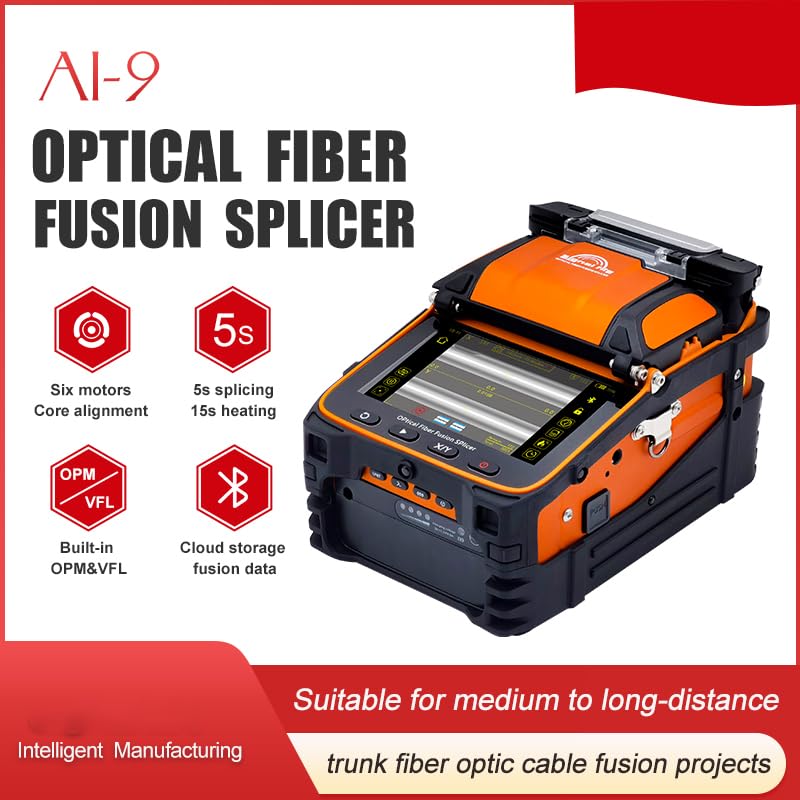

1. 6 Motors true optical fiber Core Alignement ARC Automatic Fusion Splicer.

2. 0.1um fiber alignment accuracy.Suitable for medium to long-distance trunk fiber optic cable fusion projects.

3. 5s Fast Splicing (Fast Mode),15s Overspeed heating.

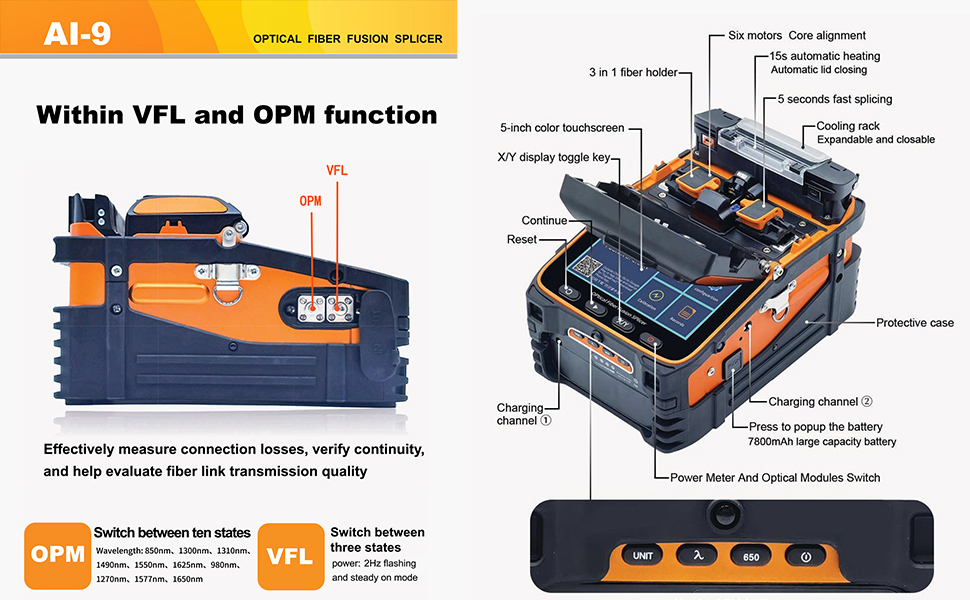

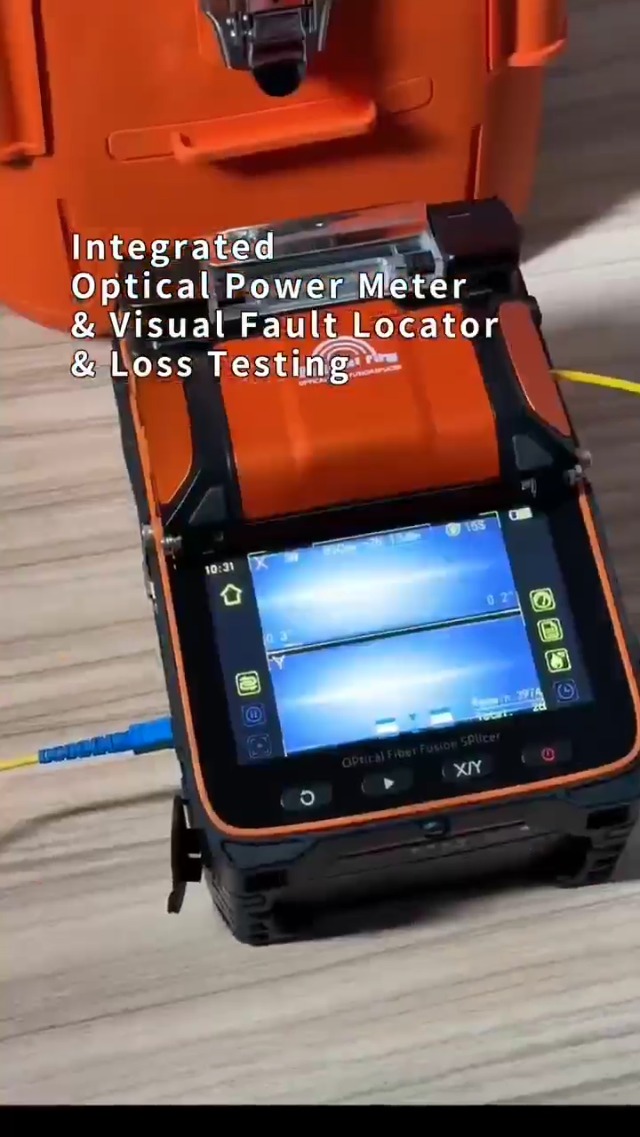

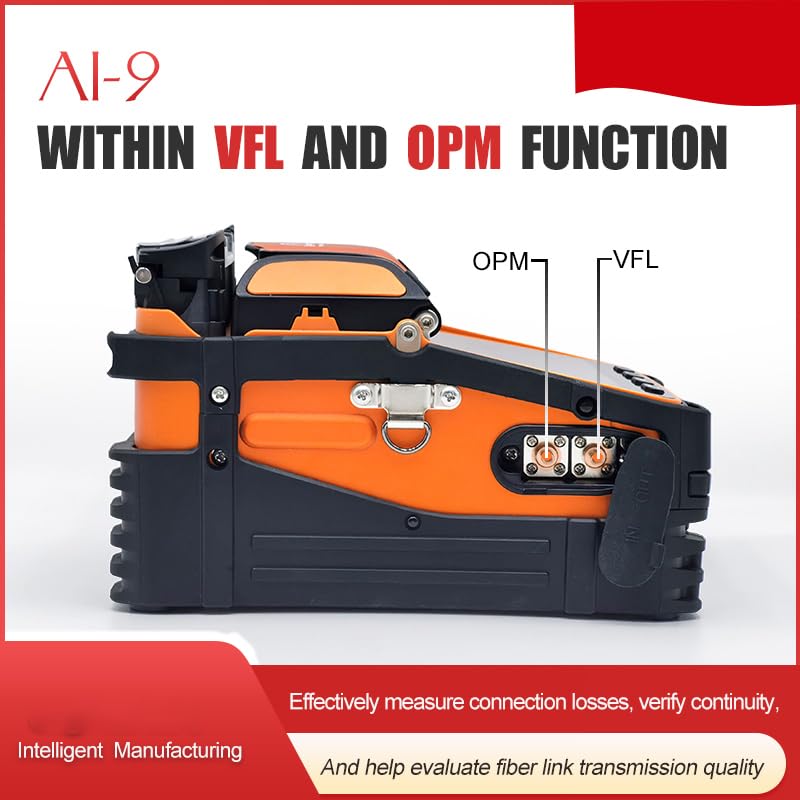

4. Built-in VFL and Power meter functions.Effectively measure connection losses,verify continuity,and help evaluate fiber link transmission quality.

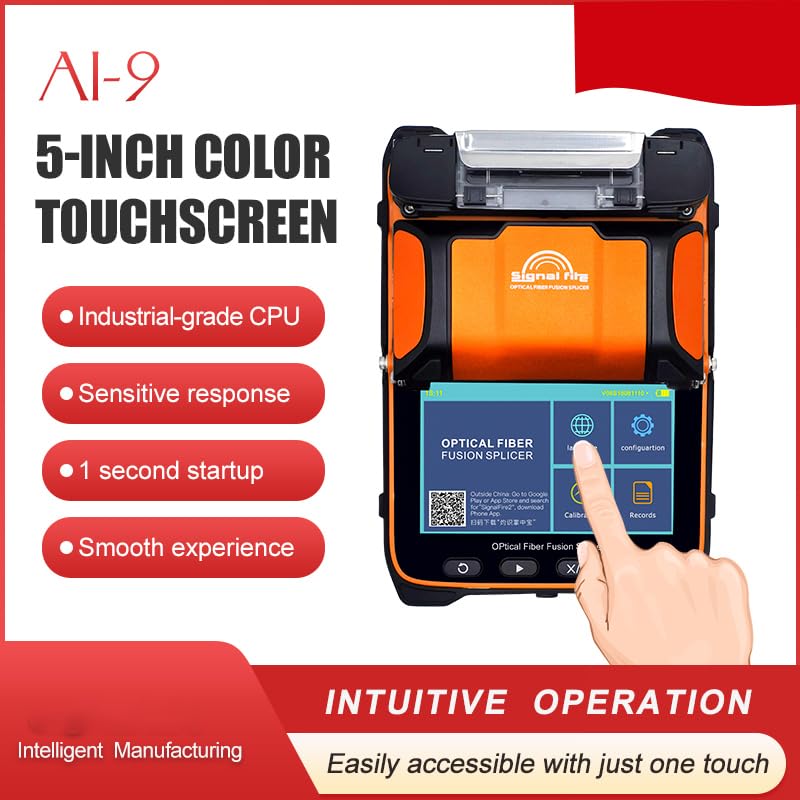

5. 5.0-inch color touchscreen,Intuitive operation,easily accessible with just one touch.

6. 7800mAH Large Capacity Battery，260 times (splicing+heating).

7. 11 languages to switch freely: English, Spanish, French, Russion, Italian, Portuguese,Ukrainian,Polish,Thai,Arabic Chinese.

8. Independent R&D Of Integrated Mechanical Core Module.

9. German CNC Technique And Integrated Fiber-Adjust Frame ,Which Make Perfomance Much Stable.

10. Independently Developed New Structure Heater,Compatible With Multi-Type Connectors.

11. Dust-proof,Water-proof,High Temperature Resistance Adapting To Various Alititude And Formidable Nature Conditions.

A-9 Optical fiber fusion splicer

A-9 Optical fiber fusion splicer parameter

1. Fiber alignment : Core/cladding

2. Motor Number : 6 motors (accurate of fiber alignment 0.1um)

3. Splicing time :5s

4. Heating Mode :15s, can be customized according to the external environment.

5. Fiber type ：Single-mode fiber (SMF/G.652),multimode fiber (MMF/G.651),dispersion-shifted fiber (DSF/G.653),G.654 fiber,non-zero dispersion-shifted fiber (NZ-DSF/G.655),and bend-insensitive fiber (BIF/G.657),suitable for splicing bare fiber,pigtail,drop fiber,patch cord,and invisible fiber.

6. The cladding diameter: 80-150um.

7. Splicing loss: 0.02dB(sm), 0.01dB(mm),0.04dB(DS/NZDS).

8. Splicing mode: Automatic focusing core alignment,conventional/high precision welding.

9. Splicing way: Automatic,semi-aumatic.

10. Fiber holder: Three in one fixture,no need to change,suitablefor single/multi-mode,multi-core cable/bare fiber,tail fiber,jumper fiber,drop cable.

11. Magnification: 320x ( X or Y axis single disply),200x (X or Y axis dual display).

12. Fiber diameter: Coating diameter ：80-150um/ Coating diameter :100-1000um.

13. Cutting length: Coating layer 250um below： 8-16mm/ coating layer 250-1000um：16mm.

14. Heating shrink tube: 60mm,50mm,40mm,25mm.

15. Tensile testing: standard 2N.

16. Display: 5-inch color touchscreen.

17. Boottime: 1s,boot can enter the working mode.

18. Date is stored: Unlimited,machine storage 1000 groups,the excess part can be stored in the server,can export date.

19. Software upgrade: Mobile phone APP internet update.

20. Management function: The equipment owner can be bound as the highest authority,and can remotely view the weding records.Welding time,loss,etc.through the mobile phone APP.The number of welding times or working time of the equipment can be set.The manager can effectivelly manage a single or multiple equipment.

21. Return loss: Better than 60dB.

22. Product protection: Waterproof,dustproof and fall proof.

23. Power supply: Input AC 100-240V 50/60HZ,output DC13.5V/4.8A,the current power mode can be identifiedreal-time monitoring of the current battery level.

24. The work environment: Temperature:-15~+50℃,humidity:＜95%RH(no condensation),working altitude:0~5000m,maximun wind speed:＜15m/s.

A-9 Optical fiber fusion splicer

Package including

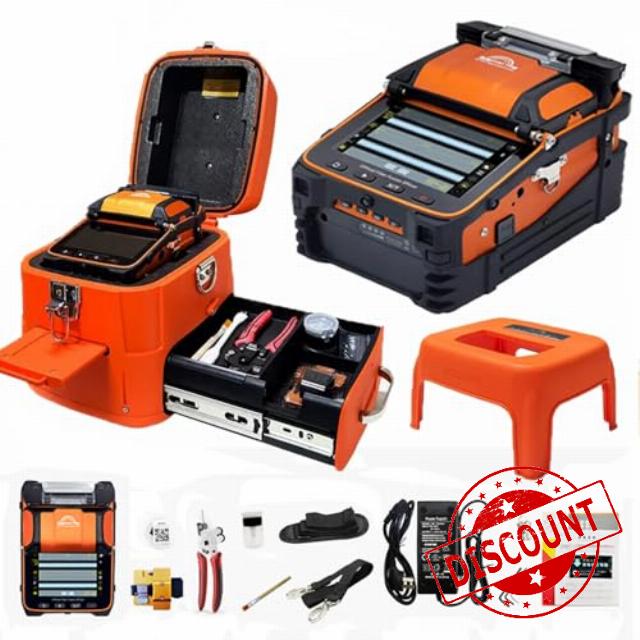

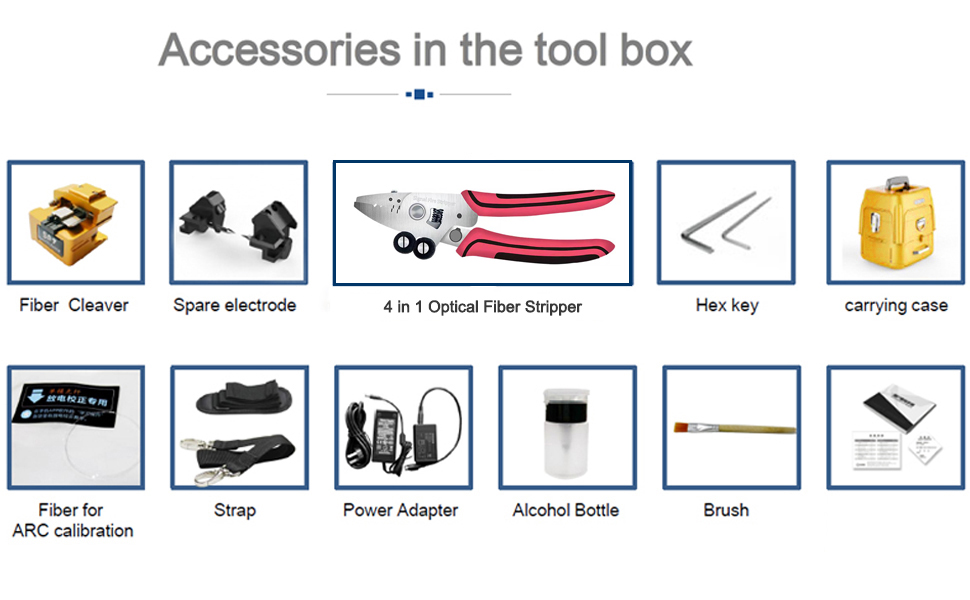

1*Fiber Fusion Splicer、1*Fiber Cleaver、 1*Spare electrode、1*4 in 1 Optical Fiber Stripper、1*Hex key、1*Strap for fusion splicer、1*Strap for carrying case、1*Power Adapter、1*Alcohol Bottle、1*Brush 、1*Blue toolbox、 1*Yellow toolbox
