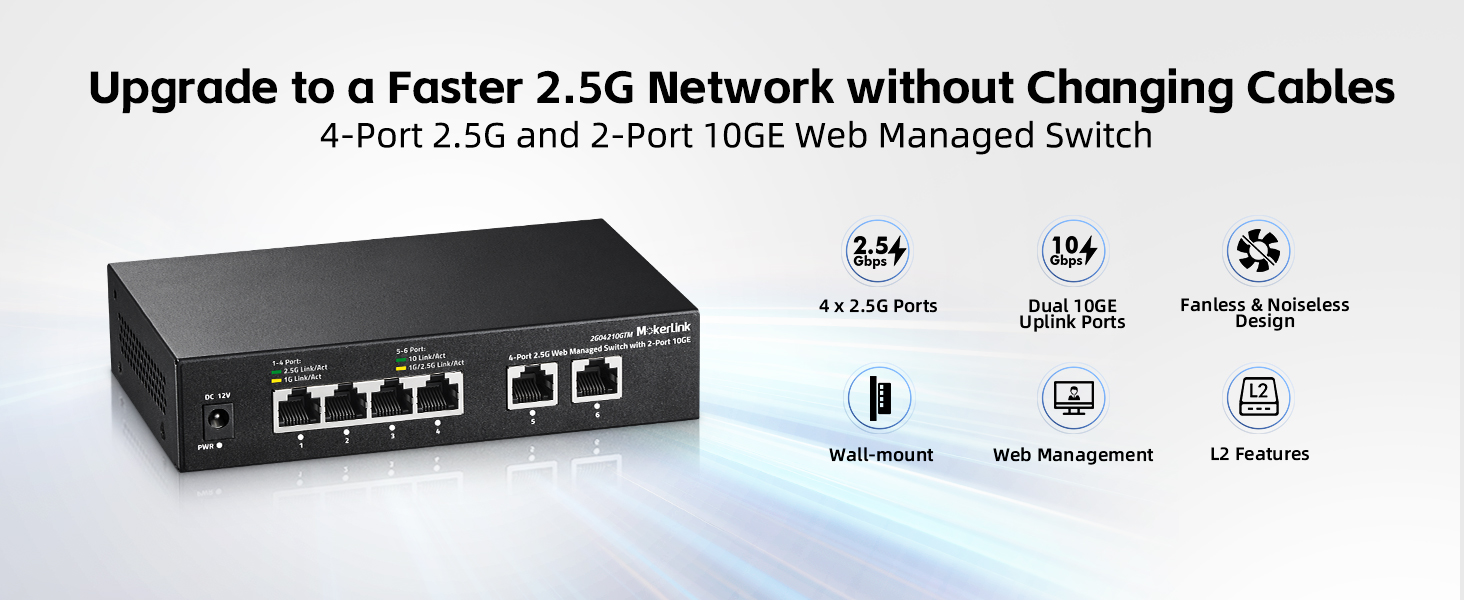

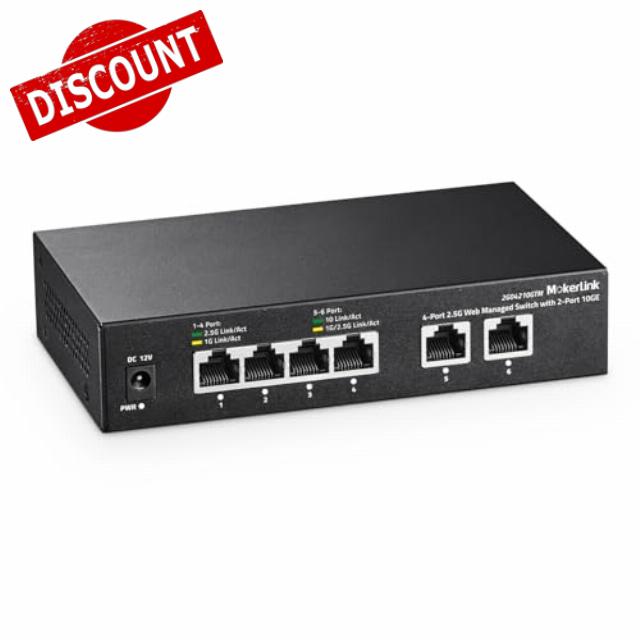

MokerLink 10G Easy Web Managed Switch, 4×2.5G, 2x10G RJ-45 Base-T Ports, Support LACP/VLAN/QOS/IGMP, Metal Web Managed Fanless Network Switch

• 2.5G and 10G Ports: 4×2.5Gbps ethernet ports, support 2.5G/1000M; 2x10Gbps ethernet RJ45 ports, support 10G/5G/2.5G/1000M, automatically adapts to different rate class devices.

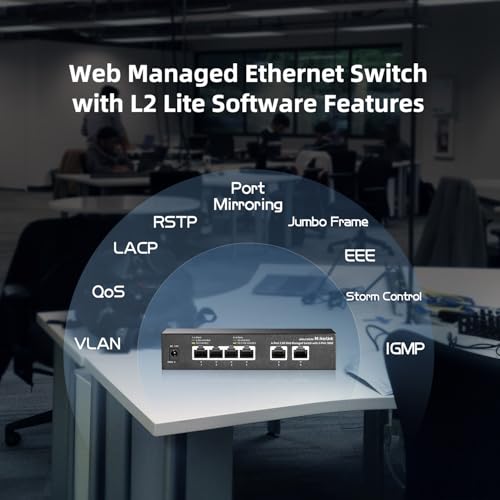

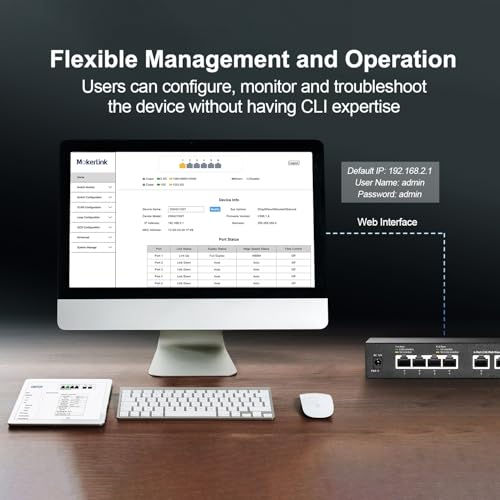

• Easy Web Managed: Support L2 Management: QoS, ACL, link aggregation LACP, loop detection; VLAN config, IP-MAC-VLAN Port Binding, Port Mirroring/Isolation/Rate-limit/Security,Storm Control,Spanning Tree,diagnosis/Ping, SNMP, device/port status query, etc. When modify in the web, please save configuration and reboot will not lost. It can also be used as unmanaged and without configuration
• 60Gbps Bandwidth: switching capacity is 60Gbps, Two 10G ports for high-speed network connectivity provide a cost-effective solution for adding 10G link capacity.
• Easy to Use: auto MDI/MDIX, auto-negotiation rate. With durable metal casing, fanless design lowers energy consumption, quiet no noise and stable operation. Power and port led indicator light, clearly display the running status and port rate status, installation and maintenance are very simple

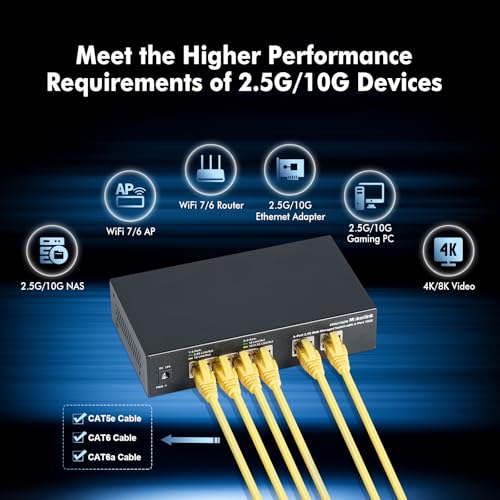

• Widely Used: desktop/wall-mounting design, well-suited for various environments, such as home entrainment and office, 8K video, gaming PC, NAS, PCIe Adapter, Server, WiFi AP and more.

›

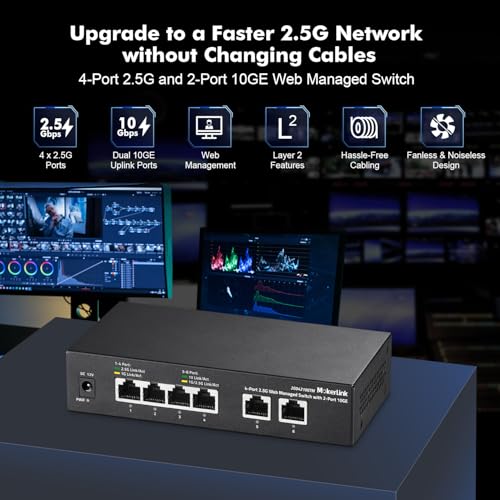

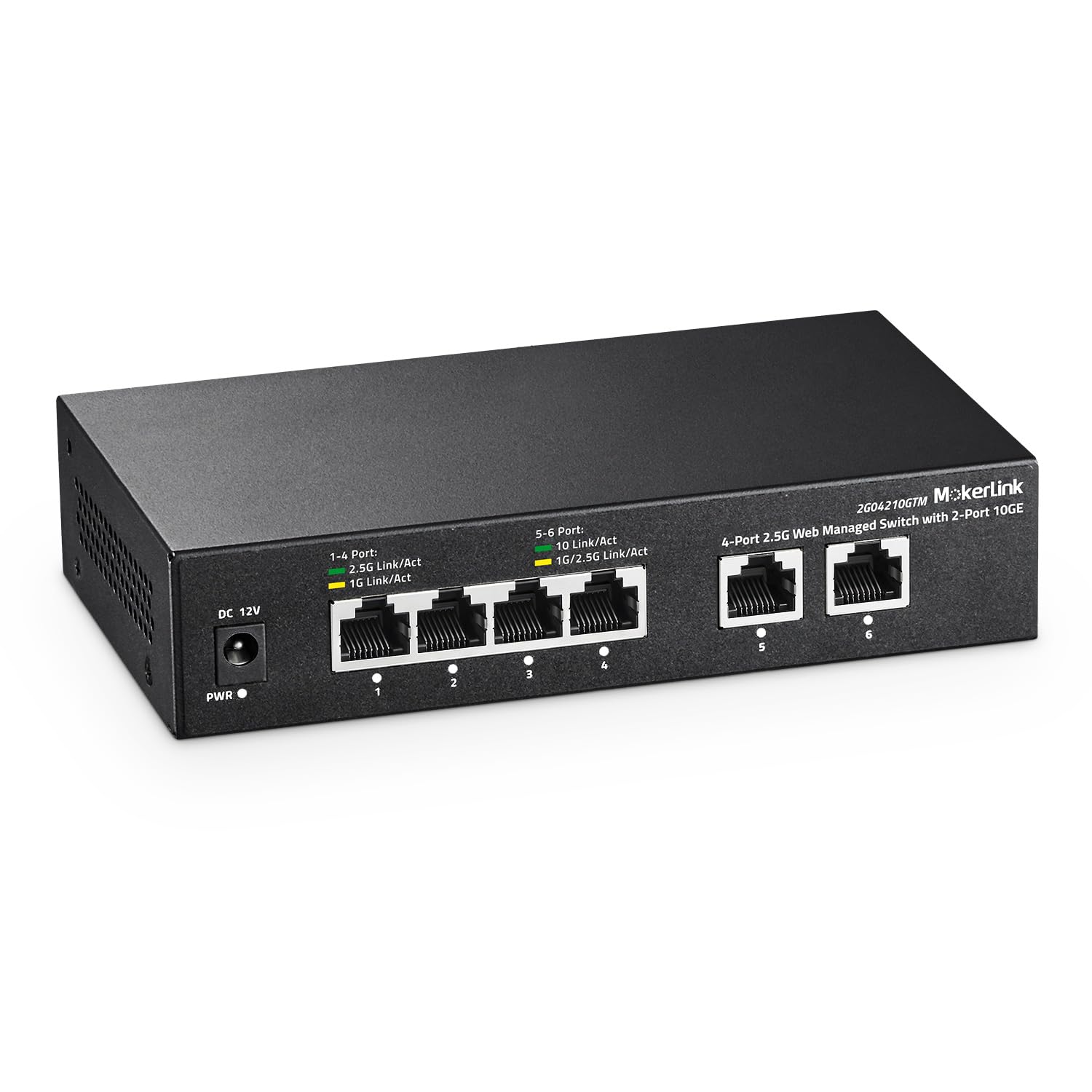

The 2G04210GTM is a L2 Web Managed Ethernet Switch with 4×2.5GbE RJ45 and 2x10GbE RJ45 ports. 4×2.5G ports provide either 100M, 1G and 2.5G connectivity, as well as 2x 10G port with 100M, 1G, 2.5G, 5G and10G connectivity. Each port automatically detects which speed is needed.

4x 2.5G Ports for WiFi 7 or NAS Connection

4× 2.5Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7 APs and NAS server. Supports cat5e and above cables, 2.5x faster network bandwidth.

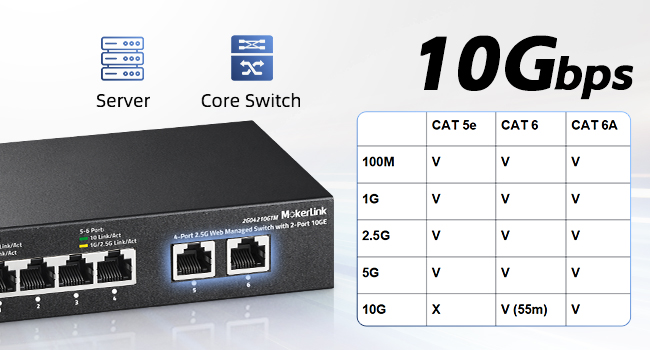

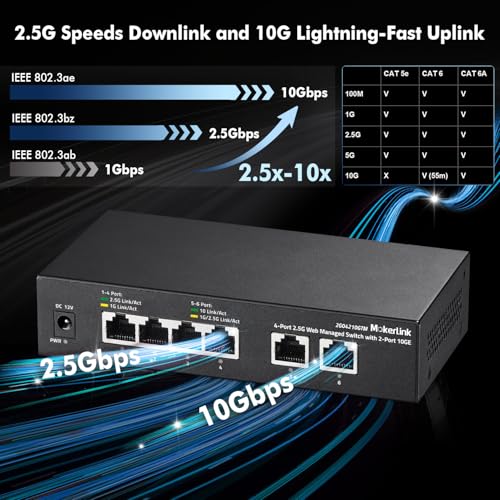

2x 10G RJ45 Ports for Servers or Core Switches

2× 10Gbps RJ45 ports enable high-bandwidth connectivity and non-blocking switching capacity. Provide either 100M, 1G, 2.5G, 5G and 10G connectivity that can connect to core servers and switches

Energy efficient

It supports the IEEE 802.3az Energy-Efficient Ethernet standard(EEE). Switches automatically adjust power consumption according to the link status and cable length, With metal housing and fanless design eliminates a common point of failure.

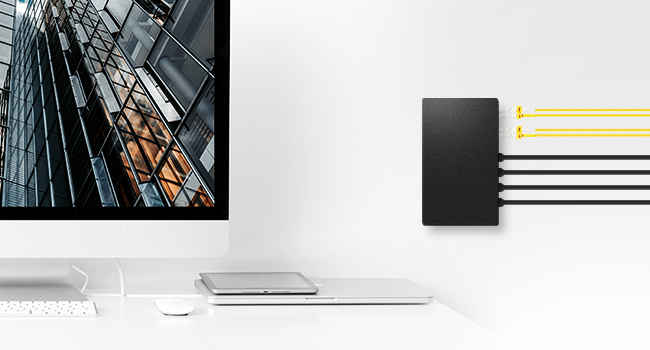

Mounting flexibility

Flexible deployment options for wall-mount or desktop in your office and home, meet the network environment requirement.

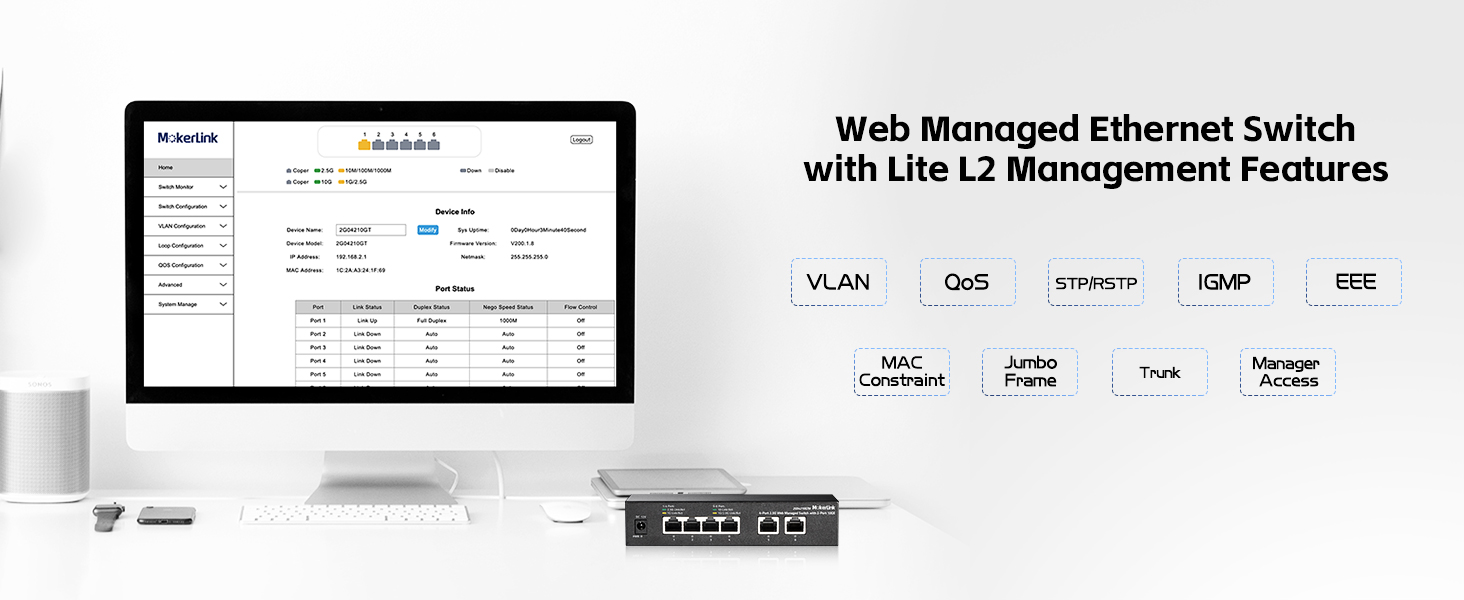

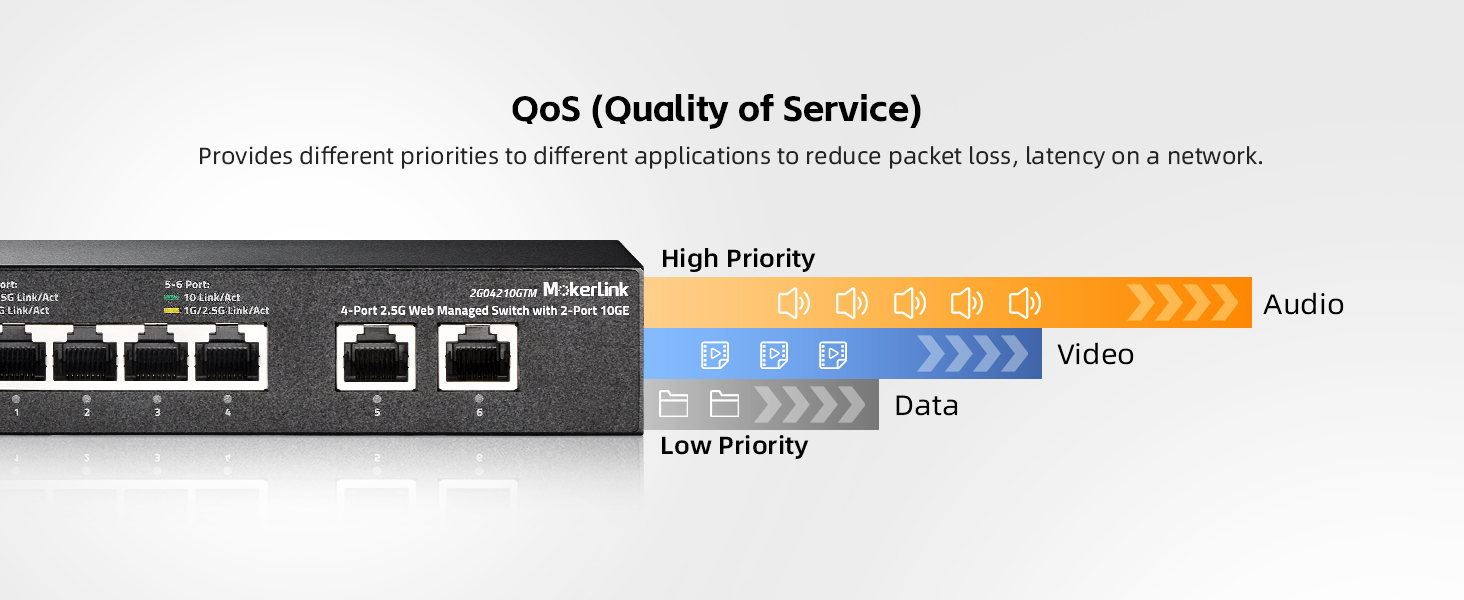

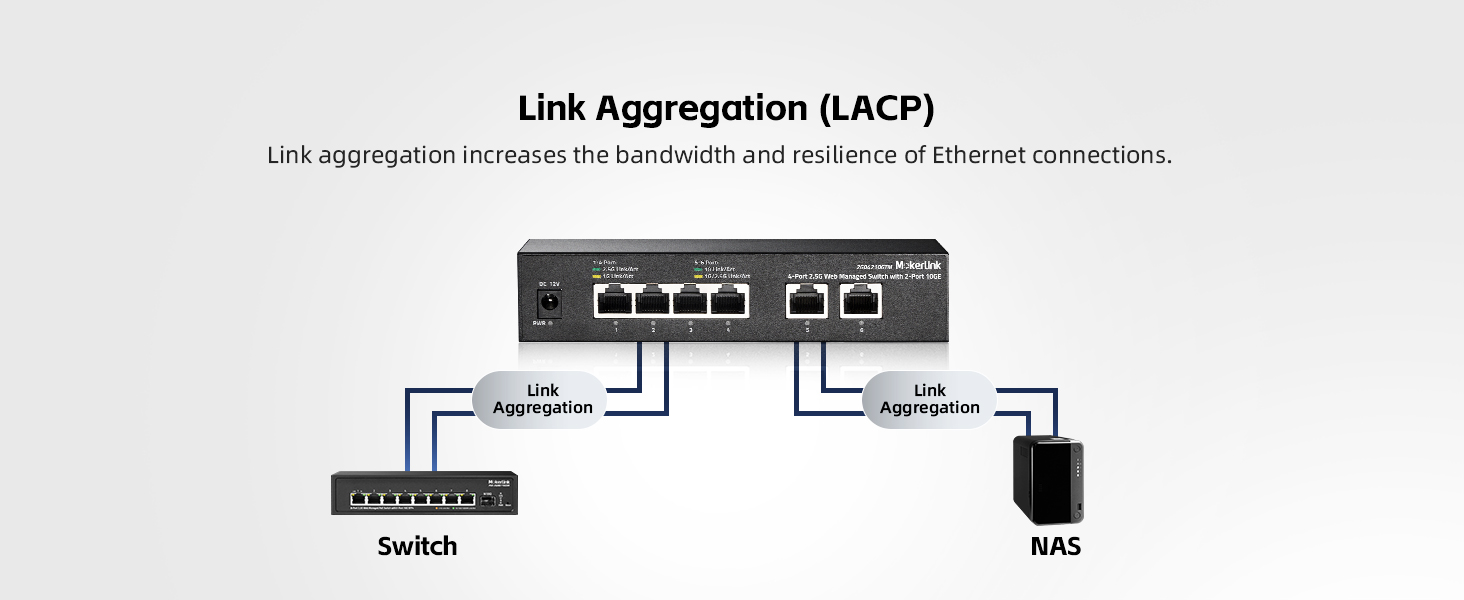

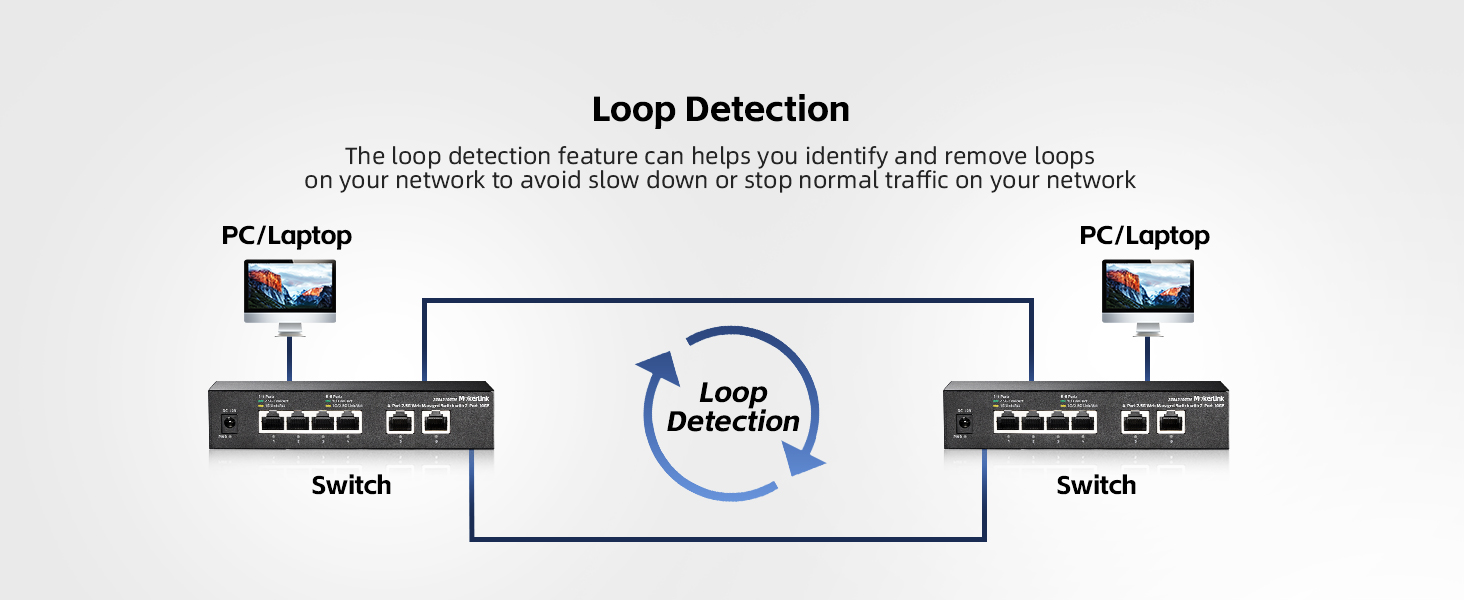

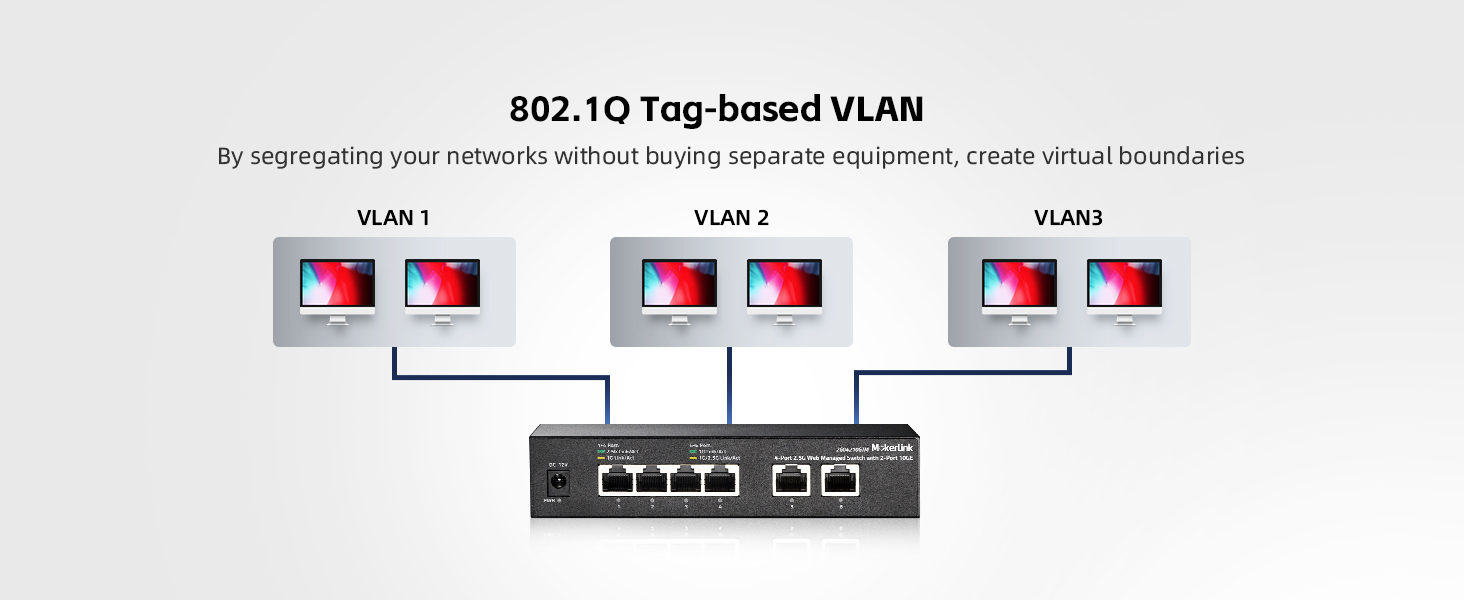

1 Flexible Management 2 802.1Q Tag-Based VLAN 3 QoS (Quality of Service) 4 Link Aggregation 5 Loop Detection

Technical Parameter

Model	2G04210GMT (4-port 2.5G Web Managed Ethernet Switch with 2-Port 10G RJ45)
Interface	4*2.5Gbps RJ45 ports + 2*10Gbps RJ45 ports
Port Standard	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3z (Gigabit Ethernet Fiber Standard) IEEE802.3bz (2.5G Ethernet) IEEE 802.3ae (10Gbps Ethernet) IEEE802.3x (Flow Control)
Switching Capacity	60Gbps
Packet Forwarding Rate	44.64Mpps
Packet Buffer	8Mbit
MAC Address Table	4K
Jumbo Frame	10K

Power Supply	DC 12V/1A
Structure Information	Product Dimensions: 160*90*35mm, Packaging Dimensions: 175*120*73mm, Product Net Weight: 0.35kg, Product Gross Weight: 0.5kg
Environment	Operating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%，non condensing, Storage Humidity:5%~95%，non condensing
Mounting	Desktop / Wall-mount, Metal Housing

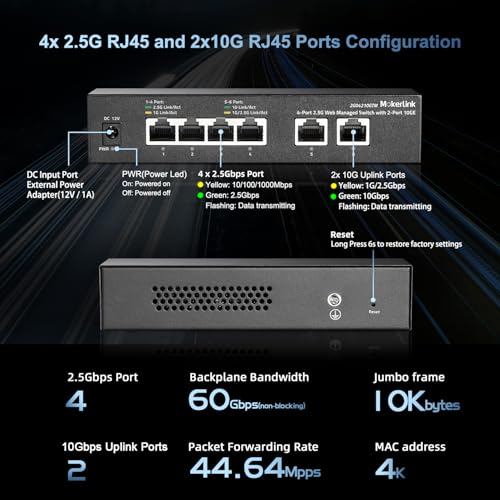

LED Indicator	PWR Green LED On: Powered on, Off: Powered off; Ports 1-4 Green LED on: 2.5Gbps Link normal, Yellow LED on: 10M/100M/1000Mbps Link normal, Off: Link blocked, Flashing: Data transmitting; Ports 5-6 Green LED on: 10Gbps Link normal, Yellow LED on: 1G/2.5Gbps Link normal, Off: Link blocked, Flashing: Data transmitting
Fan Quantity	0
Package Contents	switch 1pcs, power cord 1pcs, instruction manual 1pcs
SMART FEATURES	L2 Function: VLAN, QoS, IEEE 802.3ad LACP Trunk-Static Trunk, IGMP Snooping, Port Mirroring, Broadcast Storm Control
