REGULAR PRICE: £504.55

About this item

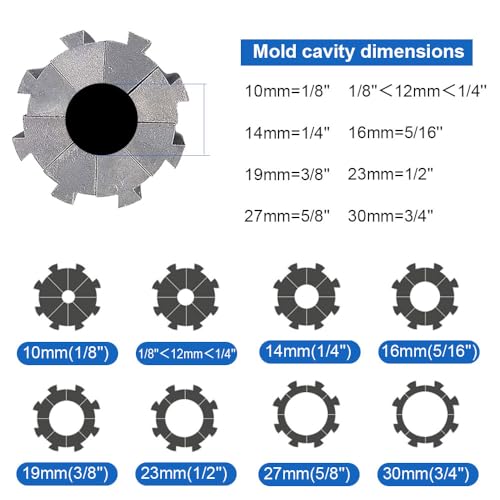

• Hose Crimping Tool with 8 Sets of Dies, Dies Covering Hose Sizes: 10/12/14/16/19/23/27/30mm; Crimping Range: 0.24"-1.1"(6mm-28mm), for Hydraulic Hose: 1/4" to 1" 1&2 Steel Cables (R1&R2) ), maximum aperture without die Ices: 1.89 inches (48 mm)
• Hydraulic oil tank capacity: 0.26gal(1L) The mold has a magnetic function for easy installation and removal; Metal oil pipeline can withstand 2000KN high pressure, Italian shirt type gasket, long-term use will not leak oil.
• High quality forged steel head, more durable than ordinary steel; Changing the die is very simple. Comes with a conversion table, you can manually adjust the range when using
• Crimper hose lock mechanism components are manufactured with high-quality alloy steel materials and a unique heat treatment process to ensure reliability and service life of the equipment.
• Crimper pipe is suitable for all kinds of mechanical high and low pressure oil pipe, gas pipe, water pipe, union cable, automobile air conditioning pipe, automobile power steering pipe, oil pipe, petroleum gasoline supply pipe, as well as construction accessories, daily hot water pipe, widely used in vehicles, construction machinery, hydraulic machinery, welding and cutting equipment and other industry Ace.

Product description

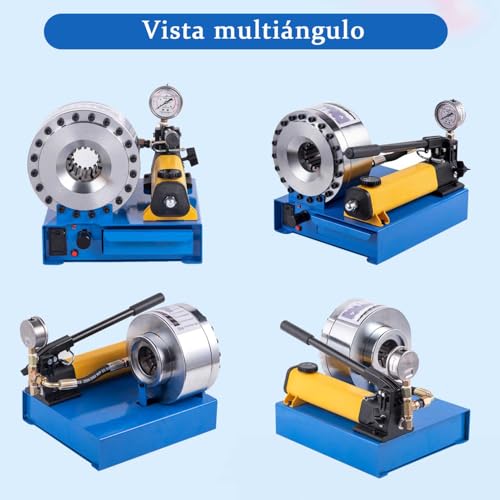

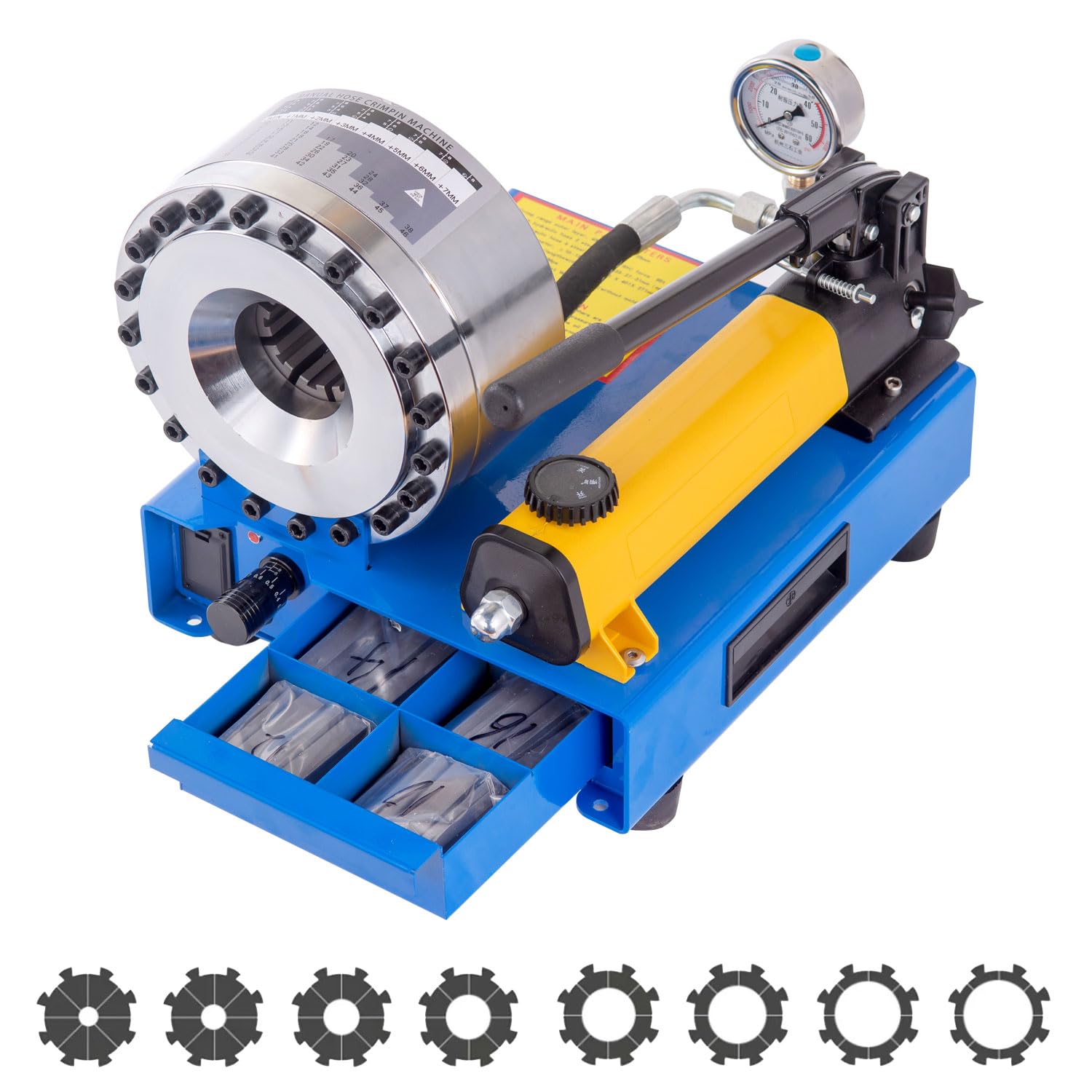

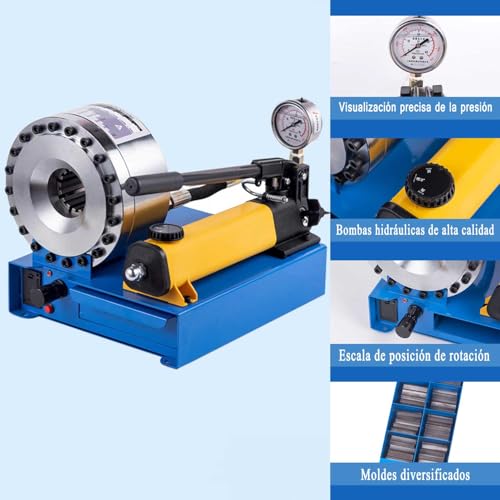

High Pressure Hose Crimping Handheld Hose Crimping Tool with 8 Sets of Dies

• Hose Crimper: 0.24"-1.1"(6mm-28mm), physical Buckle Mold
• For hose: 1/4inch to 1inch 1&2 steel wires(R1&R2)

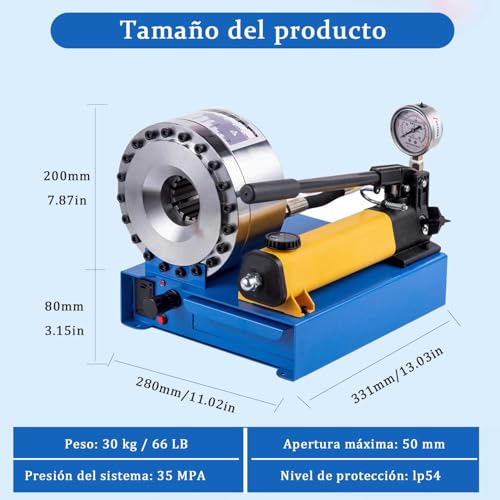

• Max opening without dies: 1.89"(48mm)
• oil tank capacity: 0.16gal(0.6L), Oil Pump Pressure: ＜35Mpa
• Crimp force: 1000KN, Indicator light battery specification: 9V battery(exclude battery)
• CNC engraving and milling precision is higher, durable.
• Does not include oil (because international logistics does not allow liquids)
• For small manual crimping machines, common n °10 motor oil is better than hydraulic oil. It has lower density than the hydraulic, cools down more easily, and when doing manual crimping it will be easier and less tired (you save energy).
• If you use the machine for a long time, I recommend using only motor oil n °10 – it serves any make /model of this oil.
• Manual hydraulic pump simple operation, short stroke, save time and effort. Built-in safety valve for overload protection.

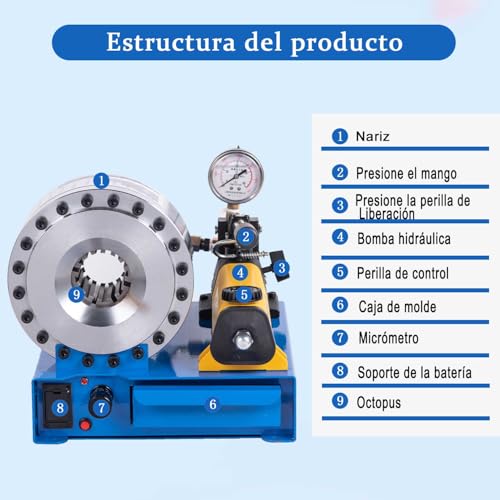

1. Machine head: with three layers of sealing ring, to avoid hydraulic oil leakage problems, even if there is a problem, we can replace for you. Please check whether the package is intact as soon as you receive the package, and take photos to keep evidence, so that we can appeal to the logistics

2. Hydraulic pump and connection pipe: durable stainless steel, longer than any other machine.

3. Provide free replacement of spare parts: the machine is transported to the US warehouse by sea. If there is rust on the mold, it is normal and does not affect the use.Can be applied with some oil. Free replacement of all molds within one year.

4. About the missing number of molds: due to the large number of molds, if there is a lack of quantity, at any time for you to replace. We have sufficient goods and complete after-sales service.

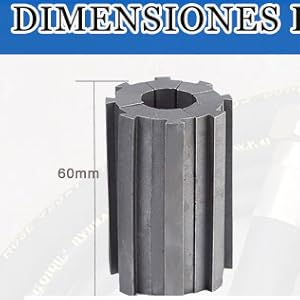

5. Made of high quality 45 steel, after quenching treatment, greatly improve the hardness, higher precision,Crimping effect is good.

6. Additional hydraulic oil sealing rings, which can be replaced manually, ensure that the machine can be used for a longer time

7. If the claws of the machine cannot be separated, apply lubricating oil nearby and strike with a hammer, the later use will be more and more smooth

8. We also offer other shapes and larger molds, higher pressure machines, and electric tube presses

Manually Hydraulic Crimping Machine

Because the mold is relatively small and the quantity is quite large, please don't worry if any accessories are damaged or lost. Please feel free to get additional replacement accessories and molds according to the instructions in the manual inside the packaging. I assure you that this will solve all your problems and ensure your satisfaction.

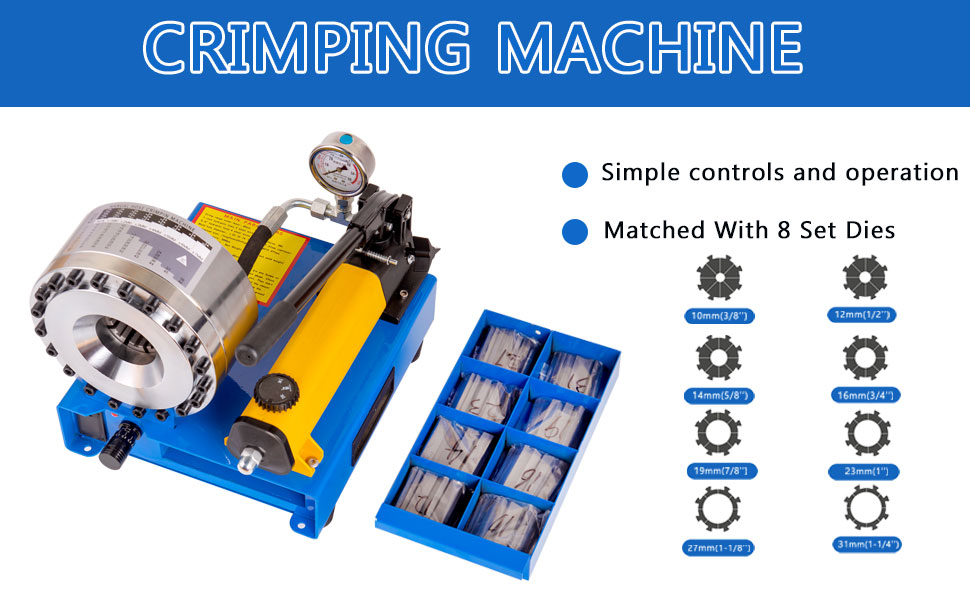

Hose Crimping Machine

Comes with 8 drawer box design, easy to take and put molds, save space.

Hose Crimping Tool

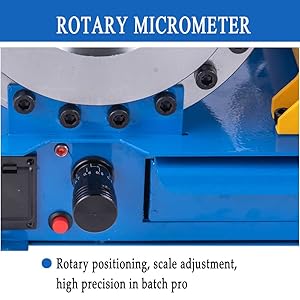

Rotational positioning, scale adjustment. Precision 0.04" ensure the machining accuracy.

Use of the micrometer:

The first time you use the machine, turn the micrometer clockwise to its loosest position (the bottom). Apply pressure to the machine and see how the hose resists; When you think it's well crimped, set the micrometer clockwise until the red light goes on. The position of the micrometer at this time is ideal for crimping that hose.

For the second time you use the machine with hoses of the same size, only apply pressure until the red light turns on: this is the marked and optimal position you adjusted before.

The main function of the micrometer is to remember and mark the position; You will have to adjust it repeatedly according to your hoses crimping experience, until you reach the ideal state you consider best.

1. There are mm and inch comparison tables in the product introduction, which need to be manually adjusted during actual use, and the micrometer will help you

2. When you first adjust the size you want, do not move the micrometer fine-tuning button, the next time you use the direct pressure tube, to reach the size you need, the red light will be lit.

3. All pipe presses are measured in millimeters, because millimeters are more accurate、

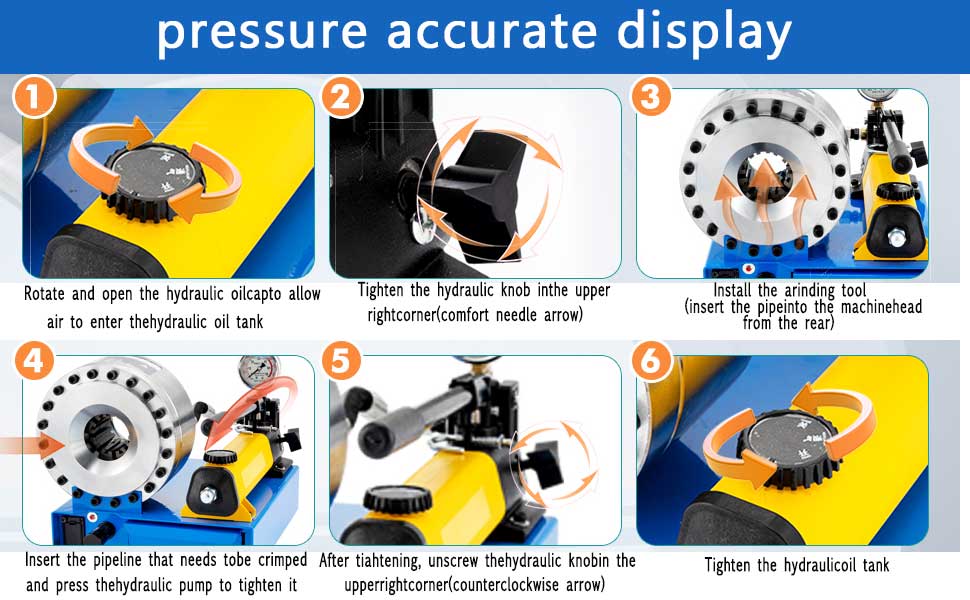

4. Due to transportation restrictions, the machine does not add hydraulic oil, please add 46# hydraulic oil before use. The hydraulic oil can also be discharged through the tubing

1. We equip the machine with an additional set of sealing rings, which can be replaced manually to ensure that the machine can be used for a longer time

2. We also offer other shapes and larger molds, higher pressure machines, and electric tube presses

3.If the claws of the machine cannot be separated, apply lubricating oil nearby and strike with a hammer, the later use will be more and more smooth

4.It’s normal for the dies to get stuck during the first installation—since the machine is brand new and unused.You can resolve this easily in two ways: gently tap the die with a small hammer to ensure smooth installation, or try reversing the die’s direction. After a few uses, the installation will become much easier. We’ve also included this solution of how to get dies on our store-page. Feel free to check it anytime, and don’t hesitate to get our help!

For small manual crimping machines, common n °10 motor oil is better than hydraulic oil. It has lower density than the hydraulic, cools down more easily, and when doing manual crimping it will be easier and less tired (you save energy).

If you use the machine for a long time, I recommend using only motor oil n °10 – it serves any make /model of this oil.

Hose Crimper is suitable for all kinds of mechanical high and low pressure oil pipe, gas pipe, water pipe, cable joint, automobile air conditioning pipe, automobile power steering pipe, oil pipe, gasoline supply oil pipe, as well as construction accessories, daily hot water pipe, widely used in vehicles, construction machinery, hydraulic machinery, welding and cutting equipment and other industries.

---

Product description

Hose Crimper is suitable for all kinds of mechanical high and low pressure oil pipe, gas pipe, water pipe, cable joint, automobile air conditioning pipe, automobile power steering pipe, oil pipe, gasoline supply oil pipe, as well as construction accessories, daily hot water pipe, widely used in vehicles, construction machinery, hydraulic machinery, welding and cutting equipment and other industries.
