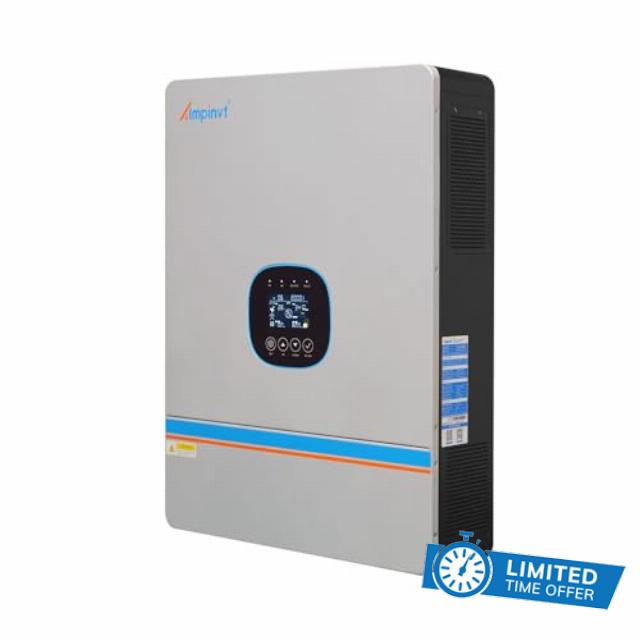

Ampinvt 10000W Hybrid Solar Inverter 48VDC to 120/240Vac, Built-in 2 MPPT Solar Controllers, MAX 200A Battery Charging,Split Phase Pure Sine Wave Inverter 10KW for Lead Acid and Lithium Battery

• This Pure Sine Wave Solar Inverter is a combination of an inverter, ac battery charger , MPPT solar charge controller and AC auto-transfer switch. Supports up to 6 inverters in parallel for a combined output of up to 60,000W. Parallel configuration enables two-phase or three-phase 208V output for larger systems and scalable commercial or industrial power applications.

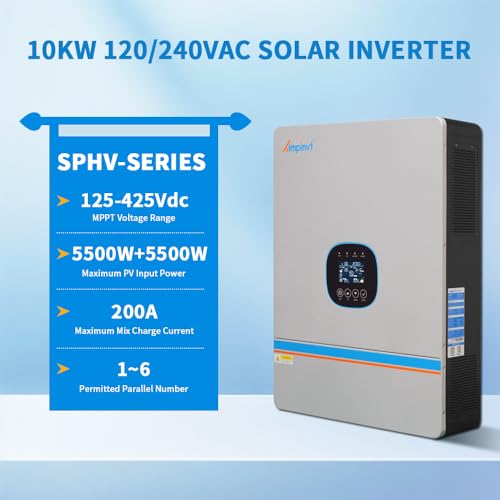

• 200A MPPT controller delivers up to 98% tracking efficiency and supports charging for 48V lead-acid (Seal, AGM, Gel, Flooded), lithium (LiFePO4) batteries. Max.PV Power：5500W+5500W, PV Input Voc:125-500V, Max PV Charging Current: 200A
• 3 Work Modes: PV load priority mode / Inverter priority mode / PV priority mode. 4 Charging Modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.

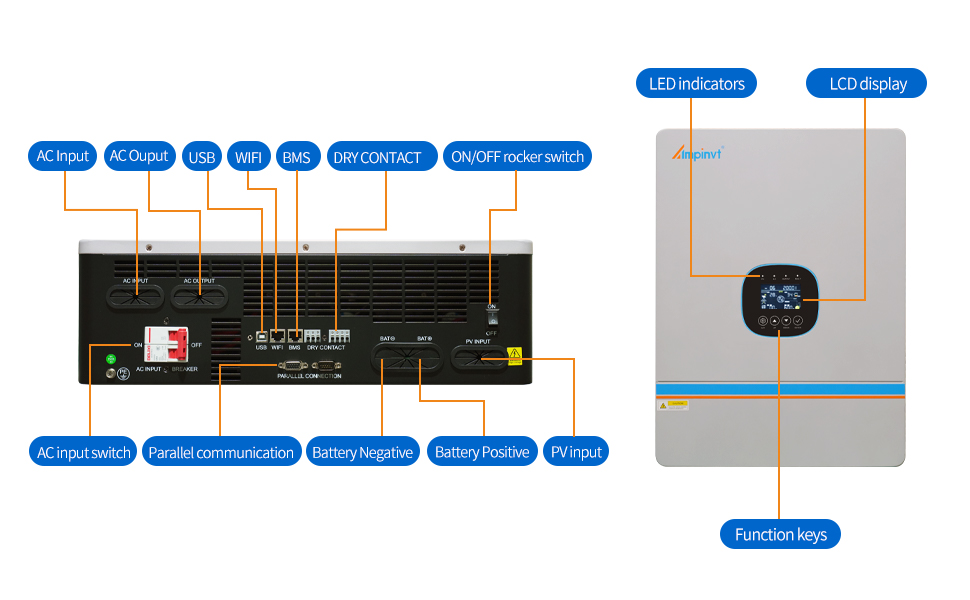

• Communication Ports (RS485/WIFI & USB): RS485/WIFI: Enables communication with monitoring hosts, lithium BMS, or mobile apps via optional modules for real-time data and parameter adjustment. USB: Connects to PC software for configuration; requires CH340T driver installation.

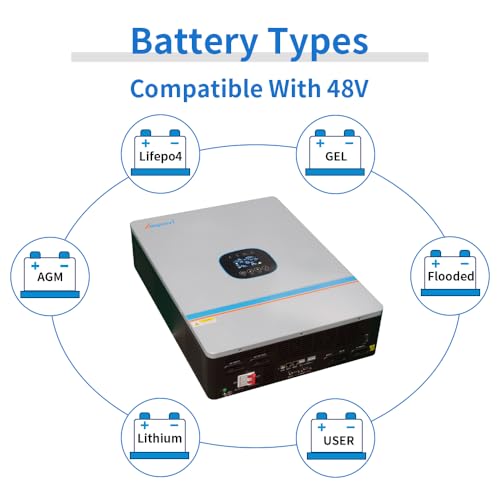

• Supports fast charging up to 200A for most battery types, including LiFePO4, lithium-ion, lead-acid, sealed, and user-defined batteries.
• Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection.

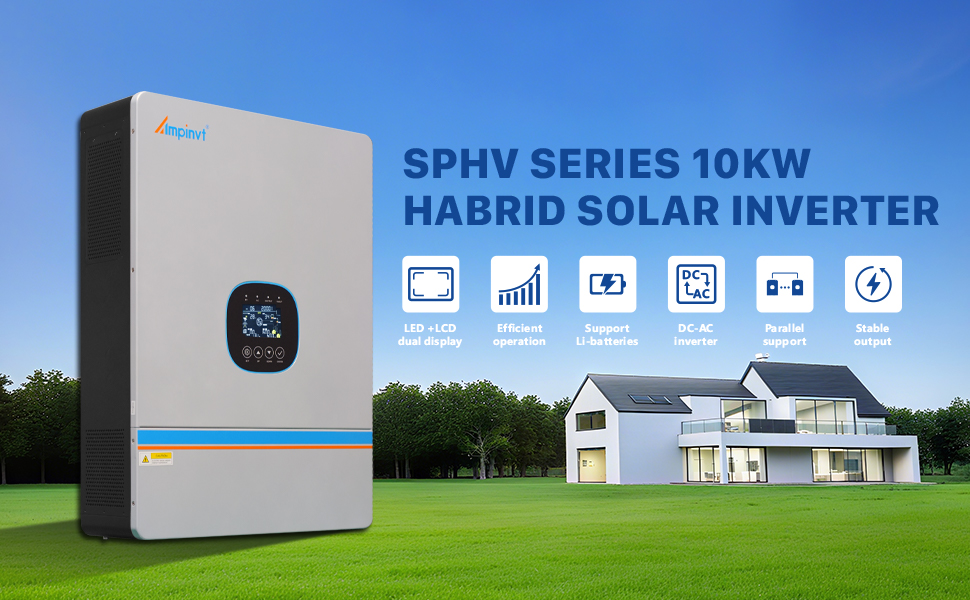

Ampinvt 10KW High Frequency Solar Inverter 48Vdc to 120/240Vac

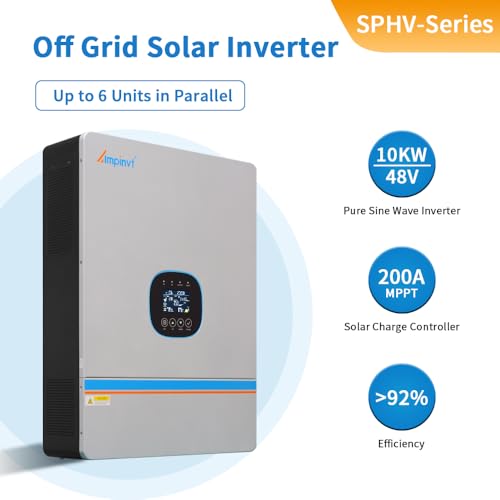

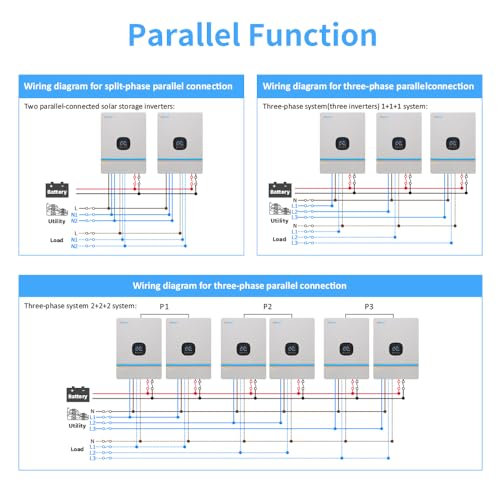

Parallel Connection Capacity Up to 6 Units

Flexible 120/240/208V Voltage Output

The system supports parallel expansion of up to six units, enabling single-phase, split-phase, or three-phase configurations. Except for single-phase mode, parallel connection supports both 120V/240V split-phase and 208V three-phase output. This versatility ensures reliable power delivery for residential, commercial, or industrial applications, offering efficient distribution, balanced loads, and broad compatibility with diverse electrical requirements.

ATTENTION:

• This solar inverter is able to charge the battery bank when AC power, solar power, or a generator are connected to the inverter.
• 10000 watt is continuous output power, peak output power is 20000W
• This inverter can ONLY work with 48V battery system.
• Inverter CAN support connect in parallel.
• Inverter MUST have a battery.

Note: Different types of loads have different starting impulse currents. Customers need to select the appropriate inverter model according to the actual equipment power, current, and load characteristics.

• What kind of the inverter is suitable for your appliances?
• Pls know that load is divided into resistive load and inductive load .If you need the inverter to run the resistive load (like laptop, TV, electric cooker ), please choose the inverter with continuous power higher than the appliance's rated power. And it is best to use 80% of the rated power. If you use microwaves, water pumps, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-10 times higher than your appliances.

–

Four Charging Modes:

1. Hybrid Charging: The solar energy will charge the battery preferentially, the utility will charge the battery at the same time when the solar energy is insufficient.

2. Only Solar Charging: The solar will be the only charger source not matter the utility is available or not.

3. PV Priority: Solar energy will charge battery as first priority. The utility will charge the batterywhen solar energy is not available.

4. Utility Priority: The utility will charge the battery preferentially, and the battery will be charged by solar only when the utility is invalid.

---
