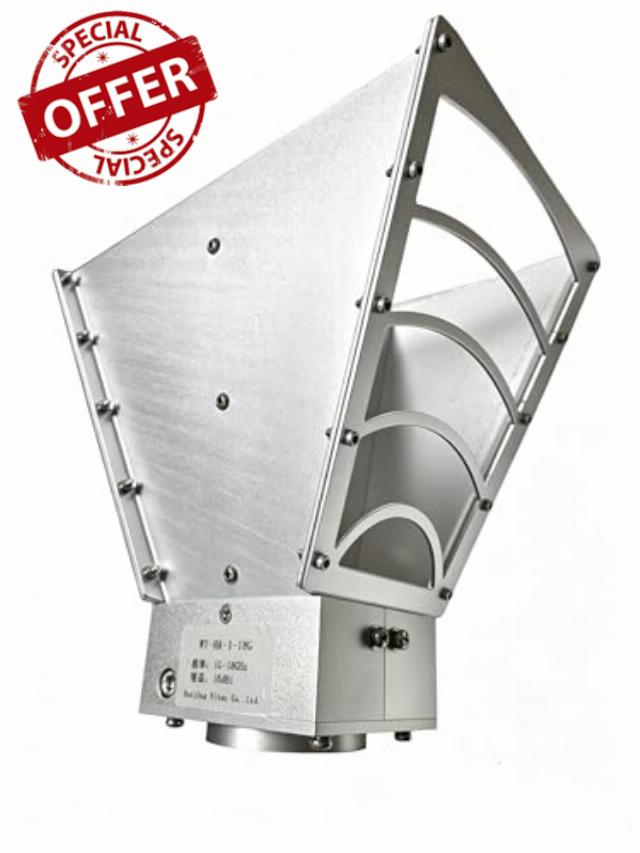

Ultra Wide Band Horn Antenna for Microwave Testing, 1-18GHz Frequency Range, for EMC/EMI Testing, UAV Detection & Lab Measurements, Signal Shielding, N-F Connecto

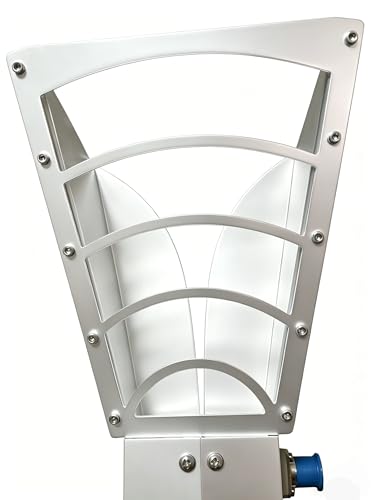

• Ultra-Wideband Laboratory Standard: This precision dual-ridge horn antenna operates across the entire 1 to 18 GHz (1000-18000MHz) spectrum, providing consistent gain from 6 to 16 dBi. It is an indispensable tool for accurate RF testing, wireless R&D, and antenna measurement in laboratory environments.

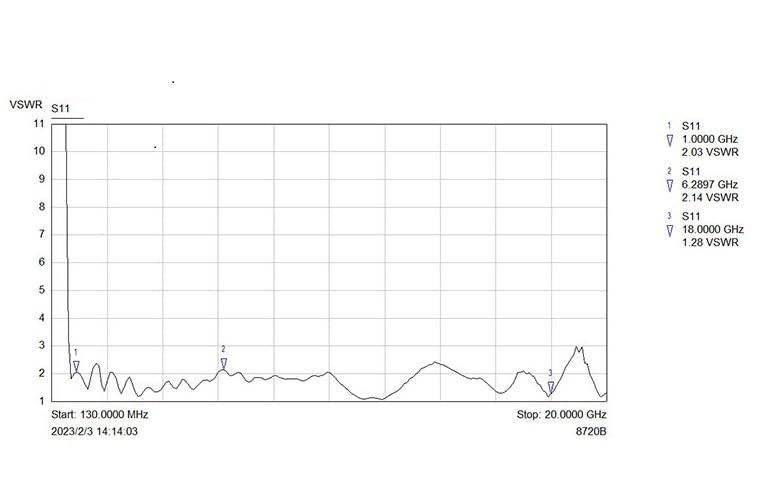

• Engineered for Precision Compliance Testing: Featuring a low VSWR (≤2.3, with measured chart provided) and defined beamwidth (H:57.6°/V:37.9°), it delivers reliable, repeatable results for critical EMC/EMI applications, including radiated emissions and immunity testing per standards like IEC/EN 61000-4-3.

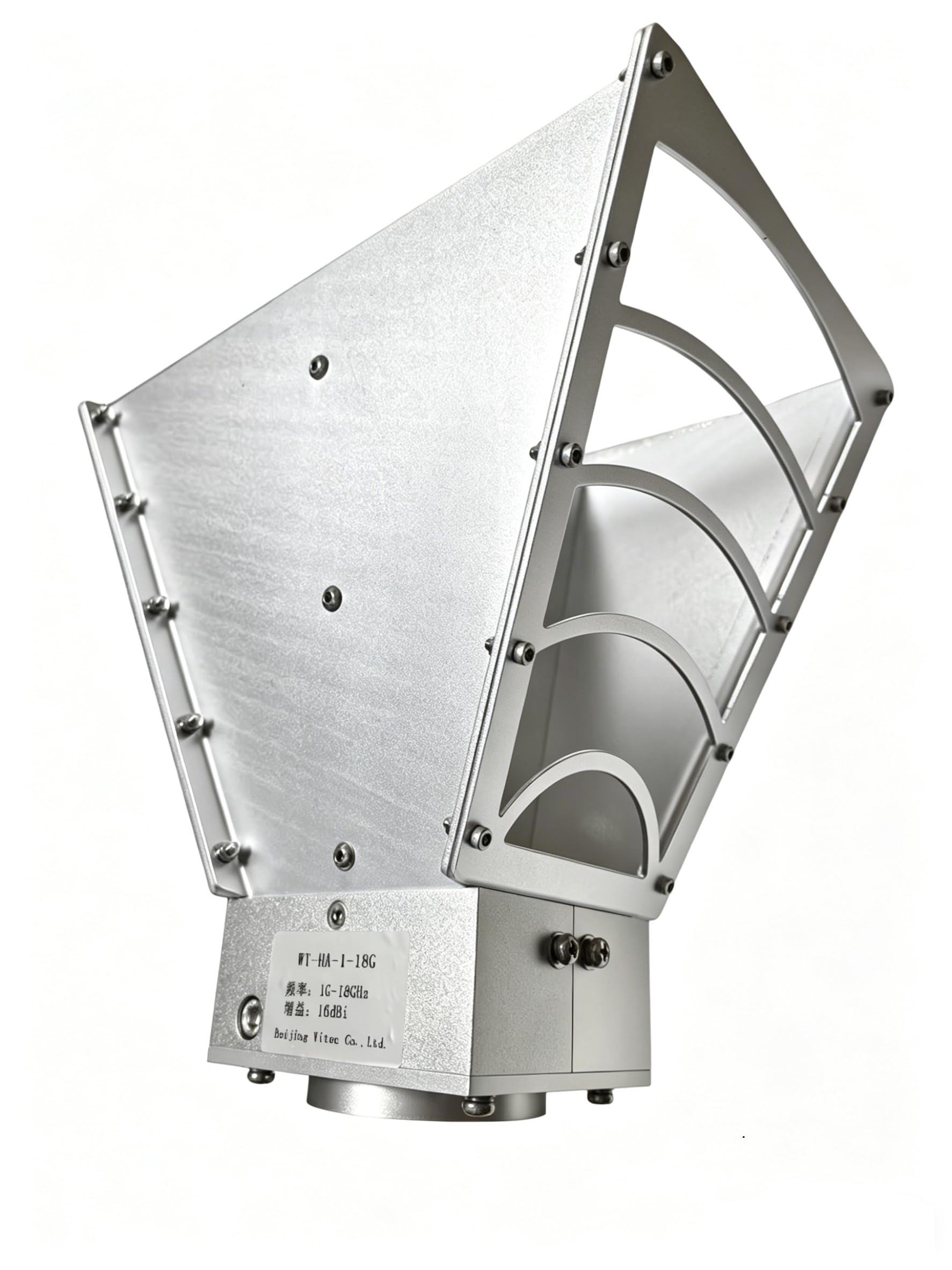

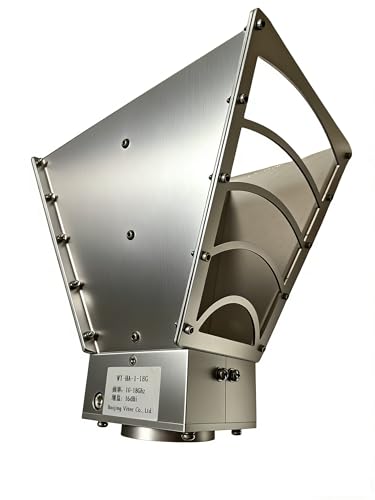

• Robust Design for Demanding Field Use: Built with a durable aluminum housing, it handles high power up to 100W and operates in extreme temperatures from -55°C to +75°C. This ruggedness makes it equally suitable for outdoor field applications like UAV (drone) signal detection, monitoring, and countermeasure systems.

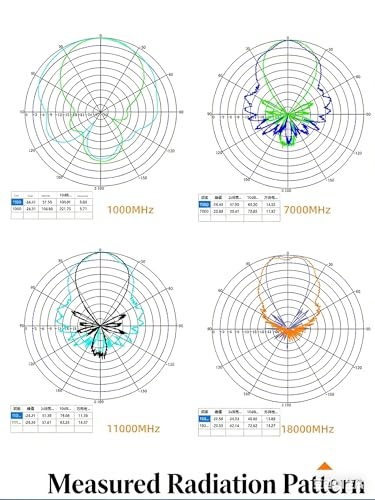

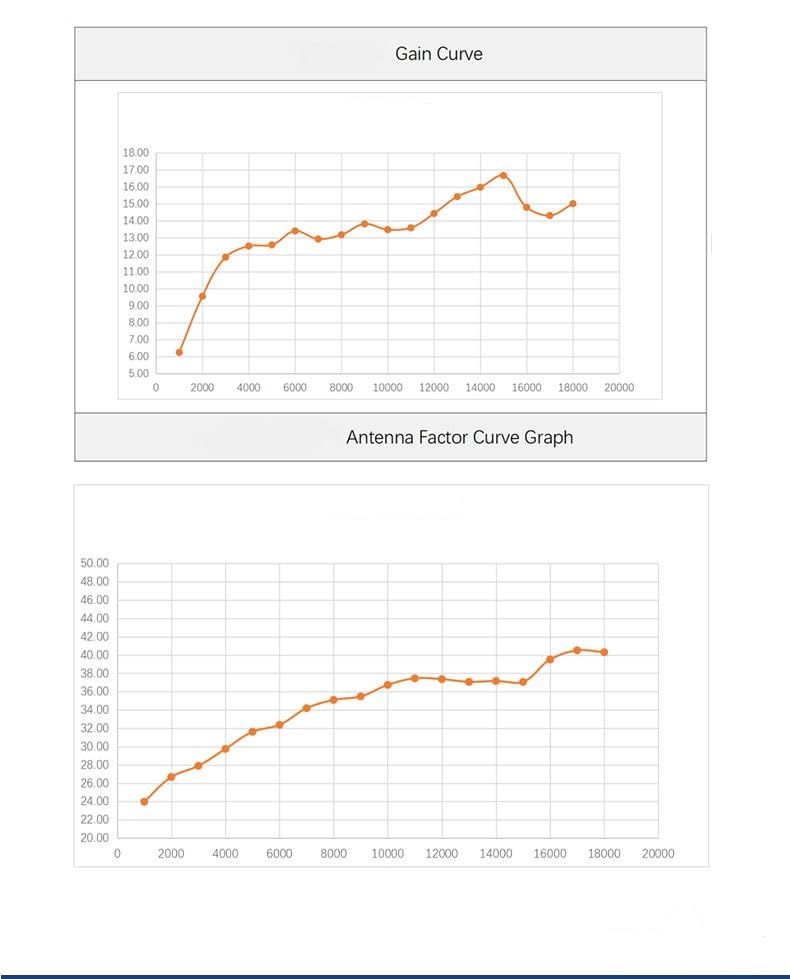

• Verified Real-World Performance: Each antenna is characterized with comprehensive measured data (VSWR, Radiation Patterns, Gain Curve), not just simulations. This data-backed transparency guarantees the performance you receive, ensuring confidence in your measurement accuracy.

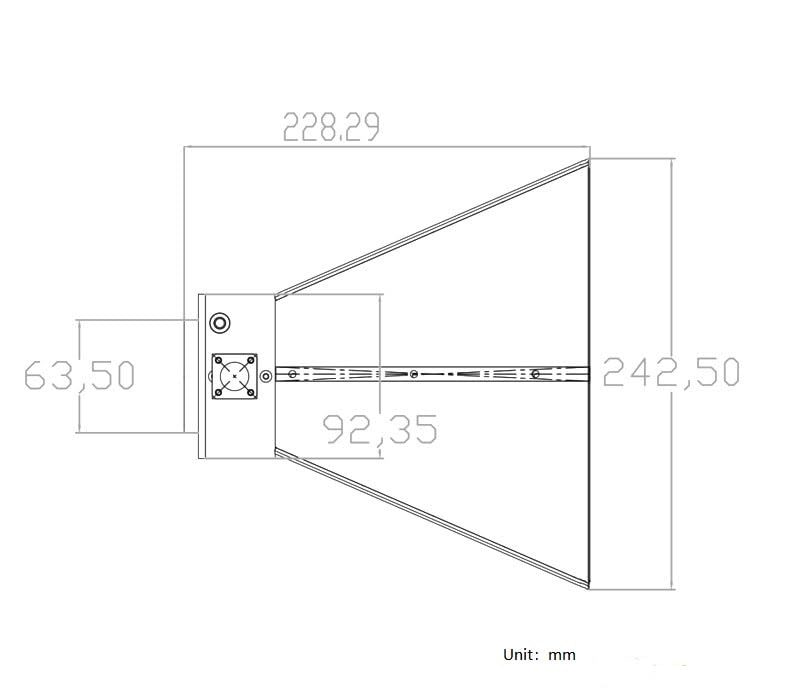

• Ready for Integration: Equipped with a standard 50-ohm N-Type Female connector for universal compatibility with test equipment. The compact design (228x244x160mm, 1.45kg) offers a perfect balance of performance and portability for benchtop or field setups.

The 1-18GHz horn antenna is a high-performance, broadband dual-ridge horn antenna designed for engineers and technicians who require reliable accuracy across a wide frequency range. From pre-compliance EMC testing to advanced signal intelligence tasks, this antenna is a versatile and robust solution for the most demanding professional applications. Key Applications: Electromagnetic Compatibility (EMC/EMI) Testing: Ideal for both radiated emissions measurements and radiated susceptibility (immunity) tests in certified labs or pre-compliance setups. RF Laboratory & R&D: Serves as a trusted standard gain antenna for calibrating test setups, measuring other antennas, and general wireless product development from 1 to 18 GHz. Signal Monitoring & UAV Countermeasures: Its wide bandwidth and stable gain make it effective for spectrum monitoring, signal analysis, and in systems designed for the detection and counteraction of unauthorized drones. Technical Specifications & Data-Backed Assurance: We provide full transparency with documented, real-world performance. This antenna is supplied with detailed graphical data including its Measured VSWR Chart, Measured Radiation Patterns, and Gain Curve, allowing for precise setup calibration and performance verification. Model: TypeA9-DMH-L1000H18000H16/3-MK Frequency: 1000 – 18000 MHz Gain: 6 – 16 dBi VSWR: ≤ 2.3 Beamwidth: Horizontal 57.6°, Vertical 37.9° Impedance: 50 Ω Max Power: 100 W Connector: N-Type Female Dimensions: 228 x 244 x 160 mm Weight: 1.45 kg Operating Temperature: -55°C to +75°C
