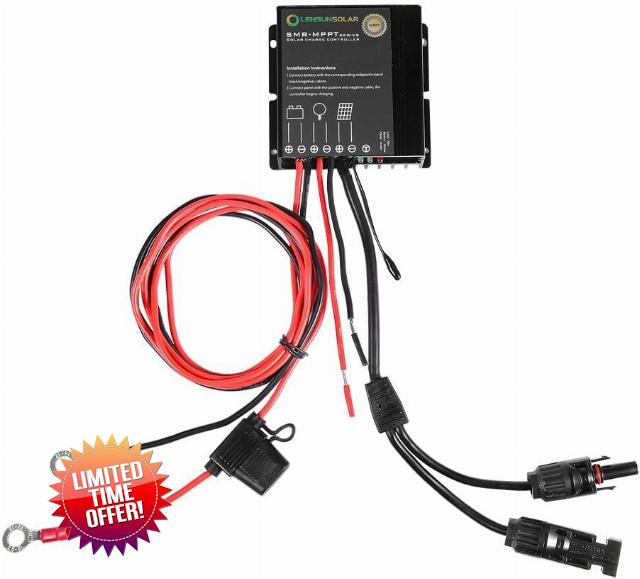

LensunSolar Waterproof 10A MPPT 12V Bluetooth Solar Charge
LensunSolar Waterproof 10A MPPT 12V Bluetooth Solar Charge Controller Regulator with Battery Alligator Clips and Standard Solar Connectors for Lithium LiFePO4 AGM Gel Lead-Acid Batteries 12 Volt Black

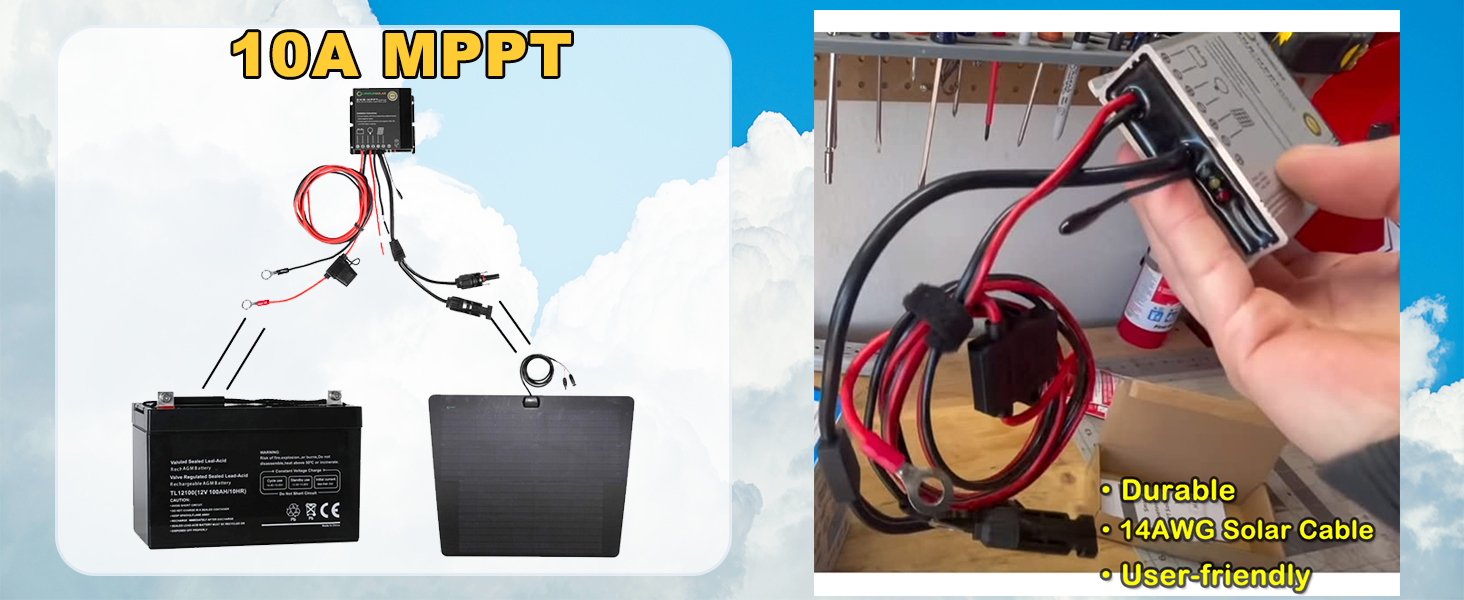

- 1. Accessories includes standard solar panel connector for solar panels; Anderson connector for pre-wired for RV; 20A standard fuse; alligator clamps for car battery or 12 volts lead acid battery.
- 2. Lithium, Liquid, Gel, Flooded and AGM battery for selection.
- 3. Waterproof design, suitable for indoor, outdoor, camping, boat, and RV use.
- 4. Innovative MPPT technology with High tracking efficiency up to 99.9% and peak Conversion efficiency of 97.5%. Four stages charge way: MPPT, boost, equalization, float.

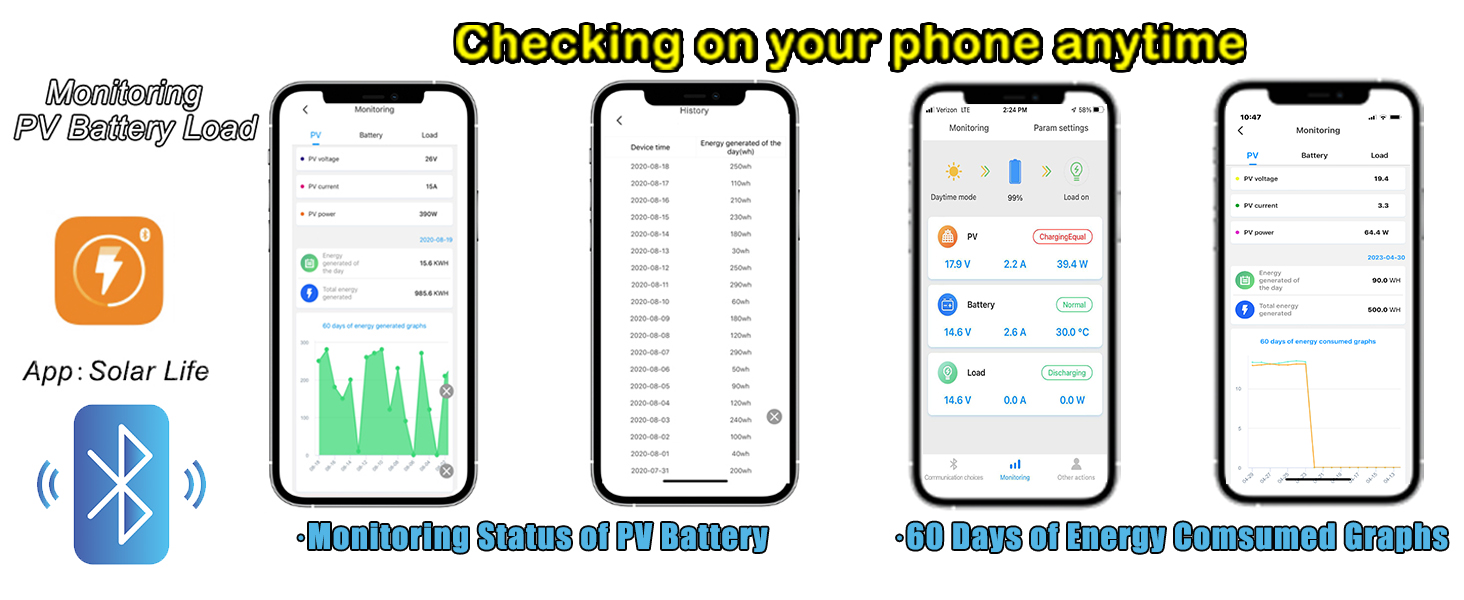

- 5. Bluetooth,Support mobile phone APP, realize wireless monitoring function of solar controller.
Specification
| Model | SMR1050-KT-BK |
| Battery Type | Gel, AGM, Liquid, Lithium, Flooded |
| System Voltage | 12V |
| Max Charging Current | 10A |
| Max Input Solar Panel | 130W |
| Max Volt on Bat. Terminal | 25V |
| Max volt on PV Terminal | 45V |
| Communication | Bluetooth |
| Self Consumption | 6mA |
| Charging Voltage Target | 10-17V(Programmable, Lithuim) |
| Charging Voltage Recovery | 9.2-16.8V(Programmable, Lithuim) |
| Low Voltage Disconnect | 10.8-11.8V; SOC1-5(Programmable, Liquid/GEL/AGM) 9-15V(Programmable, Lithuim) |
| Low Voltage Reconnect | 11.4-12.8V (Programmable, Liquid/GEL/AGM) 9.6-16V(Programmable, Lithuim) |
| Weight | 350g/0.8 lbs |

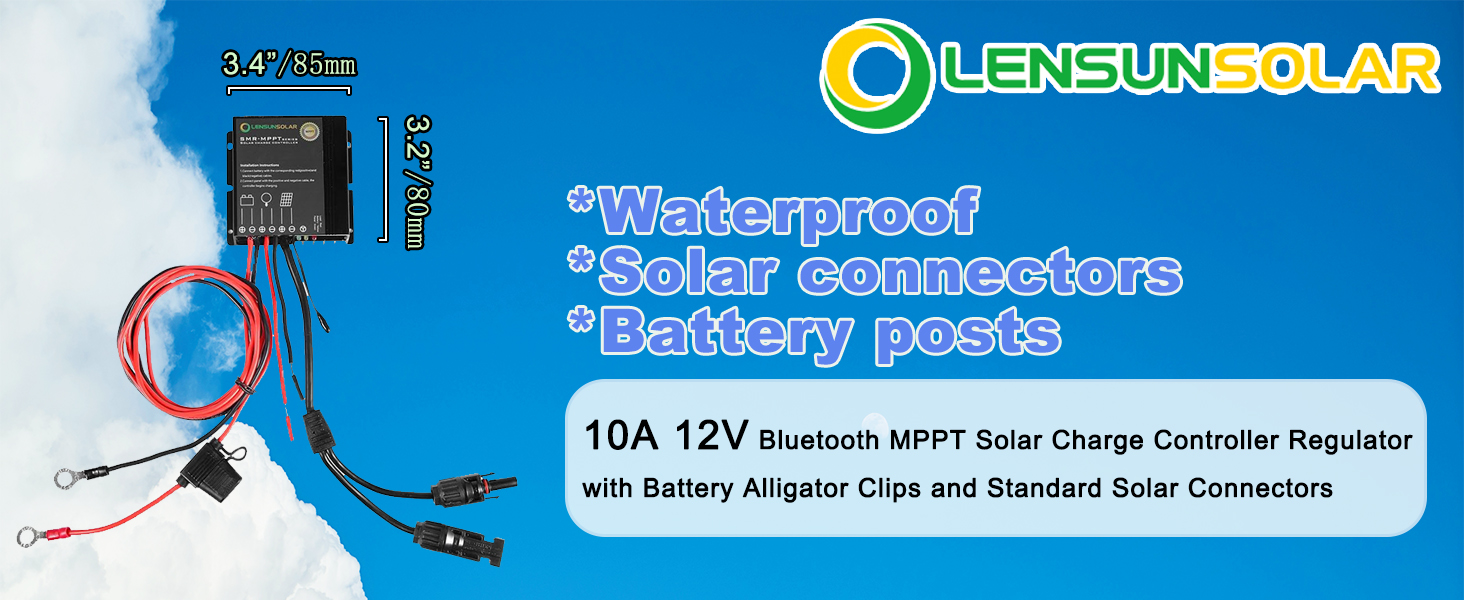

| Dimensions | 86x81x23mm/3.4×3.2×0.9 inch |
| Packing | 1 x LensunSolar 10A Waterproof Solar Controller |
Other Products
| Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart | ||||||
| Price | $79.00$79.00 | $249.00$249.00 | $115.00$115.00 | $79.00$79.00 | $69.00$69.00 | — |
| Open circuit voltage | – | 21.24V | 21.24V | 21.24V | 21.24V | 21.24V |
| Dimensions (unfolded) | 3.4×3.2×0.9 inch | 55.2 x 44.2 inch | 34 x14 inch | 23.6×13.8 inch | 18.5 x12 inch | 42 x 14 inch |
| Dimensions (folded) | – | 15x15x2.5inch | – | – | – | – |
| Net. Weight | 350g/0.8 lbs | 5.2 kgs/11.4 lbs | 1.2kgs/2.6lbs | 1kg/2.2lbs | 1.08kg/2.4lbs | 1.5kgs/3.3 lbs |
| Solar cell efficiency | – | 23.5% | 22.5% | 22.5% | 22.5% | 23.5% |
| SKU: | B0FND4Q8K7 |
| Weight: | 1 pounds |
| Dimensions: | 10 x 4 x 2 inches |
| Batteries Required: | No |
| Manufacture: | Lensunsolar |
Product description
Specification
| Model | SMR1050-KT-BK |
| Battery Type | Gel, AGM, Liquid, Lithium, Flooded |
| System Voltage | 12V |
| Max Charging Current | 10A |
| Max Input Solar Panel | 130W |
| Max Volt on Bat. Terminal | 25V |
| Max volt on PV Terminal | 45V |
| Communication | Bluetooth |
| Self Consumption | 6mA |
| Charging Voltage Target | 10-17V(Programmable, Lithuim) |
| Charging Voltage Recovery | 9.2-16.8V(Programmable, Lithuim) |
| Low Voltage Disconnect | 10.8-11.8V; SOC1-5(Programmable, Liquid/GEL/AGM) 9-15V(Programmable, Lithuim) |
| Low Voltage Reconnect | 11.4-12.8V (Programmable, Liquid/GEL/AGM) 9.6-16V(Programmable, Lithuim) |
| Weight | 350g/0.8 lbs |
| Dimensions | 86x81x23mm/3.4×3.2×0.9 inch |
| Packing | 1 x LensunSolar 10A Waterproof Solar Controller |
