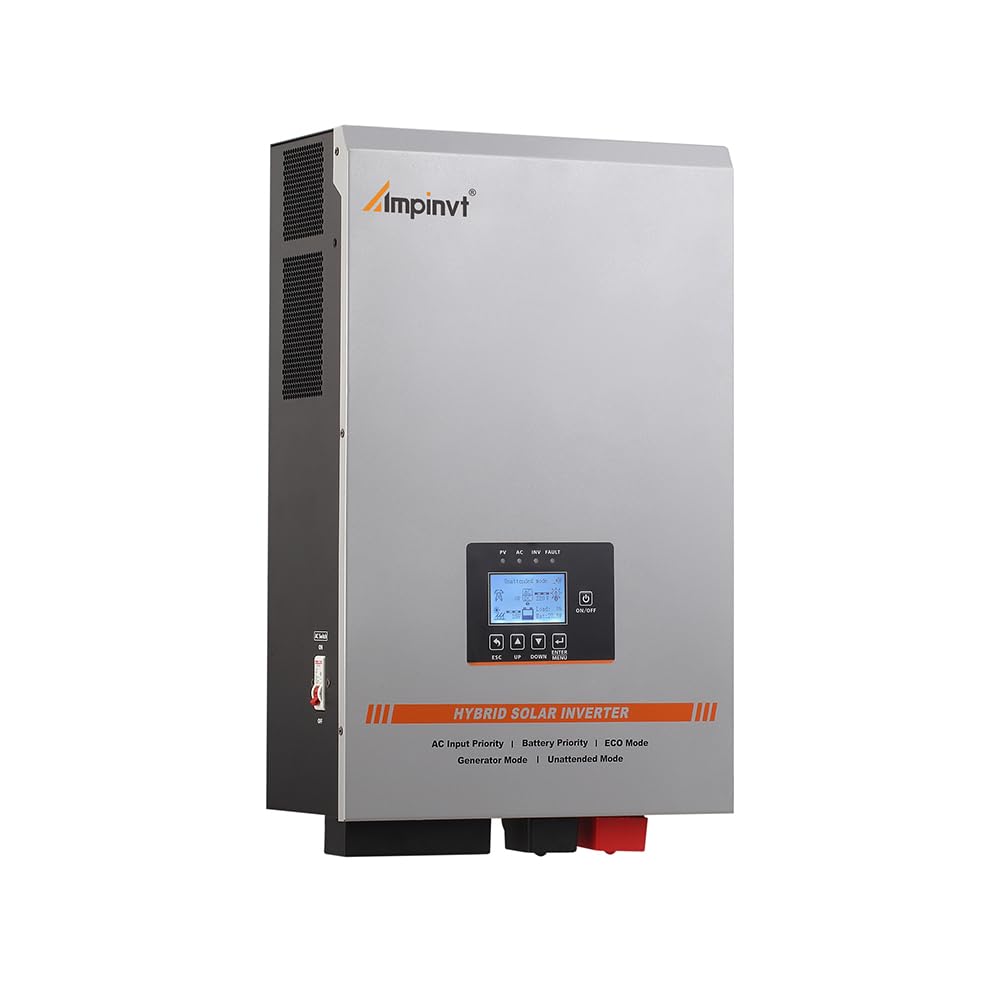

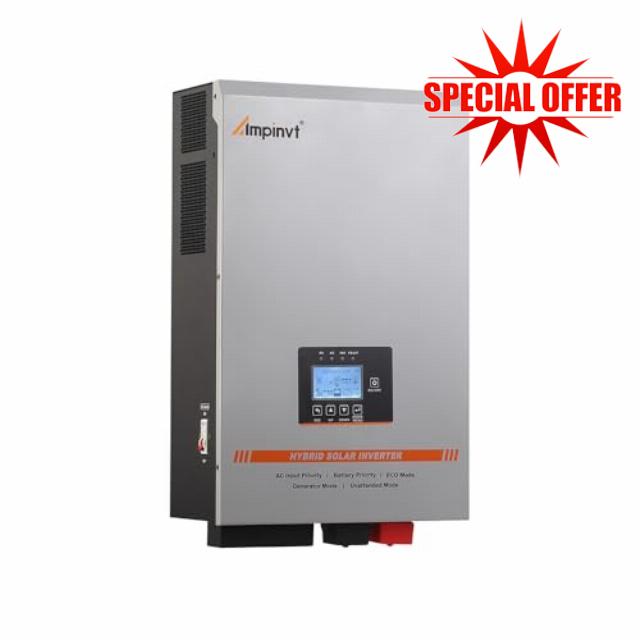

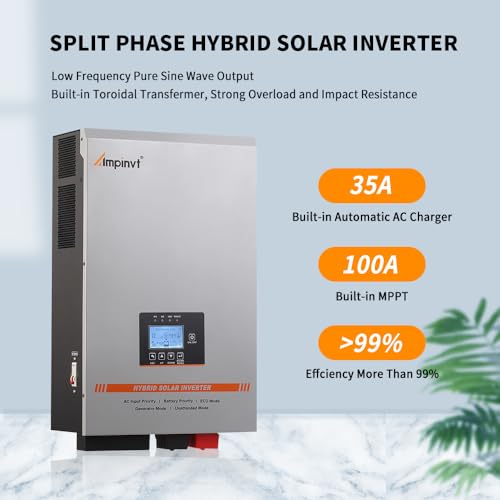

Ampinvt 6000W Solar Inverter 48V DC to 120V/240V AC Split Phase Output, Built-in 100A MPPT Solar Controller, Off Grid Low Frequency Pure sine Wave Inverter Charger, for Lead Acid Lithium Gel Battery

• This Pure Sine Wave Solar Inverter is a combination of an inverter, ac battery charger , MPPT solar charge controller and AC auto-transfer switch. High transfer efficiency is above 85%, built-in AVR stabilizer, complete isolate surge interference of input & output's voltage and current, Impact resistance super load capacity, continuous stable pure sine wave output. Available at 240Vac (HOT1+HOT2) and 120/240Vac output at the same time.
• The max charge current can be adjusted from 0-35A, Setting the value to 0A will turn off the charging function.
• Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection. 110%-120% of the output was maintained for 30s, then the output turned to bypass, more than 160% maintained the 300ms
• MPPT controller with high tracking efficiency of up to 98% can charge 48V lead-acid batteries (Seal, AGM, Gel, Flooded), LiFePO4 batteries and lithium batteries(User Mode) from solar panels, the grid, or a generator. PV Array Power is 5600W and the MAX PV input voltage is 150V DC
• Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection. 110%-120% of the output was maintained for 30s, then the output turned to bypass, more than 160% maintained the 300ms.

›

Ampinvt 6000W Low Frequency Solar Inverter 48VDC TO 120V/240VAC

Rated Power:	6000W
Peak Power:	18000W
AC Input :	240VAC ± 25% 60hz ±5hz
AC Output：	120V/240V ±3% 60hz±0.5hz
Wave Form:	Pure Sine Wave
Battery Voltage:	48VDC
Battery Type:	Gel / SLA / Water / Lithium(LifePo4) battery
DC Charge Voltage:	40-64VDC
Overcharge Protection:	≥64VDC
Max AC Charge Current:	35A ， 0%-100% can be adjusted

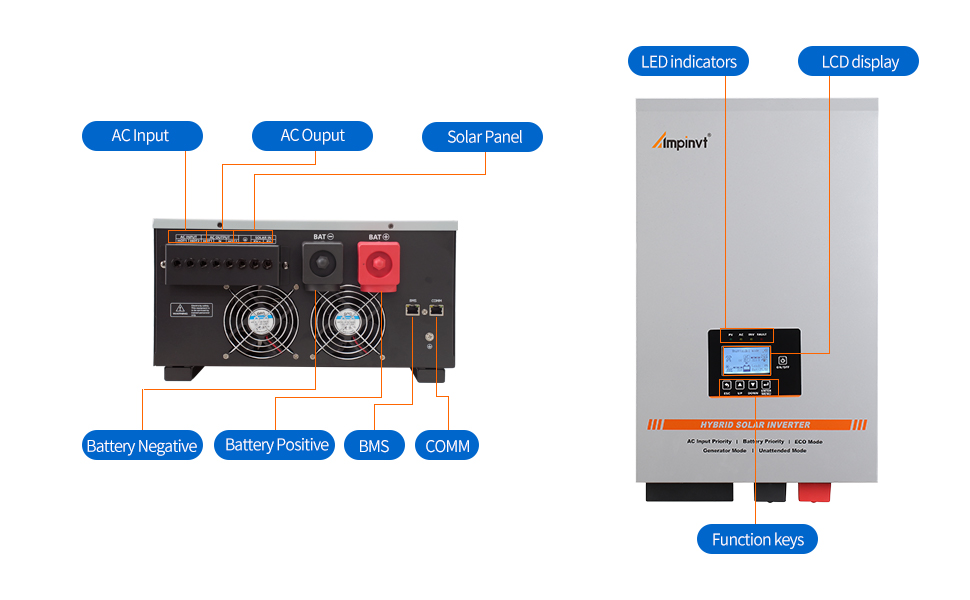

Communication Port:	RS485, available for wifi box & external control screen (need to buy extra)
Max PV Array Voltage :	150VDC
Max PV Array Power :	5600W
Max Solar Charge Current :	100A
Operating Temperature :	0 ~ 60℃

240V AC INPUT & SOLAR INPUT

• The purpose of utility grid , generator & solar panel is to charge battery.
• HOT1+HOT2+N+G=240Vac
• AC Input Voltage Range: 186Vac~294Vac
• Frequency: 50Hz / 60Hz(Auto detection)
• Max PV Array Voltage : 150VDC
• Max PV Array Power : 5600W

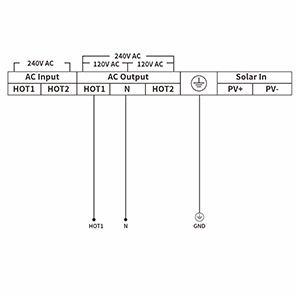

120V AC OUTPUT

• Continuous Output Power: 3000 Watts
• Surge Rating: 9000 Watts
• AC Output: Pure Sine 120V (50Hz/60Hz)
• HOT1+N+G=120Vac ( 3000W)
• HOT2+N+G=120Vac ( 3000W)
• Transfer Efficiency: ≥85%
• Transfer Time: ≤4ms

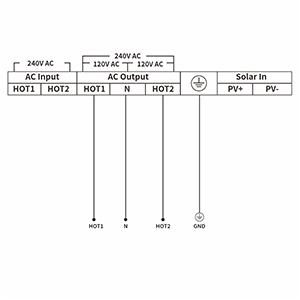

240V AC OUTPUT

• Continuous Output Power: 6000 Watts
• Surge Rating: 18000 Watts
• AC Output: Pure Sine 240V (50Hz/60Hz)
• HOT1+HOT2+N+G=240Vac ( 6000W)
• Transfer Efficiency: ≥85%
• Transfer Time: ≤4ms

ATTENTION:

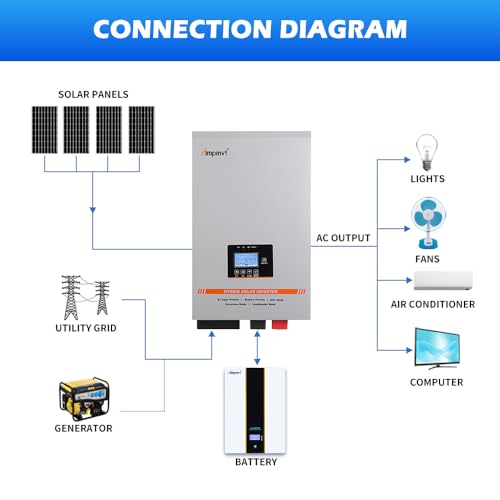

• This solar inverter is able to charge the battery bank when AC power, solar power, or a generator are connected to the inverter.
• 6000 watt is continuous output power, peak output power is 18000W
• This inverter can ONLY work with 48V battery system.
• Inverter CAN NOT support connect in parallel.
• Inverter MUST have a battery, and the battery MUST be connected first

Note: Different types of loads have different starting impulse currents. Customers need to select the appropriate inverter model according to the actual equipment power, current, and load characteristics.

• What kind of the inverter is suitable for your appliances?
• Pls know that load is divided into resistive load and inductive load .If you need the inverter to run the resistive load (like laptop, TV, electric cooker ), please choose the inverter with continuous power higher than the appliance's rated power. And it is best to use 80% of the rated power. If you use microwaves, water pumps, air conditioners and other appliances with motors or compressors ,please choose the inverter whose continuous power is 3-10 times higher than your appliances.

–

Five Woking Model:

1. AC/Line priority mode — always use ac power as priority input, provide ac output, and automatically charge the battery.

2. Battery priority mode — Priority should be given to battery power supply. After low voltage protection, the battery will be transferred to market power supply. When the battery is full, the battery will be transferred back to battery power.

3. ECO Mode—Load < 10% automatic sleep and stop output, load > 10% automatic boot back to normal inversion.

4. Generator mode — use unstable generator 240V to generate power, access the inverter AC input, through the inverter AVR regulator, automatic matching 60HZ municipal frequency, output voltage regulator in the normal operating range.

5. Unattended Mode—When the battery is low voltage, the inverter goes into standby state(Power saving state). When the battery restores the voltage value set by yourself (such as solar charging), the inverter will restore the normal output of the inverter, and realize unattended full automatic operation!

PriceBattery System VoltageRated PowerAC InputAC OutputLCD DisplayRS485Package DimensionWeight

	Add to Cart	Add to Cart
$595.00$595.00	$875.00$875.00
48V	48V
3500W	6000W
120V±3%	240V±3%
120V±5%	120V/240V±5%
✓	✓
✓	✓

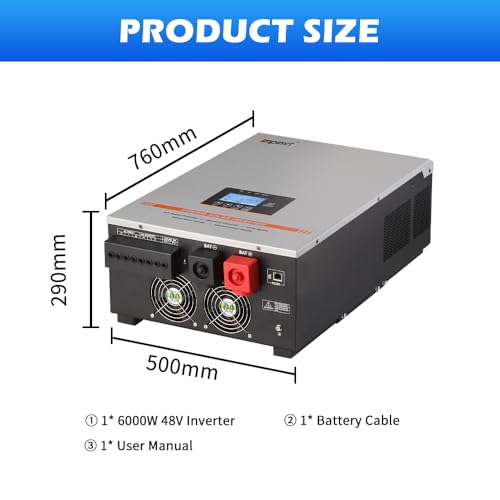

68*44.5*30cm	69.7*48.5*27.5 cm
25.8kg	38 kg
