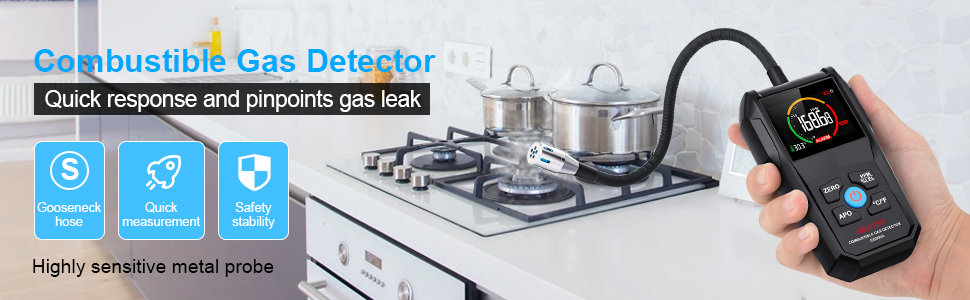

Gas Leak Detector, MESTEK Natural Propane Gas Sniffer Combustible Gas Leak Detector with 50-50000PPM 100% LEL, 2.6'' Color LCD Display,Temperature Measure, 12″ Flexible Probe,High Sensitivity

• ✅【Portable Gas Leak Detector】50–50000 PMM or 1%-100% LEL alarm range. Detects a large number of flammable gases and explosive gas leaks, like methane, natural gas, propane, co, sewer gas, ethanol, acetone, acetylene, alcohol, benzene, butane, ethanol, ethylene, oxides, hexane, hydrogen and more. You can use it in your house or your RV to pinpoint the precise source of a potential gas leak, reduce the risk of gas explosion and protect your family's life and property safety
• ✅【Audible and Visual Alarms】 When the measurement is greater than 10000 PPM or greater than 20% LEL,the gas detector will emit a continuous beep and the screen will also display ”HIGH” to alert the measurer.it can be used by homeowners, professionals, or real estate agents
• ✅【High Sensitivity & Quick Response】The combustible gas detector is equipped with flexible probe & high-precision sensor , ±500PPM ultra-high sensitivity detection, 2 seconds ultra-fast response speed, automatic calibration within 30 seconds of booting, 360° ultra-flexible detection, 11-Inch flexible gooseneck expands sensor's reach, Allow users detect gas leaks in most hard-to-reach places quickly and easily
• ✅【2.6" HD VA Reverse Color Screen】The MESTEK natural gas leak detector adopts a large 2.6" VA reverse color screen, ultra-clear digital and analog dual display, so that you feel much safer when know the exact gas concentration in the air of your home at all times
• ✅【Easy to Use】The natural gas detector has a simple and compact design with 5 individually controlled buttons for easy portability and ease of use, with backlight screen, temperature measure C/°F, 10 minutes automatic shutdown function More energy-saving and environmental protection.(3pcs AAA batteries included) The MESTEK gas detector provides 3 years after-sale service and technical support, 7/24 customer service

Gas leak detection CGD02A can accurately detect the concentration of various combustible gases such as methane, ethane, propane, butane, ethanol, acetaldehyde, hydrogen, etc., to ensure the correct installation, inspection and maintenance of gas pipelines, and to quickly and accurately locate the combustible gas leak point Ideal Tool of. Verify that a leak has occurred by running the sensor probe along the gas line, fuel line, or fittings near gas odors. Track the location of fuel leaks on your lawn mower or car. If a gas leak is detected, the alarm will beep and the screen will indicate accordingly. No need to pay for a technician's diagnosis when you can use this MESTEK combustible gas detector to spot gas leaks at any time.

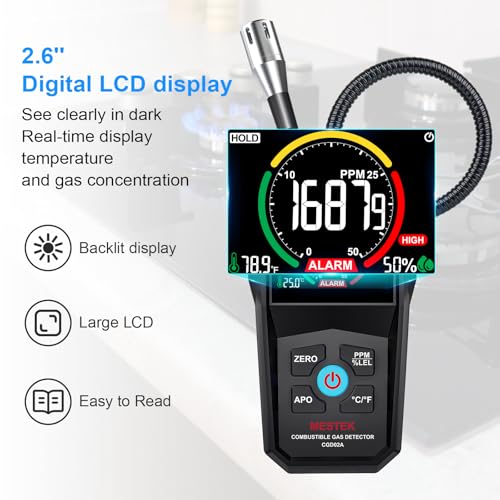

◇ LCD color display

The display is concise and clear, and it is clear at a glance. It can accurately display the measured value, and the color ring simulates the gas concentration. a key switching between PPM and LEL expression modes. The ambient temperature CF display is switched.

◇ Unique appearance design

Bright yellow model, and sturdy black plastic soft case, double body protection. The model conforms to the ergonomic design of the human hand, which is convenient for a hand operation. Pursue better appearance and ease of use while meeting your measurement needs.

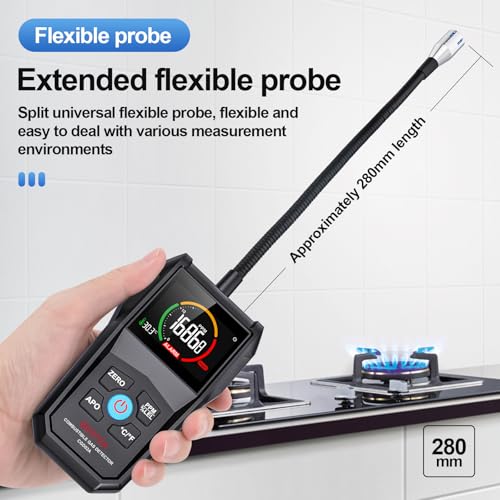

◇ Flexible detection

The 27 cm (0.89 ft) flexible pipe probe can detect leaks in difficult-to-reach restricted areas. The carbon tube can be adjusted 360°, and the ultra-small probe diameter of 1.58 cm can be extended into the small hole space for measurement.

◇ Quick response and reliable test results

The probe with six-hole air duct design can detect even a small amount of gas in a few seconds. While the measurement range is enlarged, the accuracy of smaller measurements is ensured.

◇ Small and lightweight

Length*width*height: 130*73*33mm. weight:270g. Palm size. The shape conforms to human manual mechanics and is suitable for a hand grasping. With a cloth bag, it is easy to carry to different places of use.

MESTEK has always been committed to providing customers with high-quality and professional products, pursuing more stable product performance, simpler operation and richer functions.

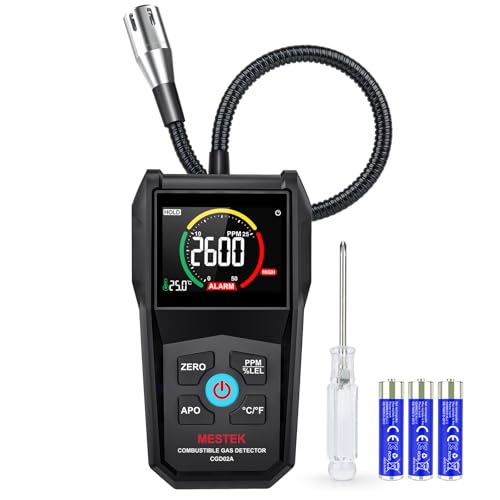

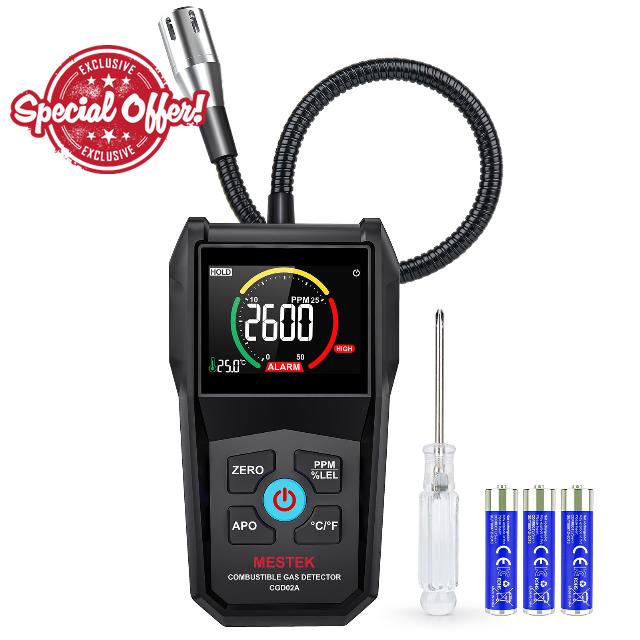

• 1*Combustible gas detector
• 1*Product Manual
• 1*cloth storage bag
• 2 *3 pcs AAA batteries
• 1* screwdriver

High quality gas leak detector

Detect gas leaks at any time & provide protection for family safety

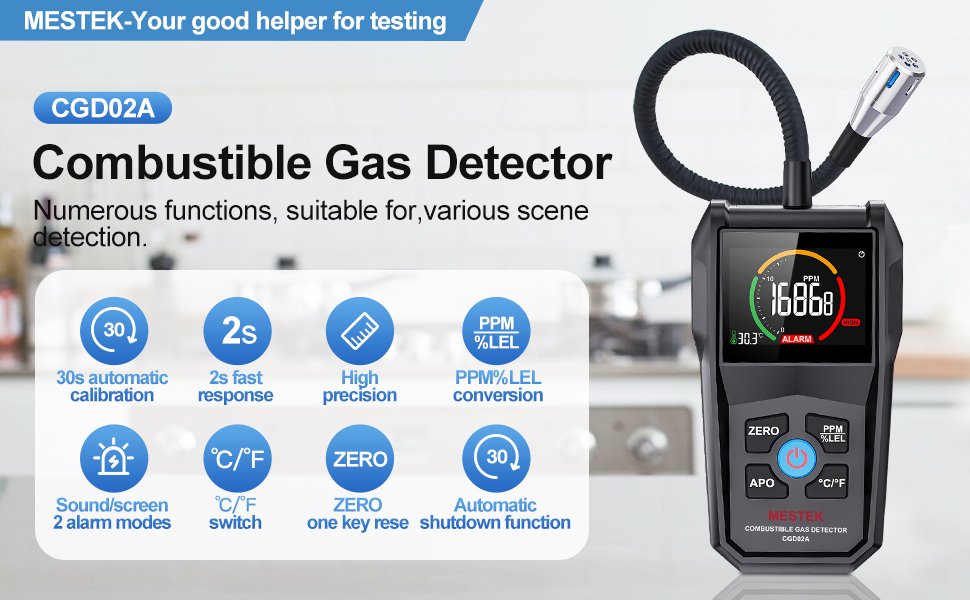

CGD02A combustible gas detector can provide simple and quick measurement for home and work to determine whether there is flammable gas. The detector is an ideal detection instrument for gas pipeline leak detection, household gas prevention, petroleum and natural gas mining, tunnel mine operations, chemical industry, metallurgy, refining, biochemical medicine and other industries

• Gas measurement range: 50-50000PPM / 1-100%LEL (Based on CH4)
• Alarm concentration value: 12500PPM/25%LEL
• Calibration mode: Automatic calibration after starting up for 30 seconds Response speed: 2 seconds
• Preheating time: 30 seconds
• Automatic shut-down: 10 minutes
• Battery power supply: 1.5V*3 AAA batteries (included)
• Audible Alert: Speaker/Screen

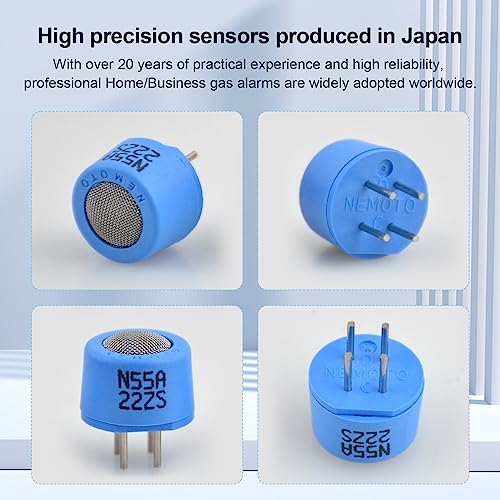

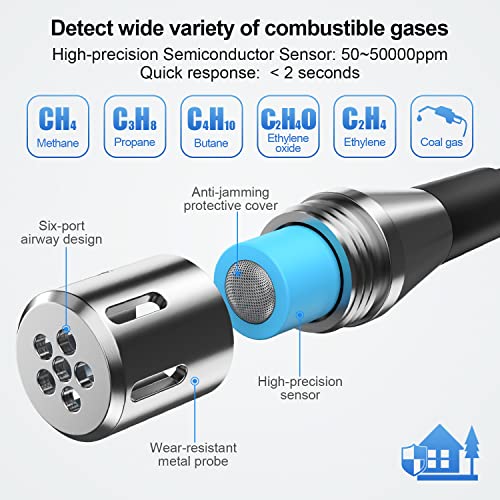

High-precision Semiconductor Sensor

Metal wear-resistant probe | Six-hole air duct design I anti-interference gas filter cover. The sensor is highly sensitive and quick response

PPM/%LEL Unit Switch

Very user-friendly function, according to the habits of different people, choose PPM or LEL measurement and counting method independently

Reset Button

Short press the (ZERO) button to automatically clear the countdown for 5 seconds. Recalibrate and continuously measure

APO Automatic Shutdown

It will automatically shut down if there is no operation within 10 minutes after it is turned on. The APO function can be selectively turned on according to work requirements

Detection Principle

Move the probe of the Gas Leak Detector slowly to a position where there may be a gas leak. If the detected gas leak value is above 25% LEL(1250 PPM), the instrument will give an alarm, and stop the alarm when the detected value drops to 25% LEL(1250 PPM)

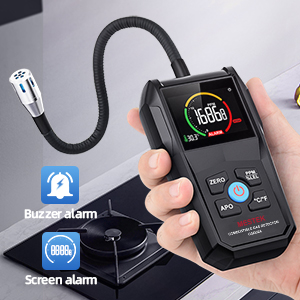

Dual Alarm Mode

When the measured value exceeds the threshold, the instrument will emit a buzzer alarm and the “HIGH ALARM” alarm will be displayed on the screen

Common Use Environment

Paint spray booths, liquefied gas stations, restaurants, chemical plants, boiler rooms, natural gas pipeline networks, wiring/connections in the area around gas grills, gas heating and pipelines for private houses

Reference value

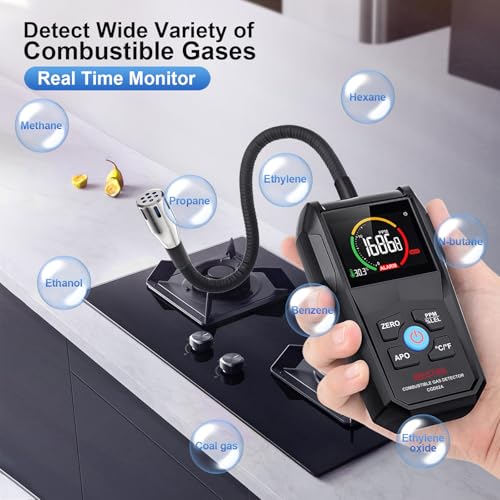

Detectable gas types

Natural gas, coal gas, liquefied petroleum gas, ethanol, methanol, methane, ethane, propane, butane, ethanol, acetaldehyde

The instrument starts to enter the automatic calibration mode and counts down for 30 seconds. In the calibration mode, the instrument can only be placed in a normal gas environment or away from a gas leakage environment, otherwise it will affect the measured value.

Precautions

The metal detection protective net of the instrument must be kept clean and dry. If there is contamination, the protective net should be twisted off and cleaned immediately, otherwise the measurement results may be affected.

The instrument is forbidden to be used in an environment containing water vapor, acid gas, alkaline gas, strong oxidizing gas, and dust.

---

Product description

Reference value

Accuracy	<±%5LEL, <±500PPM
Gas resolution	1%LEL/1PPM
Detection flow	1L/min
Sampling method	Diffusion
Working temperature	0-50°C
Working humidity	0-70%RH
Ambient temperature range	0~50°C/32~122°F(±2°C/4°F)
Working current	190mA
Materials	ABS
Size	130*73*33mm

Detectable gas types

Natural gas, coal gas, liquefied petroleum gas, ethanol, methanol, methane, ethane, propane, butane, ethanol, acetaldehyde

The instrument starts to enter the automatic calibration mode and counts down for 30 seconds. In the calibration mode, the instrument can only be placed in a normal gas environment or away from a gas leakage environment, otherwise it will affect the measured value.

Precautions

The metal detection protective net of the instrument must be kept clean and dry. If there is contamination, the protective net should be twisted off and cleaned immediately, otherwise the measurement results may be affected.

The instrument is forbidden to be used in an environment containing water vapor, acid gas, alkaline gas, strong oxidizing gas, and dust.
