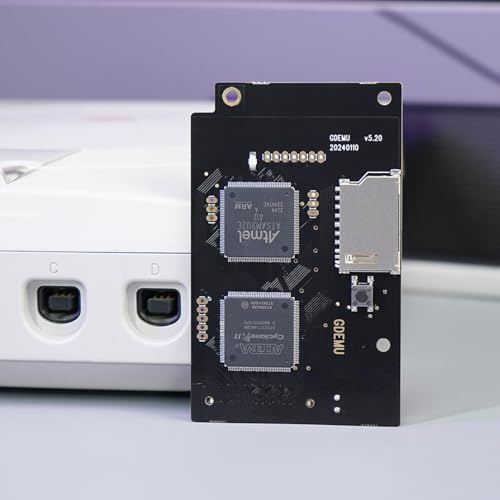

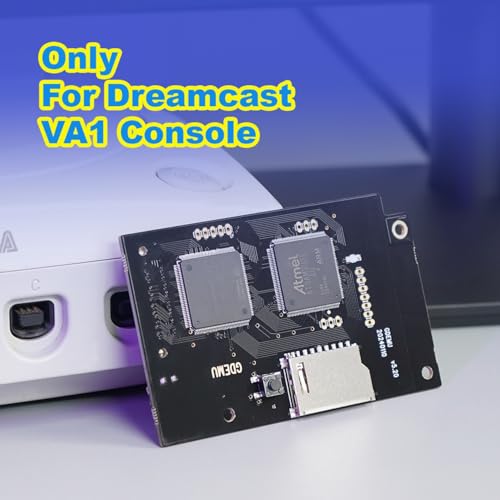

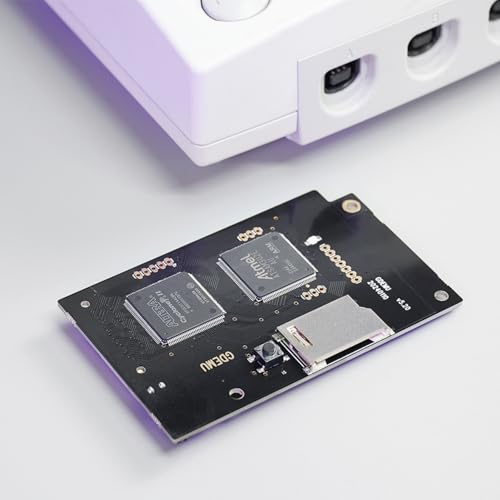

GDEMU V5.20b Optical Drive Simulation Board, Repair Part Optical Drive for Game Console VA1 Host, for SEGA Dreamcast DC VA1 Console SD Extension (with 32GB Card)

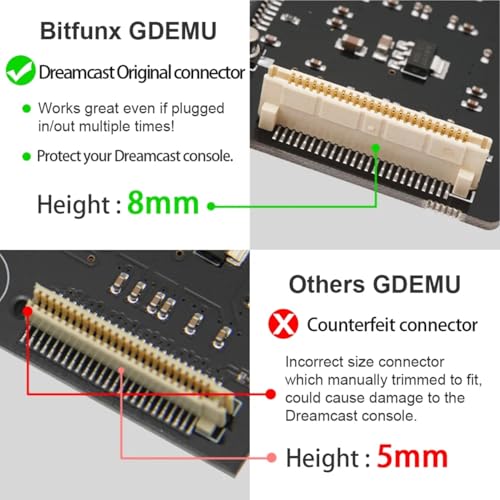

• Only suitable for VA1 motherboard DC game machine. Using original connector, won't damage the console. White Interface Height of GDEMU is about 8mm/0.31in.
• Upgrade: Replace the memory card holder with a full metal card clip, which makes reading memory cards more stable and supports memory cards up to 512 GB.
• The GDEMU (v5.20.5b) optical drive simulation board, get rid of the optical drive sawing sound, reading speed for DC consoles board.

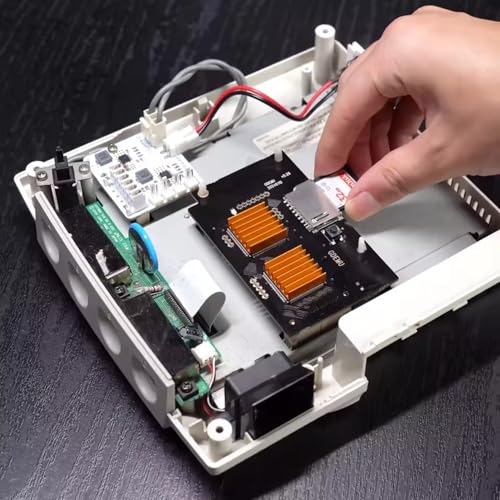

• Replacement part for your faulty optical drive emulation board. Easy to installation, no need to welding and to modification to the machine board.

With advanced equipment and an experienced R&D engineering team, we are committed to the reform and innovation of electronic products.

Our products are widely accepted by clients from more than 20 countries all over the world.

• 1 x Optical Drive Simulation Board V5.20b
• 2 x Heat Sink
• 3 x Fixer
• 1 x for GDEMU Board Mounting Frame
• 1 x Storage Card Extension Cable
• 1 x Drive Tray Insert
• 1 x Screw Package
• 1 x Button

Why Choose BITFUNX GDEMU V5.20b Optical Drive Simulation Board?

Item Type: Optical Drive Simulation Board

Material: PCB

Color: Black

Scope of Application: Only suitable for VA1 motherboard DC game machine, otherwise will damage GDEMU.

Simulation Board Version: V5.20b (5.20.5)

Base Connector Height: Approx. 8mm/0.31in

Applicable Products: For VA1 Game Console (Expansion Adapter for GDEMU) for GDEMU V5.20b

Upgrade: Changed Storage Card Holder, Full Metal Card Clip, Read Storage Card More Stable.

• Only suitable for VA1 motherboard DC game machine. Using original connector, won't damage the console. White Interface Height of GDEMU is about 8mm/0.31in.
• Upgrade: Replace the memory card holder with a full metal card clip, which makes reading memory cards more stable and supports memory cards up to 512 GB.
• The GDEMU (v5.20.5b) optical drive simulation board, get rid of the optical drive sawing sound, reading speed for DC consoles board.
• Replacement part for your faulty optical drive emulation board. Easy to installation, no need to welding and to modification to the machine board.

• Spec:

Item Type: Optical Drive Simulation Board

Material: PCB

Scope of Application: Only suitable for VA1 Host

Simulation Board Version: V5.20 (5.20.5)

• New features:

1) System code update

2) Automatic timing profiles for SoA and RE:CV

3) New INI option to manually cap GDEMU speed

Details:

1) Fixed the issue of Arcadia opening freezes.

2) Fixed the issue of not being able to get a slot item caused by the Veronica Tiger Head Jewel Bug.

3) Some images that were not recognized by the old version of the firmware can now be recognized.

For example:

-ルームメイト・麻美 －おくさまは女高生

-Director'sEdition/Roommate Asami

-Okusama wa Joshikousei

-Director's Edition

4) Some GDI images that have been streamlined and reorganized by the tool before can be recognized on the old version of the firmware, but may not be recognized and unrecognized on the new version of the firmware.

For example:

the US version of the simplified and reorganized ダイナマイト刑事2 cannot be recognized. However, the GDI mirror of the unmodified and streamlined ダイナマイト刑事2 can be recognized.

• How to Use:

Take out the product and use it

Attentions:

1. V5.20.5 GDEMU can be updated. However, the update process of this product is complicated, and the product will become brick if the operation is wrong.
2. For more technical consultation on products, please join the Bitfunx Discord, link: discord.gg/ewRspdnt3Z

---

Product description

Attentions:

1. V5.20.5 GDEMU can be updated. However, the update process of this product is complicated, and the product will become brick if the operation is wrong.
2. For more technical consultation on products, please join the Bitfunx Discord, link: discord.gg/ewRspdnt3Z
