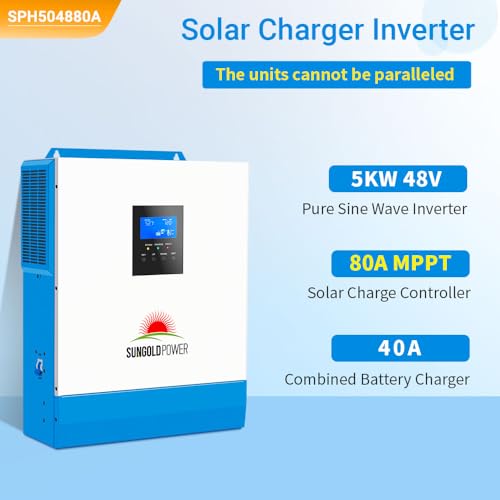

SUNGOLDPOWER 5000W DC 48V All in One Solar Inverter, 80A MPPT Solar Charger and 40A AC Charger, 120V AC Output Pure Sine Wave Inverter for Backup, Off-Grid System (Doesn’t Support Parallel)

• 【All-in-one solar charge inverter】: SUNGOLDPOWER 5000W DC 48V Solar Inverter Charger Combined with Max. 80A battery charging (SOLAR+AC), Max 5500W 500V PV Array. This unit DOES NOT SUPPORT PARALLEL! NO PARALLEL!
• 【Stable AC output】: Pure Sine Wave Solar Inverter 110V AC output, loaded motor capacity 4HP and overload protected, it can power various household and office loads such as refrigerators, computers, televisions, ovens, air conditioners, etc.
• 【Four charging modes and 4 Output modes】: AC Priority/ Solar Priority/Only Solar /Mains & Solar hybrid charging, 4 output modes: PV priority/utility priority/Inverter priority/Hybrid output and gird connection to meet your different requirements.
• 【Battery type】: SUNGOLDPOWER 5000 Watt DC 48 volt Solar Inverter is compatible with 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode for custom inputs to work with virtually all battery types. Battery Charging Voltage Range: 40 –60V, RS485 port for BMS communication.
• 【Reliable Brand】: SUNGOLDPOWER company is a professional manufacturer in power inverter field for over 10 years, directly supply for amazon, customer service in USA. 24-month warranty guarantee and Lifetime tech support.

›

About SUNGOLDPOWER

SUNGOLDPOWER is a renewable energy company that is focused on designing & manufacturing inverter charger, solar inverter, solar panel and other green energy products. We have been in the inverter field for more than 10 years, and we aim to provide high quality inverters and good service to every customer! If you're trying to build solar system for your RV and off-grid home, we are your best choice !

5000 watt DC 48 volt solar inverter’s conversion time between bypass and inverter is 10ms; Rated input voltage 110/120Vac, Frequency 50Hz/ 60Hz (Auto detection); Efficiency >95%(AC mode), Efficiency >92%(Inverter mode), PV voltage range 120-450Vdc, PV maximum output power 5000W.

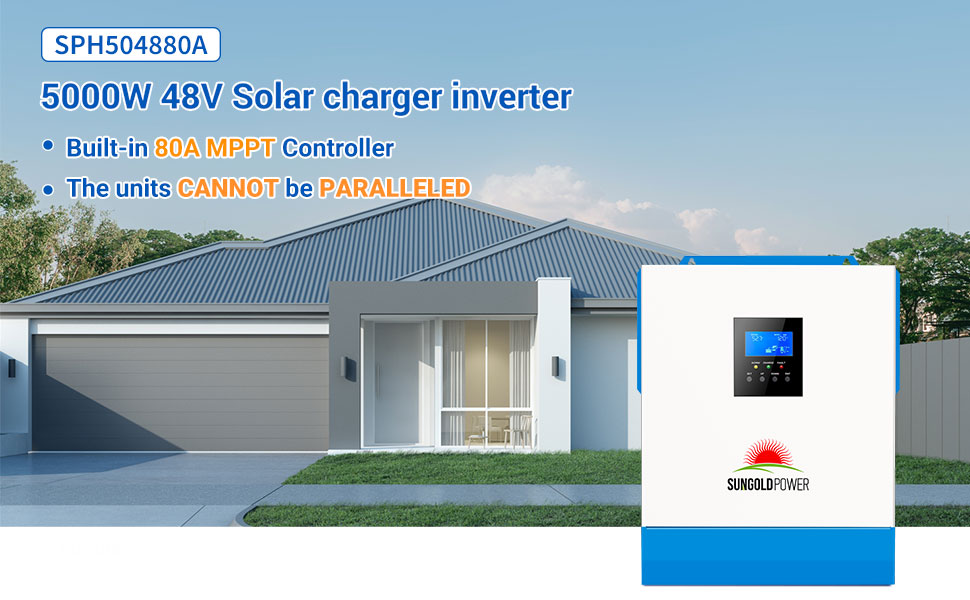

This inverter SPH504880A doesn't support parallel!

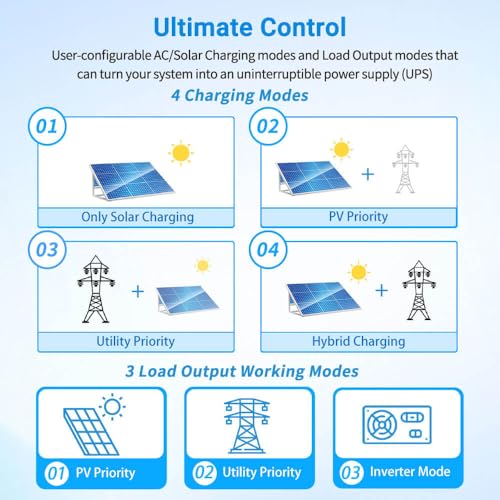

4 Charging Modes

Only Solar Charging: The battery will be the only charger source not matter the utility is available or not.

PV Priority: Solar energy will charge battery as first priority. The utility will charge the battery when solar energy is not available.

Utility Priority: The utility will charge the battery preferentially, and the battery will be charged by solar only when the utility is invalid.

Hybrid Charging: The solar energy will charge the battery preferentially, the utility will charge the battery at the same time when the solar energy is insufficient.

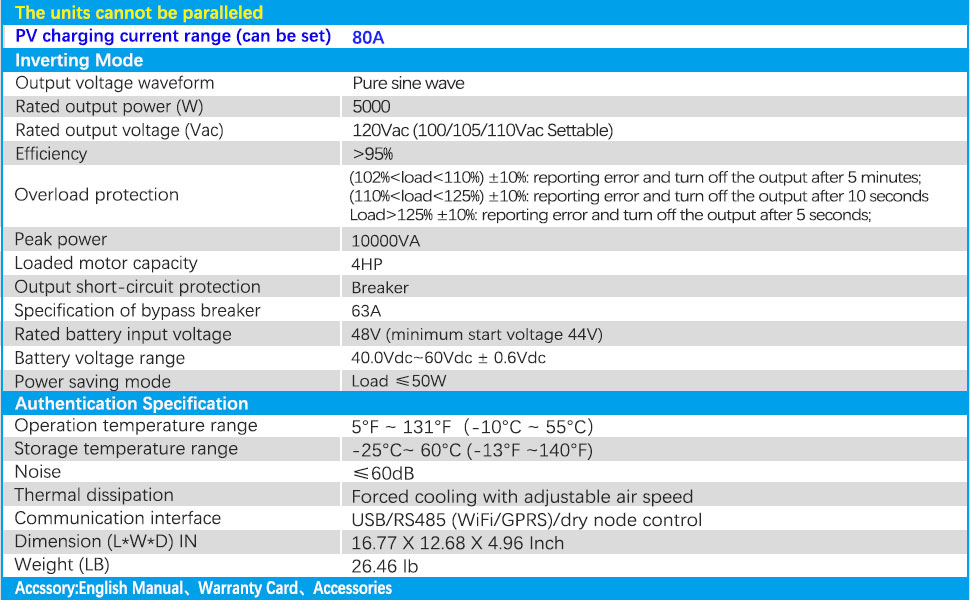

5000W DC 48V solar inverter's Specification

Notes:

1. This solar inverter is foroff grid system.It DOES NOT SUPPORT PARALLEL!
2. This pure sine wave inverter can only used for48Vsolar system.
3. OptionalWiFi/GPRSremote monitoring needextra cost.
4. Voltage setting logic:[15]＜[12]＜[04]＜[14]＜[35]＜[37]＜[05]＜[09/11]

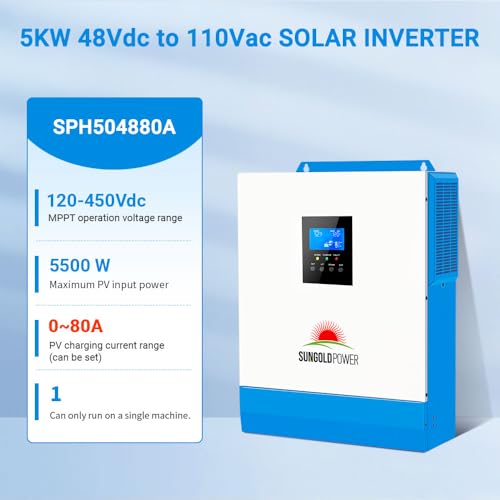

5. Maximum PV open circuit voltage 500Vdc, MPPT voltage range 120-450Vdc, Maximum PV input current 22A, Maximum PV input power 5500W.
6. It DOES NOT SUPPORT PARALLEL!
