Power-Z ET240 PD Protocol Analyzer – Supports DP Packet, USB4 Sideband Messages & DisplayPort Sideband Standard AUX Decoding, VBUS and CC1/CC2 Voltage and Current Monitoring

• 【Professional PD Protocol Analyzer】Designed for developers and engineers, the ChargerLAB POWER-Z ET240 captures and decodes USB PD packets, DisplayPort AUX channel messages, and USB4 sideband messages with precision.
• 【Real-Time Voltage and Current Monitoring】Supports monitoring of VBUS and CC1/CC2 voltage and current on USB Type-C lines, ideal for debugging and power analysis during product development.
• 【Premium CNC Aluminum Design with Transparent Panel】Durable unibody aluminum enclosure with anodized finish and transparent resin glass window that showcases the internal PCB layout for a high-tech look and feel.
• 【Compact & Portable】Measuring only 45.14 × 43.45 × 9.91 mm and weighing 26.9g, the ET240 is easy to carry and perfect for field testing or travel use.
• 【Powerful Chipset & PC Software Support】Built around the NuMicro M487 Cortex-M4F MCU with 512KB Flash and 160KB SRAM. Comes with dedicated HID port for connecting to PC software via USB for detailed analysis.

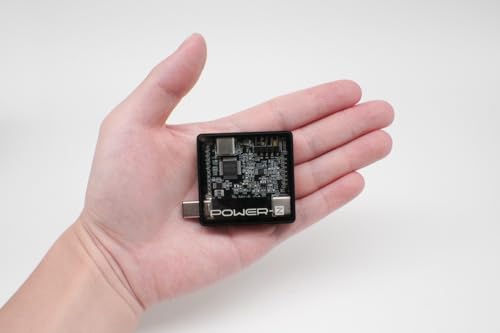

The ChargerLAB POWER-Z ET240 is a compact, professional USB-C PD Protocol Analyzer designed for decoding USB PD packets, DisplayPort AUX messages, and USB4 sideband messages. It also monitors VBUS and CC1/CC2 voltage and current in real time. With a CNC-machined aluminum body and transparent resin glass panel, it combines durability with a high-tech aesthetic. Ideal for engineers, it supports PC software for advanced debugging and testing.
