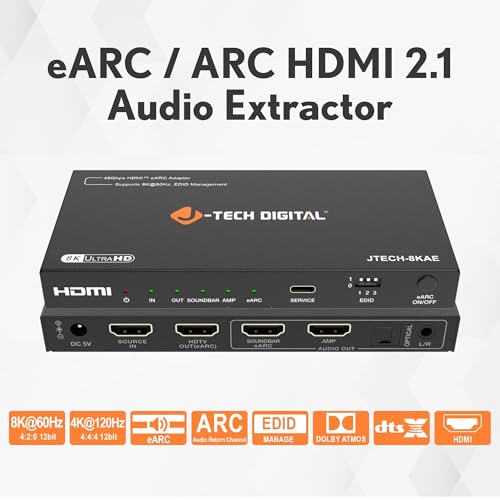

J-Tech Digital 8K HDMI Audio Extractor with eARC ARC 8K 60Hz 4K 120Hz, HDMI to Optical L/R Converter Adapter, HDCP 2.3 HDR CEC EDID [JTECH-8KAE]

• ✅ 8K 60Hz | 4K 120Hz HDMI Audio Extractor: Extract audio from HDMI signal, send to external audio systems via Optical, L/R out, and HDMI audio out ports; pass up to 8K@60Hz or 4K@120Hz video signal to display. This HDMI audio extractor handles the latest HDMI 2.1 standards with support for HDR, HDR10+, Dolby Vision, and HLG pass-through

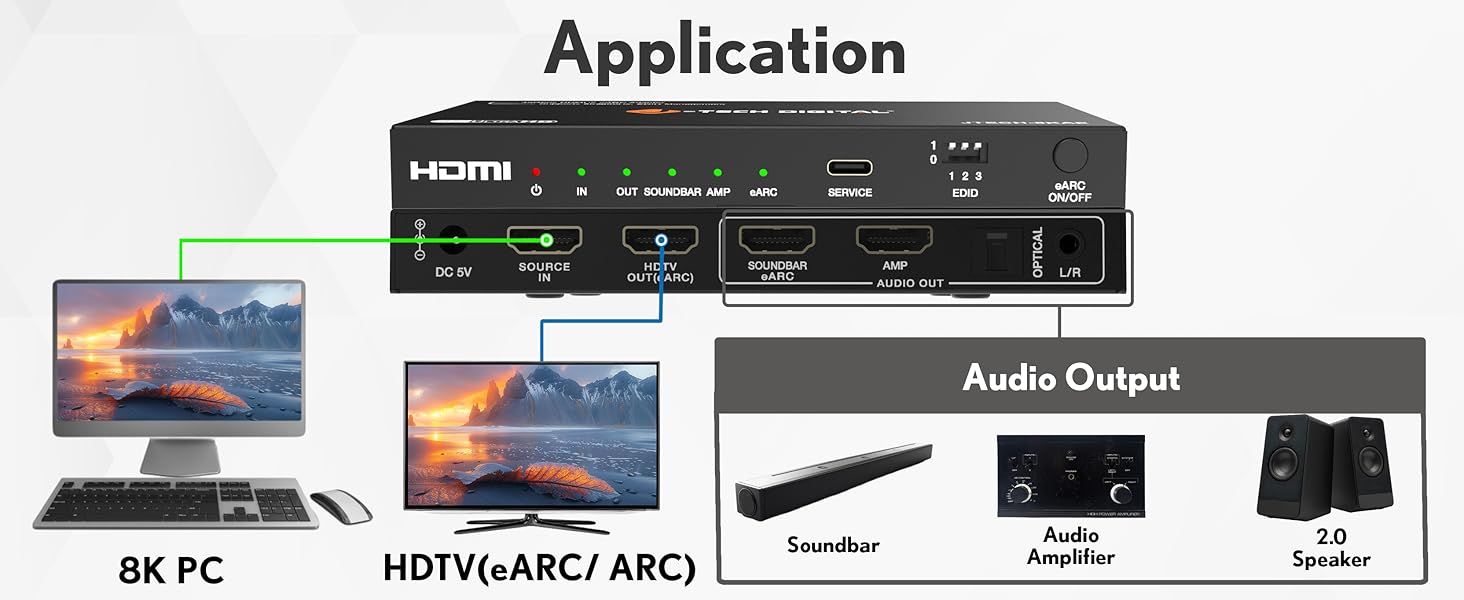

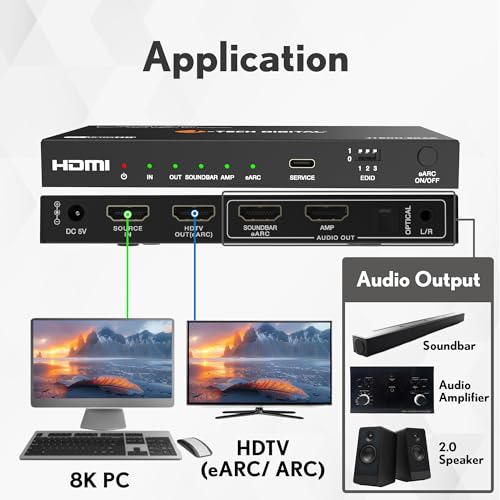

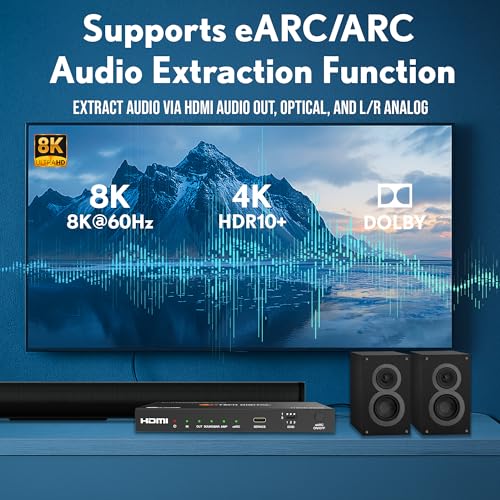

• ✅ eARC / ARC Audio Extraction Function: Easily extract audio signals from your 8K@60Hz, 4K@120Hz HDMI source, ARC, or eARC enabled TV. Send the audio signal directly to your sound system, AV receiver, or amplifier through Optical SPDIF, L/R analog, or HDMI audio outputs
• ✅ Digital Audio Formats Supported: L/R audio out supports Stereo; Optical audio out supports up to standard Dolby Digital 5.1; HDMI audio out ports support up to 7.1ch audio. Please ensure that your incoming audio from source is set accordingly for the audio out port being used
• ✅ EDID Management DIP Switch: Supporting EDID management via DIP switch, this HDMI audio extractor ensures hassle-free installation and compatibility across a wide range of devices such as gaming consoles, media players, blu-ray players, laptops/desktops etc.
• ✅ CEC Control & HDCP 2.3 Compliant: HDCP 2.3 compliant with support for CEC control from your TV to the source, amplifier, or soundbar, ensuring seamless operation and audio synchronization (works with eARC / ARC for volume control)
• ✅ Free Lifetime Technical Support: All J-Tech Digital products include a one-year manufacturer replacement warranty and free lifetime technical support from our customer support team located in Stafford, TX. Support is available from 9AM – 6PM CST, Mon – Fri. Contact information available on our seller page

›

1 eARC / ARC Function 2 Up To 8K Resolution 3 SImplified Connections 4 EDID Switch Settings

Overview

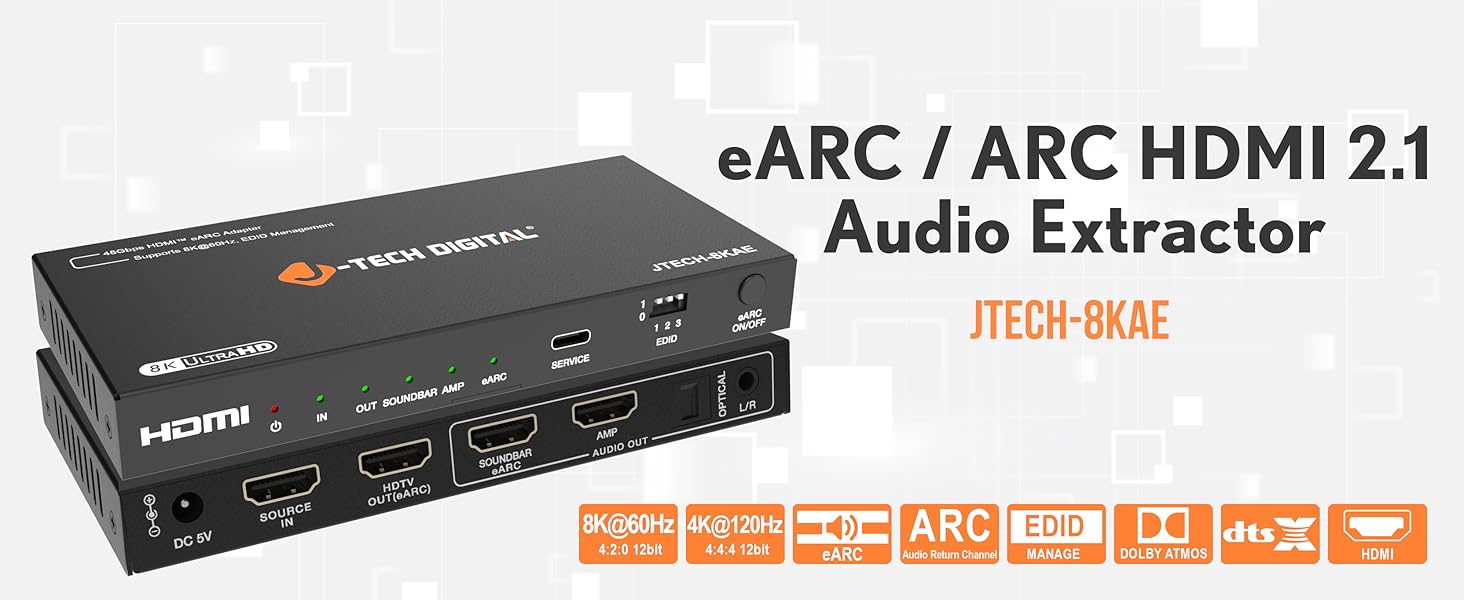

Introducing the JTECH-8KAE HDMI Audio Extractor; Extract audio from an HDMI signal and send it to external sound systems via Optical SPDIF, L/R analog, or HDMI audio out ports, while passing through up to 8K@60Hz or 4K@120Hz video to your display. Supporting the latest HDMI 2.1 standards, it offers HDR, HDR10+, Dolby Vision, and HLG pass-through for stunning video quality. The unit features both eARC and ARC audio extraction, making it easy to route audio directly from an 8K or 4K source, or an ARC/eARC-enabled TV, to your preferred audio setup. It supports a variety of audio formats — including stereo, Dolby Digital 5.1, and up to 7.1-channel audio — with user-selectable EDID management via DIP switches for hassle-free compatibility with gaming consoles, media players, Blu-ray players, and more. Fully HDCP 2.3 compliant with CEC control support.

Features

• HDMI audio extractor with eARC/ARC functionality

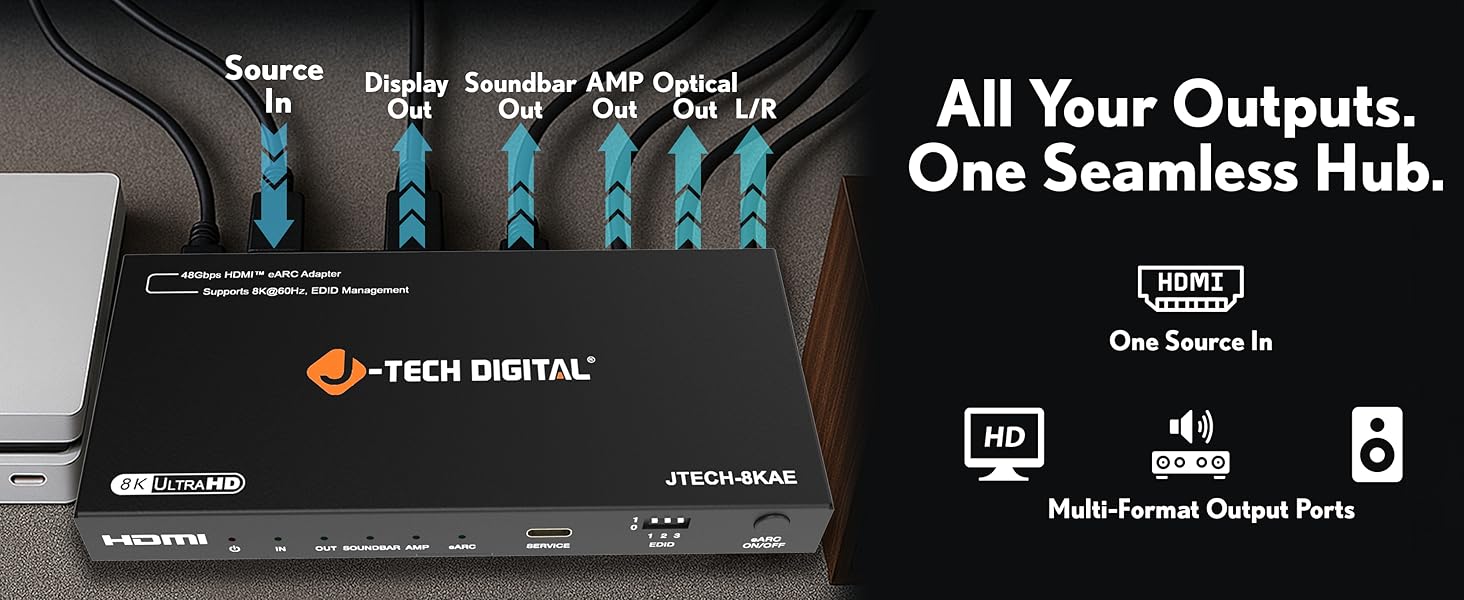

  • Features L/R, Optical, and 2 x HDMI audio out ports for audio extraction

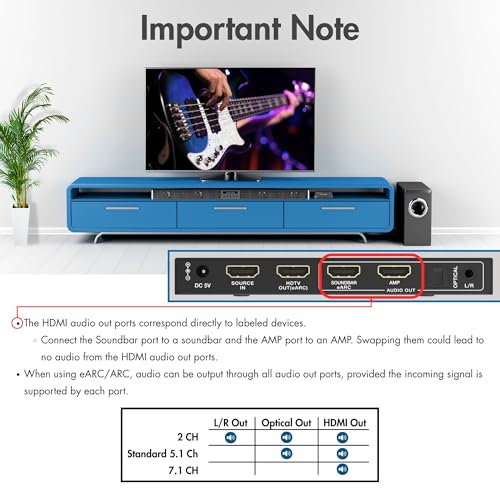

  • Important Note: HDMI audio out ports labeled “Soundbar” and “AMP” must have corresponding devices connected to them. Swapping them may result in no audio from these HDMI audio out ports
  • This unit does not downmix audio. Please ensure that your HDMI source device is outputting the correct audio format supported by the audio out port being used on the extractor

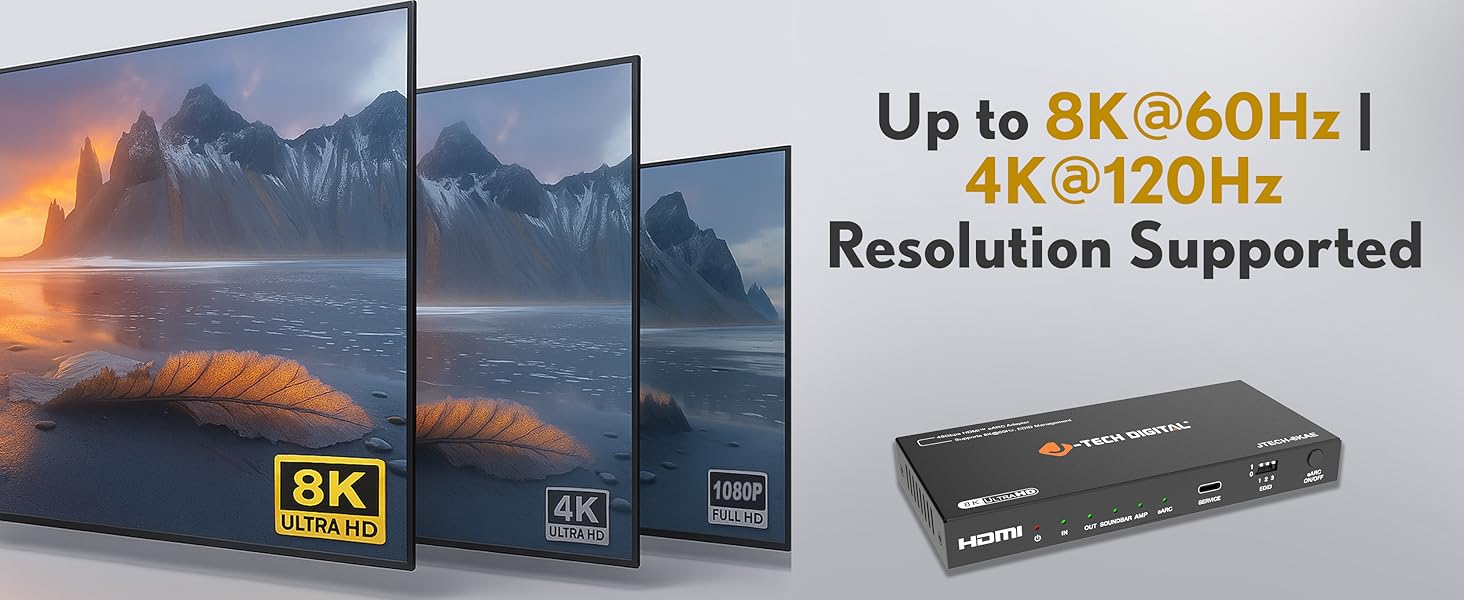

• Supports 8K@60Hz (4:2:0), 4K@120Hz (4:4:4) video resolutions
  • HDMI 2.1 and HDCP 2.3 compliant
  • Compatible with HDR, HDR10+, Dolby Vision, HLG pass-through

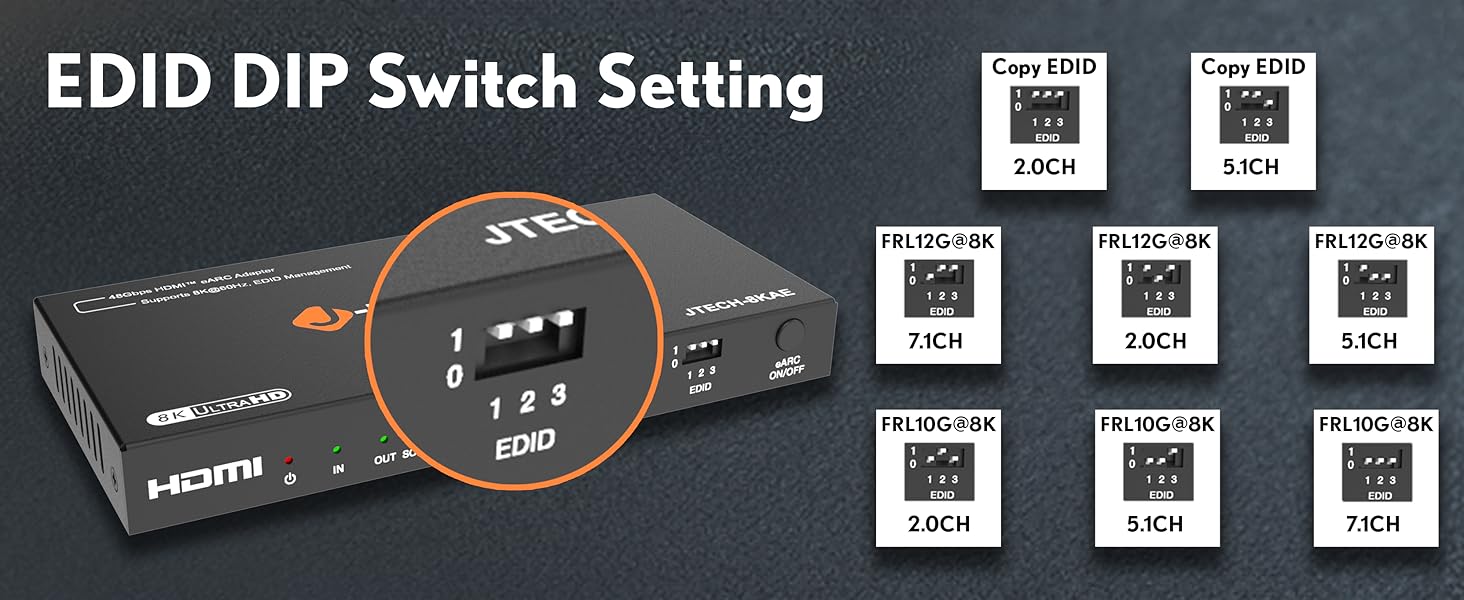

• Features EDID DIP switch to help avoid compatibility issues between source and display
• CEC control function helps control source via TV remote control (works with eARC/ARC function)

Package Contents

• (1) x 8K HDMI audio extractor
• (1) x Power adapter
• (1) x User manual
