3600W Hybrid Pure Sine Wave Power Inverter with 120A MPPT

for Home

3600W Hybrid Pure Sine Wave Power Inverter with 120A MPPT Solar Charger – DC 24V (Range20V – 30V) to AC 110V 60HZ, for Home, Car & Cabin

  • 【ALL-IN-ONE SOLAR CHARGE INVERTER】3600W Solar Inverter 24V DC to 110V/120V AC, built-in 120A MPPT charge controller,fit for 24V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery. The solar charge module adopts the latest optimized MPPT tracking technology, with an efficiency of up to 98%
  • 【TECHNICAL SPECIFICATIONS】3600VA Hybrid Solar Inverter Max.PV Input Power: 4200W, Voltage range: 60-500Vdc, Max. PV Input VOC: 500V DC;charge current: 120A.Nominal Input Frequency: 60Hz; Output Power: 3600W
  • 【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging;and 3 output modes are available, i.e. Solar Frist, Mains Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering
  • 【LCD & LED DISPLAY】LCD display designand 3 LED indicators for dynamic display of system data and operating status, Configurable battery charging current, AC/Solar Charger priority and Load Supply Priority via LCD setting.Support WIFI remote monitoring,available for IOS and Android, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere
  • 【WIDE RANGE OF USES】MPPT Inverter Charger Pure sine Wave 3600W for RV Camping Boat Home Emergency ect. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.you can enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances

CNSWIPOWER 24V 3600VA Solar Hybrid Inverter

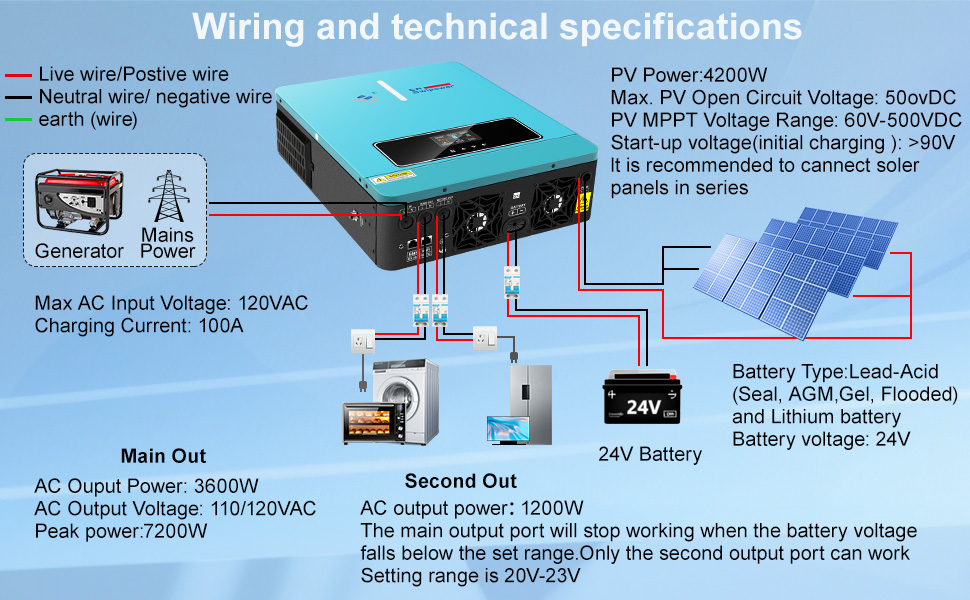

Features & Specifications

How to run the inverter

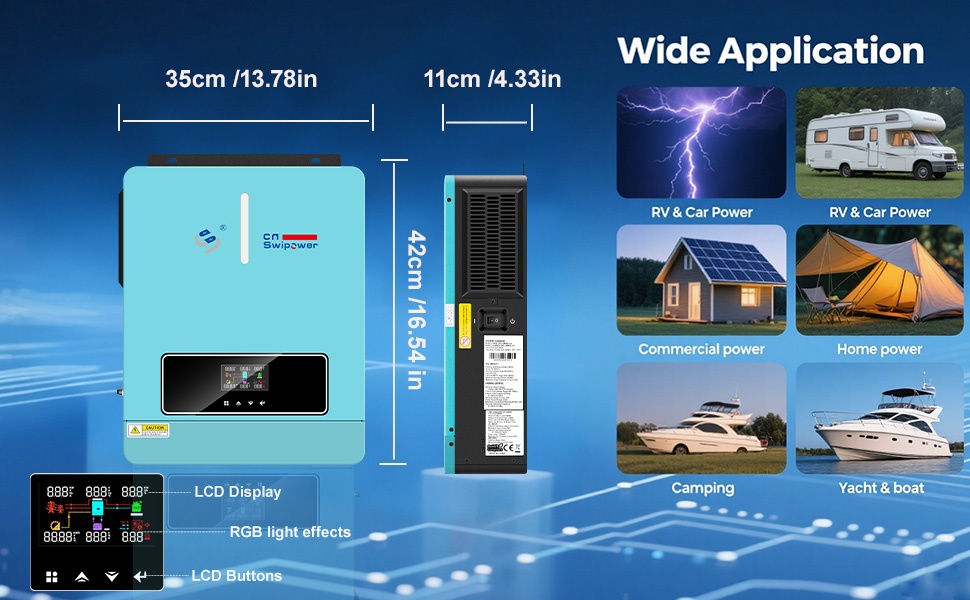

Settings in different modes

Application scenario

Remarks:

Please refer to the product manual for detailed operation procedures

SKU: B0F7JV8HK3
Weight: 20.8 pounds

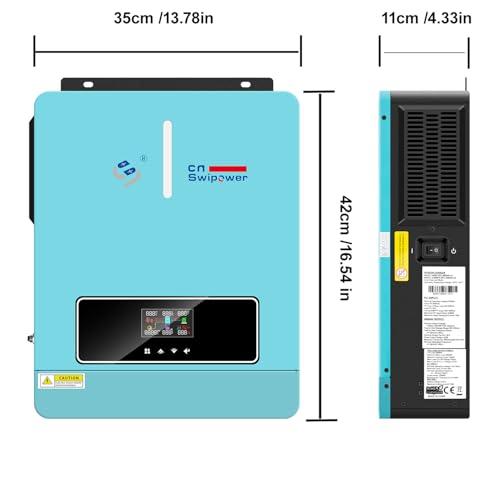

Dimensions: 16.65 x 13.13 x 4.33 inches
Manufacture: CNSWIPOWER

Product Description

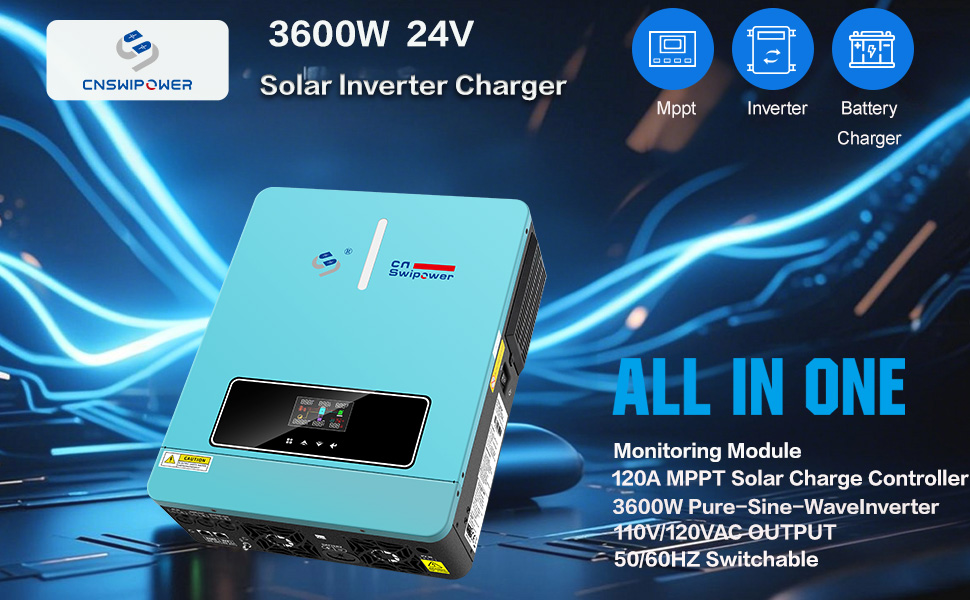

CNSWIPOWER 24V 3600VA Solar Hybrid Inverter

24V 3600VA Solar Hybrid InverterFeatures & SpecificationsSettings in different modes

Remarks:

Please refer to the product manual for detailed operation procedures
