3000W Hybrid Inverter, 24Vdc to 110Vac Solar Inverter
3000W Hybrid Inverter, 24Vdc to 110Vac Solar Inverter Charger Built-in 80A MPPT Controller, Pure Sine Wave PV Power Converter, Supports Battery-Less or AGM Lithium Battery

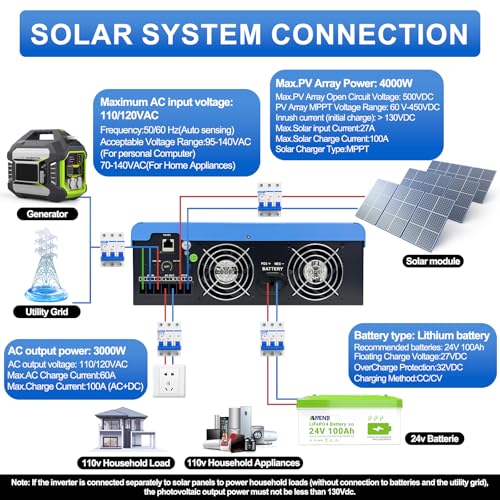

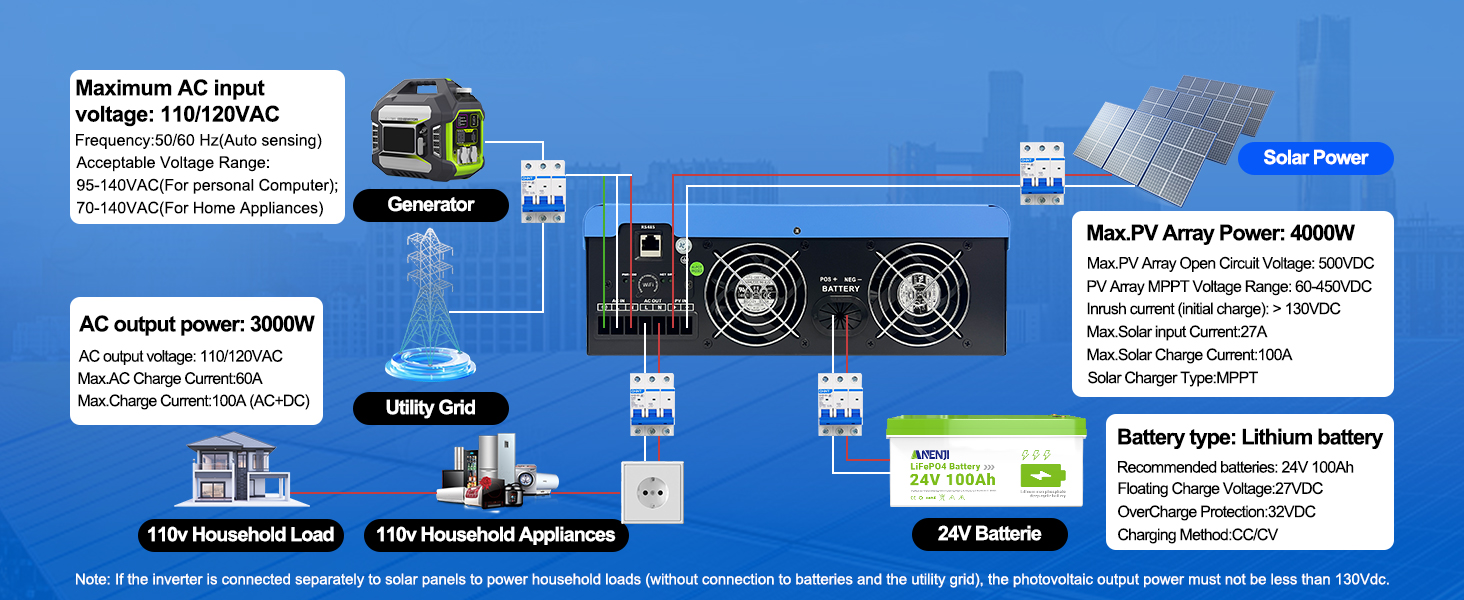

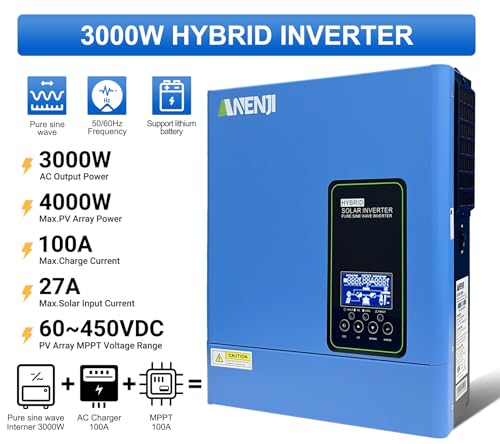

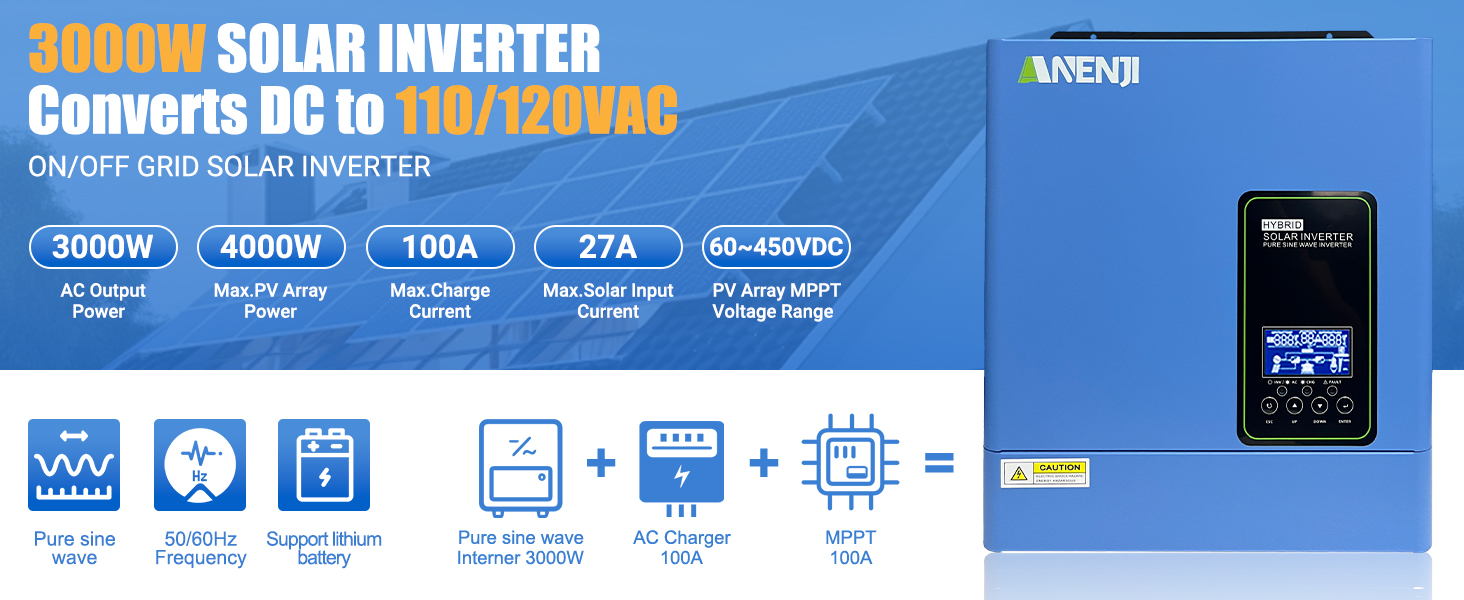

:Converts DC power to 110V/120V AC power and is equipped with an 80A MPPT solar charge controller. Maximum photovoltaic array power: 4000W, maximum open-circuit voltage of the photovoltaic array: 500V DC, maximum AC input voltage: 110/120V AC, MPPT voltage range for the photovoltaic array: 60V-450V DC, maximum solar input current: 27A, maximum solar charging current: 100A, maximum AC charging current: 60A, maximum charging current (photovoltaic + AC): 100A, peak current (initial charging): >130V DC.

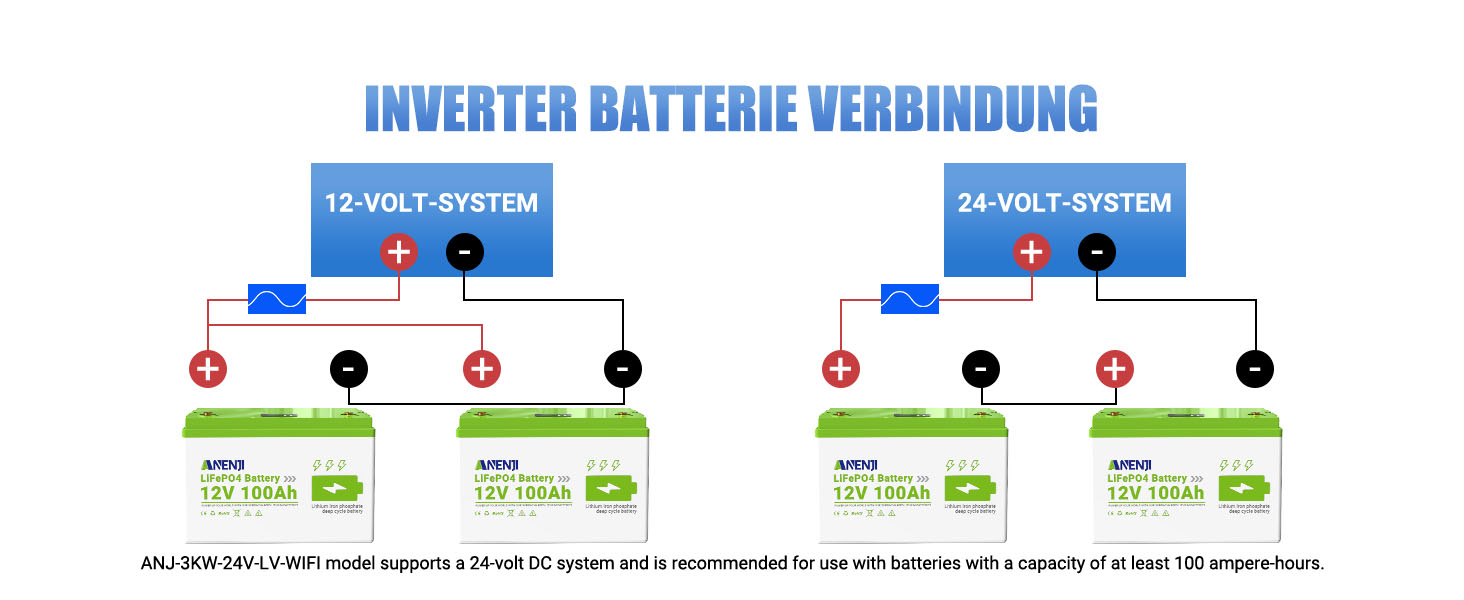

– – :Aninerel 24V 3kW series hybrid inverter is equipped with a standard battery-powered mode and also supports a non-battery-powered mode. The inverter can directly supply power to the load from the photovoltaic array/AC power source without connecting a battery. (If no battery is connected, the photovoltaic voltage must be equal to or higher than 130 Vdc.) Additionally, the inverter is equipped with a lithium battery activation feature (default off), which can be enabled via the inverter's [42] settings.

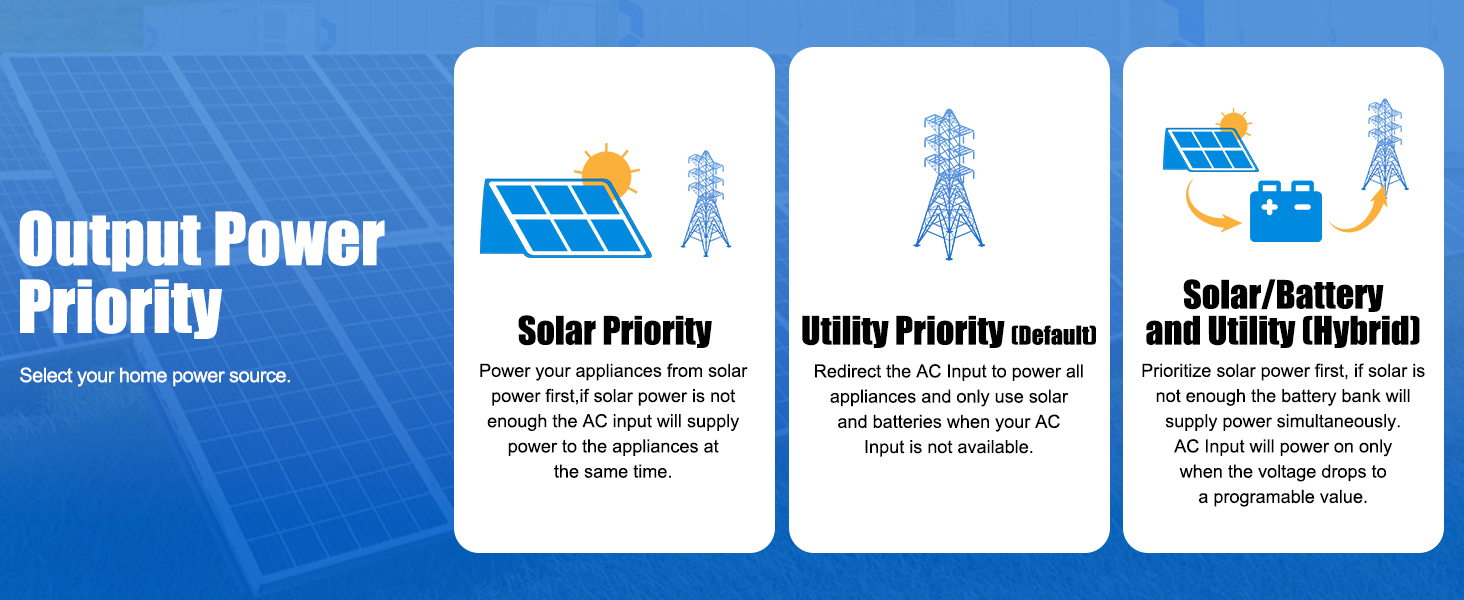

:The default setting is grid priority (UTL mode). In SOL mode, solar power is prioritized for supplying power to the load. If solar power is unavailable, the load is supplied by the grid. In SBU mode, solar power is prioritized for load supply. If solar power is unavailable, the load is supplied by the battery. In SUB mode, solar power is prioritized for battery charging, followed by load supply. If solar power is unavailable, the load is supplied by the grid.

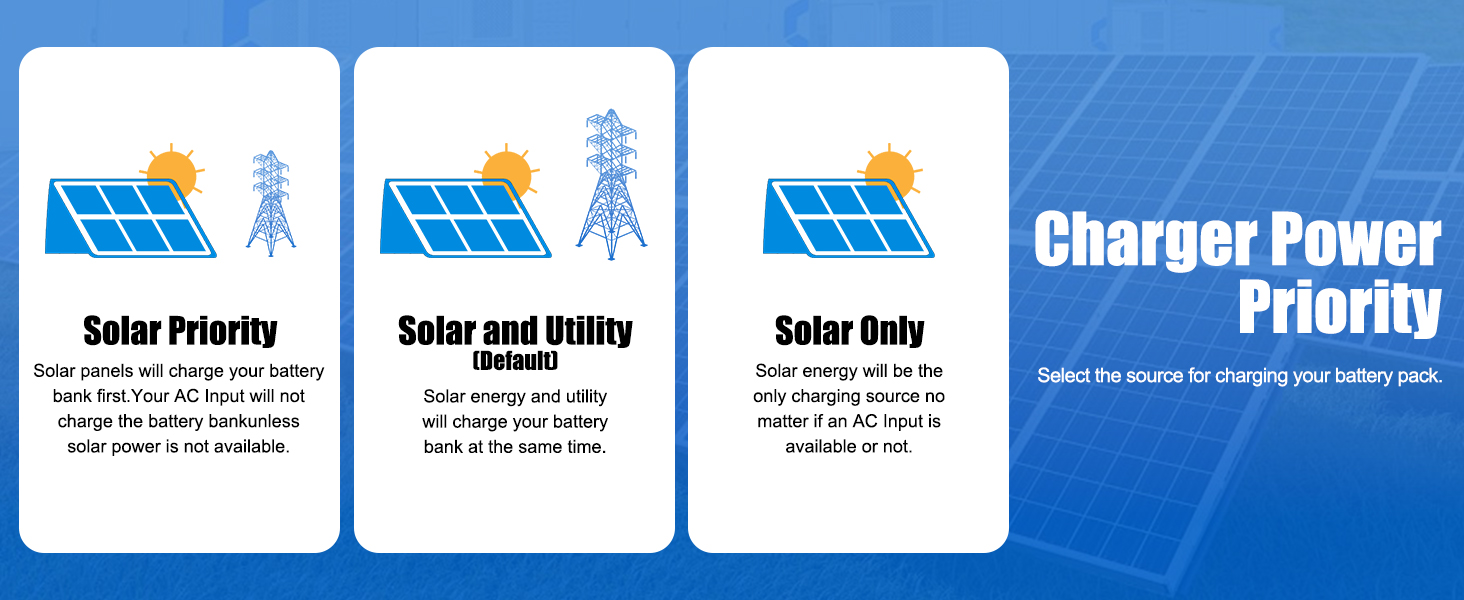

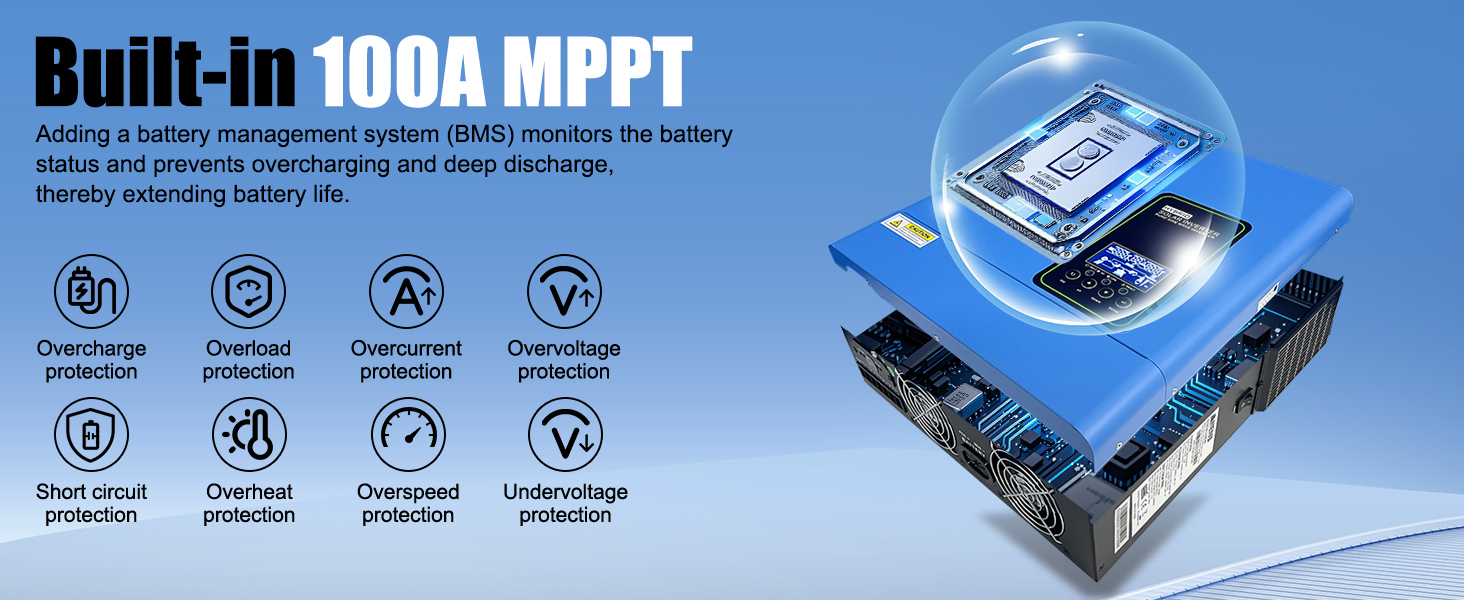

:Through the inverter settings [16], three battery charging modes can be configured: solar and grid hybrid charging (default setting), solar-only charging, and solar-only charging. In addition, the inverter is equipped with multiple protection functions to ensure a safer and more reliable charging process. Adding a battery management system (BMS) can monitor the battery status, prevent overcharging and deep discharge, thereby extending the battery life.

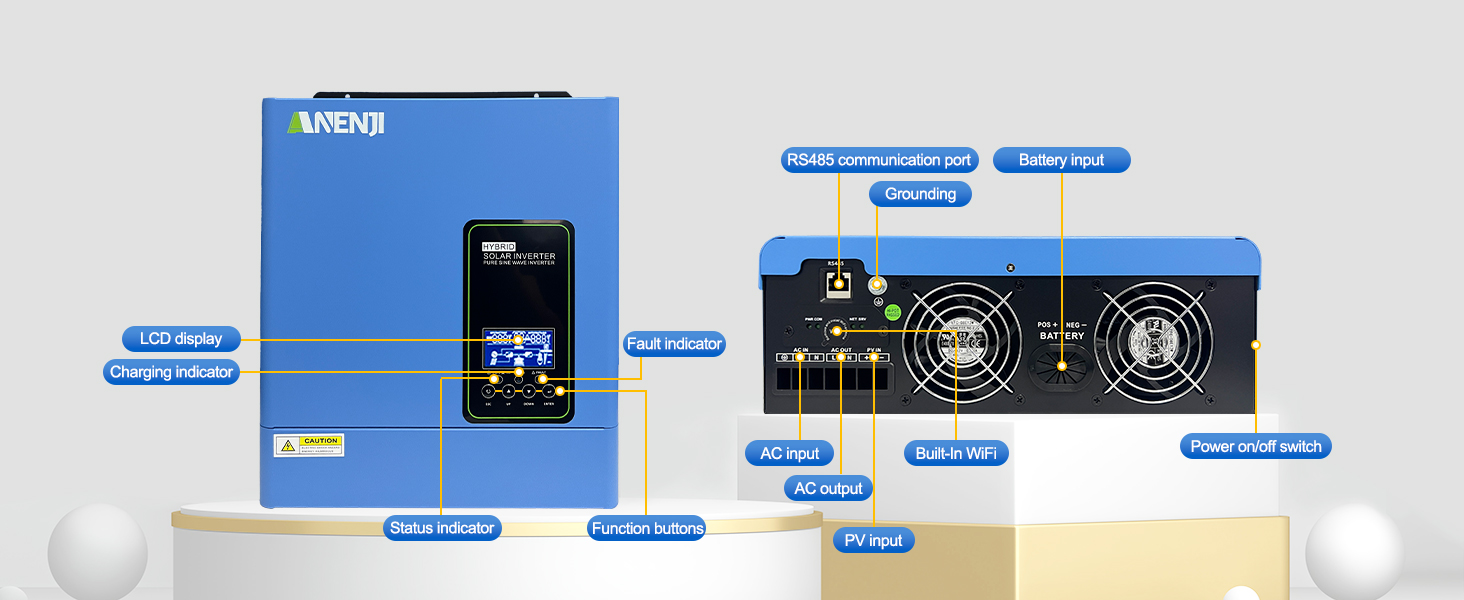

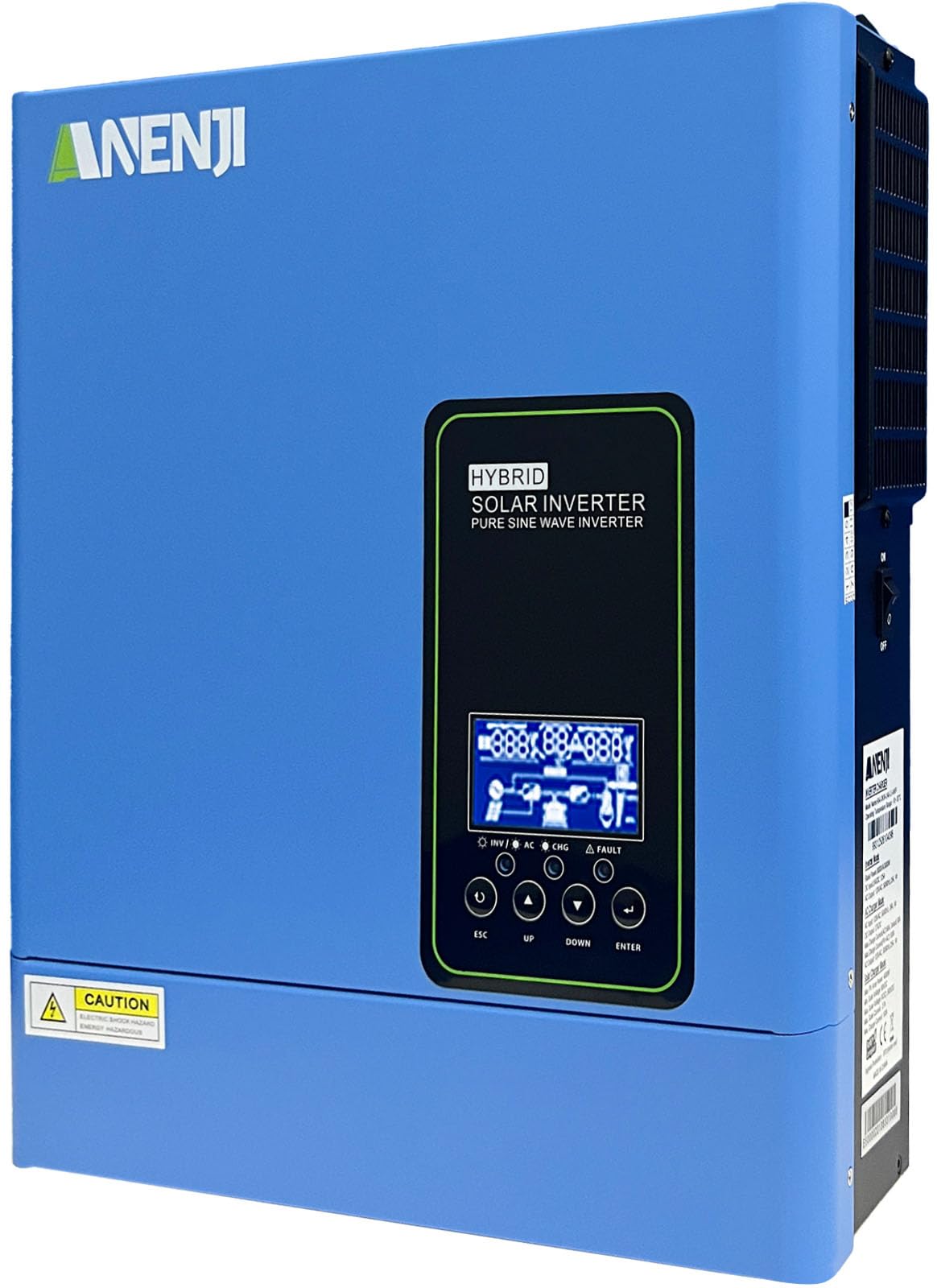

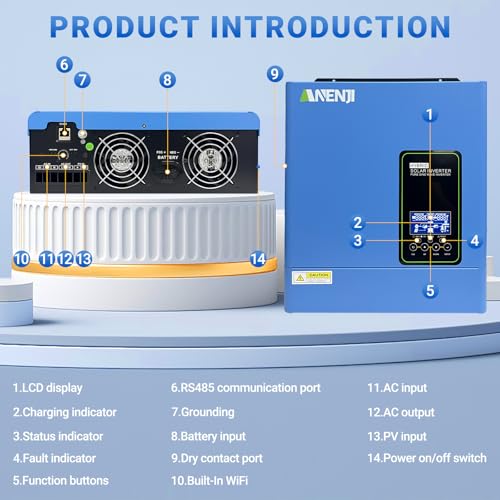

– :Aninerel 24V 3kW solar hybrid inverter is equipped with an LCD display that shows real-time system data and operating status. If any issues arise during use, corresponding error codes will be displayed to help you easily troubleshoot the problem! Additionally, the inverter features three LED indicator lights that dynamically display system data, allowing you to quickly understand the inverter's operating status at a glance—a highly practical feature.
:The [ANJ-3KW-24V-LV-WIF] hybrid solar inverter is suitable for a variety of scenarios, such as RVs, camping boats, and home emergency situations. It can power a variety of electrical appliances, including stoves, rice cookers, lamps, televisions, fans, and other loads.
