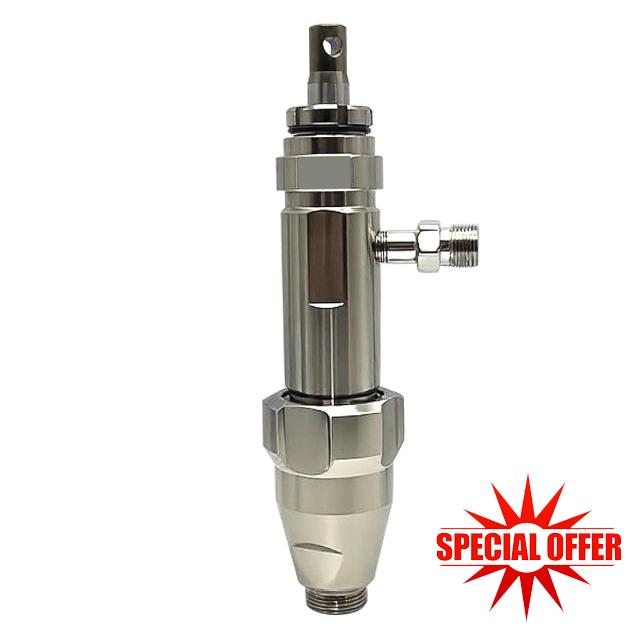

16Y706 Airless Sprayer Pump Compatible with Ultra Max II 1095/1595 GMAX II 5900 Replacement Part Numbers: 248205, 16Y706,287513

• [Compatibility]:16Y706 Airless Spray Pump Pc Pump Parts Compatible With Ultra Max II 1095, 1595 Standard Series and GMAX II 5900 Hi-Boy and Convertible Standard Series sprayers 2019 and newer model year.
• [Professional Performance ]: Provides stable pressure output, enabling smooth and uniform coating on walls, furniture, fences, and decks. Compatible with latex, oil-based coatings, stains, and heavy coatings.
• [High quality material]:High quality stainless steel material, sturdy and durable, corrosion-resistant, wear-resistant, can be used for a long time.
• [Precautions]:Before installing the pump, please shake the pump several times to prevent the internal steel balls from sticking to the alloy plate, which may cause the product to malfunction.
• [Easy to install]:Easy to install, all parts are included in the pump. Specially designed for airless spraying machines.(Please check if it is suitable for your model. If you are unsure whether your model is suitable, please contact us.)

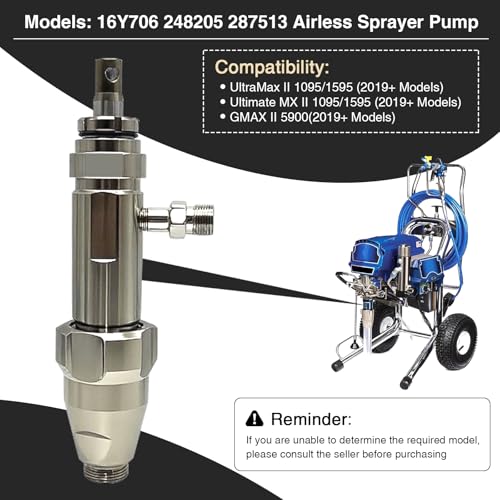

Compatibility:

• UltraMax II 1095/1595 (2019+ Models)
• Ultimate MXII 1095/1595(2019+ Models)
• GMAX II 5900(2019+ Models)

Pump Installation

Step 1

1. Connect outlet hose to pump.

Step 2

2. Move pump displacement rod up or down until it slides into the connecting rod when the pump is slid into the drive housing.

Step 3

3. Slide pump all the way into drive housing.

Step 4

4. Close pump rod cover. Make certain that it is flush against drive housing.

Step 5

5. Use both hands to tighten pump retaining nut.

Step 6

6. Use a hammer to turn pump retaining nut an additional 1/8 to 1/6th turn or 45° to 60°.

Step 7

7. Install suction hose.

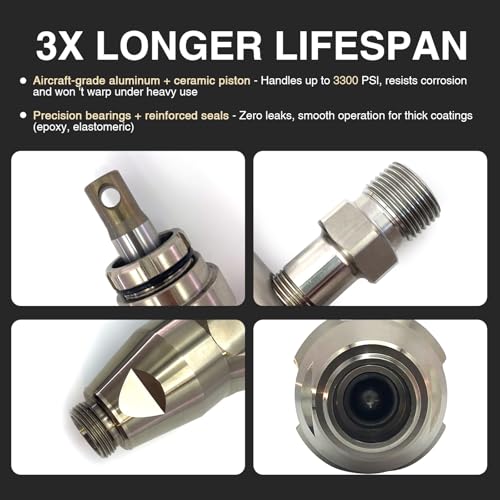

3X LONGER LIFESPAN

• Aircraft-grade aluminum + ceramic piston – Handles up to 3300 PSl, resists corrosionand won 't warp under heavy use
• Precision bearings + reinforced seals – Zero leaks, smooth operation for thick coatings(epoxy,elastomeric)

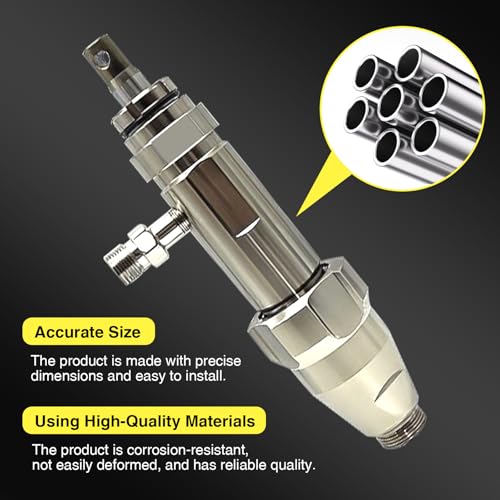

• Accurate Size

The product is made with precisedimensions and easy to install.

• Using High-Quality Materials

The product is corrosion-resistant,not easily deformed, and has reliable quality.

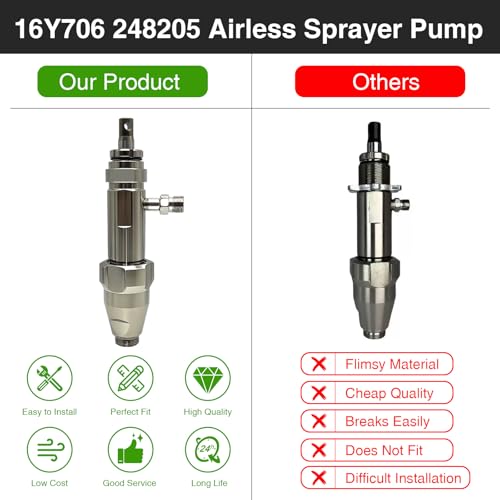

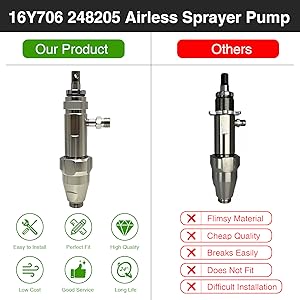

• Easy to Install
• Perfect Fit
• High Quality
• Low Cost
• Good Service
• Long Life

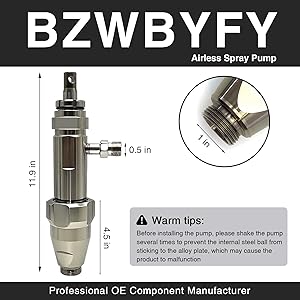

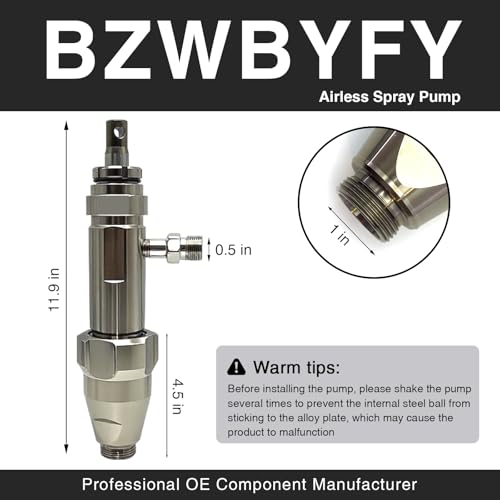

Warm tips:

Before installing the pump,please shake the pump several times to prevent the internal steel ball from sticking to the alloy plate,which may cause the product to malfunction.

---

Product Description

Warm tips:

Before installing the pump,please shake the pump several times to prevent the internal steel ball from sticking to the alloy plate,which may cause the product to malfunction.
