Radioddity HF-009 Portable HF Antenna, 5-50MHz Quick-Tuning Vertical Antenna, SWR 1.0-1.5, Compatible with Xiegu G90/X6100/X6200, Radioddity QT40/QT60/QT80, for HF Transceivers & Mobile Radios

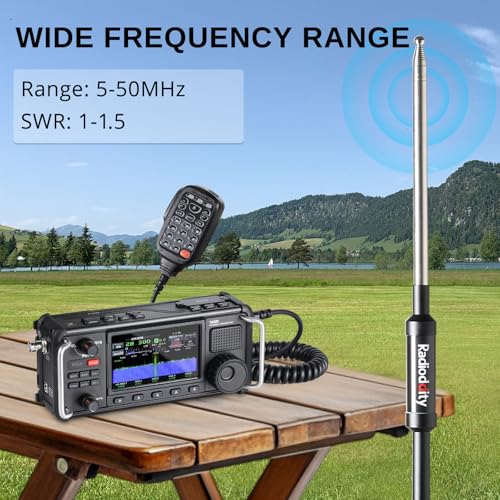

• Wide Frequency Coverage & High Performance: Covers 60m to 6m bands (5-50 MHz) with up to 100W CW / 150W PEP SSB power handling—ideal for most HF transceivers and amplifiers. Delivers a stable SWR: 1.0-1.5 across all bands for efficient signal transmission with minimal tuning hassle

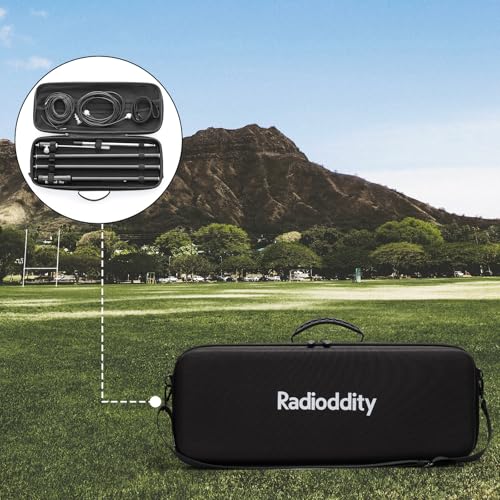

• Lightweight & Field-Ready: Weighing just 1kg, this collapsible, segmented antenna is built for portability. Comes with a rugged padded carry bag and reinforced velcro straps—perfect for hiking, camping, road trips, or remote field operations like POTA/SOTA

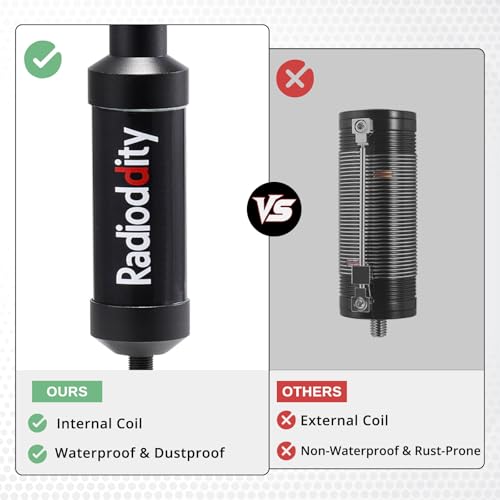

• Durable & Tough Build: Crafted from high-grade aluminum alloy and stainless steel with anti-corrosion coating, it withstands harsh outdoor conditions (rain, dust, etc.). The internally housed tuning coil eliminates exposed parts for improved durability and waterproofing over traditional designs

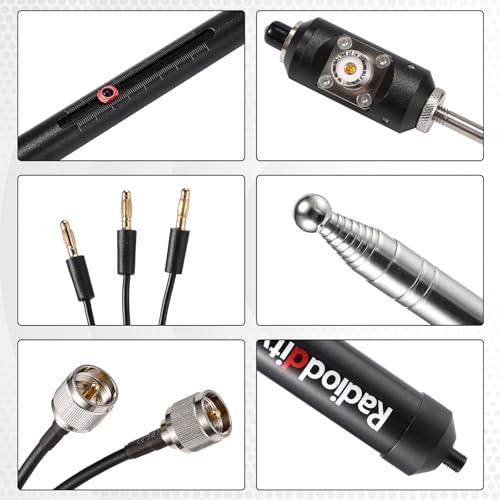

• Quick-Tuning Technology: Easily switch bands using the slide-and-lock manual tuning system—no tools or complicated adjustments required. Tune in seconds and get on the air quickly, whether at home or in the field
• Plug-and-Play Setup: Includes a 5-meter pure copper coax cable and BNC-m to SO239 adapter for quick setup with the HF radio. No extra gear needed—just unpack, connect, and transmit
• Hassle-Free Ground Installation: Skip magnetic bases or vehicle mounts. The integrated stainless steel ground spike and aluminum base let you anchor directly into soil, sand, or grass. Ideal for outdoor adventures, emergency setups, or any location without a metal surface

Installation Instruction

1. Connect the ground spike with the pre-mounted antenna base to one extension rod.
2. Attach the second extension rod to the first, forming the mast.
3. Mount the tunable loading coil onto the top of the extension rods.
4. Secure the telescopic whip to the top of the loading coil.
5. Firmly drive the ground spike into the ground, ensuring stable placement.
6. Connect the Radial Wires: Use the included banana plugs to attach the three ground radial wires to the corresponding holes in the antenna base.

Note: Distribute the wires as evenly as possible around the base for optimal performance in your current portable setup.

Specifications

Frequency Range: 5-50MHZ

SWR: 1-1.5

Impedance: 50 Ohm

Maximum Visible Length: 12.1ft / 3.7m

Maximum Power Rating: CW100W, SSB150W PEP

Ground Radial Length: About 16.4ft / 5m (3 wires)

Antenna Coax-Cable Length: 16.4 ft / 5m

Total weight: 4.4 lbs / 2kg

Net weight: 2.2 lbs / 1.0kg

Size of carrying bag: 19.1" x 7.7" x 3.7" / 48.5 x 19.5 x 9.5cm

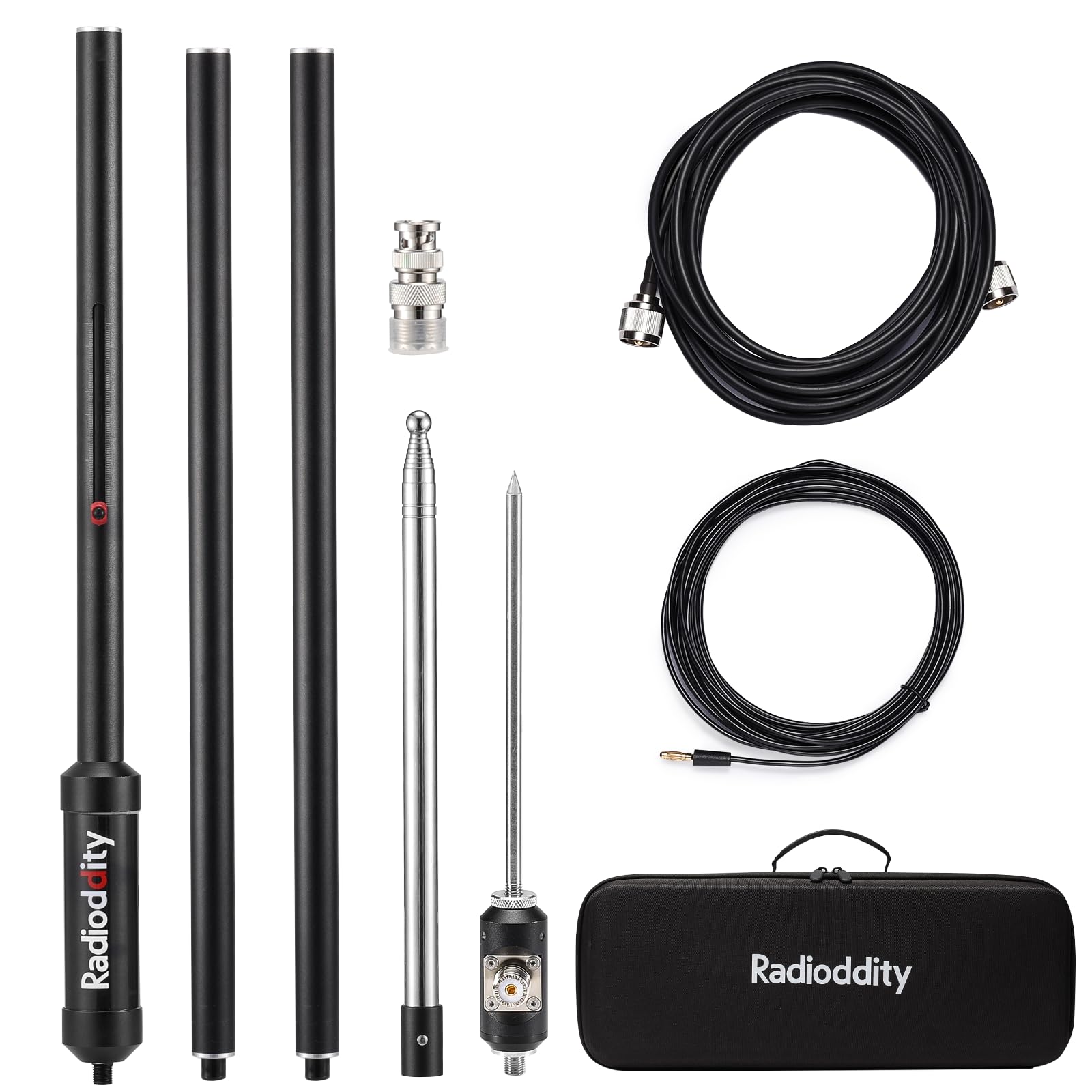

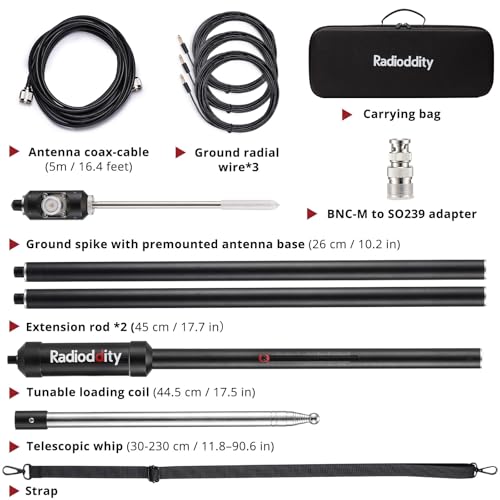

What’s in the box?

• 1 x Ground spike with premounted antenna base
• 2 x Extension rod
• 1 x Tunable loading coil
• 1 x Telescopic whip
• 1 x Antenna coax-cable
• 3 x Ground radial wire
• 1 x BNC-M to SO239 adapter
• 1 x Carrying bag with handle and shoulder strap

---
