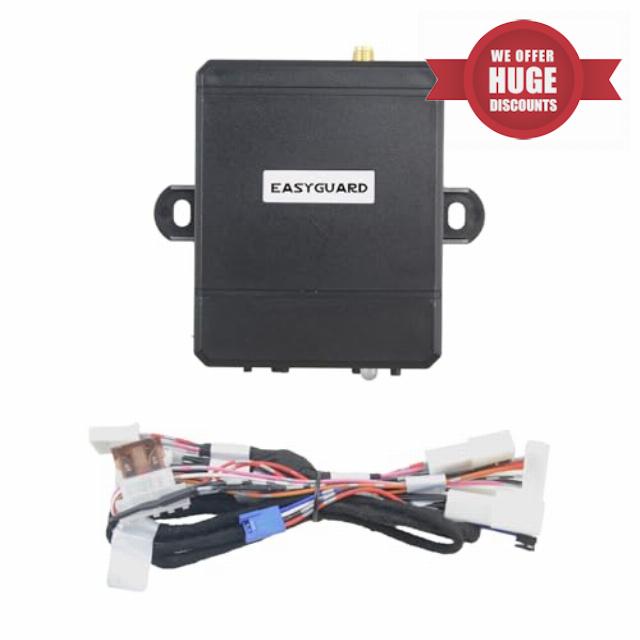

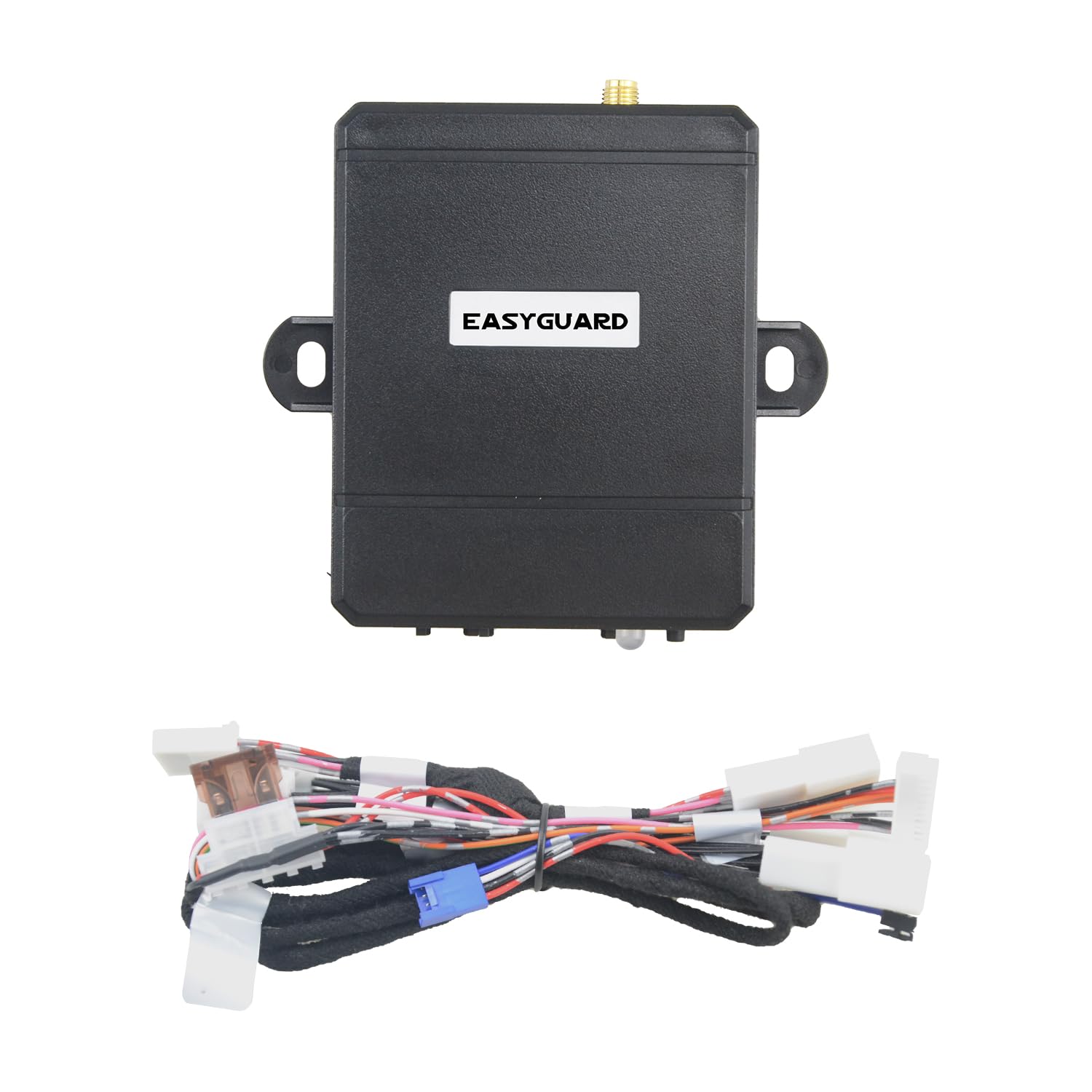

EASYGUARD Plug & Plug Remote Starter System fit for Lexus LX570 RX300 RX350 16-19 II IS250 IS300 IS350 14-18 II LX450D 19-20 II NX200 NX300H RC300 15-19 with OEM Push Start Button Automation LHD Car

• This is EASYGUARD Plug Play Remote Starter fit for selected Lexus LX570 RX300 RX350 16-19 II IS250 IS300 IS350 14-18 II LX450D 19-20 II NX200 NX300H RC300 15-19 with OEM push start button Automation LHD Car
• Don’t Work with Key Start Vehicle, don’t fit for hybrid Automation Transmission Only, don’t work with manual transmission Fit for LHD (Left hand drive) vehicles, don’t work with RHD (right hand drive) vehicles.
• 3X Lock Remote Start/stop Note: There is no remote in this kit, use factory original remote/key fobs to remote start/stop. Remote start method: Continue to press original remote lock button 3 times will remote start/stop the car.
• Open Door to Shut down: After remote start the car, when you open the driver door, the car Engine Will Shut Down for Safety consideration.
• No need to change car remote, use factory original remote.
• Plug and play installation & no damage on car circuit.
• Install it by a trained staff or professional alarm installer if you have no alarm installation experience.

EASYGUARD Plug Play Remote Starter fit for selected Lexus LX570 RX300 RX350 16-19 II IS250 IS300 IS350 14-18 II LX450D 19-20 II NX200 NX300H RC300 15-19 with OEM push start button Automation LHD Car

Compatible vehicle

Don’t work with Key Start Vehicle, fit for push start button car only

Don’t work with hybrid, fit for Gas/diesel car only

Don’t work with manual transmission, fit for automation Transmission Only,

Don’t work with RHD (right hand drive) vehicles, fit for LHD (Left hand drive) vehicles only

Main function：

3X Lock Remote Start/stop

Note: There is no remote in this kit, use factory original remote/key fobs to remote start/stop. Remote start method: Continue to press original remote lock button 3 times will remote start/stop the car.

Open Door to Shut down

After remote start the car, when you open the driver door, the car Engine Will Shut Down for Safety consideration.

No need to change car remote, use factory original remote

Plug and play installation & no damage on car circuit

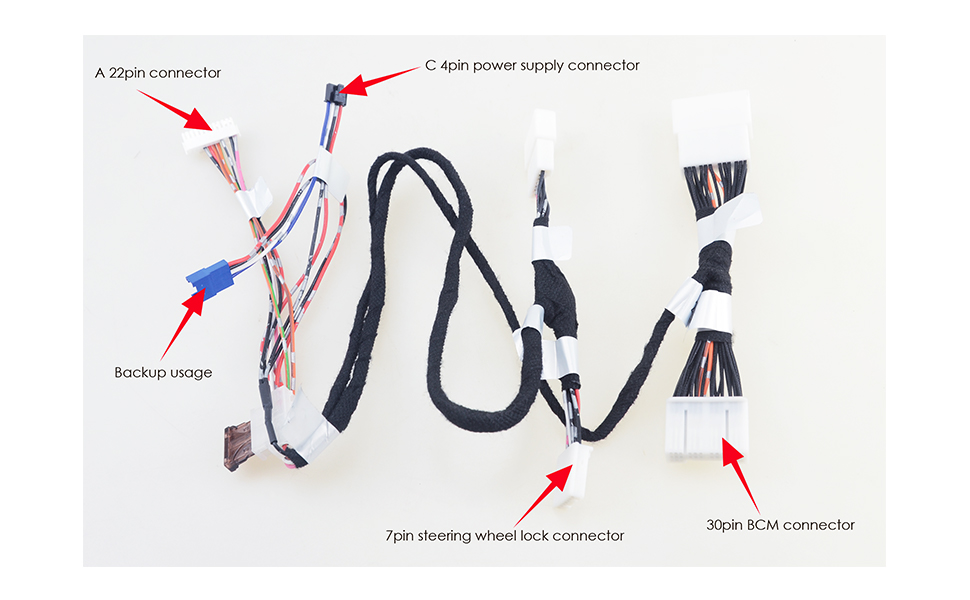

Wiring method

Programming method

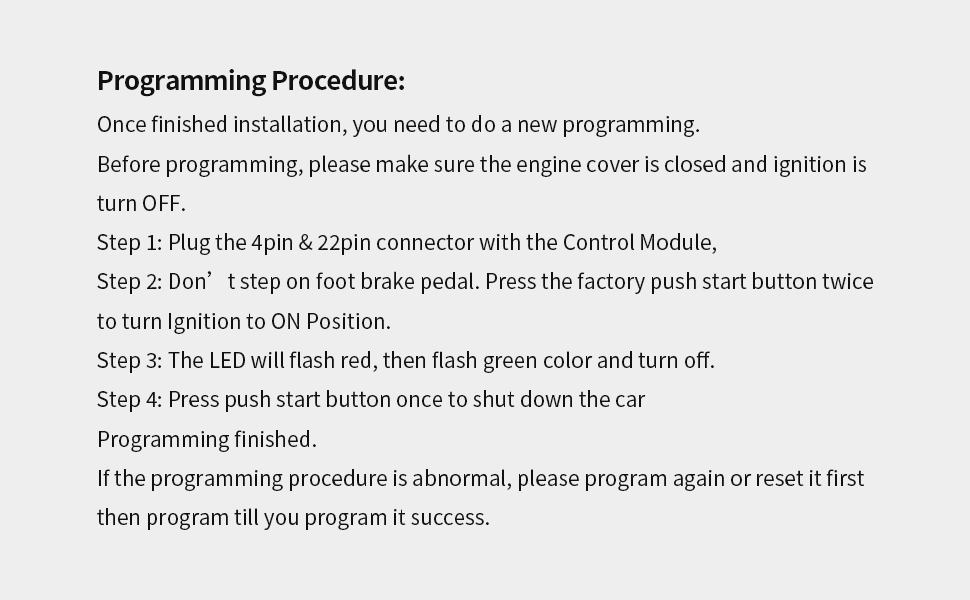

Programming Procedure:

Once the installation is finished, you need to do a new programming.

Before programming, please make sure the engine cover is closed, and ignition is turn OFF.

Step 1: Plug the 4pin & 22pin connector with the Control Module,

Step 2: Don’t step on foot brake pedal. Press the factory push start button twice to turn Ignition to ON Position.

Step 3: The LED will flash red, then flash green color and turn off.

Step 4: Press push start button once to shut down the car

Programming finished.

If the programming procedure is abnormal, please program again or reset it first then program till you program it success.

---

Product Description

Programming Procedure:

Once the installation is finished, you need to do a new programming.

Before programming, please make sure the engine cover is closed, and ignition is turn OFF.

Step 1: Plug the 4pin & 22pin connector with the Control Module,

Step 2: Don’t step on foot brake pedal. Press the factory push start button twice to turn Ignition to ON Position.

Step 3: The LED will flash red, then flash green color and turn off.

Step 4: Press push start button once to shut down the car

Programming finished.

If the programming procedure is abnormal, please program again or reset it first then program till you program it success.
