19PCS Turbo System Leakage Tester Kit, Turbo Boost Leak

Turbo Boost Leak Tester with 8 Pairs of Stepped Adapters (1-1/4'' to 4-1/4'') Air Pressure Gauge Cooling System Radiators Intercoolers Hose Leaks Test

19PCS Turbo System Leakage Tester Kit, Turbo Boost Leak Tester with 8 Pairs of Stepped Adapters (1-1/4'' to 4-1/4'') Air Pressure Gauge Cooling System Radiators Intercoolers Hose Leaks Test

Turbocharger System Leakage Tester: For turbocharged vehicles, potential leaks within the system can reduce boost pressure, resulting in diminished engine performance. This turbo pressure testers kit specially design to check turbo system leaks or cooling systems pipe. And easy to pressure testing across components including turbo pipes, intercoolers & cooling sytems pipes & radiators, allowing efficient identification and localization of leaks for targeted troubleshooting.

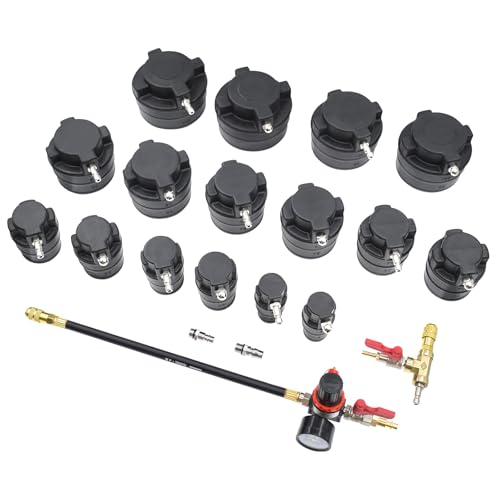

Specification: The turbo system leakage tester kit comprises 16 stepped adaptors, pressure gauge with shut off valve and regulator and smoke adaptor. These 16 stepped adaptors are suitable for various pipe sizes: 31 – 38mm (1 – 1/4'' – 1 – 1/2''), 46 – 51mm (1 – 7/8'' – 2''), 55 – 60mm (2 – 1/8'' – 2 – 3/8''), 65 – 70mm (2 – 1/2'' – 2 – 3/4''), 75 – 80mm (3'' – 3 – 1/8''), 85 – 90mm (3 – 3/8'' – 3 – 1/2''), 95 – 100mm (3 – 3/4'' – 4''), 105 – 110mm (4 – 1/8'' – 4 – 1/4'').
Pressure Gauge Tester: Equipped with a 0-6 bar (0-87 psi) pressure gauge for precise measurement of the inside hose pressure, and includes a pressure regulator. Pressing the dial down locks the reading, while lifting and rotating it adjusts pressure levels. A red manual valve controls air pressure on and off. If over pressurisation, you can pull the red excess pressure release valve to reduce air pressure.
Wide Application: This kit uses standard shop air to identify leaks in turbocharged systems. Designed for turbo systems, but can also be used for radiators, coolers, and tube/pipe assemblies. Compatible with most car and light commercial vehicle turbo systems, including a small number of heavy-duty commercial vehicles hoses and marine systems. Note: Please check if the set and stepped adapters are suitable for your vehicle model.
Easy To Check Turbo System Leaks: Plug intake and exhaust hoses with stoppers, use regulator connect stoppers and air compressor to pressurize the turbo system, then check the gauge for pressure stability and listen for audible leaks. Note: Used with workshop comnpressed air. Before use, must pre-set the regulator to low.

›

Check Offer Price

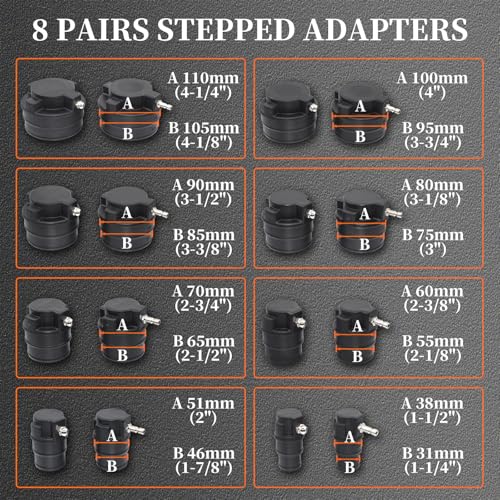

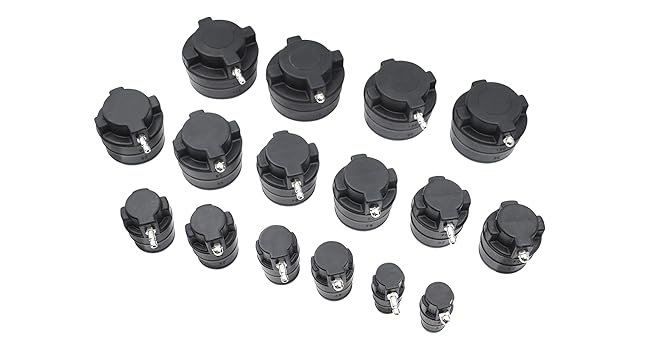

Complete Tools, 16 Stepped Adaptors:

•31-38mm, size: 1-1/4''-1-1/2'', 46-51mm, size: 1-7/8''-2'', 55-60mm, size: 2-1/8''-2-3/8'', 65-70mm, size: 2-1/2''-2-3/4''

•75-80mm, size: 3''-3-1/8'', 85-90mm, size: 3-3/8''-3-1/2'', 95-100mm, size: 3-3/4''-4'', 105-110mm, size: 4-1/8''-4-1/4''

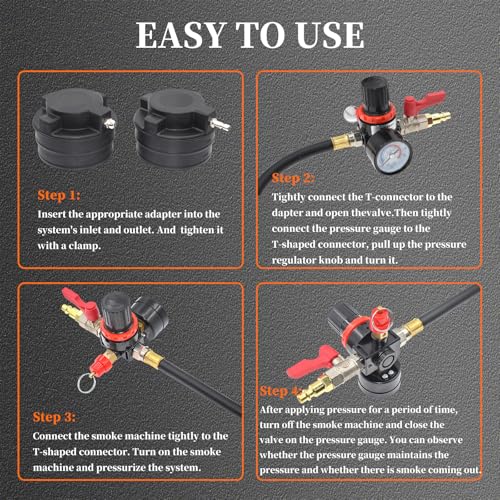

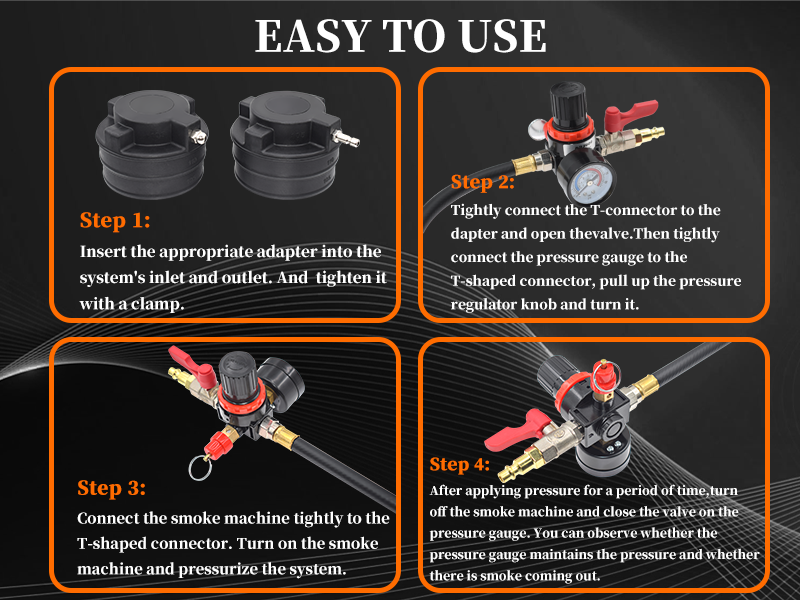

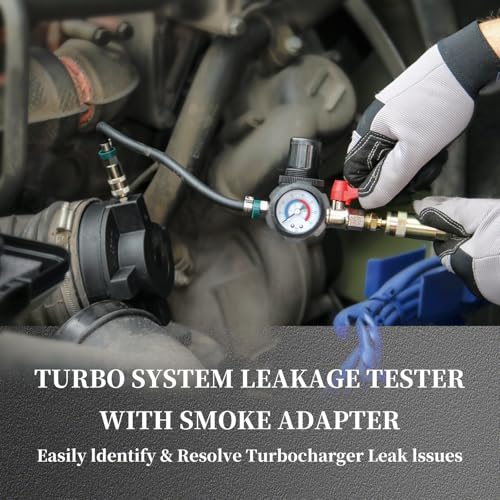

EASY TO USE

1. Unhook turbo out line at turbo or air to air connection.Unhook hose at air to air outlet or intake.

2. Install correct adapters into hoses; tighten clamps behind ridges. Pull cap out, turn counterclockwise.

3. Plug air supply line into adapter fitting, making sure the air valve is closed. (Red lever at 90° to input)

4. Open air valve, usually set 20-25 PSI. Close valve; check leaks with water if needed.

5. Disconnect hose, release pressure via valve. Remove components; reattach turbo lines.

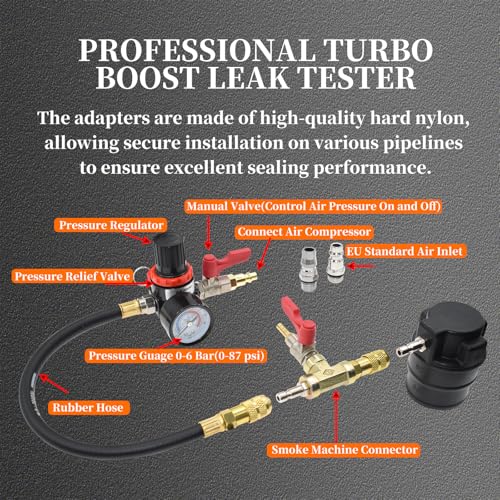

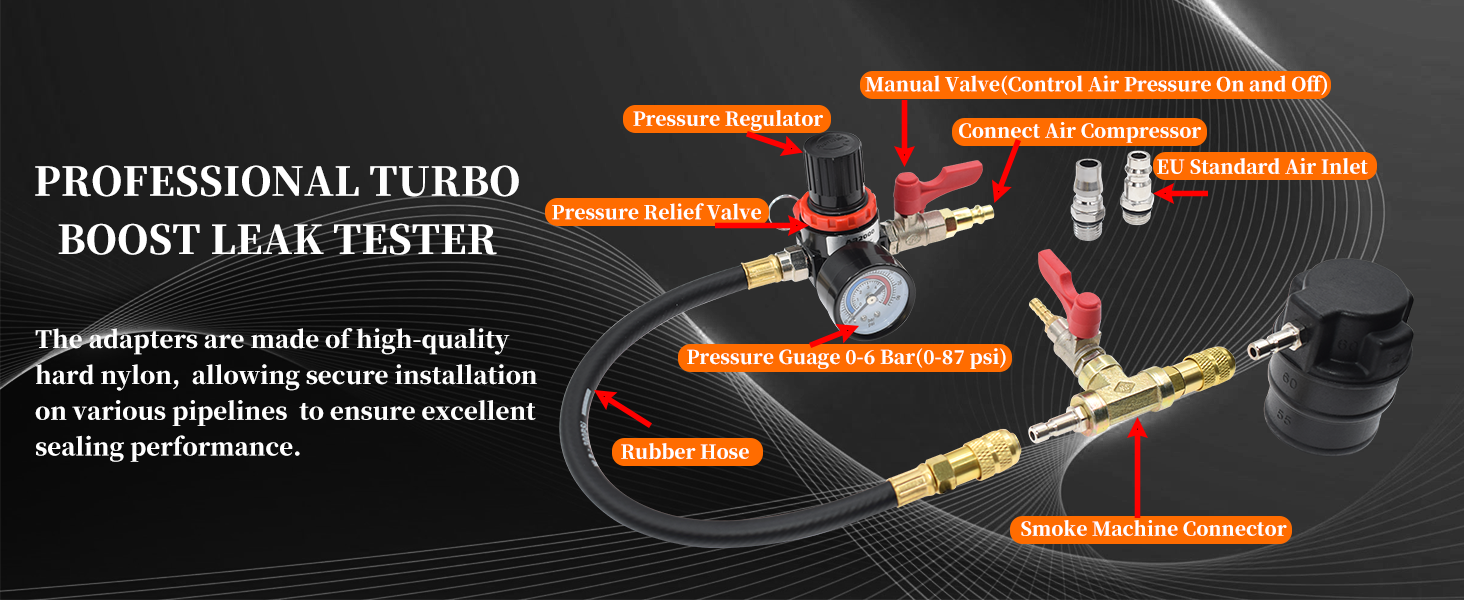

Pressure Guage Tester

• Pressure Guage: 0-6 bar(0-87 psi)

• Designed for precise measurement the pressure inside the hose

• with pressure regulator, press down it means lock, when you need adjust pressure, you need pull up it and rotate

• with a red manual valve to control air pressure on and off; you can pull the red excess pressure release valve to reduce air pressure if over pressurisation

• Pressure gauge with shut off valve & regulator to help prevent over pressurisation
