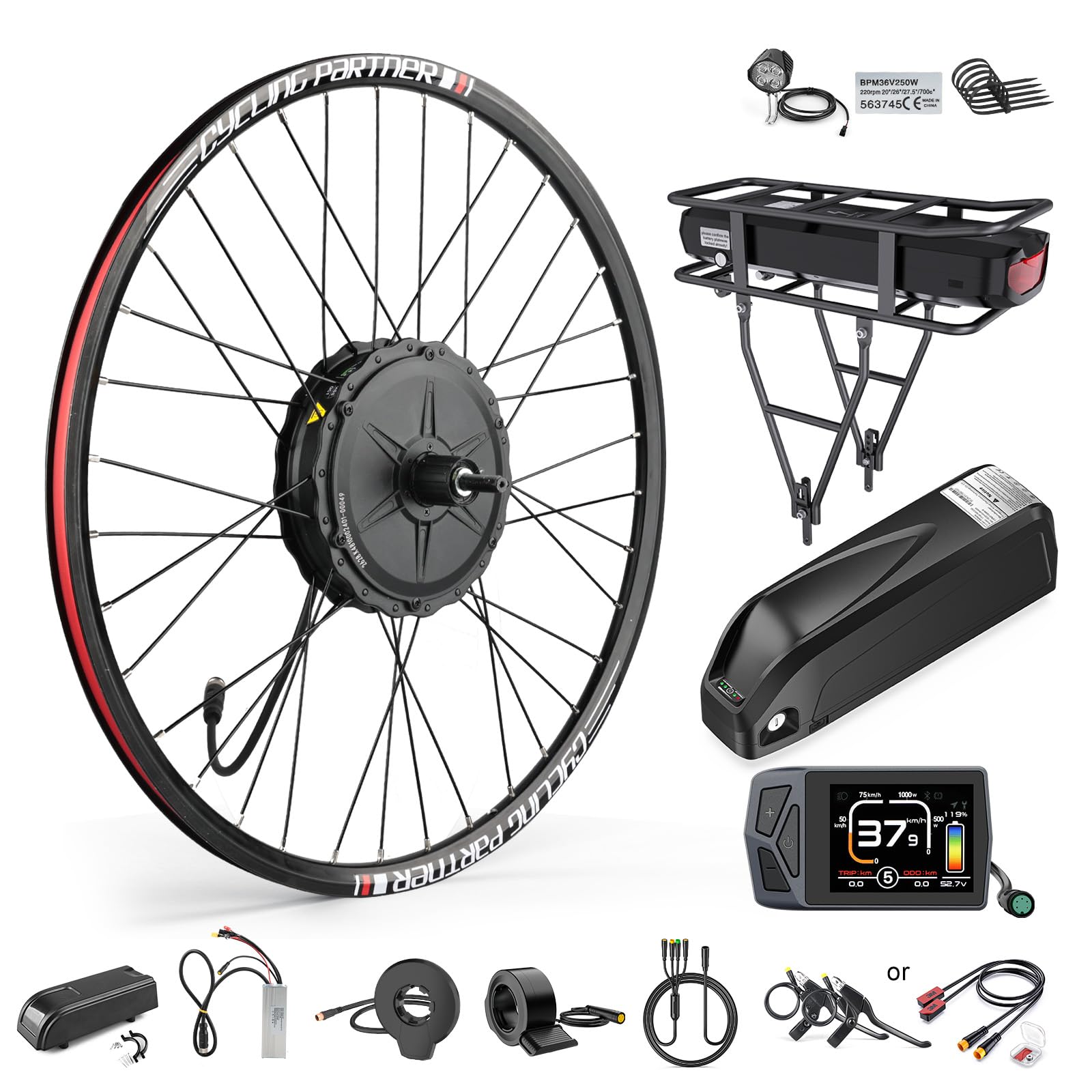

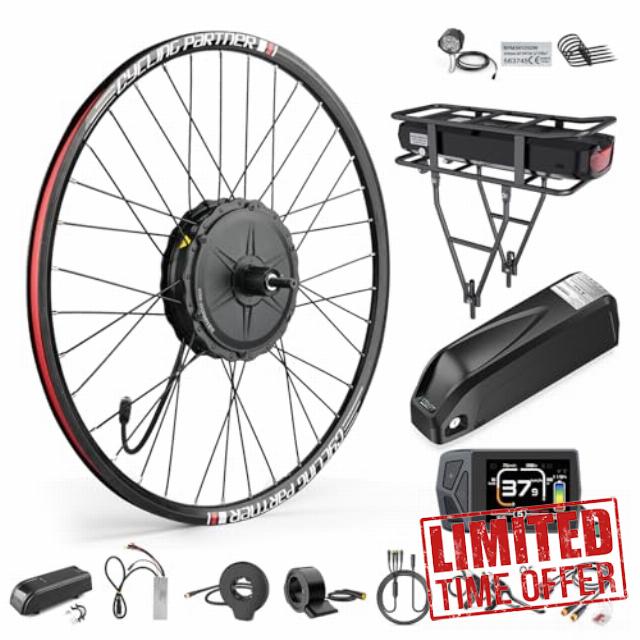

1000W 48V Electric Bike Conversion Kit – High Speed Rear Hub

1000W 48V Electric Bike Conversion Kit – High Speed Rear Hub Motor for 26 Inch Wheel, LCD Display & Battery Options | DIY E-Bike Motor Wheel Kit | Compatible with Mountain/City Bicycles

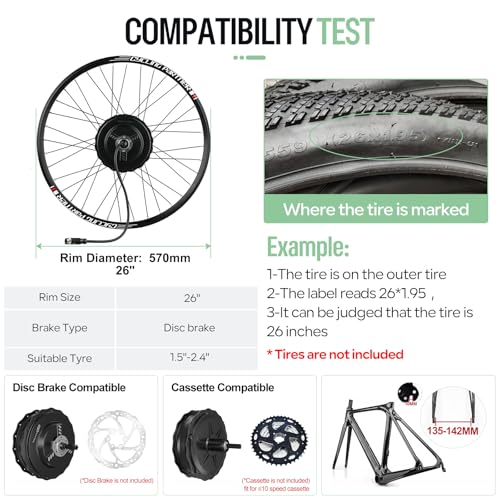

• Compatibility : The Varstrom 48V 1000W Rear Wheel Hub Motor is tailored for 26-inch bikes , requiring a cassette-style flywheel for secure attachment. Compatible with dropouts measuring 138-142mm , this kit offers a left cable exit at 500mm, featuring a G10.3.5 connector for a neat and professional installation . This motor kit is the perfect upgrade for adults seeking to enhance their cycling experience with a seamless electric conversion

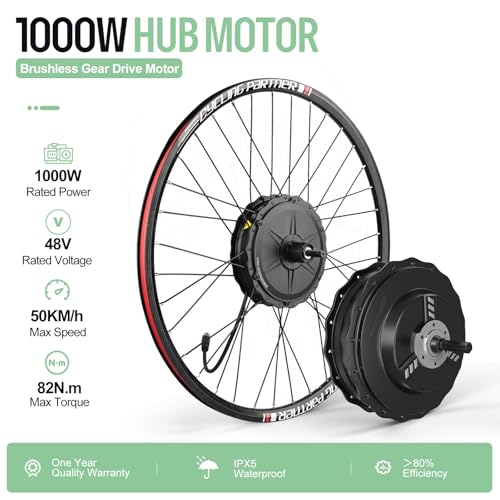

• Power Upgrade : It is engineered for performance, offering a rated power of 1000W with a peak power output of 1500W . This robust motor delivers a torque of 82N.m , propelling your bike to a maximum speed of 50km/h . The controller , manufactured by BAFANG , ensures efficient power delivery with a rated current of 15A, capable of surging up to 30A. This kit seamlessly upgrades your bike , offering the power and precision for an exhilarating e-bike ride
• Unique Features : The Varstrom 48V 1000W Electric Bike Conversion Kit stands out with its superior compatibility and safety features, setting it apart from others. Unlike many other hub motors that use SM heads prone to water damage, Varstrom employs a waterproof 1T4 cable, ensuring reliability across various terrains. This design not only enhances safety but also maintains an aesthetically pleasing appearance, allowing cyclists to ride with confidence

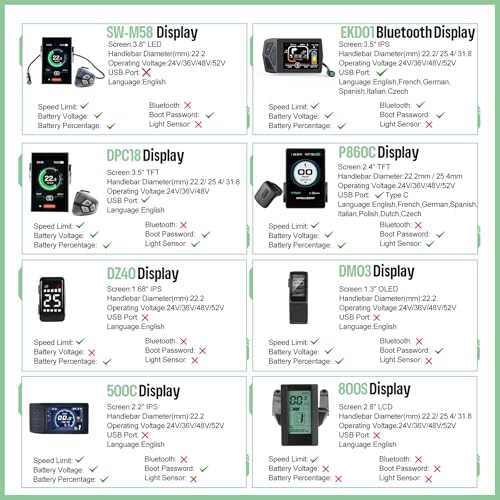

• Customizable Display Options：Personalize your e – bike experience by choosing from premium displays like 500C, DPC18, P860ML, DZ40, EKD01, SW2-M58, and DM03. Each display has unique features, allowing you to customize your cycling data and interface for a personalized ride

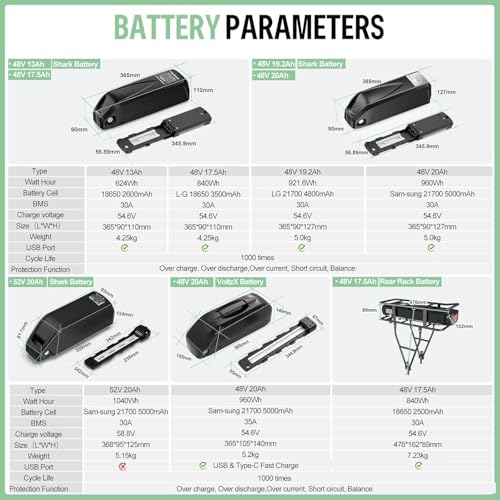

• Personalize Your Battery Selection: The Varstrom 48V 1000W 26" rear hub motor kit is compatible with the 48V 13Ah/17.5Ah/19.2Ah/20Ah and 52V 20Ah electric bike batteries we provide (if you choose the "without battery" option, your shipment will not include a battery); please make sure you prepare a compatible 48V battery in advance. The motor will be equipped with a male XT60 connector, so please make sure your battery connector is compatible with this motor

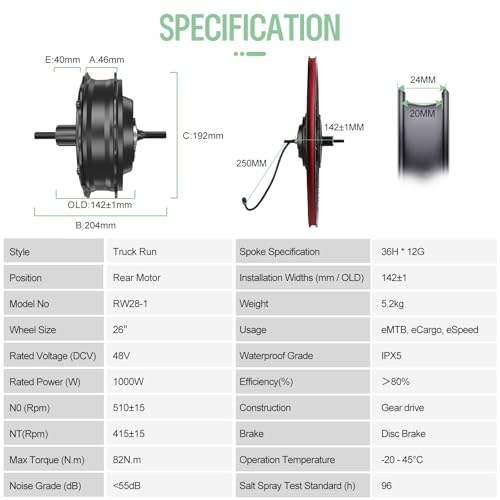

Specification

Rated Voltage : 48V

Rated Power : 1000W

Max Torque : 82 N.m

Position : Rear Cassette Wheel

Wheel Diameter : 26″

Construction : Brushless Gear Motor

Efficiency : ≥80%

Noise Grade : ＜55 dB

Operating Temperature : -20-45 ℃

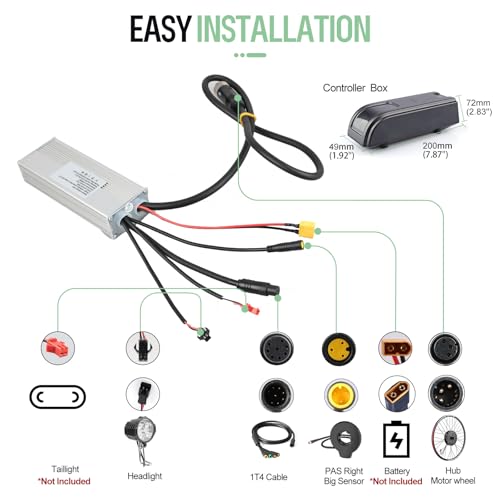

Packing List

✅ Varstrom 48V 1000W Rear Hub Motor with Rim & Spokes

✅ Display :500C, DPC18, P860ML, DZ40, EKD01, SW2-M58 and DM03 (Optional)

✅ Controller

✅ Controller Box

✅ Brake Levers / Brake Sensors (If you want to keep your original hydraulic brakes or if your brake lever is intergrated with the shifter , please contact us to get the brake sensors )

✅ Thumb Throttle

✅ Left PAS Sensor

✅ 1T4 Cable

✅ Headlight

Tips for Customer

2.The gear shift is different from freewheel and cassette wheel. Hub Motors on this page only fit for cassette wheel.
