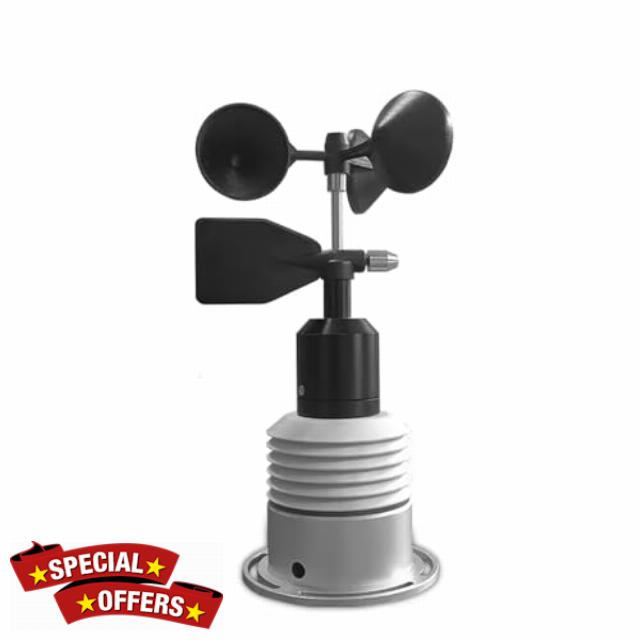

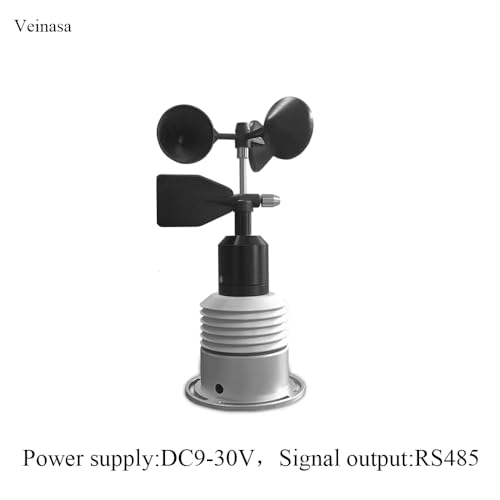

XS-FS05 5-in-1 Weather Station Sensor Weather Meteo Station Wind Speed and Direct Sensor air Temperature Sensor (XS-FS05-RS485)

• It is suitable for meteorological environment monitoring in agriculture, meteorology, forestry, electric power, chemical factory, port, railway, highway and other fields.
• Integrated design, can simultaneously monitor wind speed/wind direction/air temperature and humidity/pressure and other 5 meteorological elements.
• Monitoring elements can be actual needs, optional 2 elements /4 elements /5 elements and other combinations.
• Wide environmental adaptability, product development through strict high and low temperature, waterproof, salt spray and other environmental tests.

›

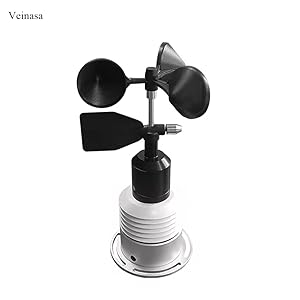

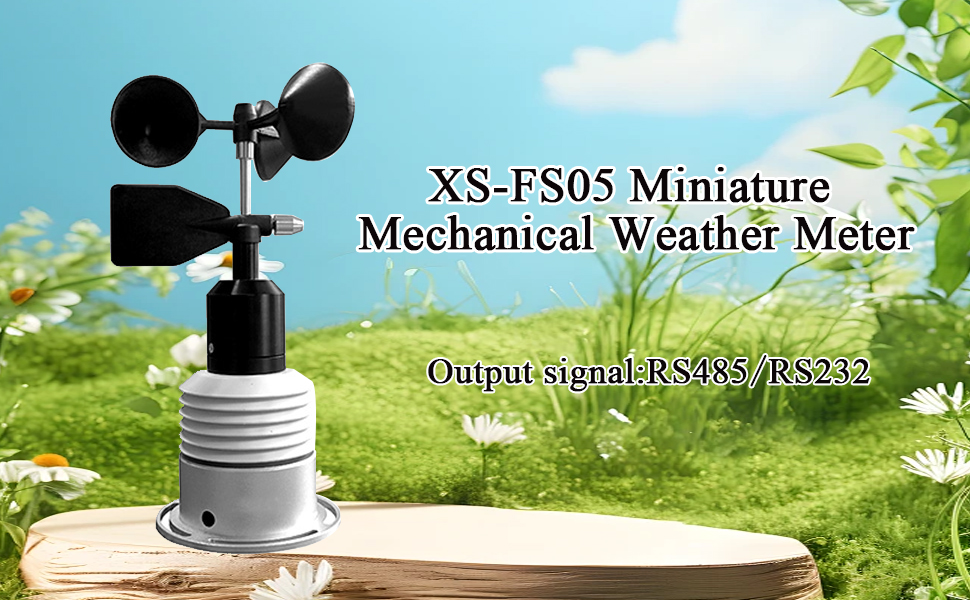

XS-FS05 Miniature Mechanical All-in-One Weather Meter

Model	XS-FS05
Measurement elements	0-45m/s
Accuracy	Starting wind speed ≤0.8m/s
Resolution	0.1m/s
Wind Direction	0-359°

Atmospheric temperature	-40~80℃
Atmospheric humidity	0~100%RH
Atmospheric pressure	300~1100hPa
Communication	RS485 / RS232
Weight	240 g

XS-FS05 Miniature Mechanical All-in-One Weather Meter

This product is an integrated meteorological environment monitoring sensor with small design and high integration. Compared with traditional integrated environmental sensors, the design is smaller, but the function is equally powerful, and it can quickly and accurately measure 5 meteorological environment elements such as wind speed, wind direction, air temperature and humidity, and air pressure.

It is suitable for meteorological environment monitoring in agriculture, meteorology, forestry, electric power, chemical factory, port, railway, highway and other fields.

XS-FS05

It is suitable for meteorological environment monitoring in agriculture, meteorology, forestry, electric power, chemical factory, port, railway, highway and other fields.

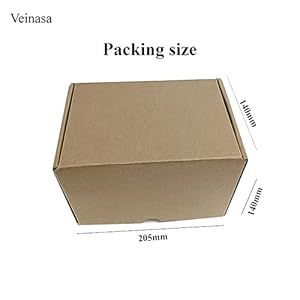

Package size

lAdopts efficient filtering algorithm and special compensation technology for rain and fog weather to ensure the stability and consistency of data.

Dimension

Note: When installing the sensor, align the sensor outlet hole with the geographical south. Mini multi-in-one weather instrument is a precision instrument, handle gently, do not bump.

Wiring method

Functions and Features:

Integrated design, can simultaneously monitor wind speed/wind direction/air temperature and humidity/pressure and other 5 meteorological elements.

• Monitoring elements can be actual needs, optional 5 elements and other combinations.
• The overall design is small and lightweight, the height is about 17CM

Functions and Features:

each set of meteorological instrument is calibrated by wind tunnel and high and low temperature calibration box

Wiring method

485 or 232 or TTL signal output, the sensor sequence is defined as follows:

Red – Power supply positive VCC

Green — The power supply is negative GND

Black — 485A+ / 232_T/TXD

Yellow — 485B- / 232_R/RXD

Note: Make sure that the wiring is correct before sending power.
