WXG-4 Visual Disc Polarimeter

WXG-4 Visual Disc Polarimeter

• Measurement Range: Typically ±180° optical rotation.
• Accuracy: High precision for laboratory use.
• Usage: Commonly used for determining sugar content in food and beverages, as well as analyzing pharmaceuticals and chemicals.
• Operation: Uses a manual visual alignment method with a polarized light source.

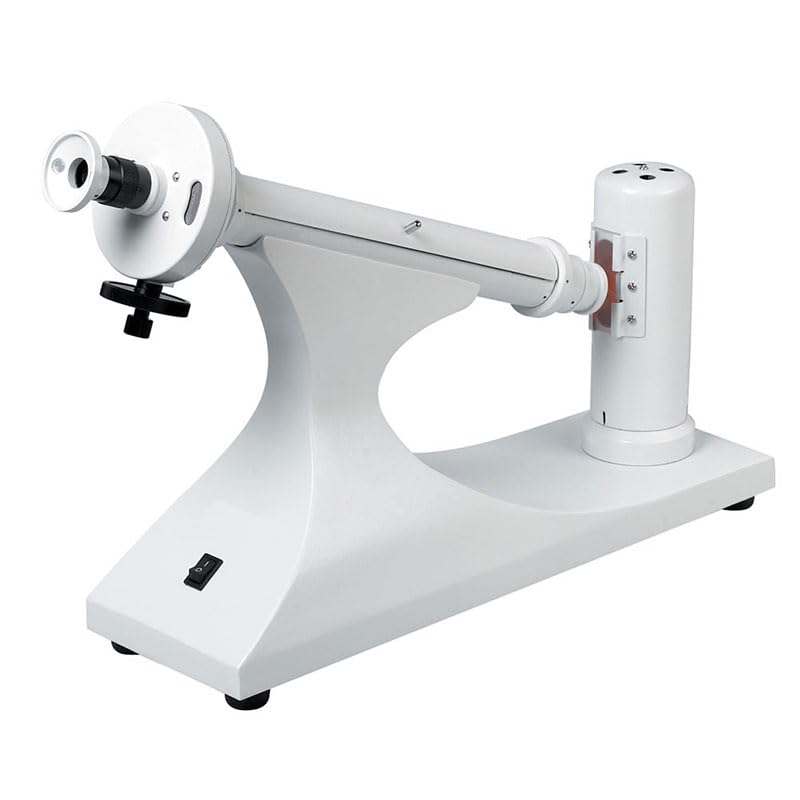

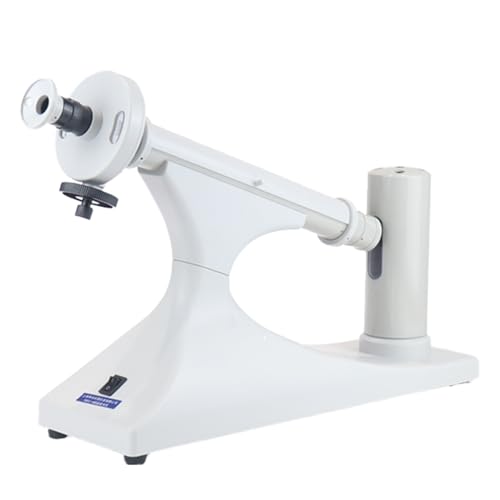

The WXG-4 Visual Disc Polarimeter is a device used to measure the optical rotation of substances, often applied in the food, pharmaceutical, and chemical industries. It helps determine the specific rotation of optically active substances, such as sugars, essential oils, and other chiral compounds.

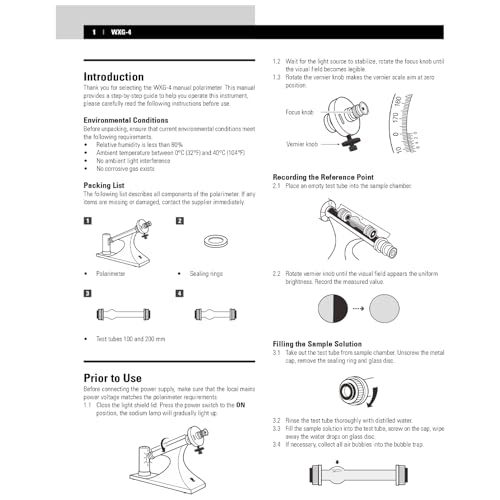

WXG-4 polarimeter is installed with a 589nm sodium lamp. Switch on the power, the polarized light radiates to the polarizer filter. The user is able to observe the distinct visual fields through eyepiece. Place the test tube into the measuring chamber and rotate the vernier knob until the visual fields appear the equal brightness.

Measurement range: ±180°
Light source Sodium Lamp / LED + interference filter
Division Value: 1°
Dial Venire Value in Reading: 0.05°
Magnifying Factor of the Magnifying Glass: 4 times
Wavelength: 589.44nm
Test Tube: 100mm/200mm (regular)
Weight (gross): 7kg
Overall Dimensions: 600mm x 220mmx 400mm

Applications:
Food Industry: Measures sugar concentration in solutions (e.g., sucrose, glucose).
Pharmaceuticals: Determines purity and concentration of optically active drugs.
Chemicals: Used for quality control of essential oils, chiral compounds, and more.
